Product Description:

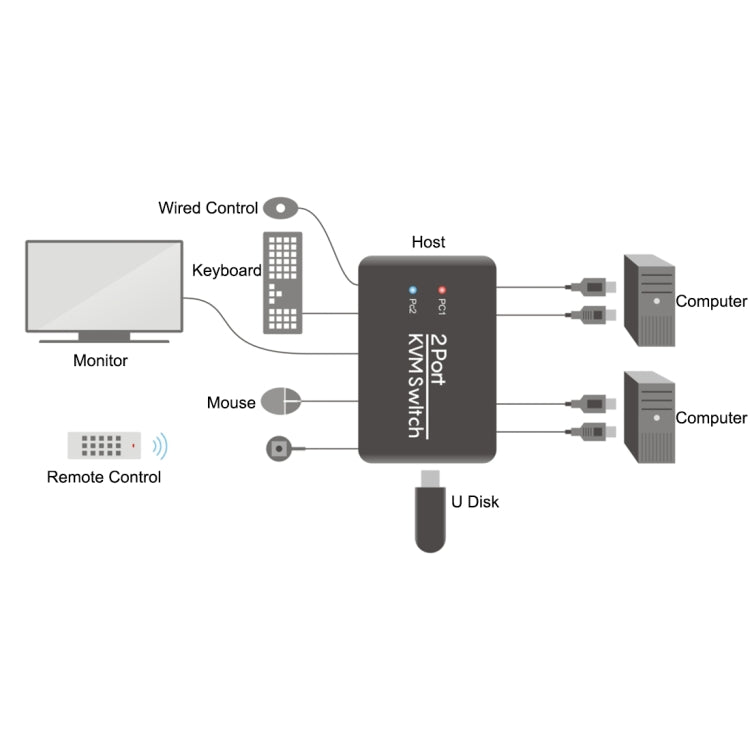

This product can control multiple computers through a set of mouse, keyboard and display. It is easy to operate, improve work efficiency and save cost.
Features:
1. Support hotkey switching
2. Support infrared remote control switching
3. Support for remote control button switching
4. Support U disk read and write
5. Support LED switching channel indication
6. Support most mouse and keyboard on the market
Product Parameters:
1. Applicable systems Windows, Apple, MAC Linux, Netware, Unix
2. Input port: HDMI& USB-A
3. Output port: HDMI
4. Control port: USB-A
5. Read and write port: USB-A
6. USB port version: USB2.0
7. HDMI port version: HDMI2.0
8. The highest resolution: 4K@60HZ
The product supports three switching methods:
1. Hotkey switch
2. Remote control switching
3. Line control button switching
Hotkey switching operation instructions:
Option One.
2. Switch to the first computer: press and hold the keypad "*", then press and hold "1" and then release
3. Switch to the second pair of computers: press and hold the keypad "*", then press and hold "2" and then release
Option Two:
1. Switch to the first computer: Press and hold "CTRL" and "ALT" at the same time, then press "1" to switch to the second computer
2. Switch to the second computer: Press and hold: "CTRL" and "ALT" at the same time, then press "2"
Reset:
Click "CTRL" "CTRL" "R" consecutively
