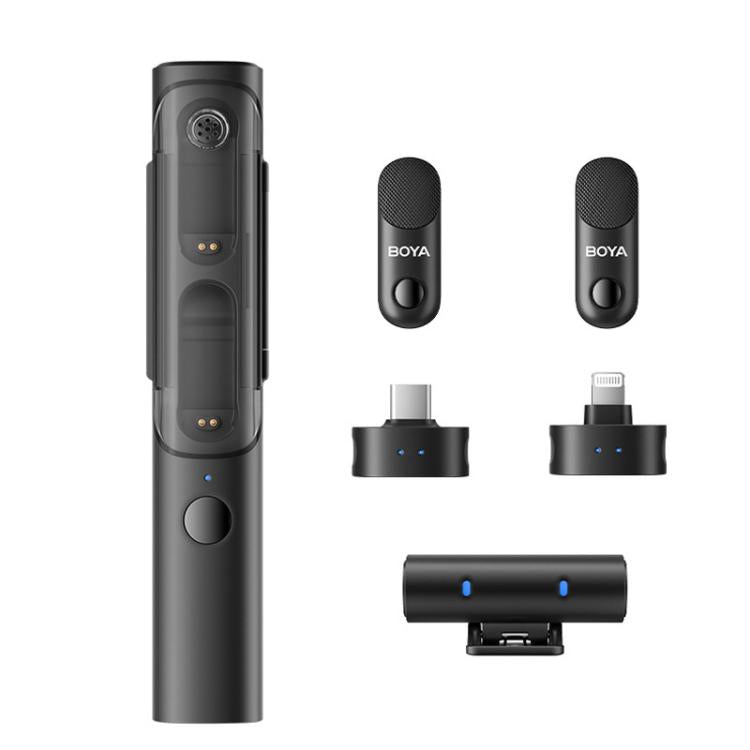

Transmitter:
1. Transmission method: 2.4GHz digital band
2. Transmission distance: 100m (unobstructed), 10m (obstructed)
3. Microphone polar pattern: omnidirectional
4. Signal modulation: GFSK
5. Antenna type: LDS
6. RF output power: <10 dBm
7. Distortion: ≤0.1%
8. Frequency response: 20 Hz to 20 kHz
9. Sensitivity: -33.5 dB
10. Reference audio input level: -20 to -42 dBu (MIC input, 0dB gain)
11. Sampling rate: 48kHz
12. Bit depth: 24-bit
13. Signal-to-noise ratio: ≥80 dB
14. Audio input: built-in condenser microphone
15. Maximum sound pressure level: ≥115 dB
16. Power supply: built-in lithium battery
17. Battery capacity: 90mAh
18. Battery life: about 6 hours
19. Charging time: about 2 hours
20. Charging/operating temperature: 0 to 45 degree Celsius
21. Storage temperature: -20 to 55 degree Celsius
22. Weight: about 7g
23. Size: about 35 x 15.2 x 13mm
Charging case:
1. Battery capacity: 500mAh
2. Charging time: about 2 hours (5V 2A)
3. Charging port: Type-C
4. Charge cycles: over 1.5 times (2 x transmitters)
5. Weight: about 62.5g
6. Size: about 14.13 x 2.65 x 2.1cm
Type-C/8-Pin receiver:
1. Antenna type: ceramic antenna
2. Power supply: powered by external device
3. Weight: about 5g
4. Size: about 19.55 x 24 x 21mm
3.5mm TRS receiver:
1. Antenna type: ceramic antenna
2. Audio output: 3.5mm TRS analog output
3. Power supply: built-in lithium battery
4. Battery capacity: 200mAh
5. Weight: about 16g
6. Size: about 42.2 x 30 x 19.4mm

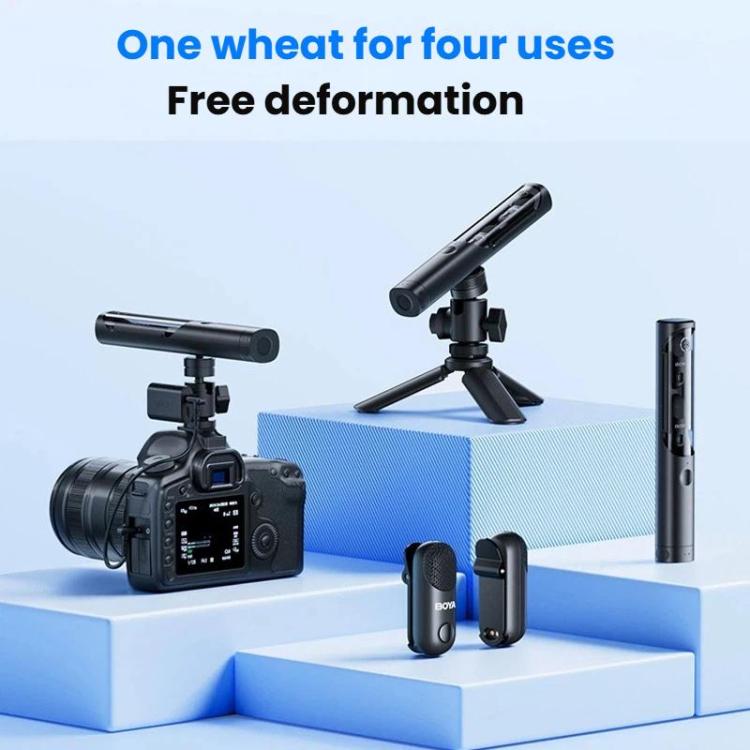

Features:
1. Wireless lapel mic: transmitter features 13mm ultra-thin design that hugs clothing, weighing only 7g. works with phone receiver for instant recording.
2. Handheld interview pen: bar-shaped charging case doubles as handheld mic. No assembly or cables needed. built-in button controls transmitter power directly from the case without removal.
3. Wireless desktop mic: Ideal for indoor podcasting/meeting recording. With a desktop stand (not included), Magic transforms into a wireless desktop mic. Plug the USB receiver directly into your computer, no cables needed. Omnidirectional 360 degree balanced pickup

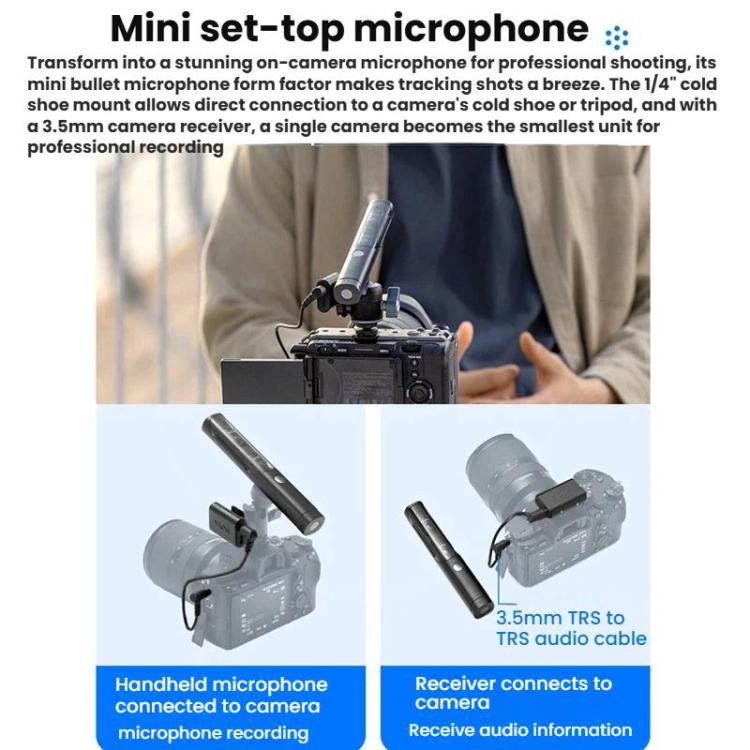

4. Mini microphone on-camera: transforms into a professional on-camera mic for stunning camera-mounted shots. compact design enables effortless follow-camera operation. features a 1/4-inch cold shoe mount for direct attachment to camera cold shoes or tripods

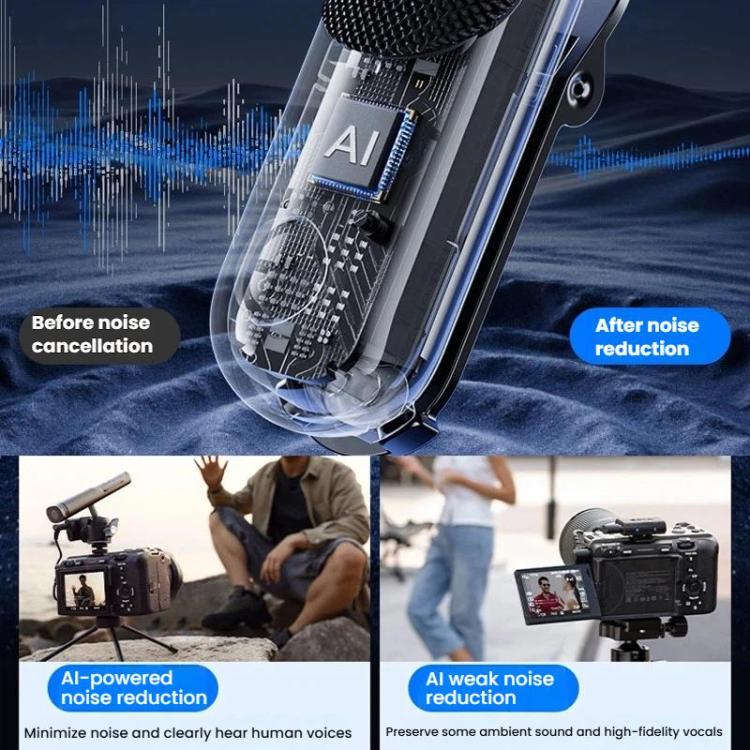

5. Embedded AI neural network algorithm chip precisely identifies noise, extracts vocals, and suppresses unwanted sounds.

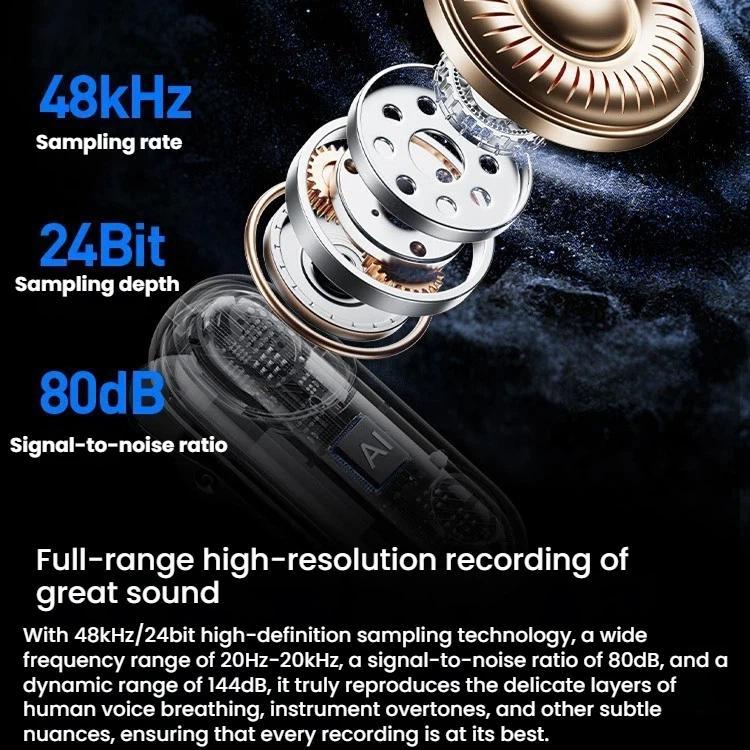

6. 48kHz/24-bit high-definition sampling technology, 20Hz-20kHz wide frequency response, 80dB signal-to-noise ratio, 144dB dynamic range, faithfully reproducing subtle nuances like vocal breaths and instrument overtones

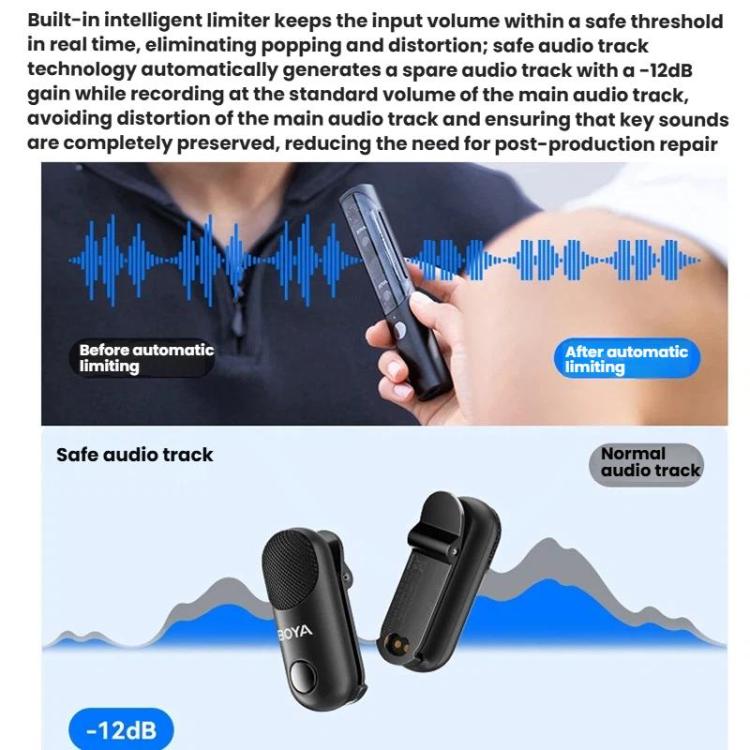

7. Built-in intelligent limiter maintains input volume within safe thresholds in real time, eliminating distortion from clipping
8. Safety track technology simultaneously records the main track at standard volume while automatically generating a backup track at -12dB gain. This prevents distortion on the main track while ensuring critical audio is fully preserved, reducing post-production repair needs

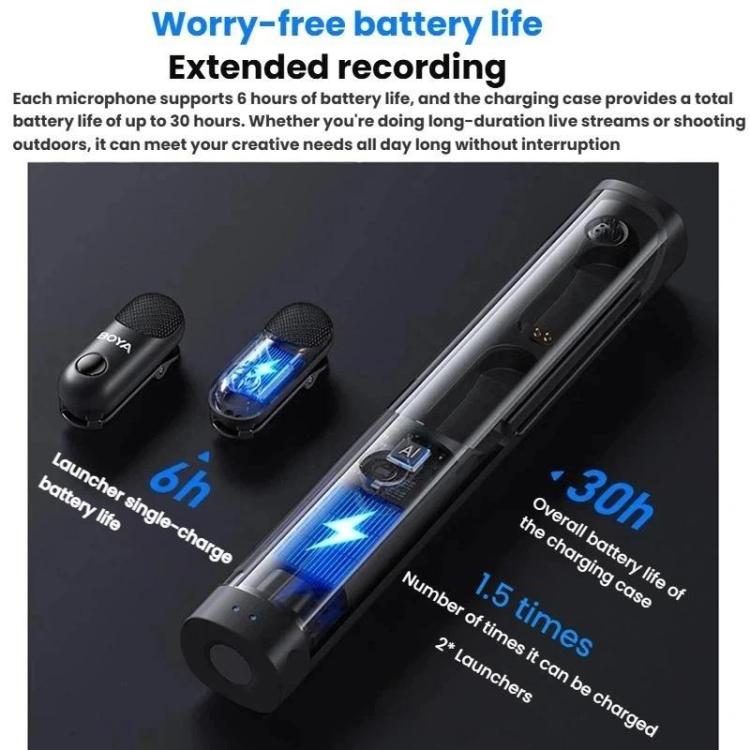

9. Single microphone delivers 6 hours of battery life; charging case provides up to 30 hours total runtime with simultaneous charging and use, featuring integrated storage

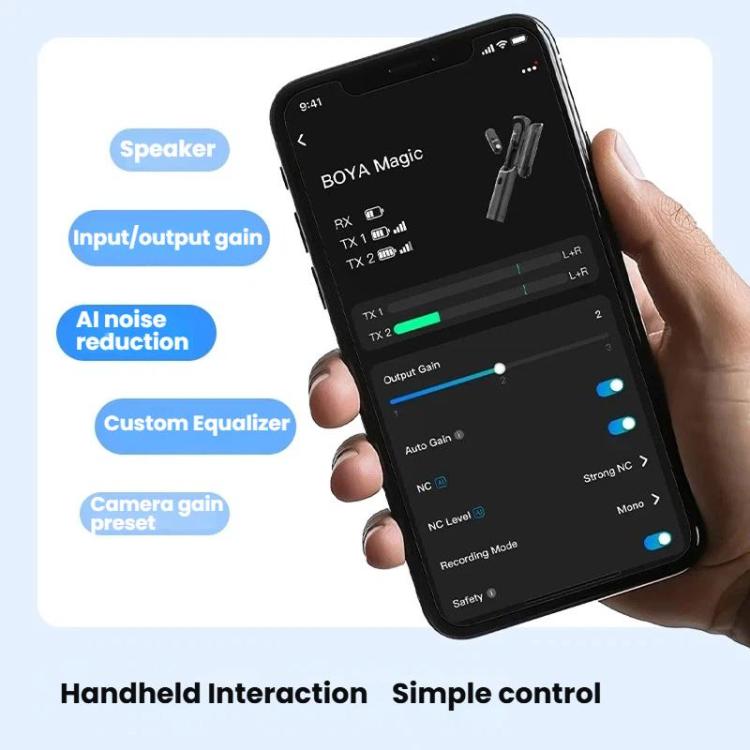

10. BOYA Central App enables remote adjustment of AI noise reduction, input/output gain, audio playback, custom EQ, and camera gain presets for real-time microphone control during mobile recording

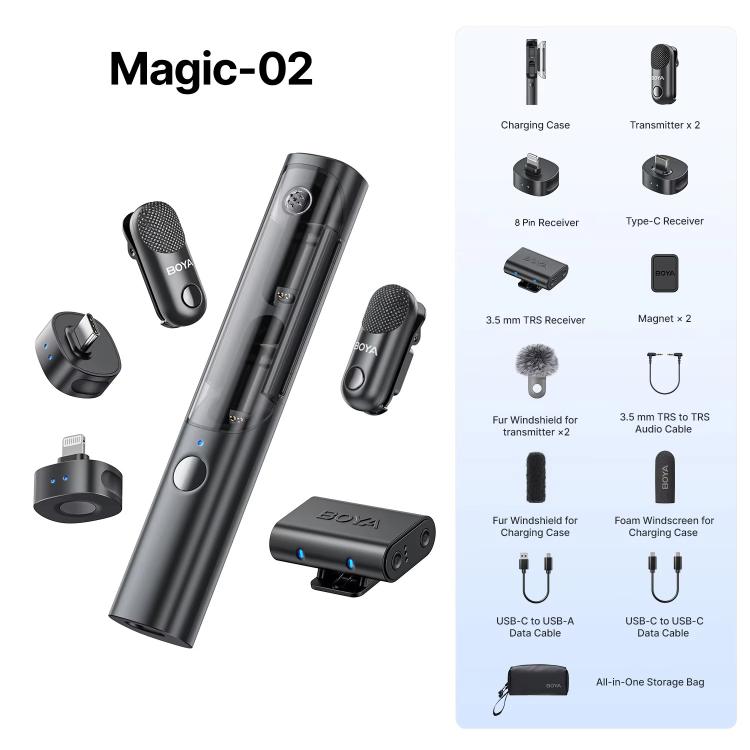

02 Package list:
- Charging case x 1
- Transmitters x 2
- Type-C receiver x 1
- 8-pin receiver x 1
- Camera receiver x 1
- 3.5mm TRS to TRS audio cable x 1
- Magnetic pads x 2
- Transmitter windshields x 2
- Type-C to Type-C cable x 1
- USB-A to Type-C cable x 1
- Pop filter x 1
- Handheld windscreen x 1
- Storage bag x 1
05 Packaging list:
- Charging case x 1
- Transmitter x 2
- Type-C receiver x 1
- USB-A to C cable x 1
- Magnetic pads x 2
- Transmitter windscreen x 2
- Handheld windscreen x 1
- Small storage bag x 1
07 Package list:
- Charging case x 1
- Transmitter x 1
- Type-C receiver x 1
- USB-A to C cable x 1
- Magnetic pad x 1
- Transmitter windscreen x 1
- Handheld windscreen x 1
- Small storage bag x 1
