1. DC voltage range/resolution/accuracy: 0.001-610 V / 0.001 V / +/- (0.8% + 3)
2. AC voltage range/resolution/accuracy: 0.001-610 V / 0.001 V / +/- (1.0% + 3)

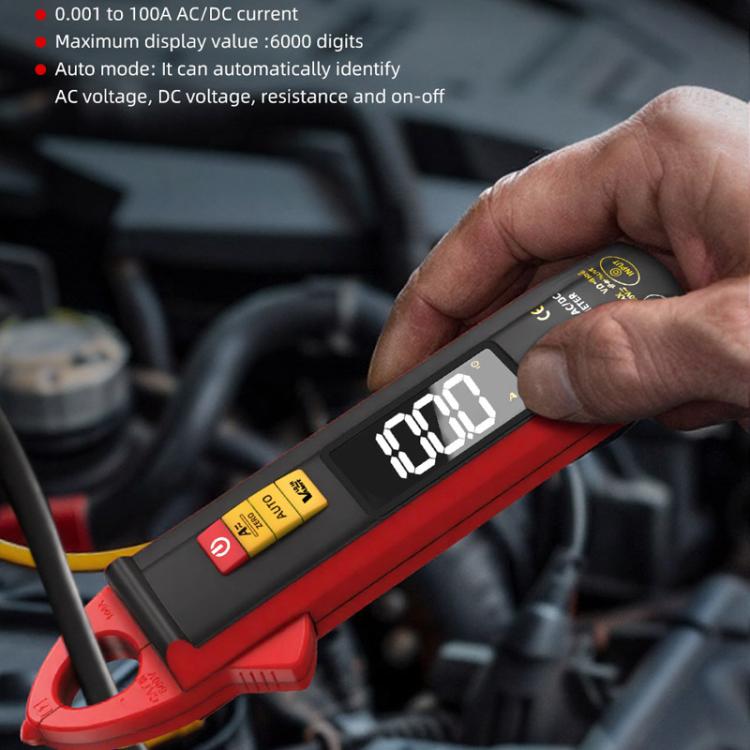

3. DC current range/resolution/accuracy: 0.001-100 A / 0.001 A / +/-(3%+5)
4. AC current range/resolution/accuracy: 0.001-100 A / 0.001 A / +/-(3%+5)
5. Resistance range/resolution/accuracy: 0.1ohm-60 M ohm / 0.1 ohm / +/-(1.2%+3)
6. Capacitance range/resolution/accuracy: 0.01 μF-60 μF / 0.01 μF / +/-(3.5%+8)
7. Frequency range/resolution/accuracy: 1 Hz-9.999 MHz / 0.001 Hz / +/-(2.0%+10)
8. Duty cycle range/resolution/accuracy: 10.0-95.0% / 0.1% / +/-3.0%
9. Temperature (Type K thermocouple) range/resolution/accuracy: -50 to 1000 degrees Celsius / 1 degree Celsius / +/-(2.0%+3)
10. Ambient temperature range/resolution/accuracy: 0 to 50 degrees Celsius / 1 degrees Celsius / +/-2 degrees Celsius
11. Buzzer activation: the buzzer sounds when the measured resistance is less than 50 ohms
12. Diode: automatic recognition of diodes with voltage less than 3V
13. Auto-off: 15 minutes
14. Other functions: non-contact voltage detection, live wire detection
15. Power supply: built-in 3.7V 400mA lithium battery
16. Charging port: Type-C

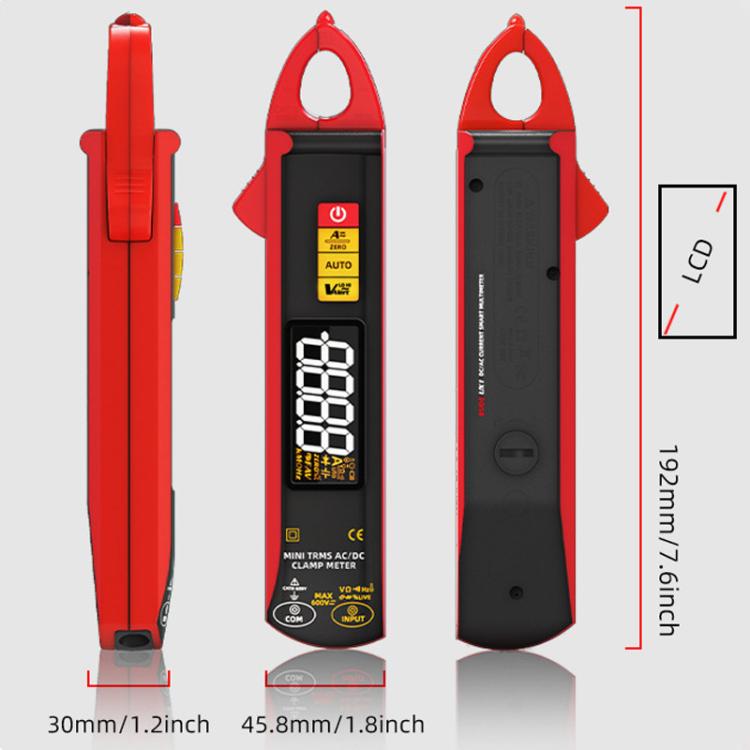

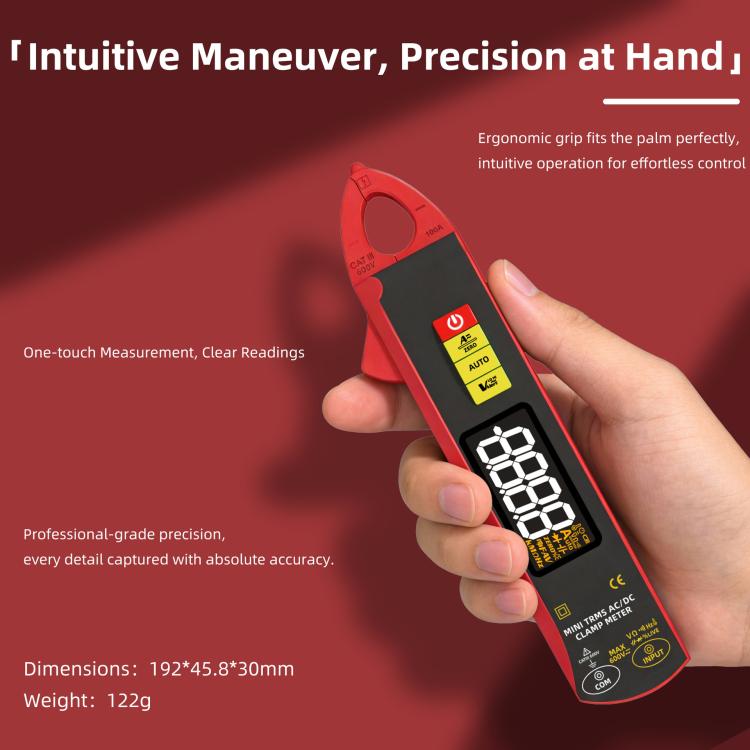

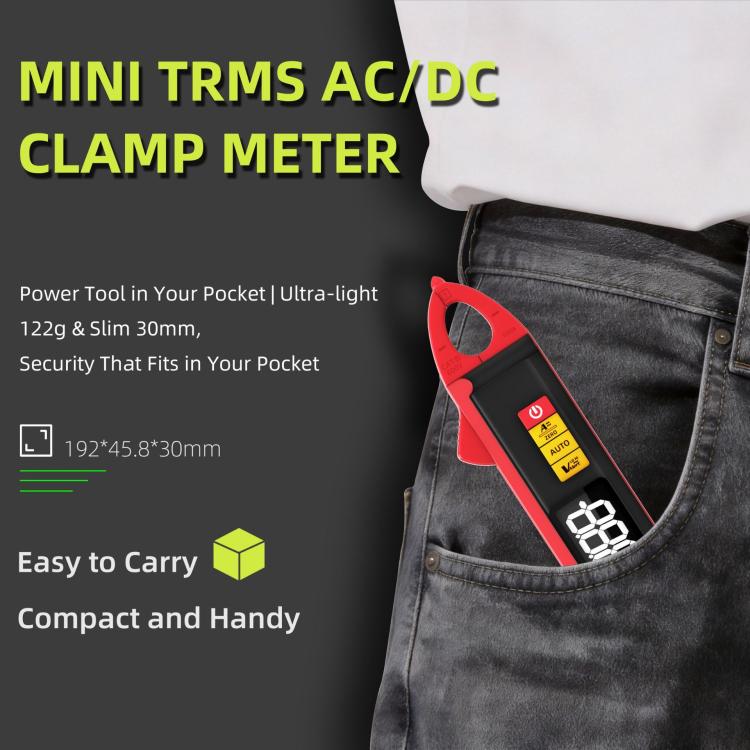

17. Size: about 19.2 x 4.58 x 3 cm
18. Weight: about 122 g
Features:

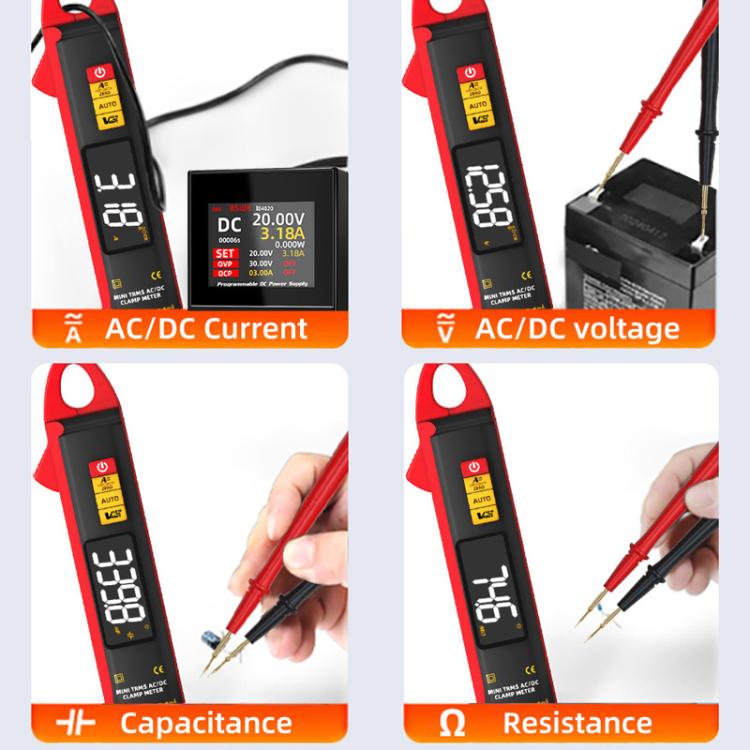

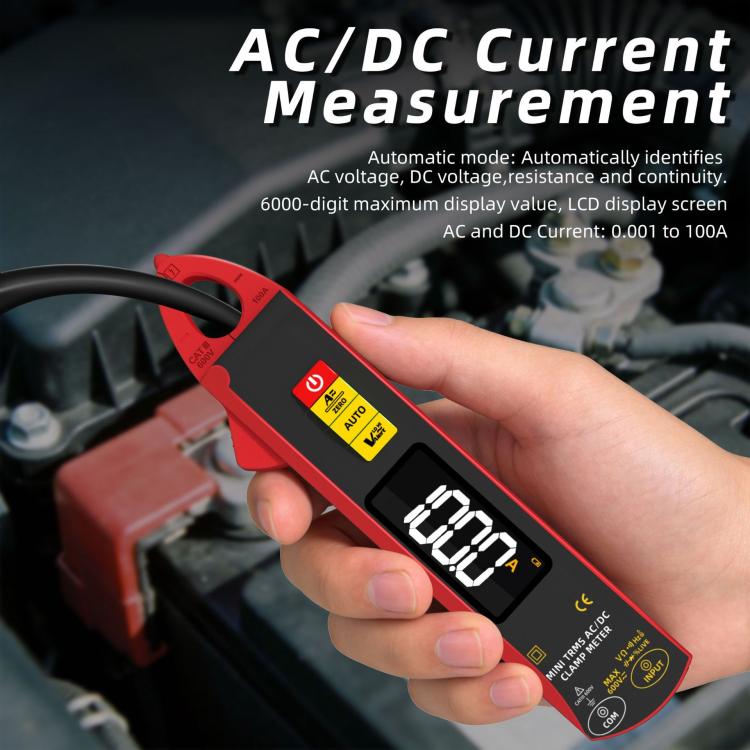

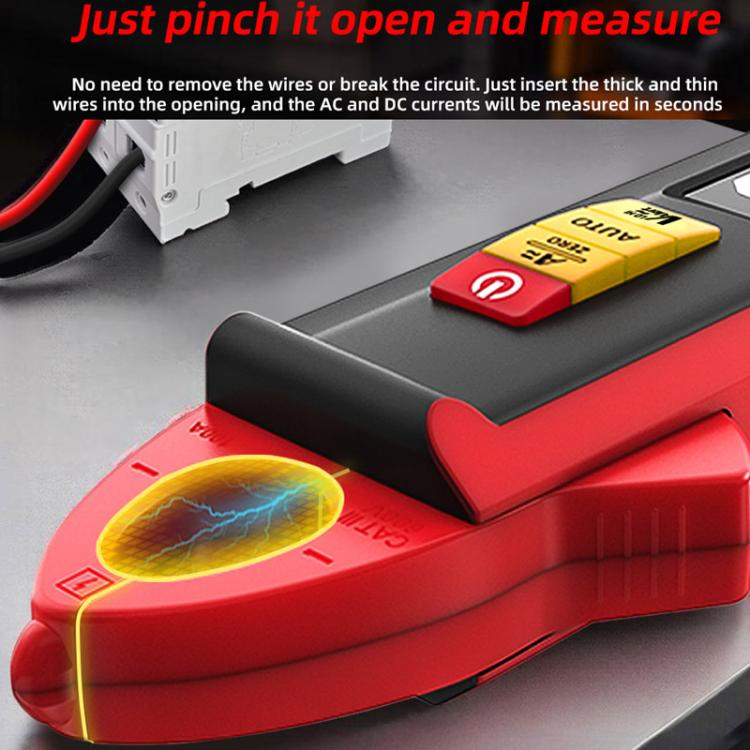

1. No need to strip wires or interrupt circuits; simply clip thick or thin wires into the openings to instantly display AC and DC current readings

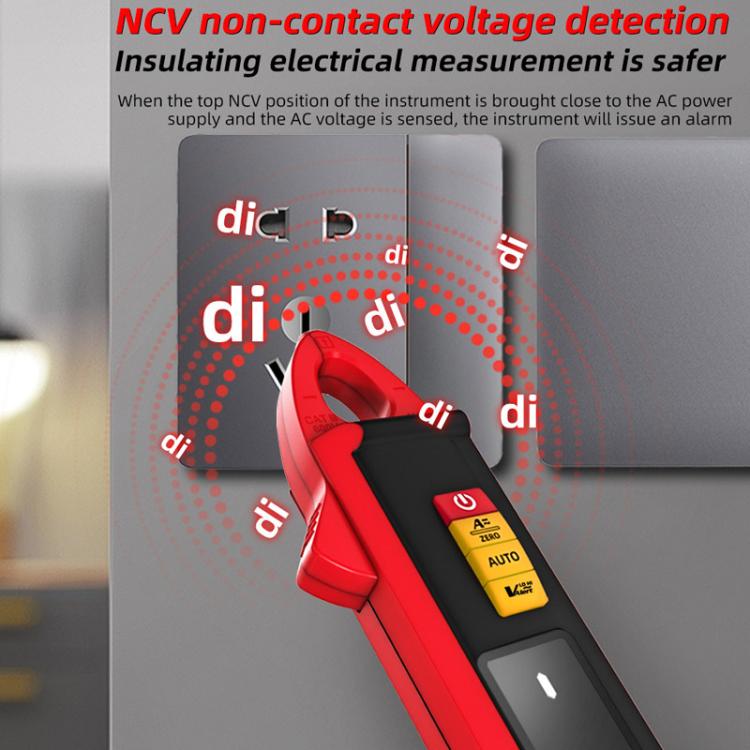

2. NCV (Non-Contact Voltage Detection) for safer voltage testing without physical contact

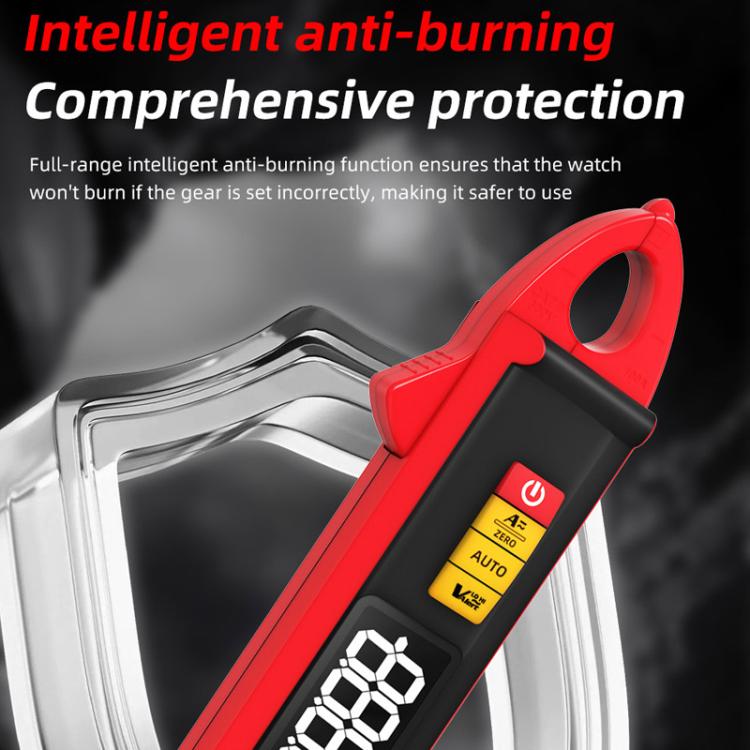

3. Full-range intelligent burnout protection; the meter won’t burn out even if the wrong range is selected, ensuring safer use

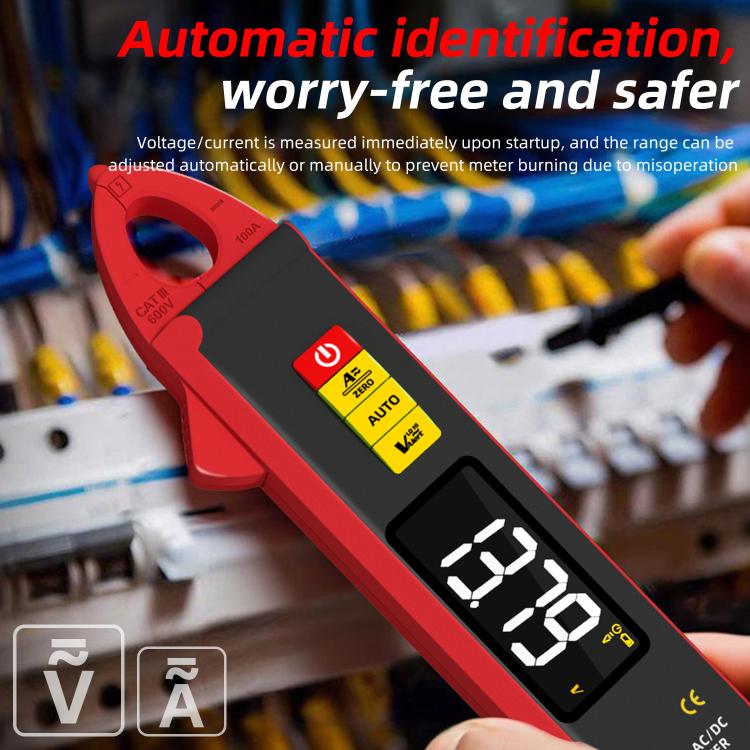

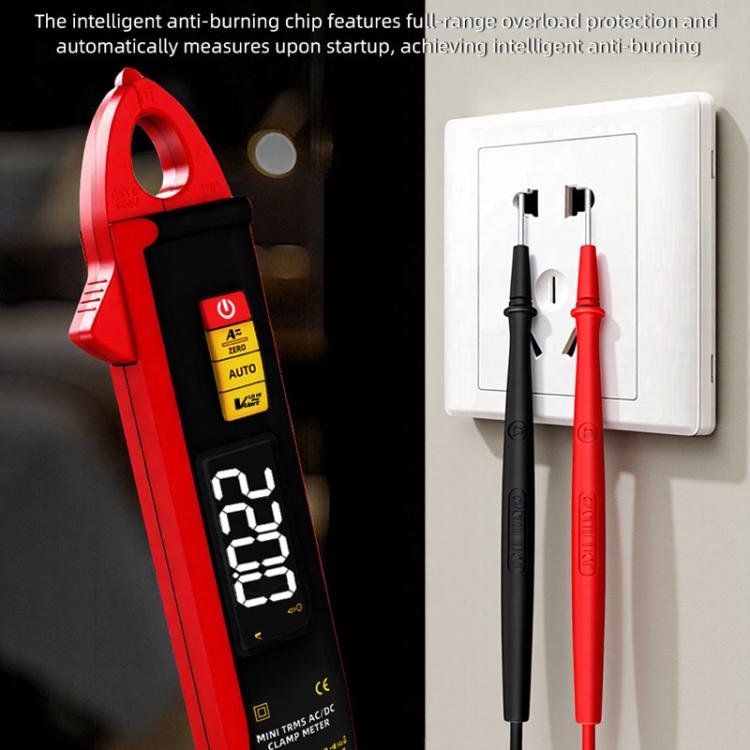

4. Intelligent burnout protection chip with full-range overload protection; automatically starts measuring upon power-on

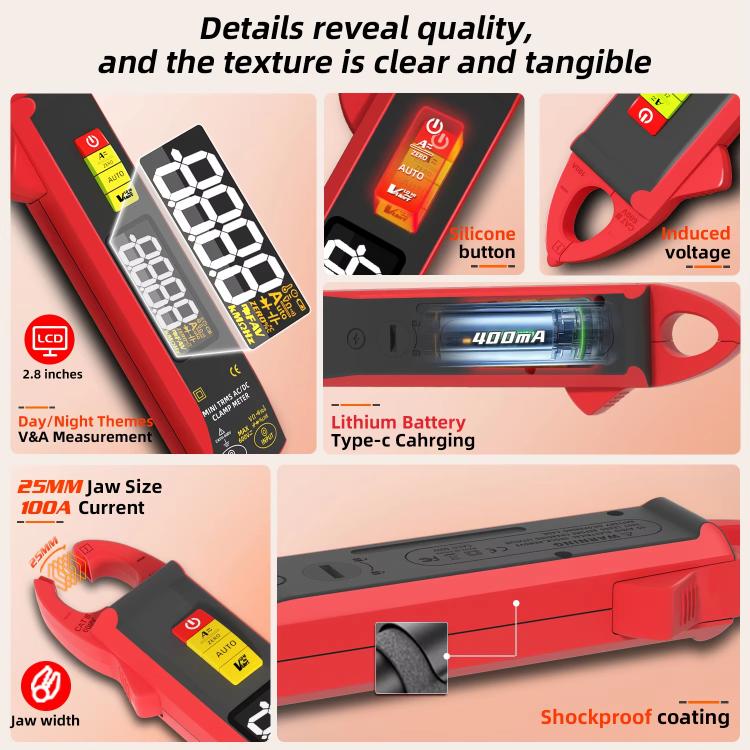

5. 2.8-inch HD LCD screen for clear readings
6. Silicone buttons for easy operation

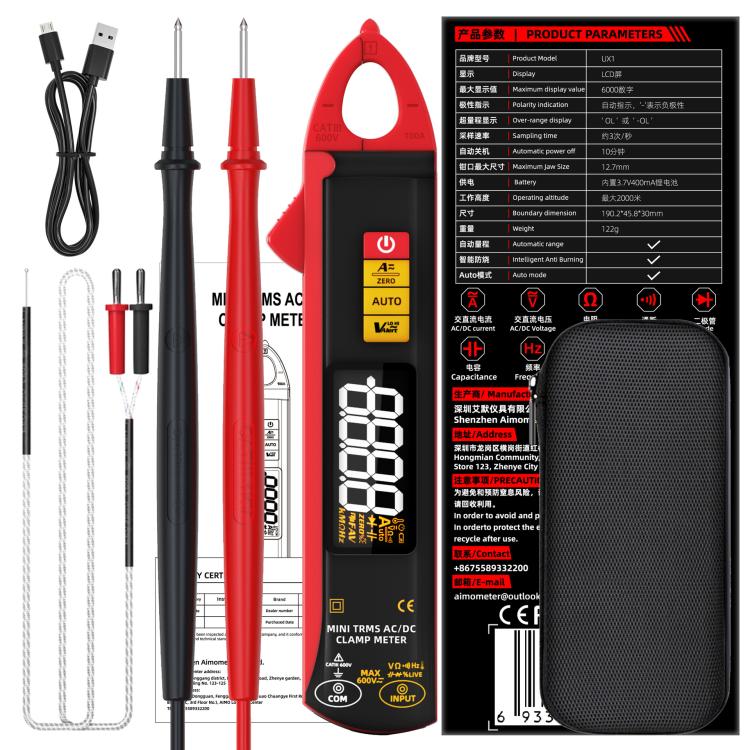

Package list:
1. Tester x 1
2. Test leads x 2
3. Type K thermocouple x 1
4. Charging cable x 1
5. Storage case x 1
6. User manual x 1
