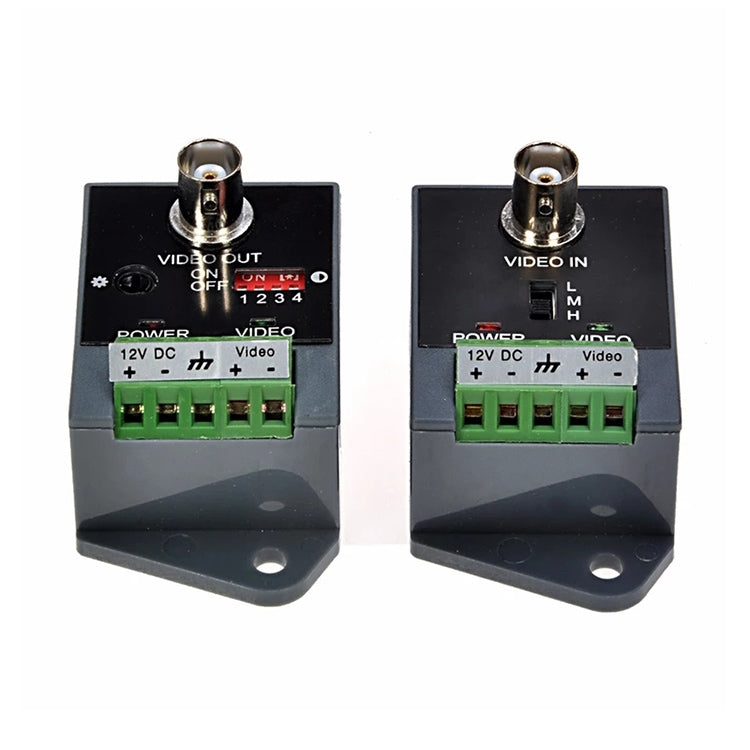

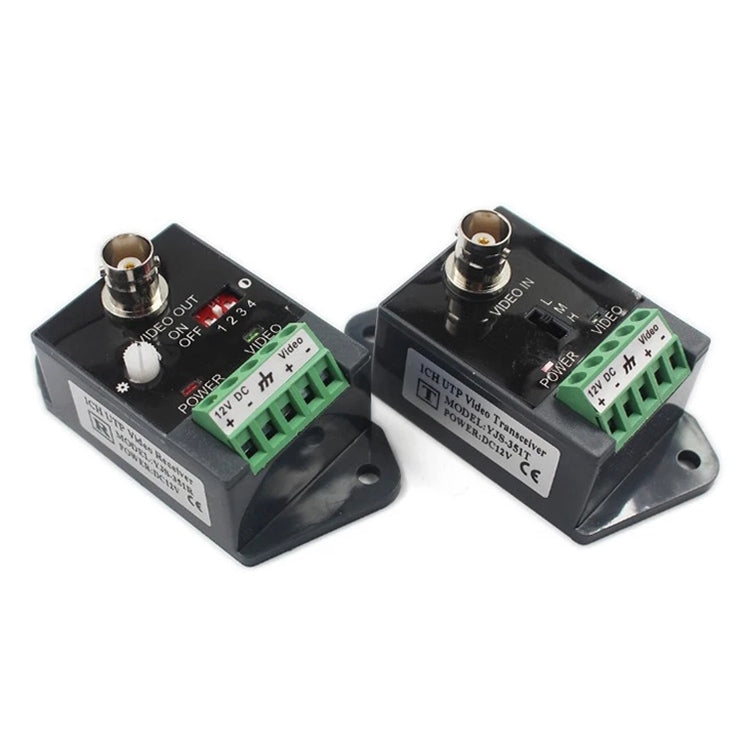

1. Smart Twisted Pair Video Balun are designed for CCTV signal transmission over unshielded twisted pair wire

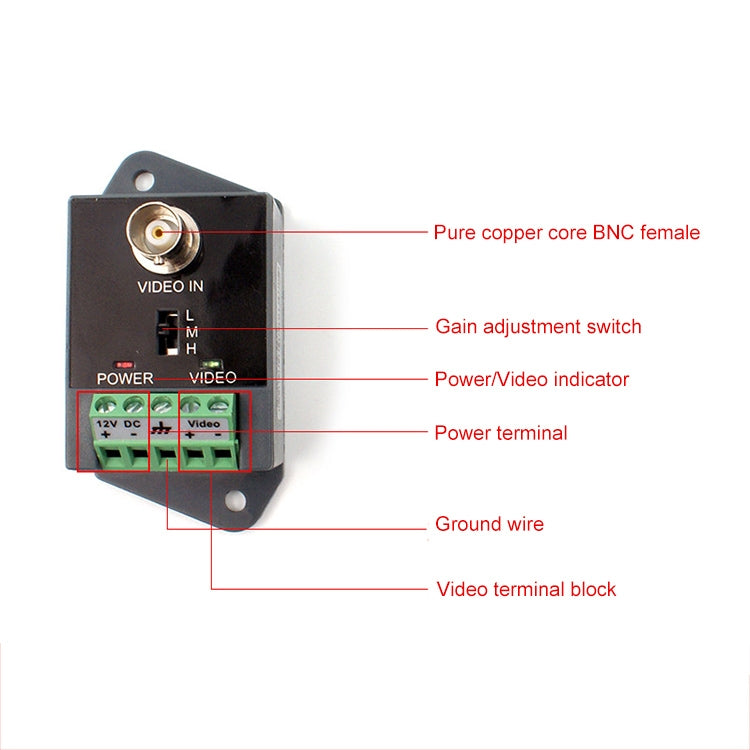

2. Three position range switch for gain select on transmitter.

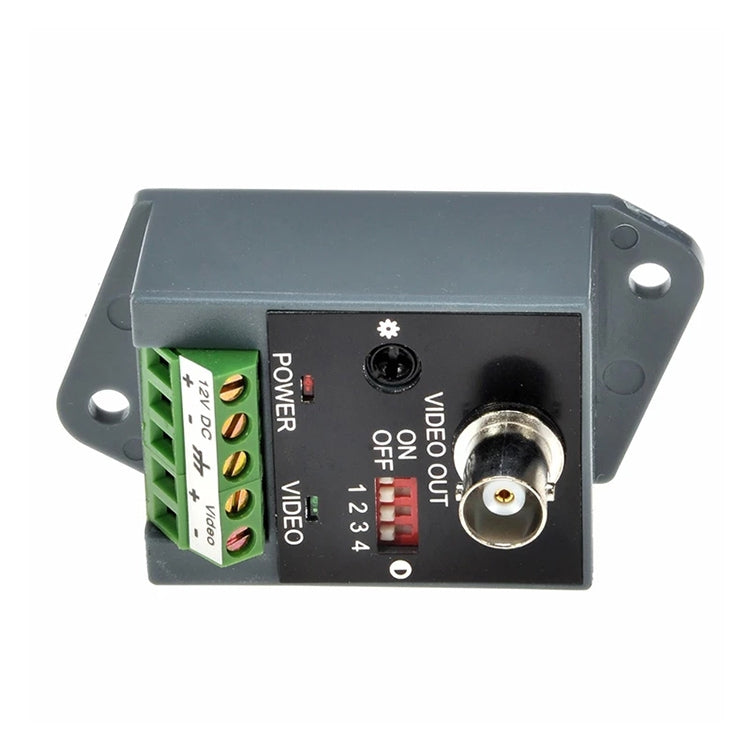

3. 4 position distance range switch on Receiver

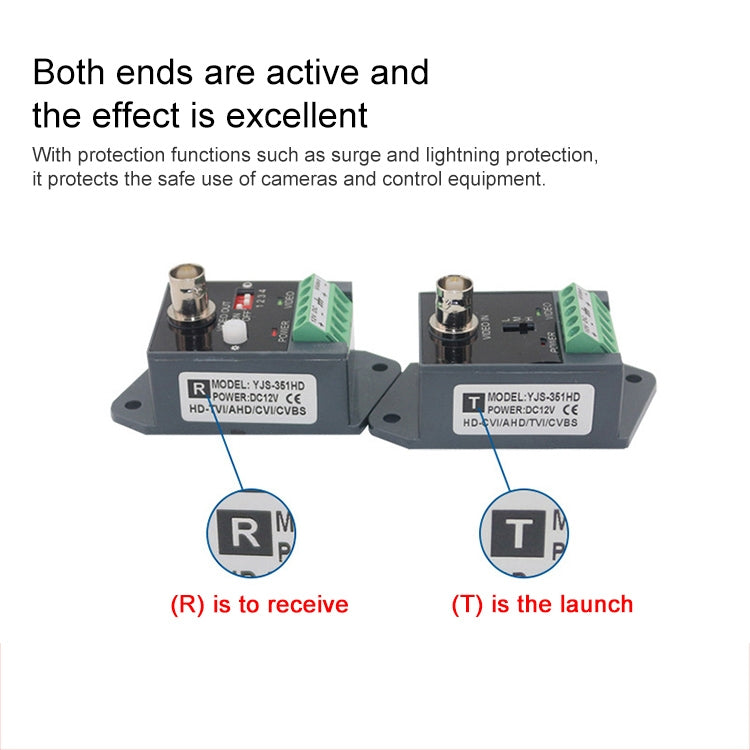

4. UTP Video Balun with built in transient protection and ground lifting.
5. Specification of the CCTV Video Balun: single-channel
6. Frequency response: DC-6MHz
7. Common-mode/differential-mode rejection: 15kHz to 6MHz 60dB type
8. Impedance: BNC 75 Ohms
9. UTP/connector: 100 Ohms or RJ-45 100 Ohms
10. Environment:
- Temperature: 0 to 50 degrees Celsius
- Humidity: 0 to 95%
11. Wire type:
- Full-motion CCTV video at long distances (9,000ft / 3000M)
- Built-in linearity, sharpness and charoma control
- Enable unparalleled common interference rejection
- Built-in transient protection
- Improve the picture definition when connet to DVR or Quad, and reduce noise affects
- Dimensions: 76 x 40 x 26mm
