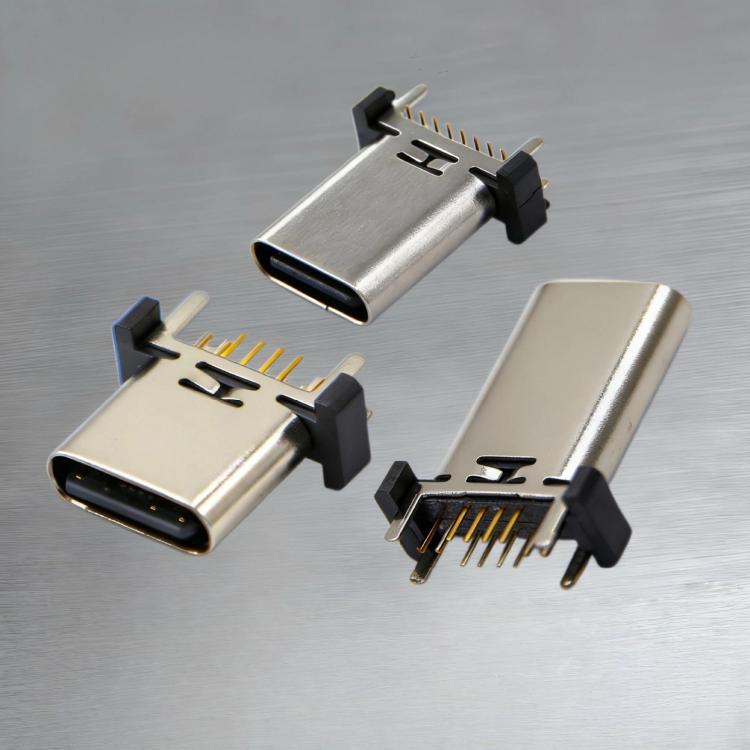

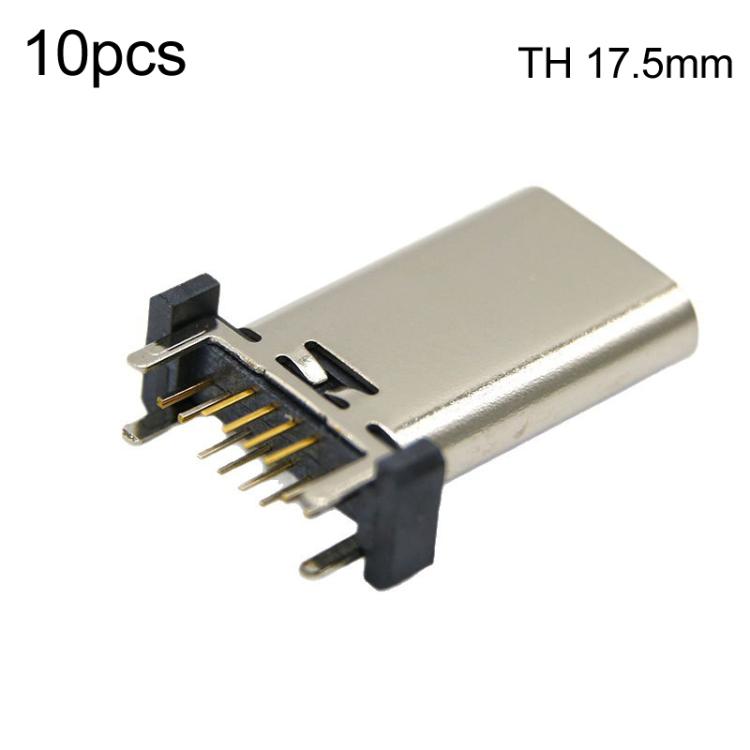

10pcs 16-Pin USB Type-C Female Connector PD Fast Charge Port TH 17.5mm

R 164.37
R 164.37
Sold out
Shipping calculated at checkout.

I. Electrical Performance:
1. Rated Current: 5.0A
2. Contact Resistance: 40 milliohms maximum
3. Withstanding Voltage: 100V AC / 1mA MAX
4. Insulation Resistance: 150V DC / 100 megohms minimum
II. Mechanical Performance:
1. Insertion Force: 5~20N
2. Withdrawal Force: 8~20N
3. Service Life: 10,000 cycles, withdrawal force 5N MIN
