1. Material: ABS
2. OE: 13168
3. Applicable to Thetford Aqua Magic IV (high and low models)
4. Designed for the convenience of self-installation by users, detailed installation instructions and necessary accessories such as screws, washers, etc. are provided to ensure that the replacement process is simple and quick
5. Optimize water flow control to achieve flushing effect while reducing water consumption, suitable for water-saving requirements for RV use
6. Sealing technology ensures that the water valve is tight and leak-free, prevents water leakage caused by vibration during travel, and keeps the car clean and hygienic
7. The main function is to effectively control the water flow and ensure that the flow of water can be accurately regulated when using the toilet
Installation instructions:
1. Before installing the water valve, place the float assembly in an upright position
2. Place the O-ring on the neck of the water valve, turn the toilet upside down, and install the water valve with two anchor screws
3. Stand the toilet upright, re-engage the connecting rod and lever spring to the locked position, put the mechanism cover in place, and then turn the toilet upside down
4. Install four machine screws, place toilet upright, reinstall seat and cover, install flange seal, reinstall to floor, connect water pipe
Product composition:

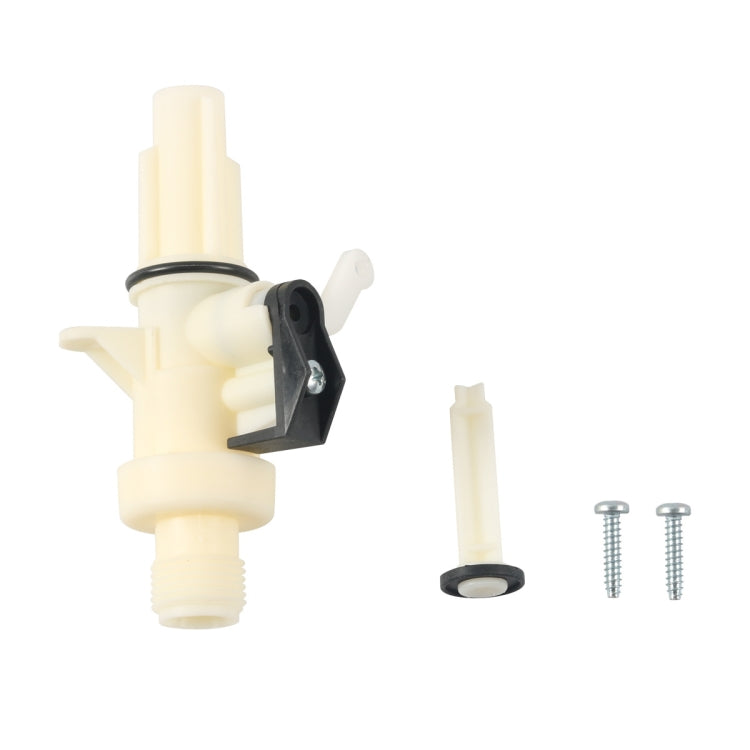

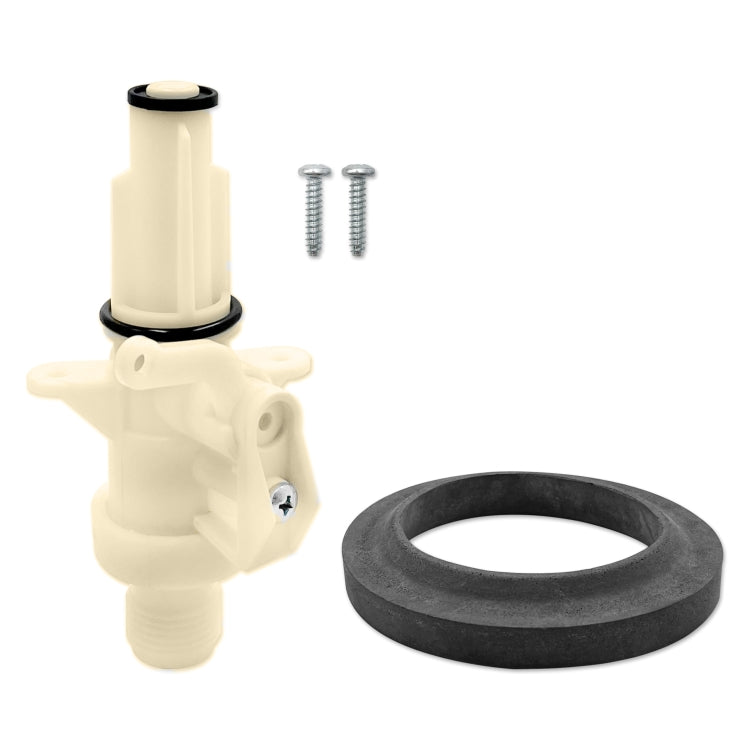

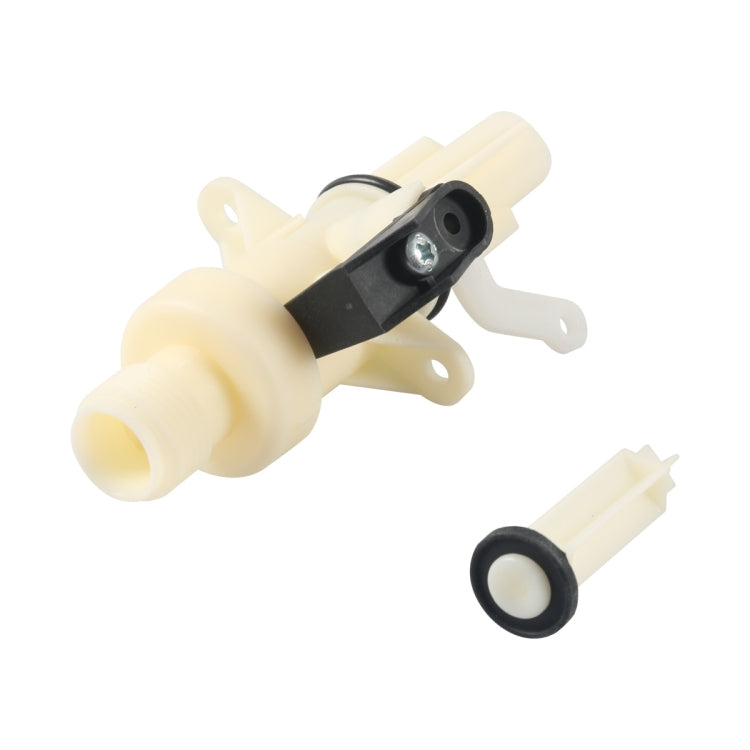

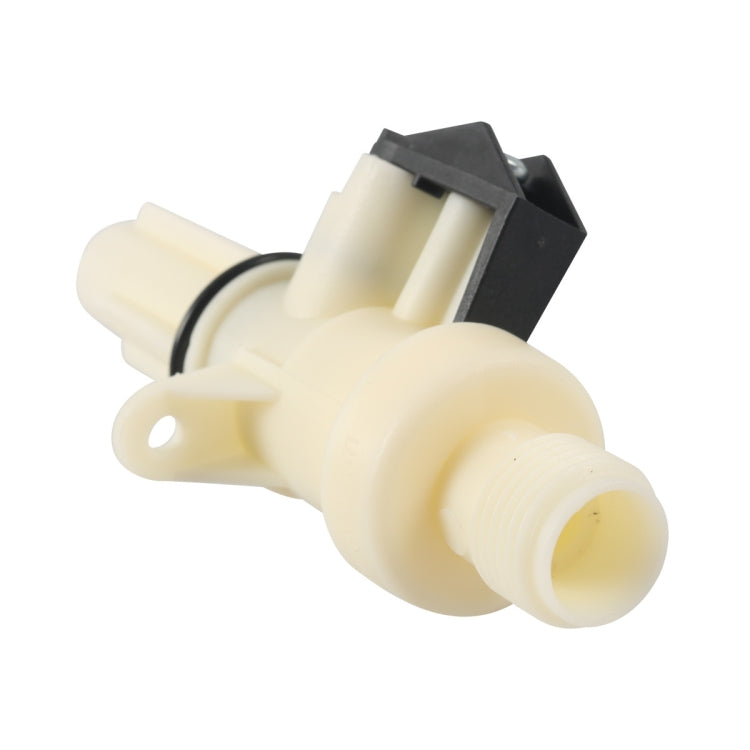

Toilet water valve x 1

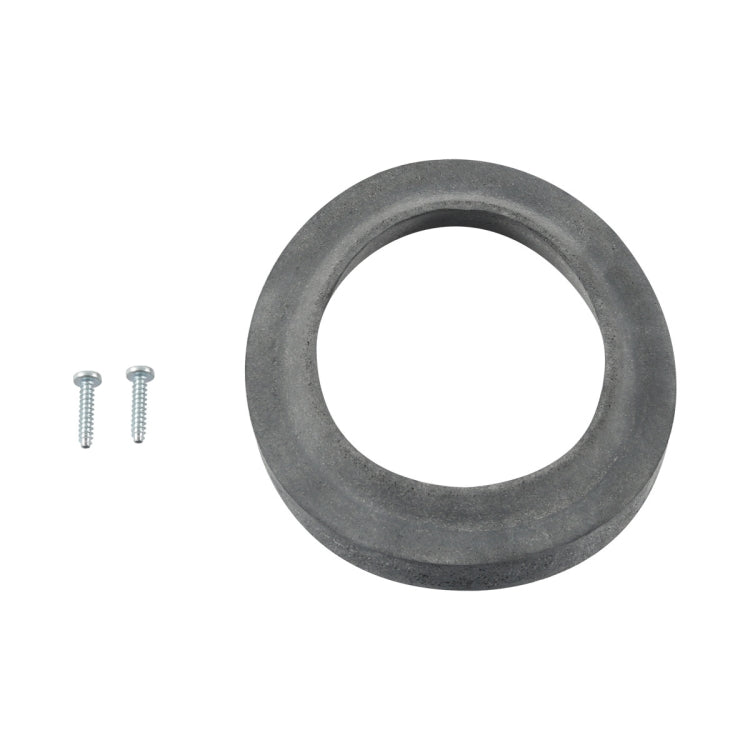

Gasket x 1
Screws x 2
