1. Brush: copper
2. Resistor: bakelite
3. Rotation angle: 200 degrees
4. Rotational torque: 60-150 g/cm
5. Stop strength: 500 g/cm
6. Mechanical strength: the resistor can withstand 1 kg of pressure without breaking
7. Resistance range (Ohms): 100R-1M
8. Resistance change characteristic: B
9. Operating voltage: 50V (MAX)
10. Rated: 0.1W
11. Residual resistance: no more than 5 percent of the nominal resistance, no more than 30 ohms
12. Rotational life: 15 percent resistance change after 100 rotations without load
13. Load life: 5 percent resistance change after 3 hours with rated power
14. Adjustable resistors have a wide range of applications, including home appliances and the electronic security industry. Specific products include televisions, induction cookers, rice cookers, and more.

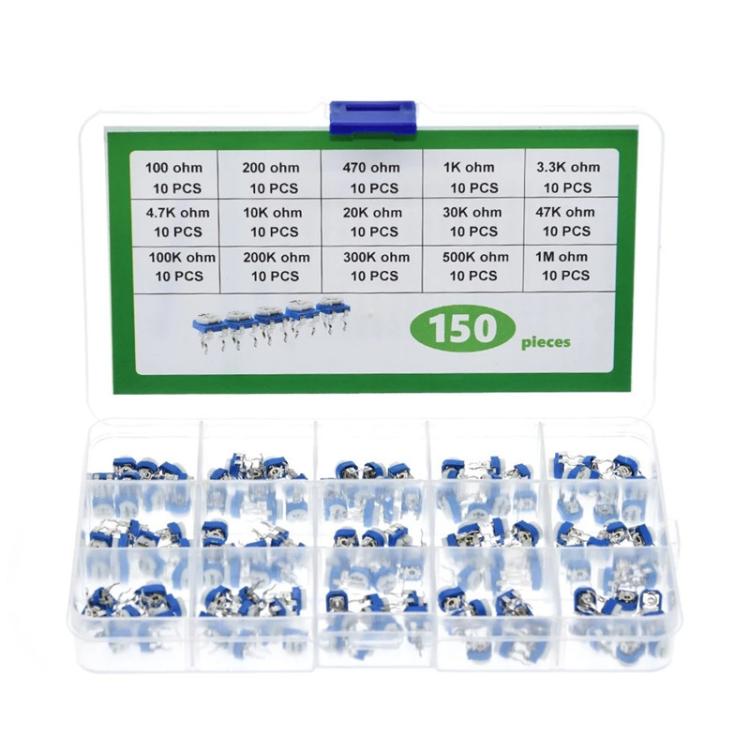

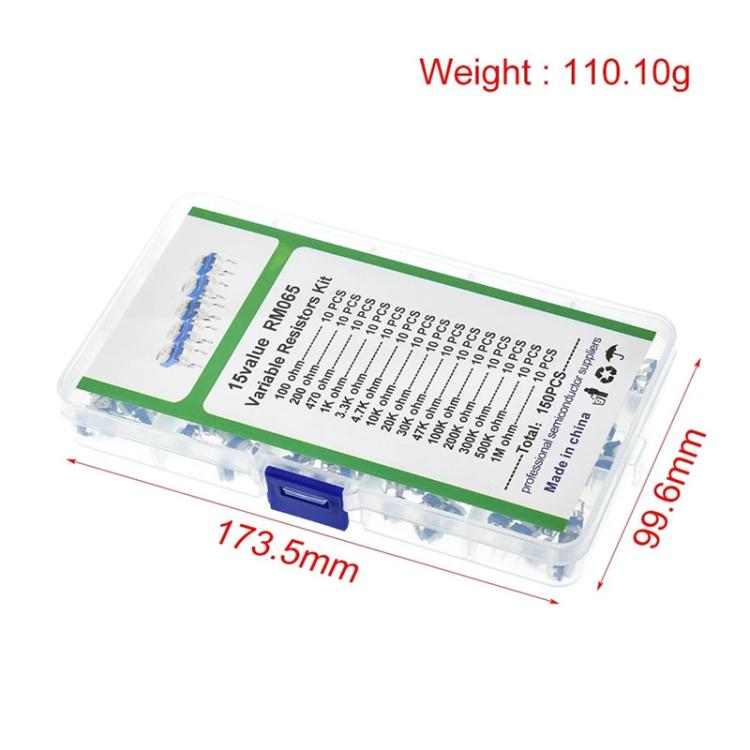

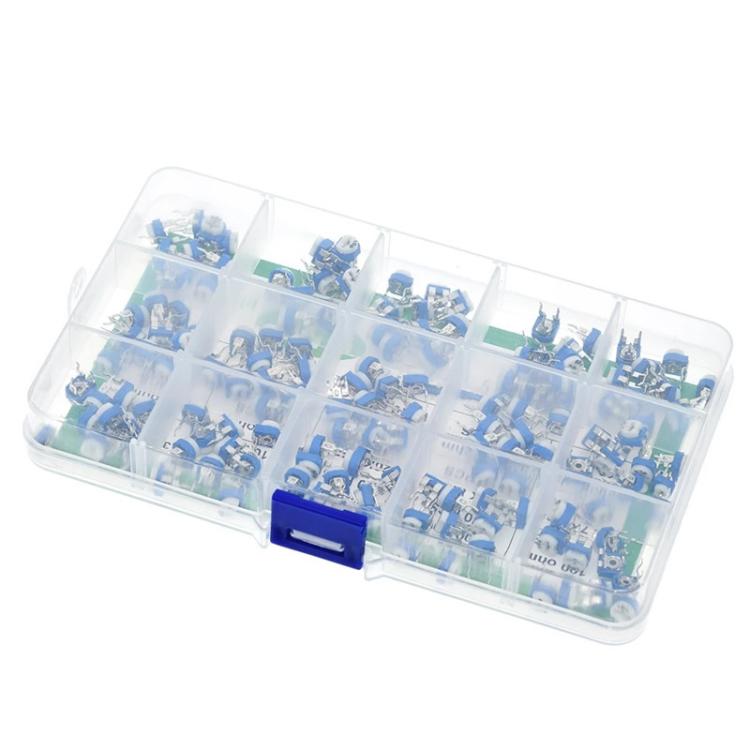

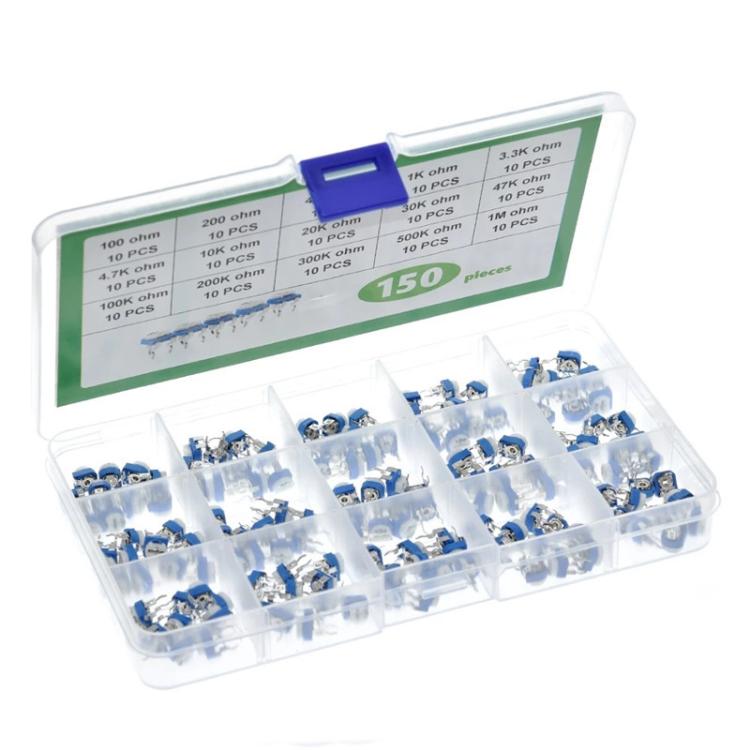

Packaging contents:
- 10 x 100 ohm
- 10 x 200 ohm
- 10 x 470 ohm
- 10 x 1k ohm
- 10 x 3.3k ohm
- 10 x 4.7k ohm
- 10 x 10k ohm
- 10 x 20k ohm
- 10 x 30k ohm
- 10 x 47k ohm
- 10 x 100k ohm
- 10 x 200k ohm
- 10 x 300k ohm
- 10 x 500k ohm
- 10 x 1m ohm
