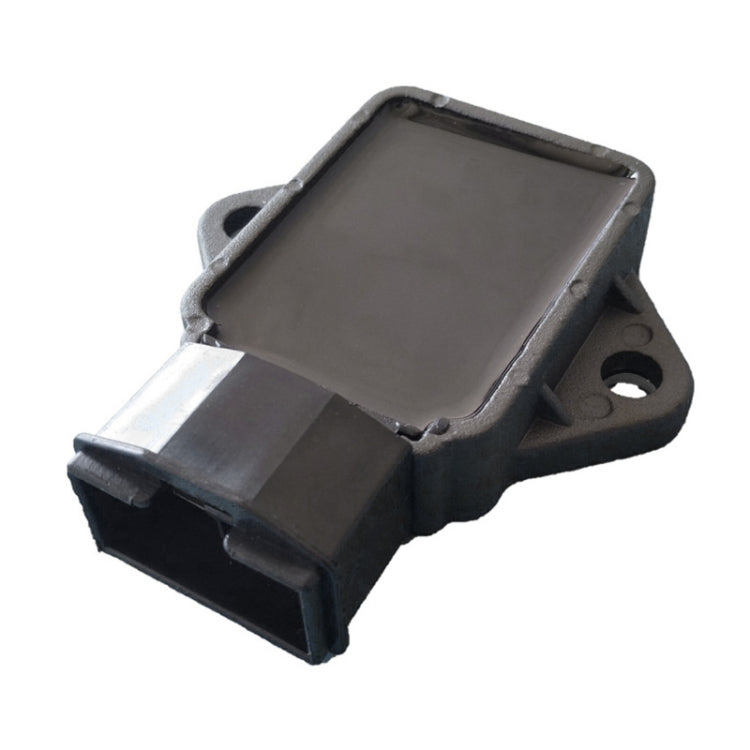

1. Weight: 110G
2. Output voltage: 14.5V
3. Category: Single-phase full-wave rectifier
Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier

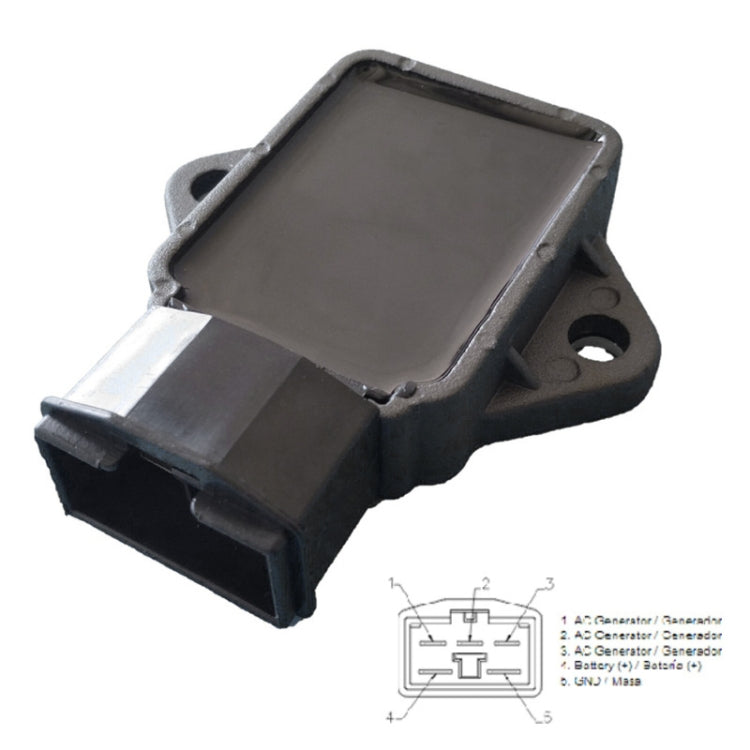

2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.

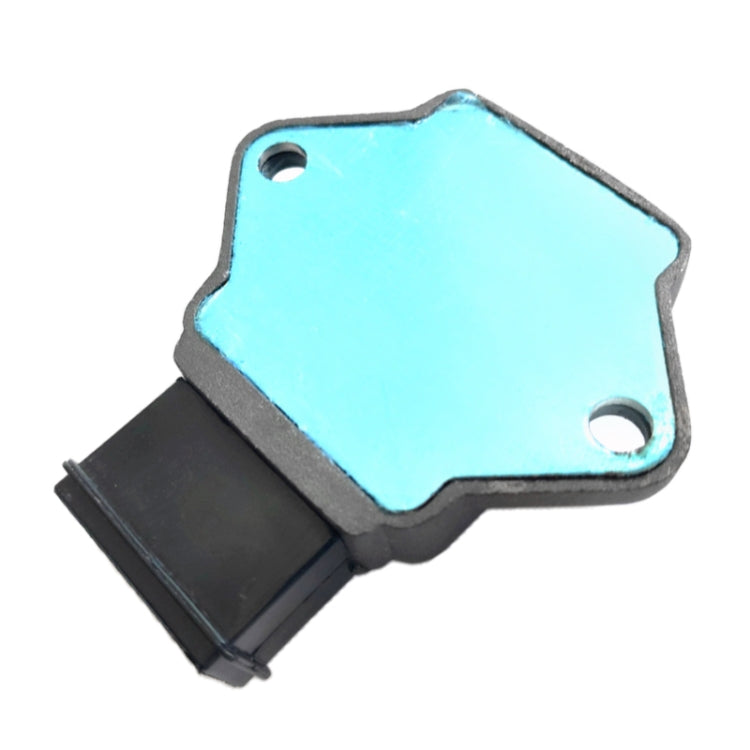

3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
Applicable models:
For Aprilia RXV 450 AP9100424
For Aprilia RXV 550 AP9100424
For Aprilia SXV 450 AP9100424
For Aprilia SXV 550 AP9100424
For Honda CB F A / C 400 1989 1990 31600-MV4-000
For Honda CB 500 1993 2003 31600-MV4-000
For Honda CB A/AC 250 1991 2007 31600-MV4-000
For Honda NSS AC 250 2001 2003 31600-KFG-860
For Honda NXR Jazz 250 31600-MV4-000
For Honda NXR Pantheon 125 hasta 2002 31600-MV4-000
For Honda NXR Pantheon 150 hasta 2002 31600-MV4-000
For Honda NXR Chiocciola 125 31600-MV4-000
For Honda NXR Chiocciola 150 31600-MV4-000
For Honda NXR Foresight 250 31600-MV4-000
For Honda SH Scoopy 125 Hasta 2004 31600-MV4-000
For Honda SH Scoopy 150 Hasta 2004 31600-MV4-000
For Honda VT Shadow 125 1999 2000 31600-MV4-000
For Honda XLV Vara ro 125 2001 2006 31600-MV4-000
For Malagudi Madison 400 02601900
For Piaggio X9 250 2000 2003 496454
