Features:
1. Wide Angle View: Provides a wide field of view for monitoring and imaging applications, helping capture a broader scene with a compact lens design.
2. Multiple Sensor Compatibility: Designed for 1/2.7 inch sensors and provides different viewing angles when used with GC1024 and OV5640 sensors.

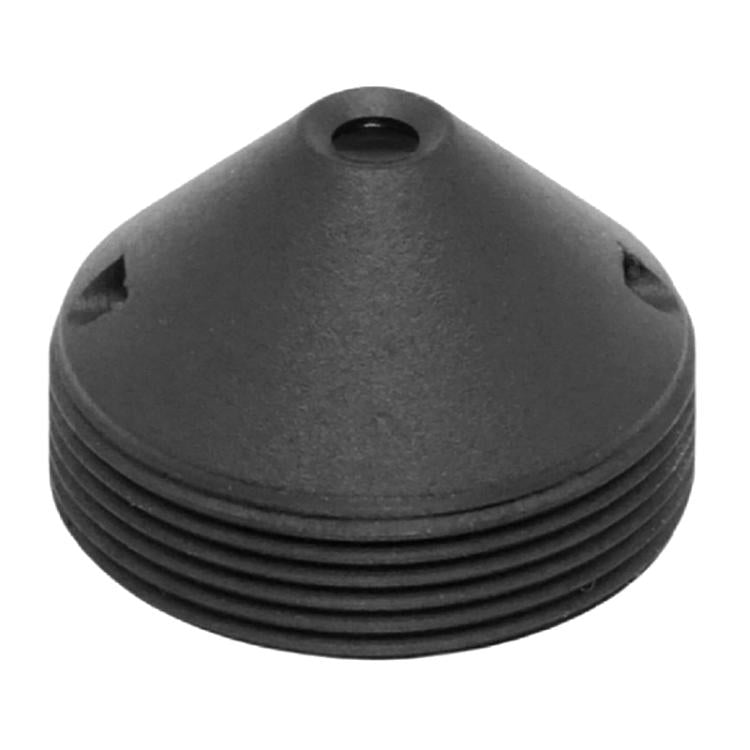

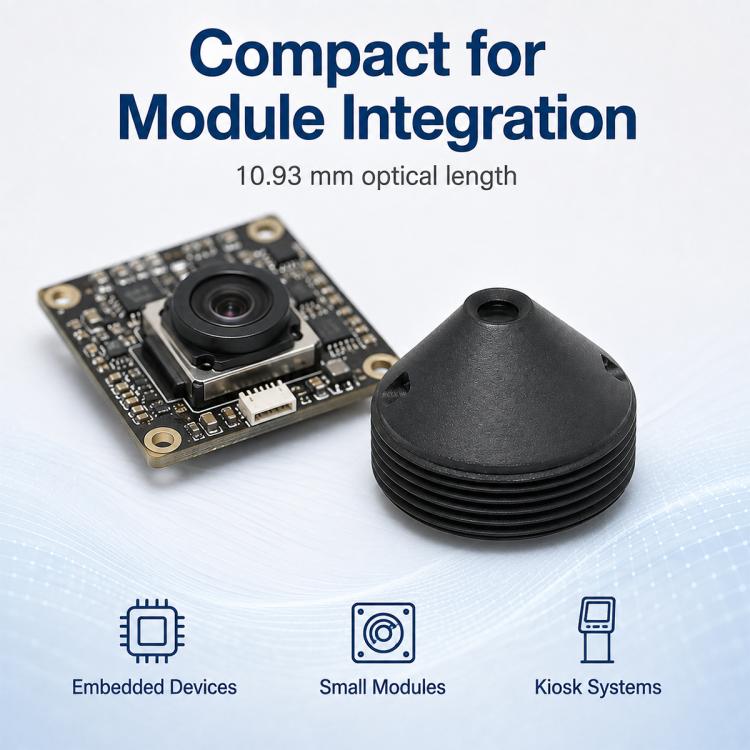

3. Compact Cone Design: The 3.7mm cone lens is designed for space-constrained equipment such as security cameras, video doorbells, and ATM systems.
4. M12 Interface: Features an M12 thread for convenient installation with compatible surveillance and imaging modules.
5. Clear Monitoring Imaging: The optical design provides stable imaging performance for security monitoring, video doorbells, bank teller machines, and other visual monitoring equipment.
Specification:
1. Compatible Sensor: 1/2.7 inch sensor
2. Maximum Image Circle: 7.1mm
3. Effective Focal Length: 4.67mm
4. Back Focal Length: 4.96mm
5. Mechanical Back Focal Length: 3.36mm
6. Aperture: F3
7. Field of View: Diagonal 100 degrees / Horizontal 83 degrees / Vertical 41 degrees
8. Field of View for GC1024: Diagonal 81 degrees / Horizontal 61 degrees / Vertical 47 degrees
9. Field of View for OV5640: Diagonal 59.2 degrees / Horizontal 46 degrees / Vertical 33.6 degrees
10. TV Distortion: -11.67%
11. Chief Ray Angle: Less than 16.5 degrees

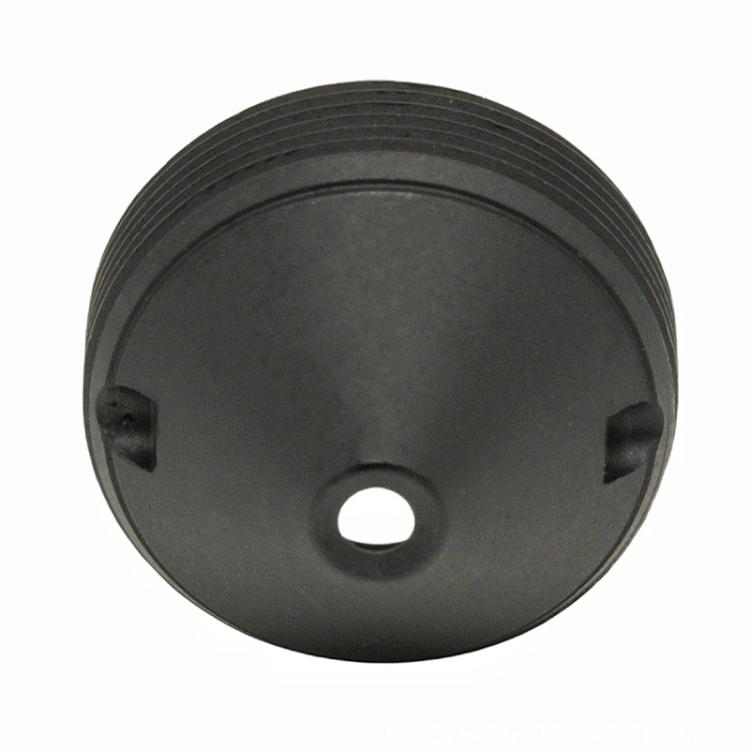

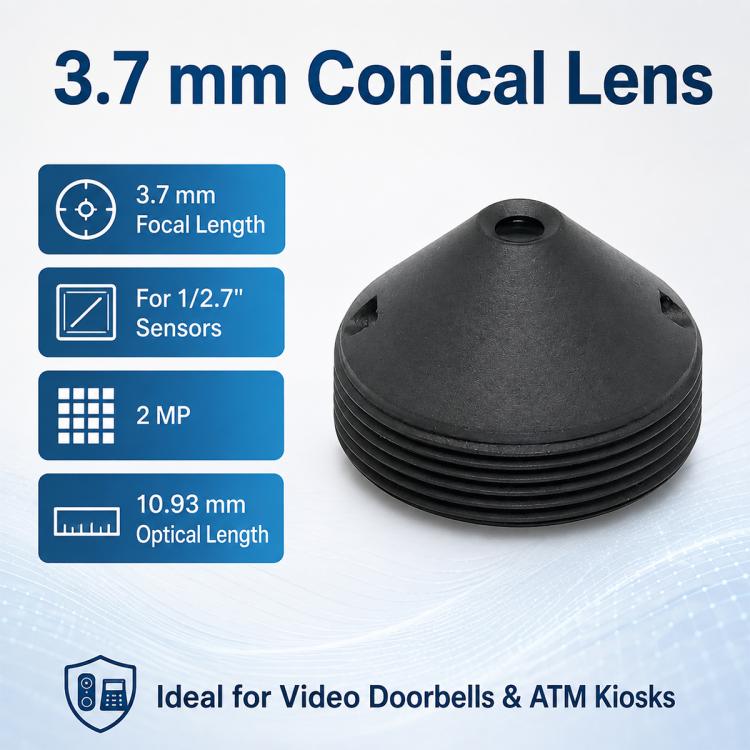

12. Lens Type: 3.7mm Cone Lens
13. Thread Interface: M12
