1. Material: silver copper
2. Rated current: 30 A
3. Rated voltage: 600 V
4. AWG: 14, 12, 10awg
5. Wire insulation diameter: 0.175 inches (4.45 mm)
6. Contact resistance (micro-ohms): 500
7. Withstand insulation Test voltage (AC/DC Voltage): 2200V
8. Contact retention force: 25lbf
9. No-load (contact/disconnect cycles): 10000
10. Flat wiping contact system, high current contact resistance
11. Wiping action cleans contact surface when connecting/disconnecting
12. Colored modular housings provide visual identification of compatible connectors
13. Molded dovetail ends secure individual connectors in "keyed" assemblies, preventing misconnection of similar configurations

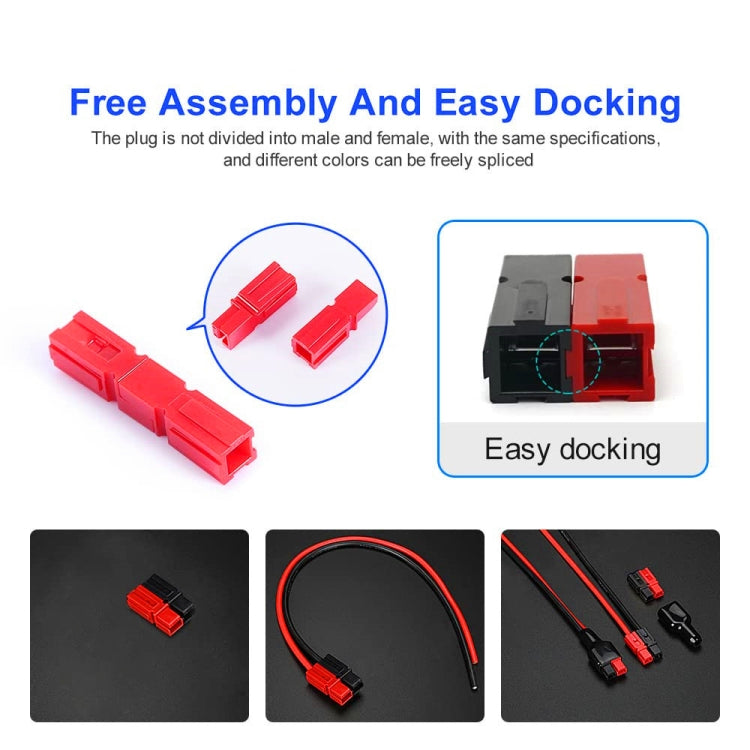

14. Genderless design makes assembly quick and easy, and reduces the number of parts stored
