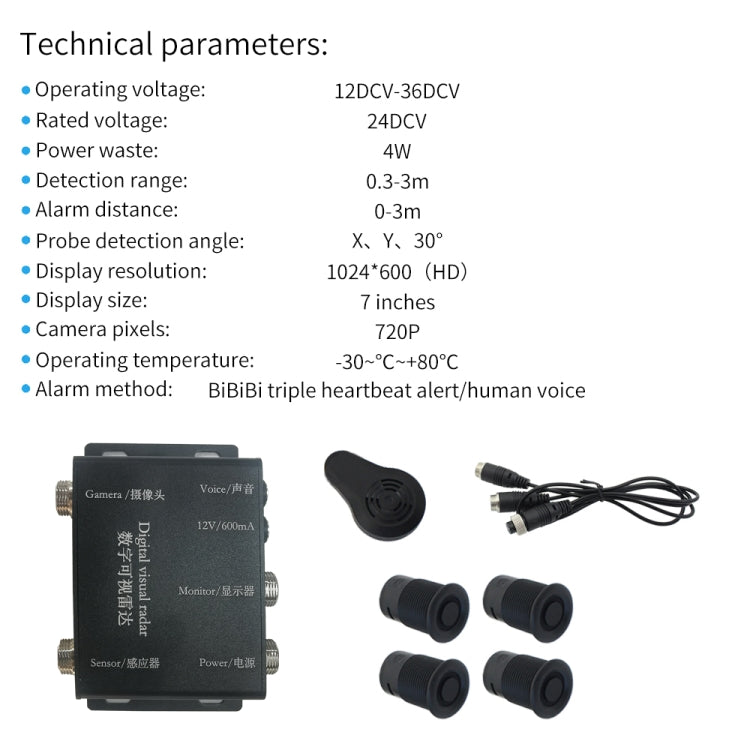

1. Rated voltage: 24DCV
2. Working voltage: 12DCV-36DCV
3. Power consumption: 4W
4. Detection distance: 0.3m~3.0m
5. Alarm distance: 0m~3.0m
6. Sensor angle: X/Y/30 degrees
7. Number of sensors: 128
8. Display resolution: 1024x600 (HD)
9. Camera pixel: 720P
10. Display screen size: 7 inches
11. Error: -5mm, +2mm
12. Sensor connector: Aviation connector
13. Working temperature: -30~+80
14. Alarm type: Buzzer beeping
15. Alarm volume: 65dB

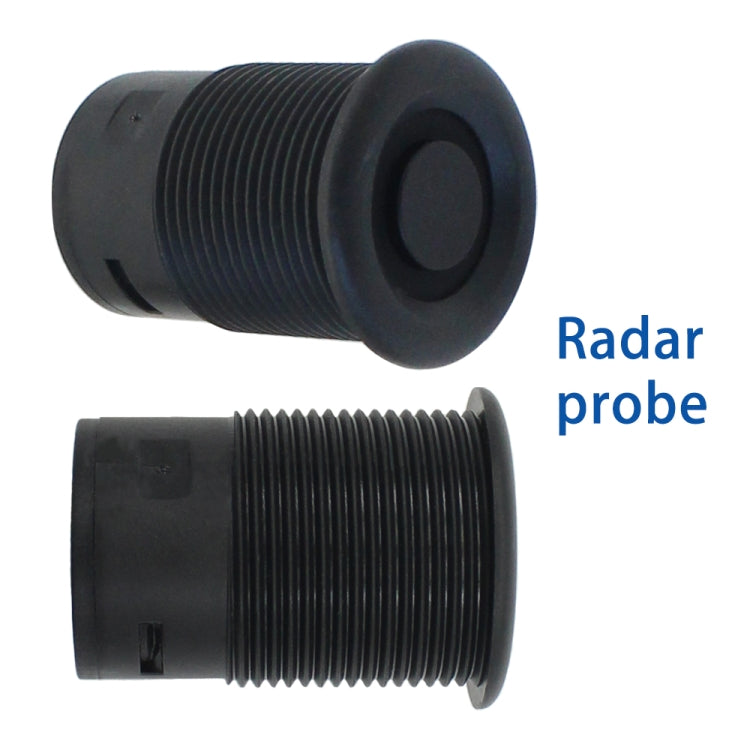

16. Sensor size: 26mm

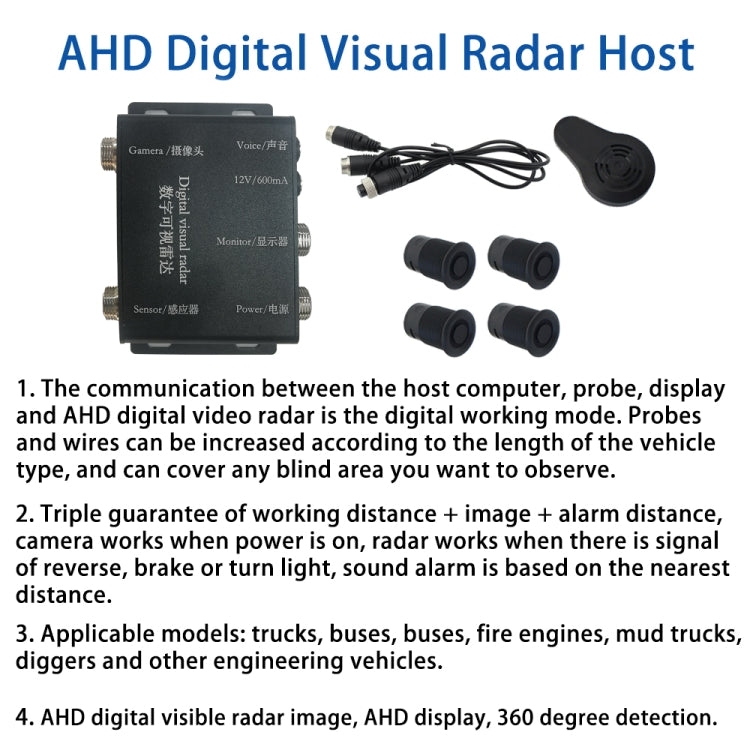

17. The communication between the host, probe, display and AHD digital video radar is a digital working mode. Probes and wires can be added according to the length of the vehicle model to cover any blind spot you want to observe

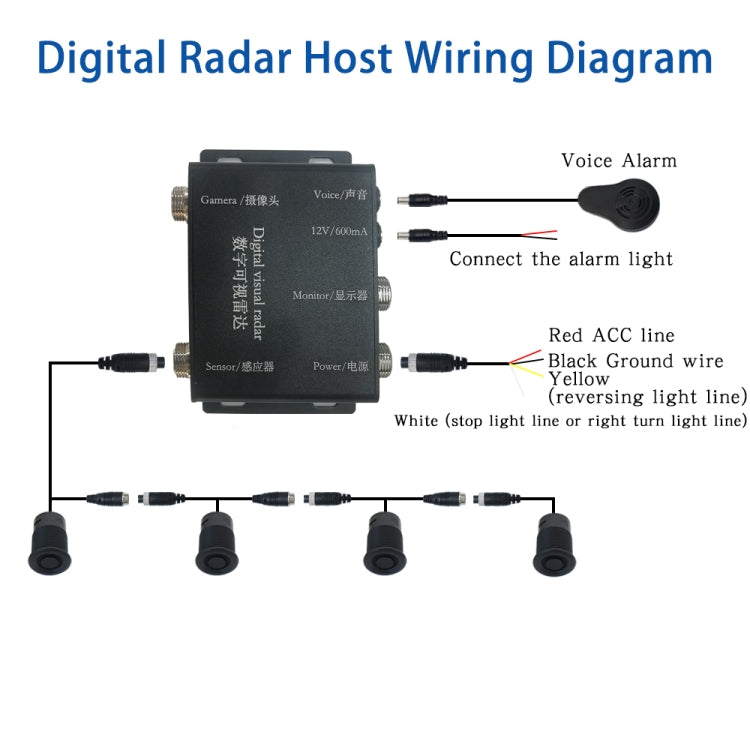

18. Triple protection of working distance + image + alarm distance, working as soon as the power is turned on, the radar works when there are reverse, brake and turn signal signals, and the sound alarm is based on the closest distance
19. Applicable models: trucks, buses, public buses, fire trucks, mud trucks, excavators and other engineering vehicles
20. AHD digital visual radar image, AHD display, 360-degree detection

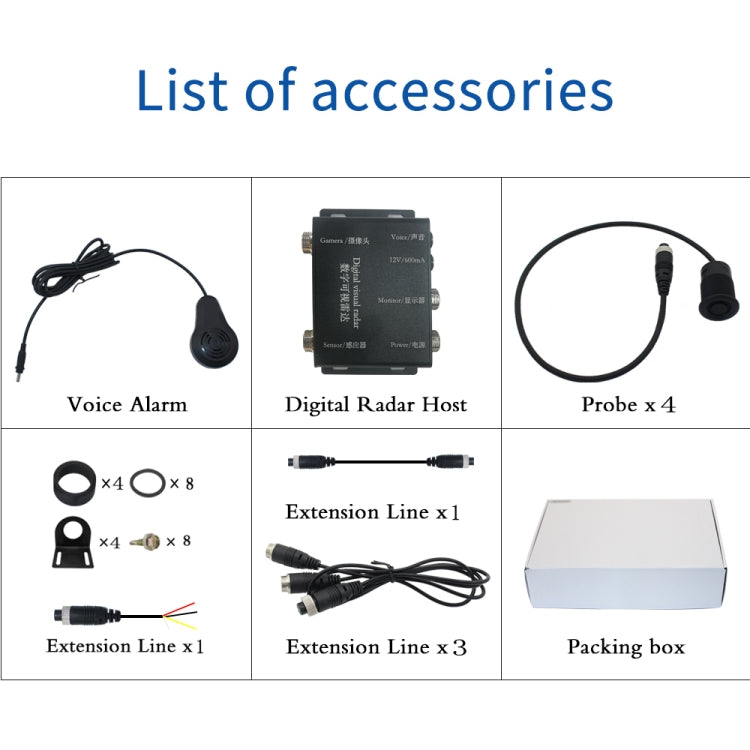

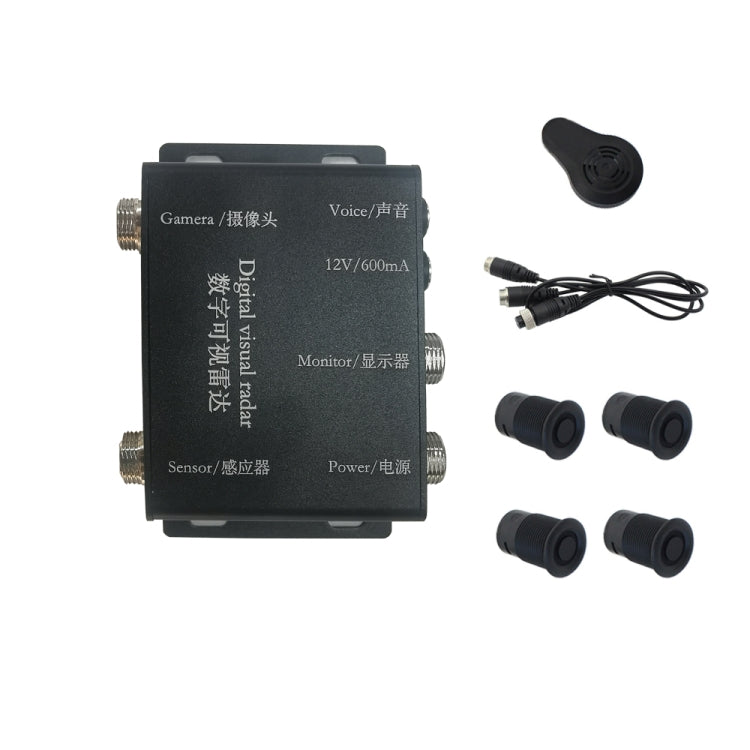

Packing list:

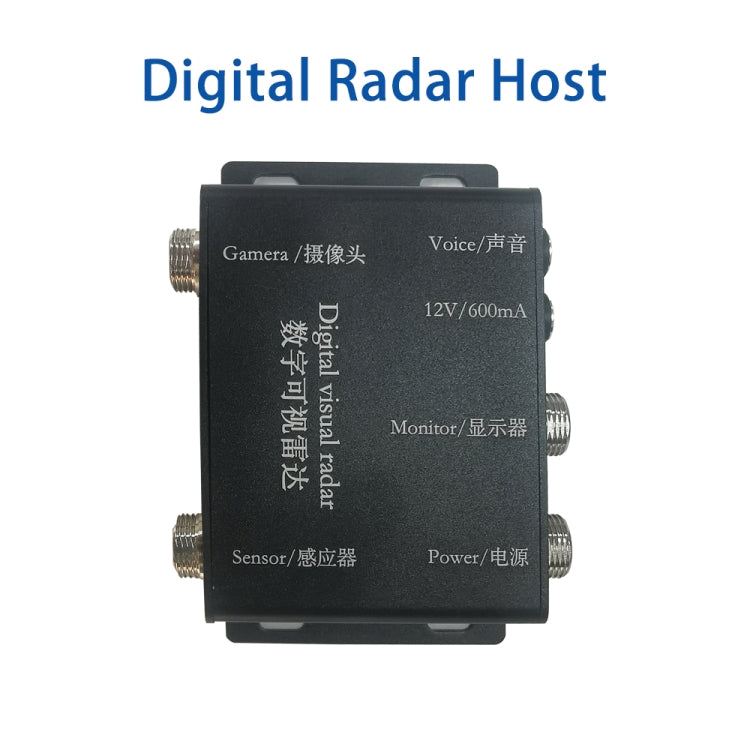

- Digital radar host x 1
- Digital probe x 4
- Buzzer x 1
