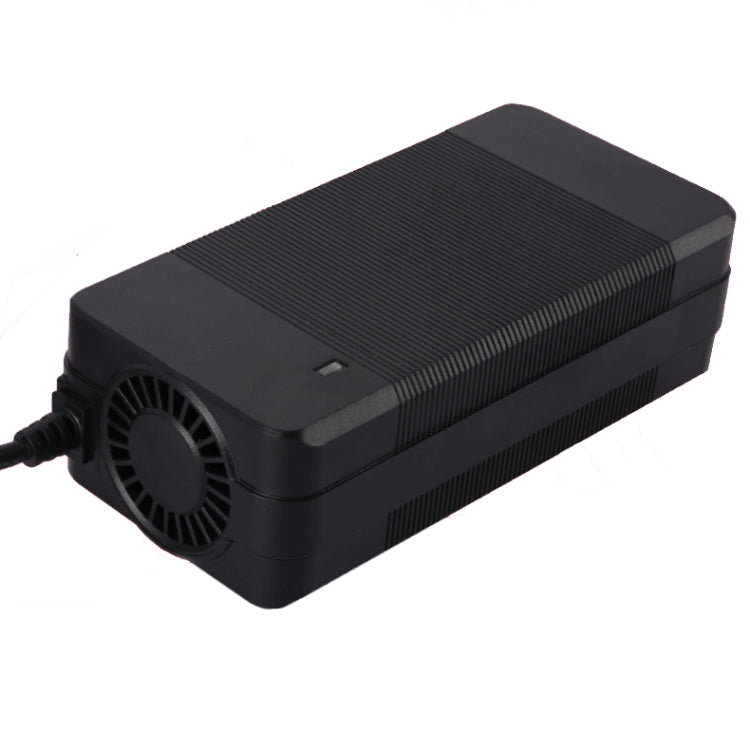

1. With fan, fast heat dissipation, pluggable power cord
2. 6 major intelligent protection, no damage to equipment: overload protection / overheat protection / short circuit protection / cell protection / overvoltage protection / overcurrent protection
3. The shell of the charger is fireproof, and the flame retardant grade of the shell is gradually increased from HB V-2 V-1 to V-0
4. Built-in intelligent dual IC chip, intelligent power supply management, to prevent battery overheating and loss of service life
5. Temperature protection: The temperature control range is -10-60 degrees Celsius. When the working temperature reaches 60 degrees Celsius, the charger will generate temperature protection and stop charging. It will continue to work when the temperature is normal.
6. Adopt environmentally friendly PC+ABS fireproof material, which has strong heat resistance and protects the internal structure
7. Widely applicable to: electric vehicles, scooters, balance vehicles, robots, drones, electric wheelchairs, cleaning machines, sightseeing cars, battery packs, tricycles, motorcycles, energy storage power supplies and other electric tools.
Parameter:
1. Scope of application: 36V lithium battery
2. Charging method: constant current-constant voltage
3. Input voltage: 100~240V
4. Input frequency: 50/60HZ
5. Output voltage: 42V
6. Working temperature: -10~+50 degrees Celsius
7. Charging current: 4A
8. Dimensions: 146 x 70 x 45MM
