1. Display resolution: 3840 x 1080 (1920 x 1080 x 2 panels)
2. Screen size: 1.8 inch Fast LCD
3. Refresh rate: 60Hz

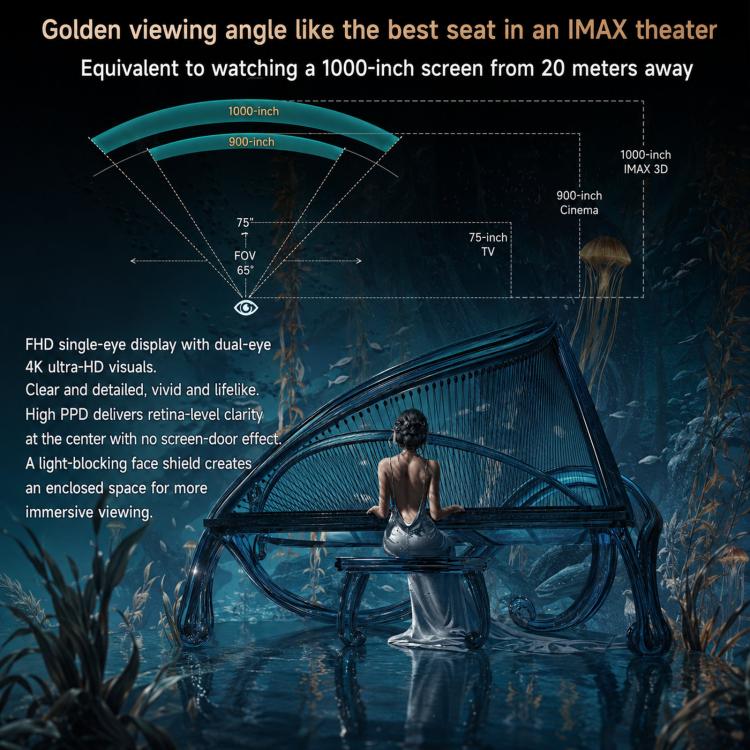

4. Virtual screen size: 1000 inch at 20m
5. Optical system: Pancake optics
6. FOV: 65 degrees

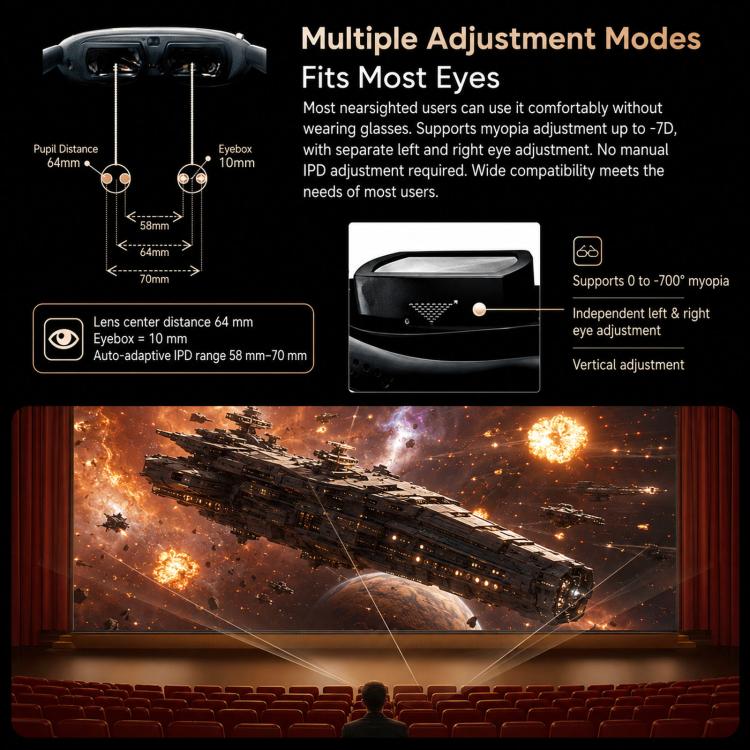

7. Eye tracking range: 10mm (adaptive interpupillary distance: 58mm - 70mm)
8. Eye relief: 12 mm
9. Myopia adjustment: Supports manual adjustment from 0 to 700 diopters; supports independent adjustment for left and right eyes
10. Sensors: Proximity sensor (supports automatic screen on/off when worn); IMU (reserved)
11. Audio: Stereo output via dual speakers in left and right temples
12. Ports: Type-C port, supports DisplayPort input and power delivery
13. Buttons: Volume control button, brightness control button, supports 3D/2D switching
14. Ear pads: Magnetic attachment, foam-padded fabric construction
15. Nose Pads: Adjustable silicone

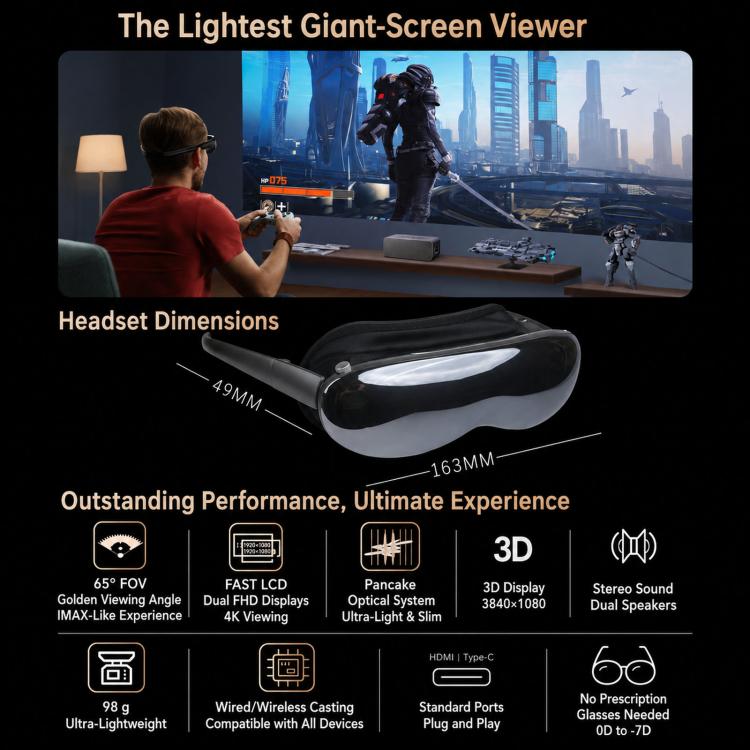

16. Dimensions: Approx. 19 x 16.3 x 4.9 cm
17. Weight: Approx. 98 g
Features:
1. Utilizes Pancake optics with two 1.8 inch PPI LTPS FAST LCD screens
2. Wired/wireless screen mirroring compatible with various device models
3. Multiple adjustment options to accommodate most eye shapes; most nearsighted users can use them comfortably without glasses
4. High-definition FHD single-screen display and binocular 4K ultra-high-definition display; crisp, detailed, lifelike, and vivid; high PPD; center-of-screen resolution reaches retinal clarity; a light-blocking visor eliminates the screen-door effect to create an enclosed space for a more immersive viewing experience
5. Hands-free, pressure-relieving design; comfortable to wear, suitable for extended use
Wi-Fi Version: Three Usage Modes:
1. Wireless Screen Mirroring from Phone (Standard Feature): Switch the glasses to Mode 1, search for the device model on your phone, and tap to connect. This allows wireless screen mirroring just like a projector, with your phone’s screen projected in real-time onto the glasses, ideal for watching videos, viewing images, and streaming shows
2. Wi-Fi Streaming Mode (Available as Standard): Switch the glasses to Wi-Fi Streaming Mode 2. Connect your phone to the Wi-Fi signal emitted by the glasses, log in to the dedicated website, and bind the device to your home or office network to complete pairing. After screen mirroring, you can minimize the app on your phone and use other functions while the glasses continue to play videos, conference feeds, and other content without interruption
3. Console Wireless Screen Mirroring Mode (Requires Additional Accessories): You must purchase a TX 1-to-2 splitter cable separately. Connect both the HDMI and USB ports of the cable to your gaming console to provide power and transmit the signal. The cable transmits a dedicated signal to automatically mirror the screen to the glasses. When used with a game controller, you can move freely within a 15-meter range indoors and enjoy an immersive console gaming experience anytime, anywhere
DP Direct Connection Version: Two Usage Modes:
1. Direct Phone Connection Mode (Available with Standard Configuration): Plug both ends of the included DP cable into the VR headset and your phone, respectively. The phone provides power directly, and the screens will automatically sync upon connection, with the phone’s display synchronized in real-time to the headset screen. For mobile games, you can use a Bluetooth controller; simply connect the controller, download the corresponding game on your phone, and start playing immediately.
2. Console Gaming Mode (requires additional accessories): You’ll need to purchase an HDMI-to-DP adapter separately. Setup is simple: connect the DP end to the headset and the HDMI end to your gaming console. Plug the adapter’s USB end into the console for power, and the console’s display will sync to the headset. Connect a controller to enjoy an immersive console gaming experience.
