- Alarm:No
- Resolution :800TVL
- signal:CVBS, (support to monitor Ditectly)
- Power Supply:DC 12V
- Video Output:BNC
- Model:SMT-DVC800

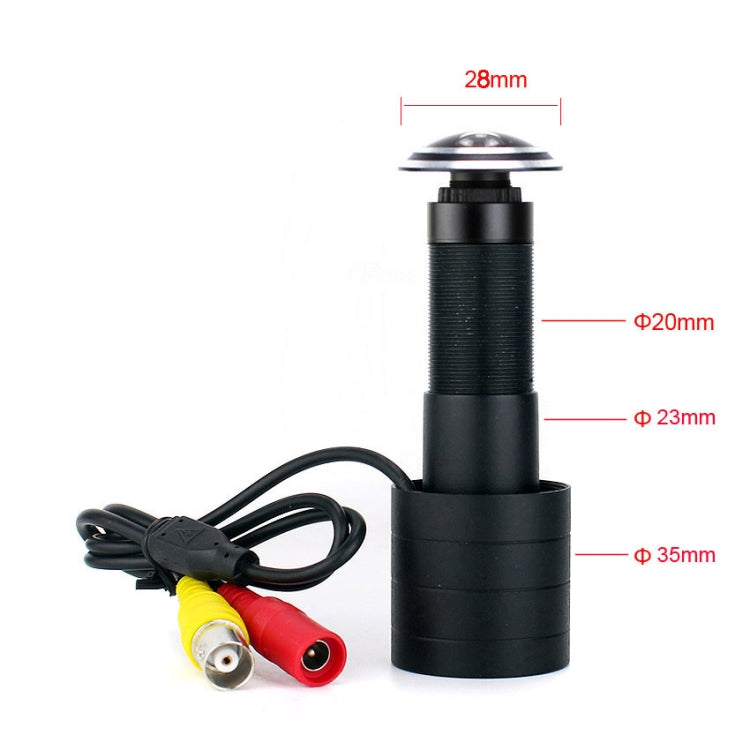

The total length 30mm-85mm adjustable
At the bottom of the thickest part of the 35mm
Horizontal resolution 800 TV Lines,
No amount of infrared light (without IR)
Scanning frequency PAL: 15.625 kHz / 50 KHz
Scanning System 2: 1lnterlace, 2: 1 interlace
Minimum illumination 0.5 Lux
Internal Synchronization Internal / DC12V
Signal / noise ratio greater than 48dB Better than
Auto Auto Electronic Shutter 1/50 ~ 1 / 100,000 sec.
Video Output 1 Vp-p, 75 composite signal
Power supply 12V DC ( 10%)
2.1mm lens configuration
View Angle About 120degree
Power Consumption 800mA / DC12V
