1. Made of 316 stainless steel, long service life, anti-vibration, explosion-proof.
2. Simple and solid structure, advanced corrosion resistance, reed switch, stable output signal.
3. The sensor is a standard SAE 5-hole pattern, easy to install and connect.

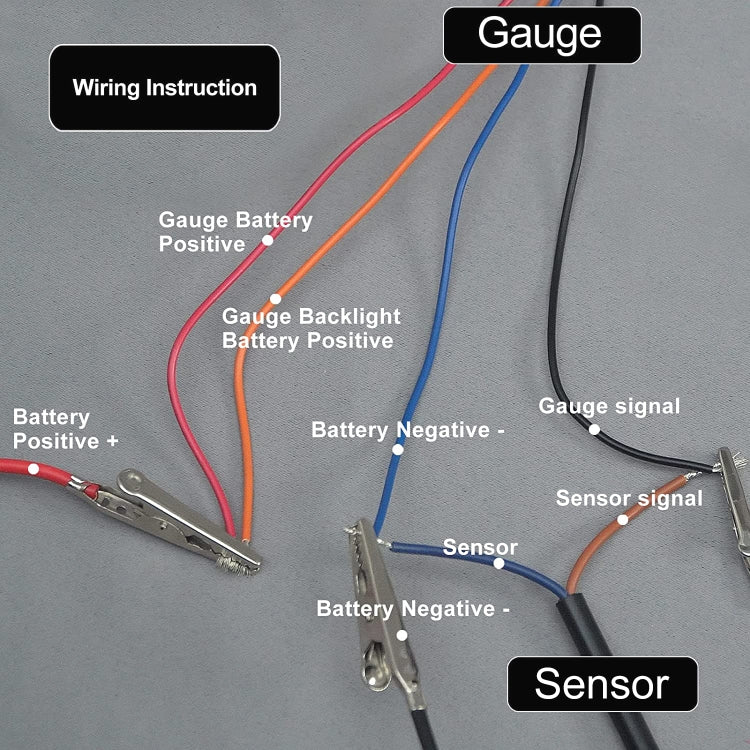

4. Installation method: The sensor is a standard SAE 5 hole type. The reddish-brown wire is the positive pole, and the blue wire is the negative pole. Easy to install and connect.
5. Scope of application: suitable for fuel tanks, water tanks and any liquid without impurities, used in ships, trucks, cars and boats, etc.
6. Parameters:
- Material: 316 stainless steel
- Working temperature: -40-85 degrees Celsius
- Waterproof grade: IP67
- Signal output: 0-190 ohms
- Function: liquid level measurement in fuel, water, and chemical liquid tanks
