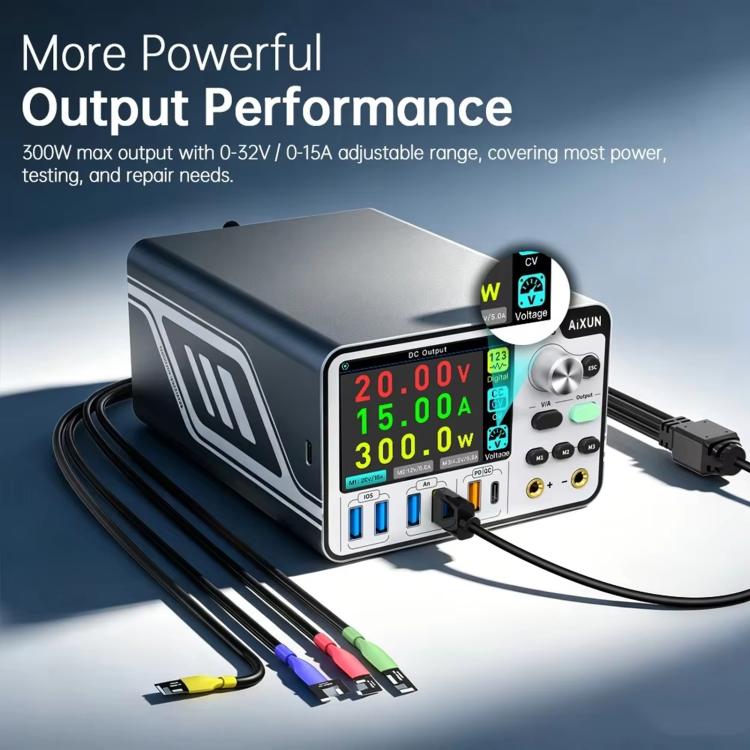

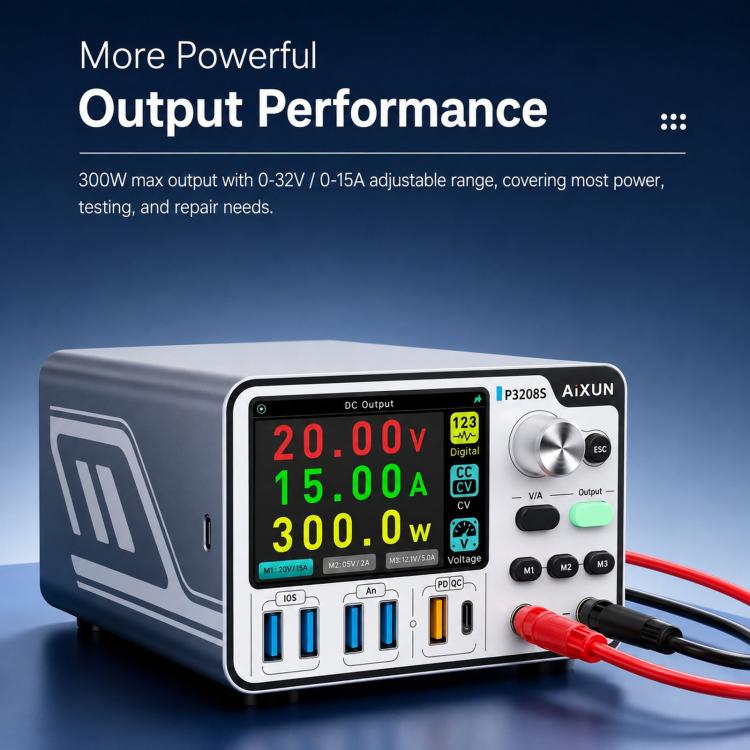

1. High power output, with a maximum total power of 300W, adjustable within a range of 0-32V and 0-15A, suitable for most power supply, equipment testing and maintenance scenarios

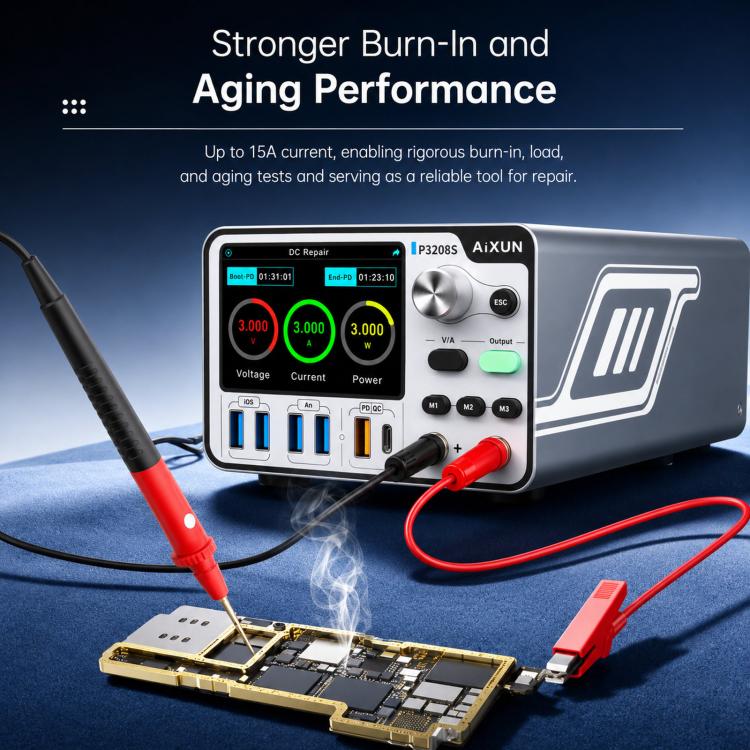

2. Supports burn-in aging test, with a maximum output current of 15A, strong load and aging test capabilities, capable of testing the stability of equipment operation

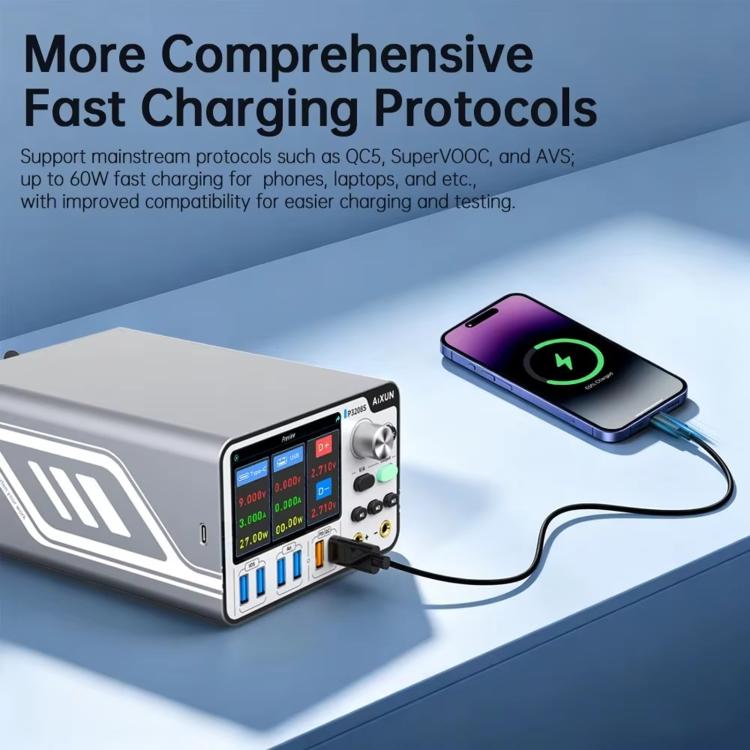

3. Comprehensive fast charging protocol coverage, supporting mainstream fast charging protocols such as QC5, SuperVOOC, and AVS, with the highest fast charging power of 60W, strong compatibility for triggering fast charging of mobile phones and laptops
4. Convenient startup function, supporting a wide input voltage range of 4.2-8.4V; dual channels of iOS/An can be automatically switched, parameters can be automatically memorized, data not lost upon power failure, and no need for repeated settings upon startup

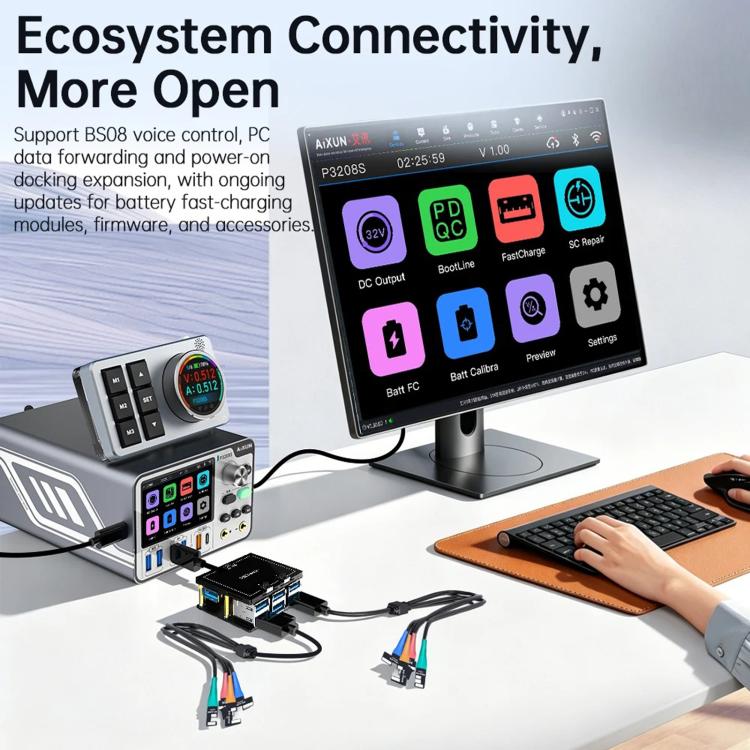

5. Strong ecological expansion capabilities, supporting BS08 voice control, computer data transfer, startup expansion dock, and firmware upgrade for battery fast charging boards

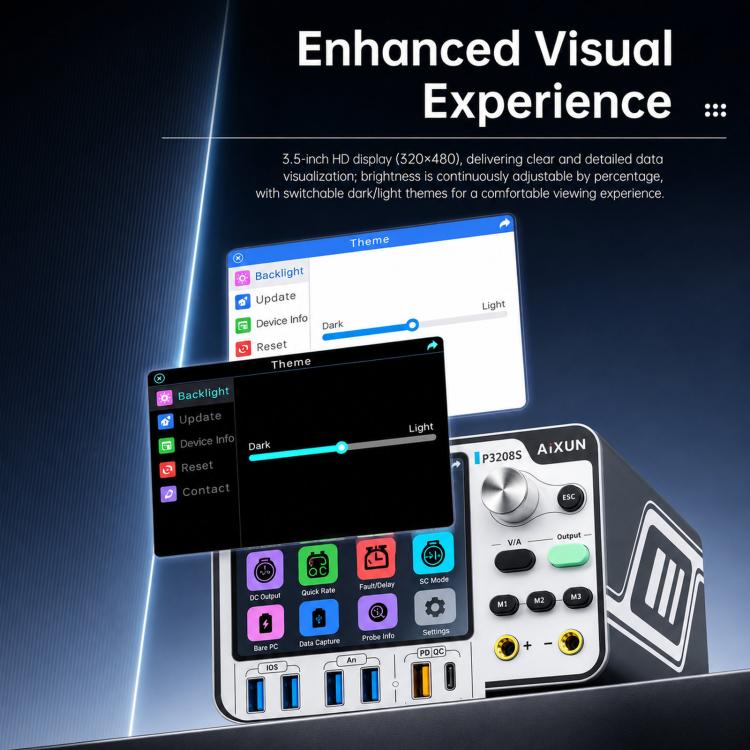

6. Equipped with a 3.5-inch high-definition display, with a resolution of 320 x 480, clear data display; adjustable brightness, free switching between dark and light themes
7. Integrated short circuit repair function, meeting the needs of short circuit detection and repair of mobile phone mainboards
8. Multiple USB output interfaces, independent availability of multiple channels, capable of simultaneously conducting power supply tests for multiple devices
Parameters
1. Input voltage: 110/230V - 60Hz/50Hz
2. Fast charging power: 60W (Max)
3. DC output voltage: 0 - 32V (Max)
4. Fast charging protocol: PD/QC
5. Adjustment resolution: 10mV/1mA
6. Display type: 3.5-inch IPS screen, 320 x 480px
7. Rated power: 300W (Max)
8. One-click power on/off voltage: 4.2 - 8.4V
9. DC output current: 0 - 15A (Max)
10. Working mode: CC/CV (Constant Current/Constant Voltage)
11. Communication method: USB, Bluetooth/WiFi
12. Screen supported languages: Chinese, English
