Specification:
1. Model: SP3005
2. Input voltage: 230V
3. Communication: USB
4. Display type: 3.5 inch IPS Screen
5. Material: Sheet metal + plastic
6. Rated power: 150W (150W square transformer)
7. Voltage/current range: 0~30V/0~5A adjustable
8. Load regulation: Voltage: <= 0.01%+2mV/Current: <= 0.1%+5mA
9. Linear regulation: Voltage: <= 0.01%+3mV/ Current: <= 0.1%+3mA; Ripple (20hz-20M)
10. Voltage: <= 2mV rms/ Current: <= 3mA rms (ripple 1MV)
11. Working mode: CC/CV modes; OV/OC protection
12. Net weight: 4.6kg
13. Dimensions: 20 x 10 x 17cm
Features:

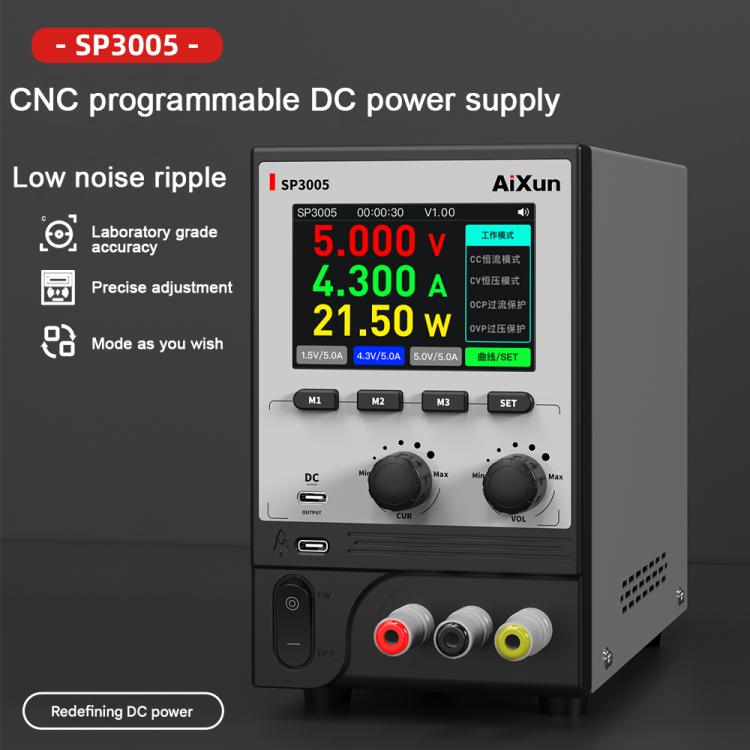

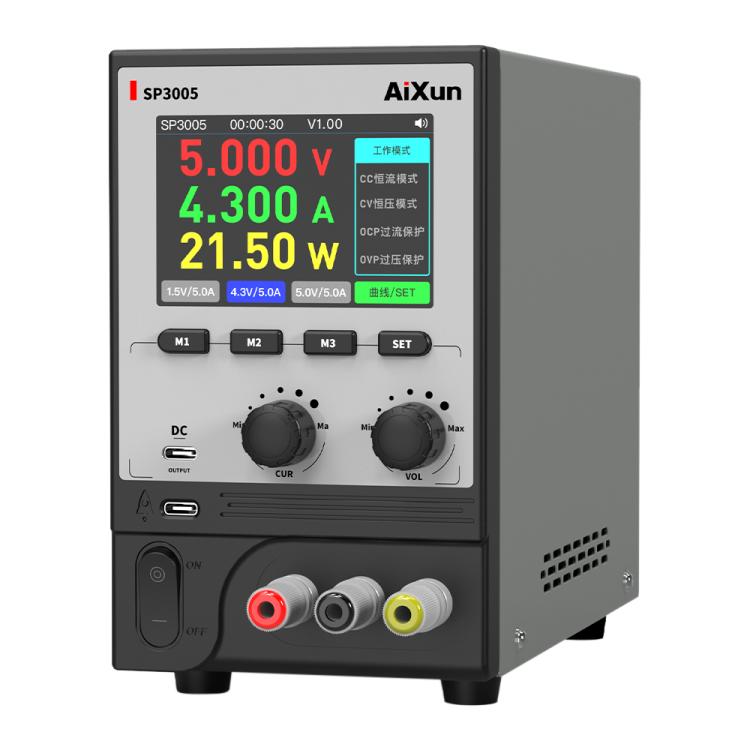

1. SP3005 CNC Programmable DC Power Supply, redefining precision power delivery

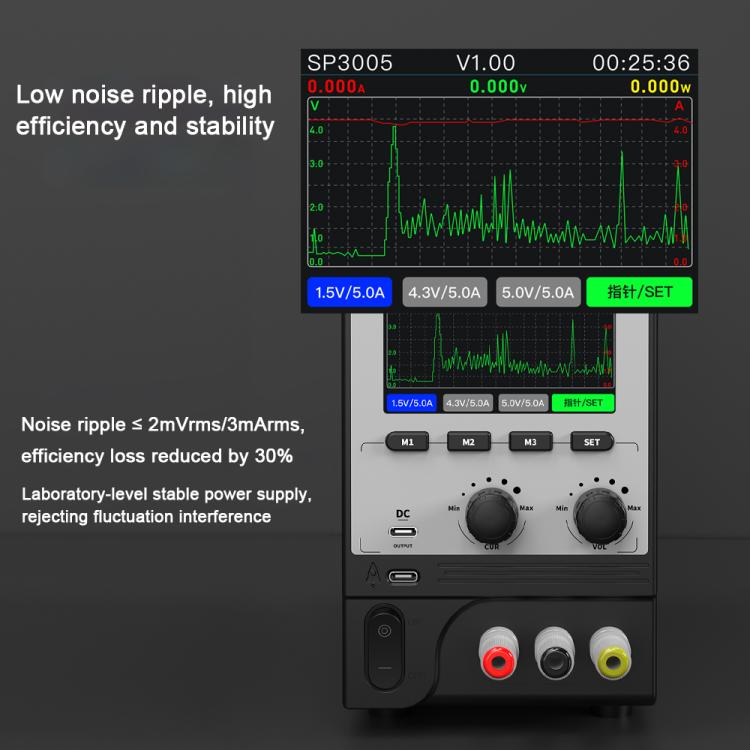

2. Designed with ultra-low noise ripple (≤2mVrms/3mArms) and 30% lower efficiency loss, it ensures high stability and minimal interference for demanding applications
3. Offers micro-level voltage/current adjustment down to three decimal places, supported by high precision 4-figure display

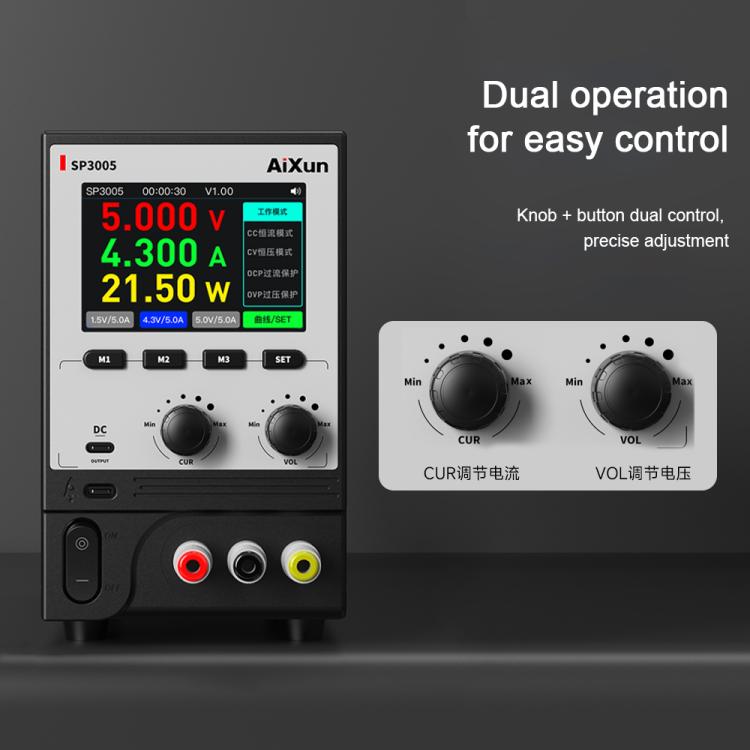

4. Featuring dual control modes (knob + buttons), it provides intuitive and accurate operation
5. Built-in CV/CC modes, OVP/OCP protection, and multi-group preset outputs meet diverse testing and development needs

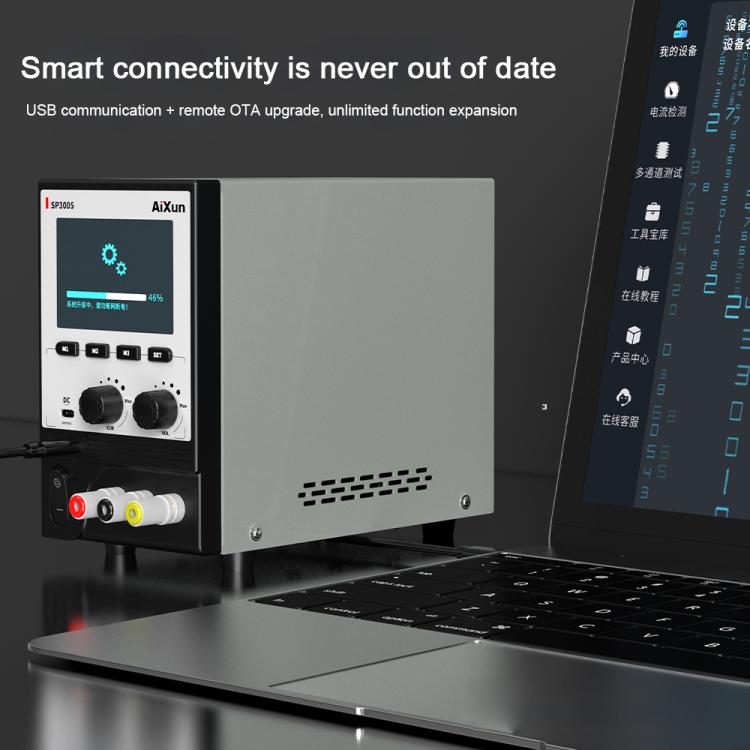

6. Stay future-ready with USB communication and OTA remote upgrade, allowing unlimited function expansion

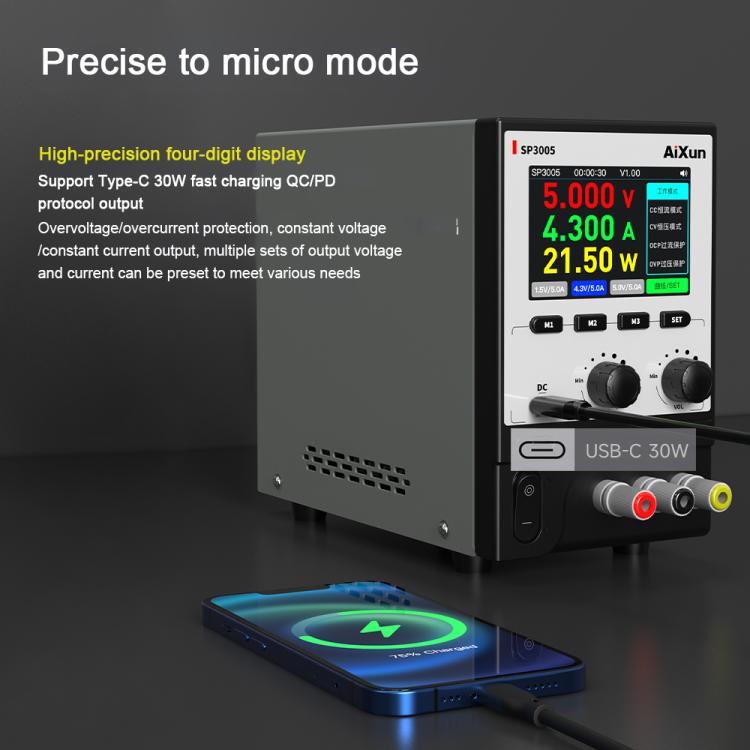

7. The Type-C 30W fast charging output supports QC/PD protocols

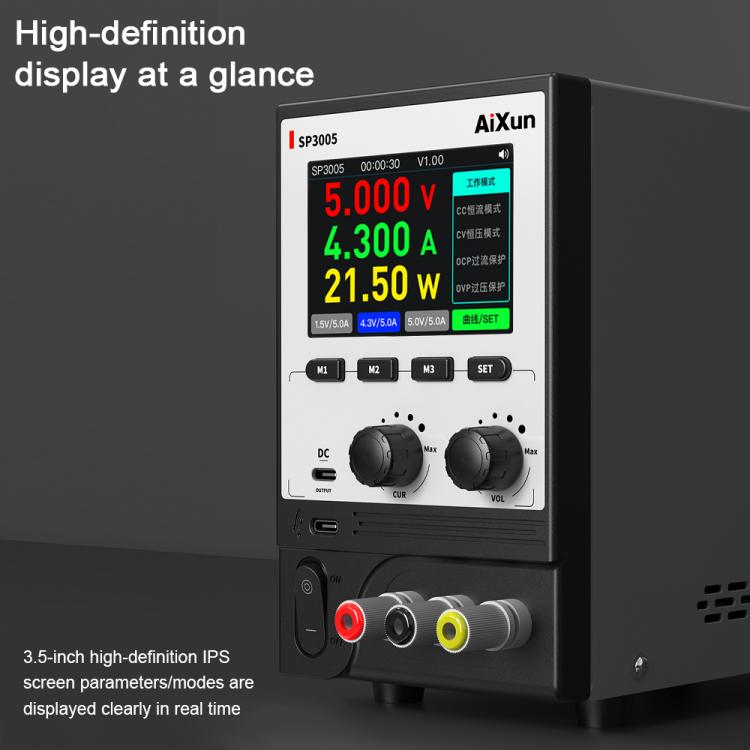

8. A 3.5-inch HD IPS screen displays parameters and modes in real time for clear visibility
9. Ideal for audio equipment development, maintenance and debugging, electronics lab experiments, and low-noise sensor power supply, SP3005 is the perfect choice for precision-focused professionals
10. Package includes:
1 x Power Supply
1 x Power Cord
1 x Banana Plug Alligator Clip
