1. DC voltage: 0.3mV~600V
2. AC voltage: 3mV~600V
3. DC current: 3mA~10A
4. AC current: 3mA~10A
5. Resistance: 0Ω~60ΜΩ
6. Capacitance: 0nF~20mF
7. Hz: 10Hz-7MHz
8. % duty cycle: 10%~90%

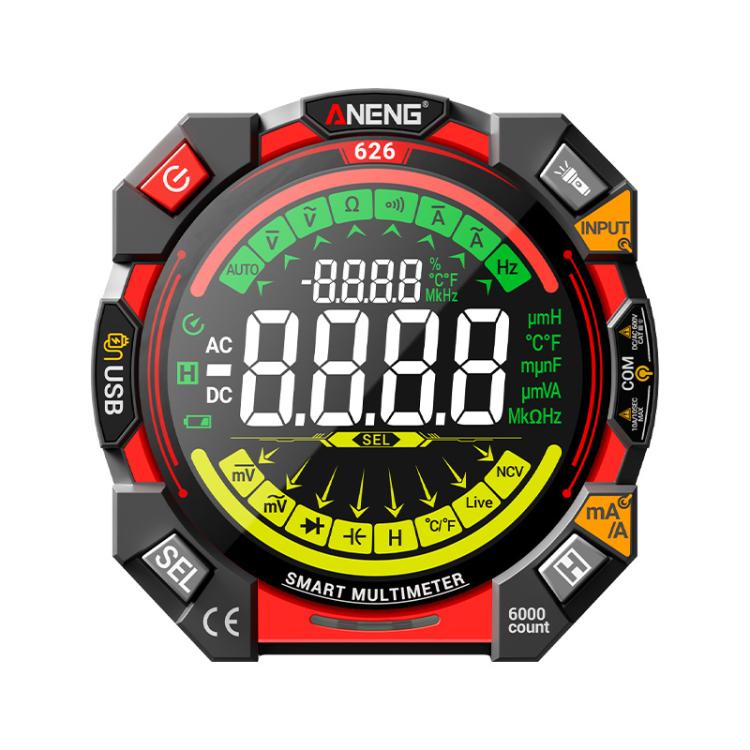

9. The small multimeter has a VA reverse color screen, and the screen value can be clearly seen in a dark environment
10. The test pen fits tightly with the multimeter jack, so there is no worry of falling off, and the service life is longer
11. There is an extended support frame on the back, which can be adjusted in angle after being pulled out and fixed to stand
12. The main control chip is used, the performance is more stable, and it has a higher and more stable user experience. The built-in anti-burning fuse makes the measurement more secure
13. NCV non-contact voltage detection, place the NCV sensing area close to the AC voltage, the meter will beep and alarm, the screen will display the L indicator light green when the signal is weak; the screen will display the H indicator light red when the signal is strong
14. USB charging has strong battery life, built-in 3.7V1000mA lithium battery, the indicator light is red during charging, and bright green when full
15. Press the flashlight button to turn on the lighting, no longer afraid of not being able to see the measurement location, eliminate the risk of electric shock, and assist in night measurement work
16. The meter will automatically shut down after about 15 minutes without any operation, saving energy and electricity
17. Size: 8.9x9.05x4 cm

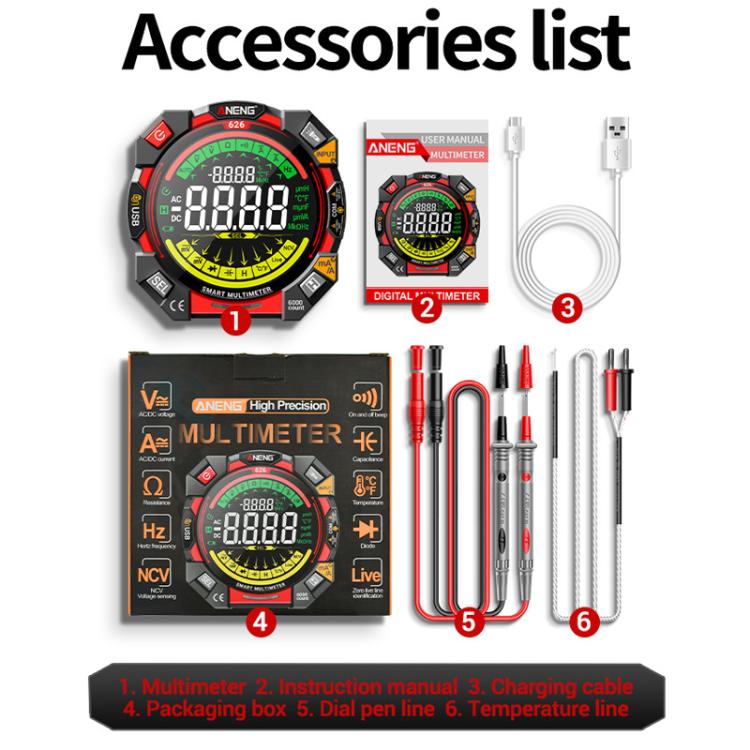

18. Packing list: multimeter; instruction manual; charging cable; test lead cable; temperature cable; packaging box
