Specification:
1. Battery type: 6F22 9V (not included)
2. Continuous voltage: 200m V--2-20-200-600V
3. AC voltage: 200V-600V
4. DC current: 200u-2m-20m-200m-10A
5. Electronic resistance: 200-2k-20k-200k-2M ohm
6. Transistor measurement: Yes (PNP/pn transistor hFE)
7. Input resistance: 1 milliohm
8. Display: 1999 (3 and a half liquid crystal display)
9. Display size: 45×20mm
10. Digital LCD screen, the display value is 1999 (MAX)
11. The total length of the line: 60 cm
12. Overall dimensions: 135x67x33 mm
13. Weight: 125 grams

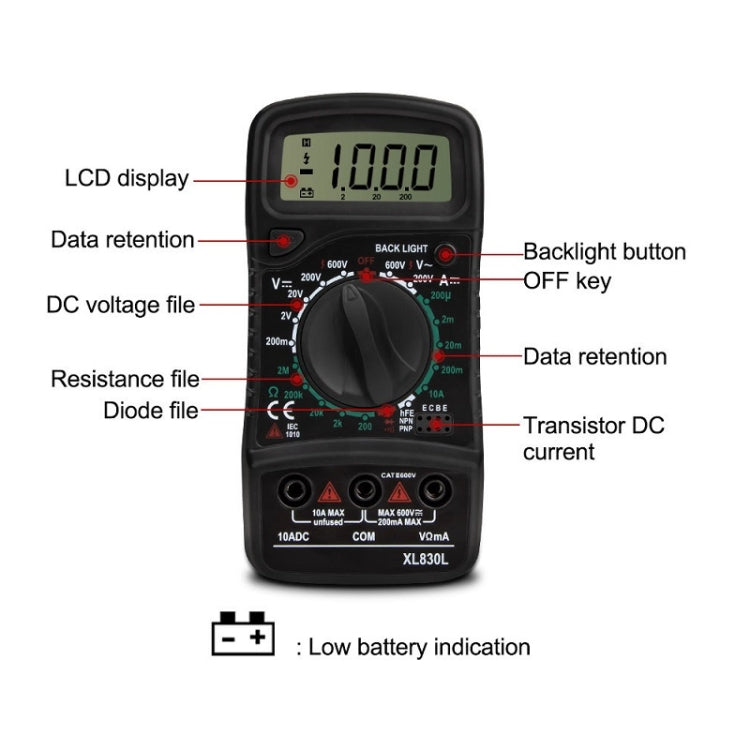

Features:
1. With industrial-grade silicone protective cover, effectively prevent falling
2. Screen backlight design, the measuring resin can be seen clearly in the dark
3. Adjustable extension bracket design with back strap
4. The socket is smoothly tightened, and the printing position on the panel is accurate
5. Function range dial, 20 gears
Bubble bag packing list:
- Digital LCD multimeter x 1
- Test lead x 1
- Manual x 1
- Bubble bag x 1

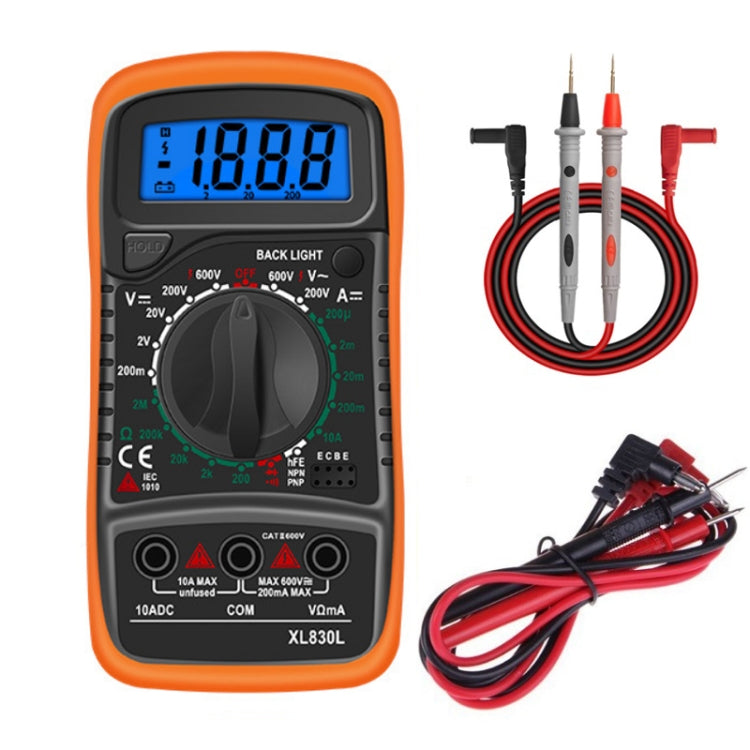

Standard +10A extra tip pen packing list:
- Digital LCD multimeter x 1
- Test lead x 1
- Manual x 1
- 10A extra tip test pen x 1
- Color box packaging x 1
