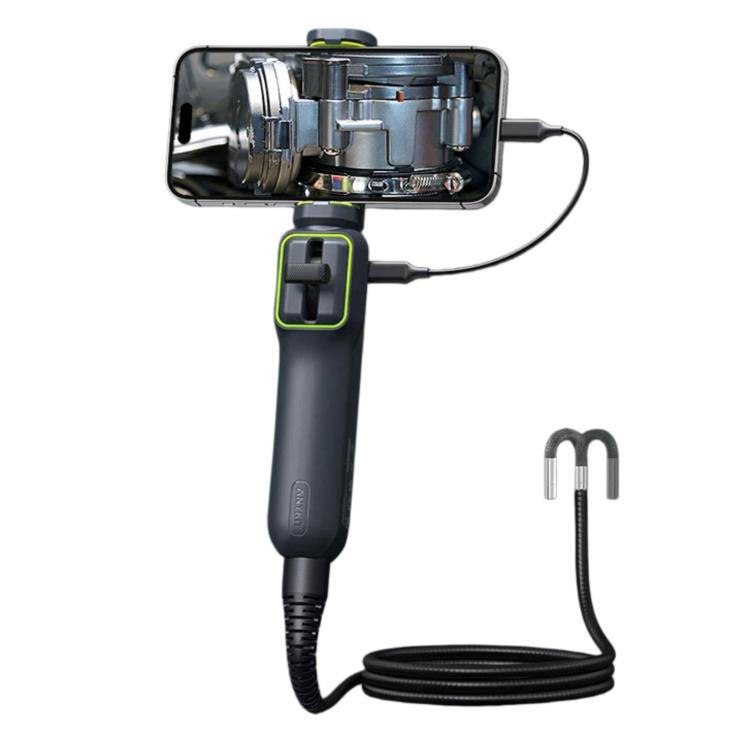

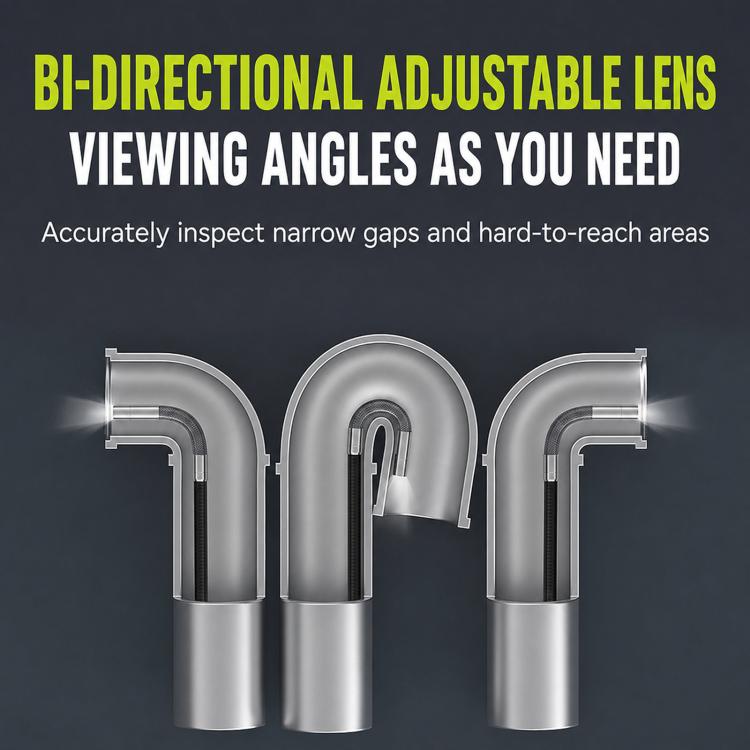

1. The lens supports two-way 210° mechanical steering on both sides. It can be flexibly controlled by the handle lever, and can precisely inspect areas that are difficult for conventional endoscopes to reach, such as narrow gaps, pipe bends, engine compartment dead corners, etc

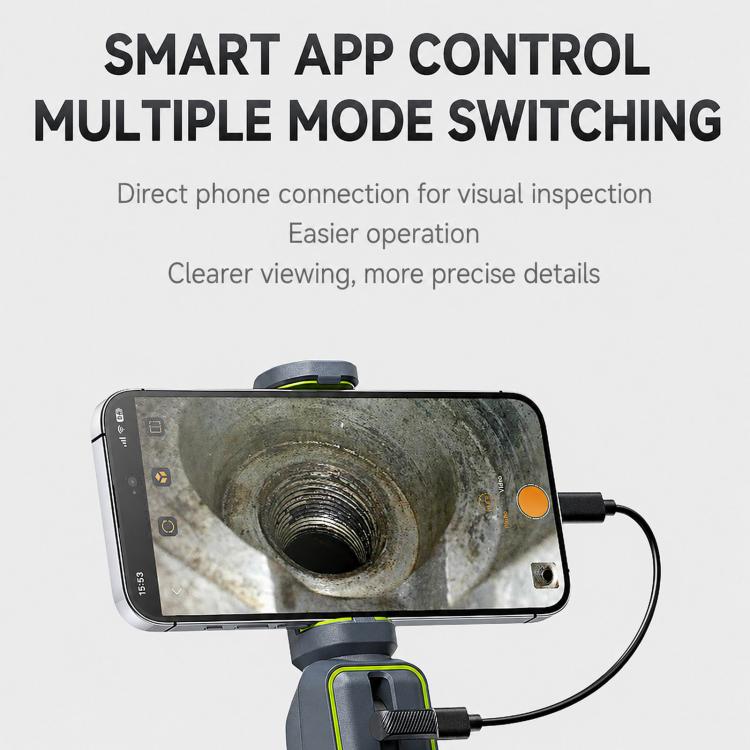

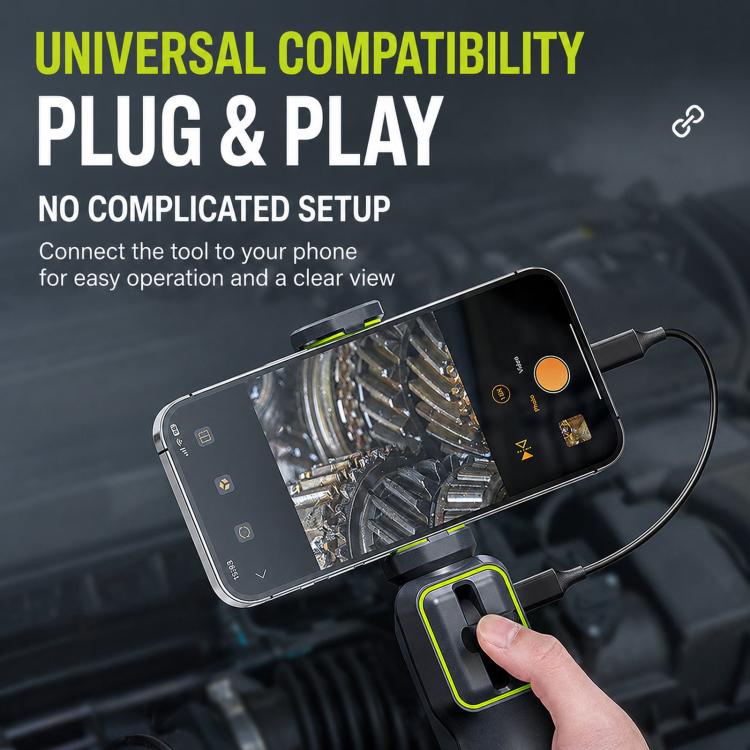

2. Plug-and-play. No complex settings required. Connect directly to the phone via Type-C/Lightning interface and use it immediately. No additional drivers needed

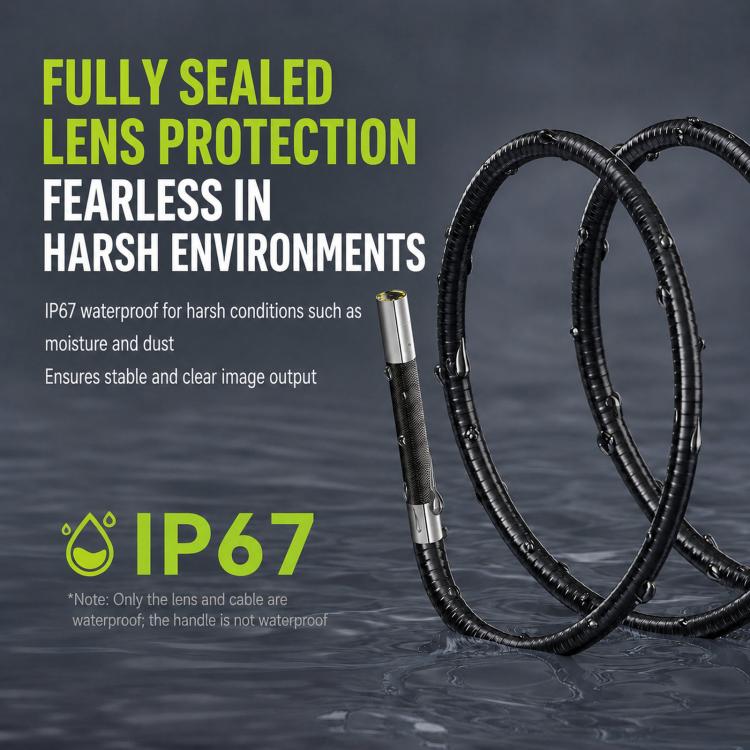

3. The lens and pipeline adopt a fully sealed waterproof design, achieving IP67 waterproof level. It can work stably in harsh environments such as dampness, dust, and water presence

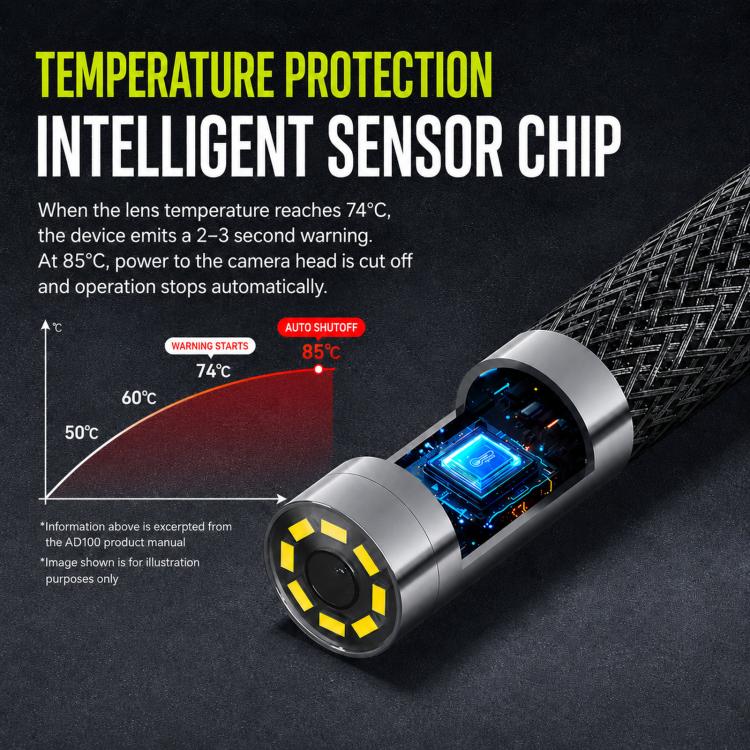

4. An internal high-precision temperature sensing chip monitors the lens temperature in real time. When the lens temperature reaches 74°C, the device emits a 2-3 second alarm alert; when the temperature rises to 85°C, the lens power is automatically cut off to stop working, avoiding damage to the lens due to high temperature and extending the equipment's service life
5. 200W high-definition lens combined with 8 LED auxiliary light beads can capture clear images even in low-light environments
6. Supports three magnification levels: 1x, 1.3x, and 1.5x. It can precisely observe details of components, cracks, carbon deposits, and other minor issues
7. 88° wide viewing angle, with a wide coverage range for a single frame

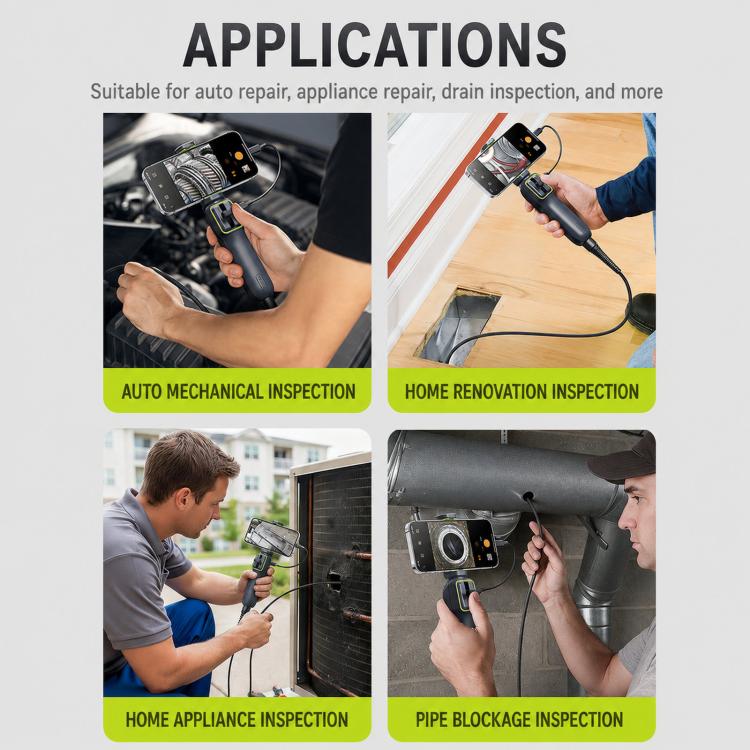

8. Widely applicable scenarios, suitable for automotive mechanical inspection, house decoration inspection, household appliance inspection, pipe blockage inspection, etc
Parameters

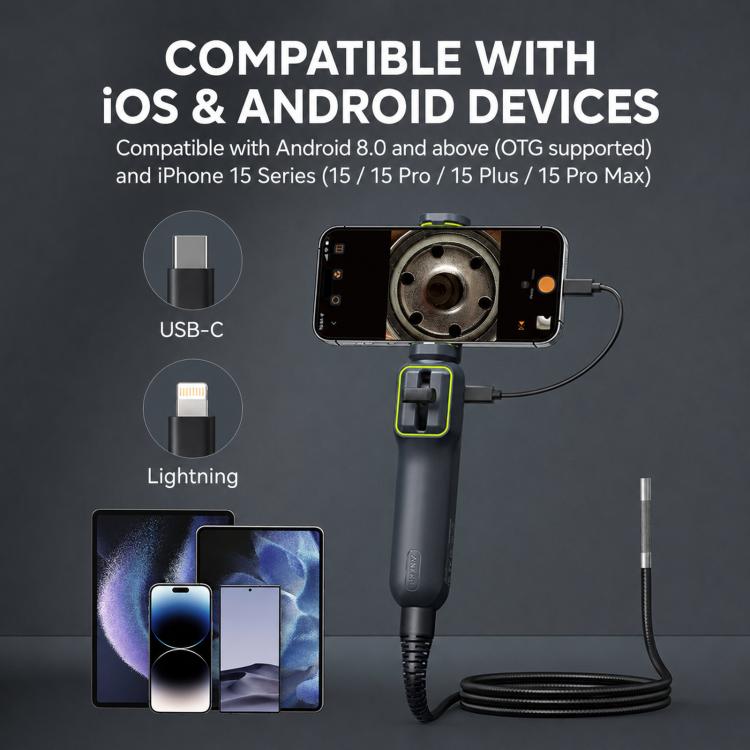

1. Compatible systems: iOS, Android 8.0 and above (supporting OTG function)
2. Compatible phone models: applicable to the entire series of iPhone 15 (15/15 Pro/15 Plus/15 Pro Max) and for Apple phones entire series, Android phones
3. Interface type: Type-C, Lightning

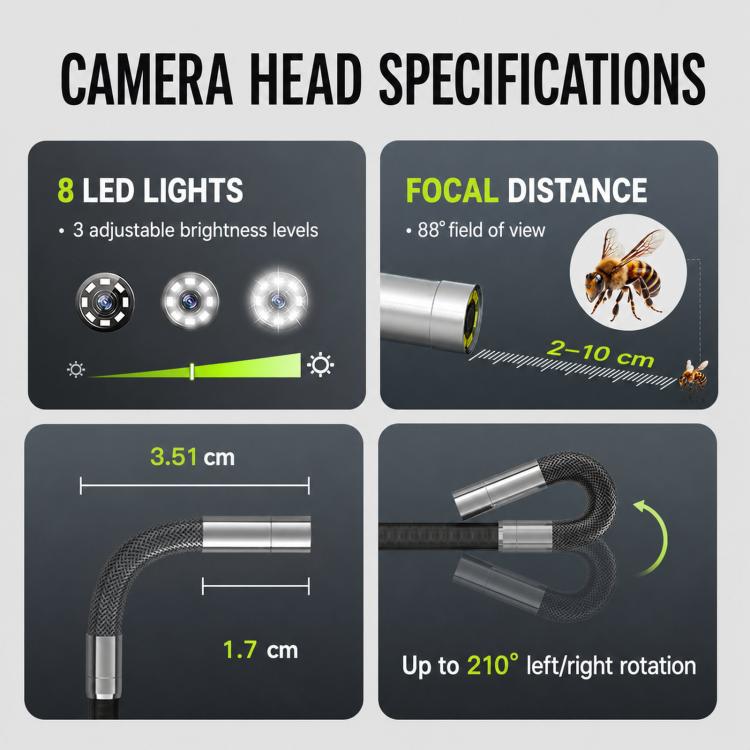

4. Lens diameter: 5.5mm
5. Lens pixel: 2 million
6. Shooting and recording resolution: 1600 x 1200
7. Focusing range: 2cm - 10cm
8. Viewing angle: 88°
9. Lens auxiliary light: 8 LED light beads
10. Magnification: 1x, 1.3x, 1.5x
11. Lens waterproof grade: IP67 (only the lens and pipeline are waterproof, the body is not waterproof)
12. Menu languages: Chinese / English / Japanese / German / Spanish / French / Italian / Russian

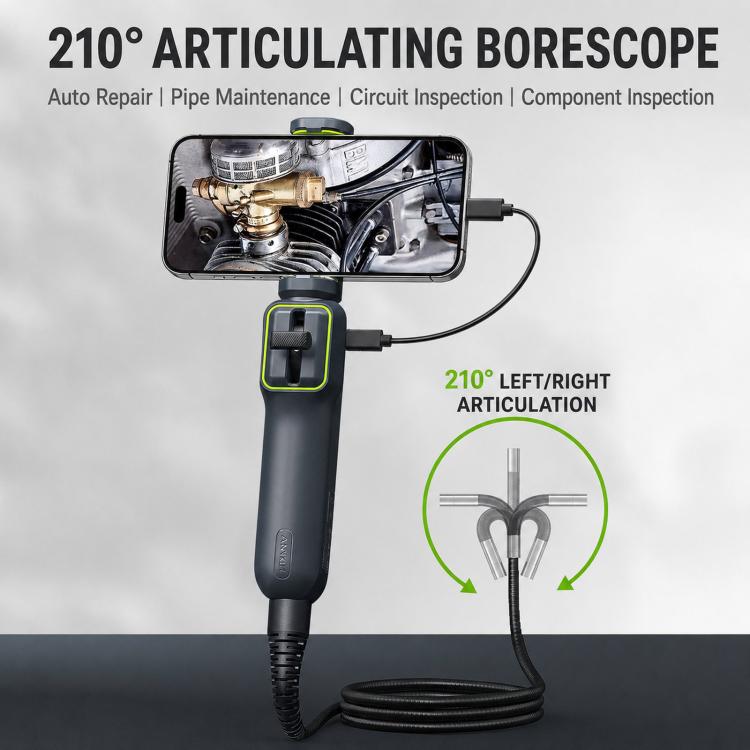

13. Lens rotation angle: 210° left and right adjustable in both directions
14. Temperature protection mechanism: emits a 2-3 second alarm when the lens temperature reaches 74°C, and cuts off the lens power supply and stops working when the temperature reaches 85°C
