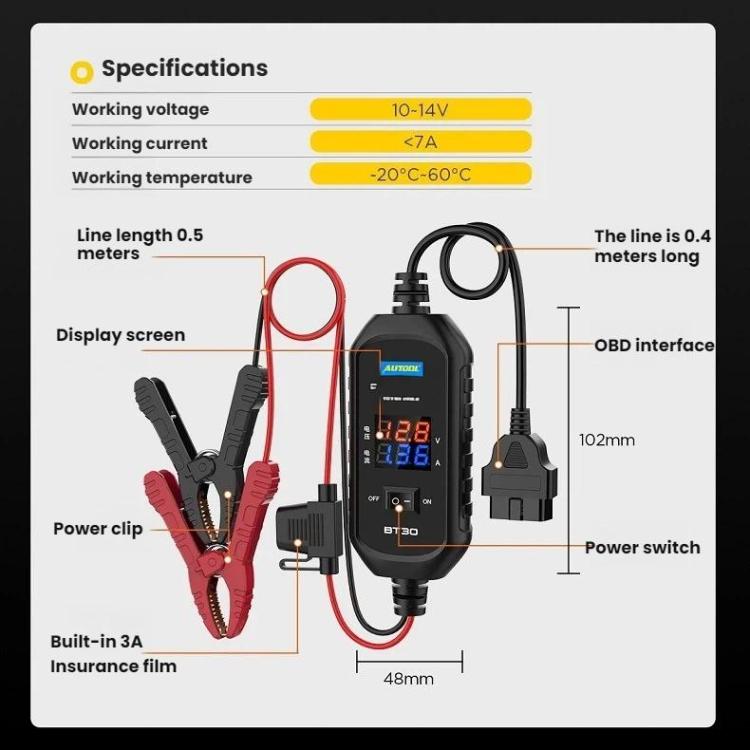

1. Operating voltage: 10-14V
2. Operating current: 7A

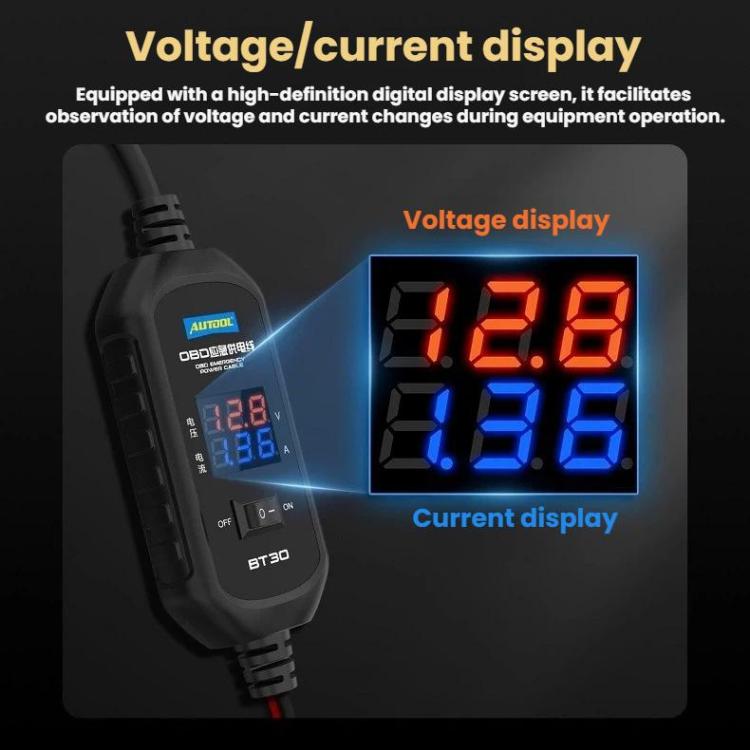

3. Voltage/current display: equipped with a high-definition digital display screen for easy observation of voltage and current changes during device operation.

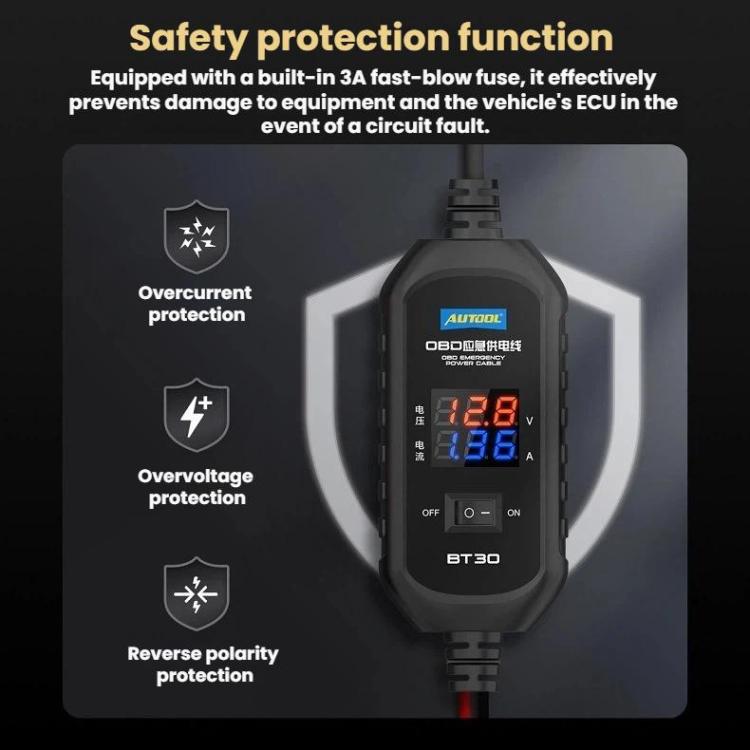

4. Safety protection function: built-in 3A fast-blow fuse effectively prevents damage to the device and vehicle ECU in case of circuit faults.

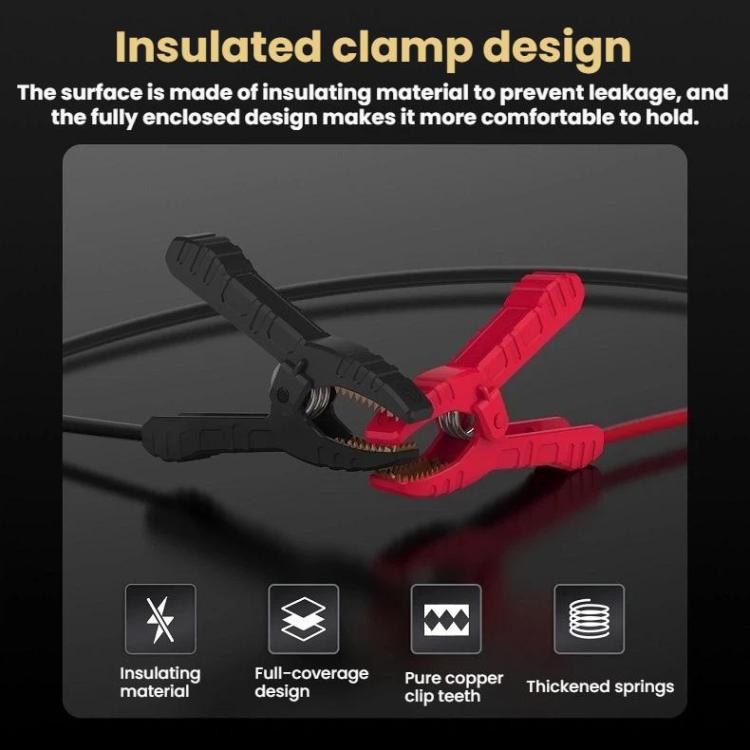

5. Insulated surface material: leakage-proof, fully enclosed design for a more comfortable grip.
6. Cable length: 0.5/0.4 meters
7. Dimensions: 48x102mm

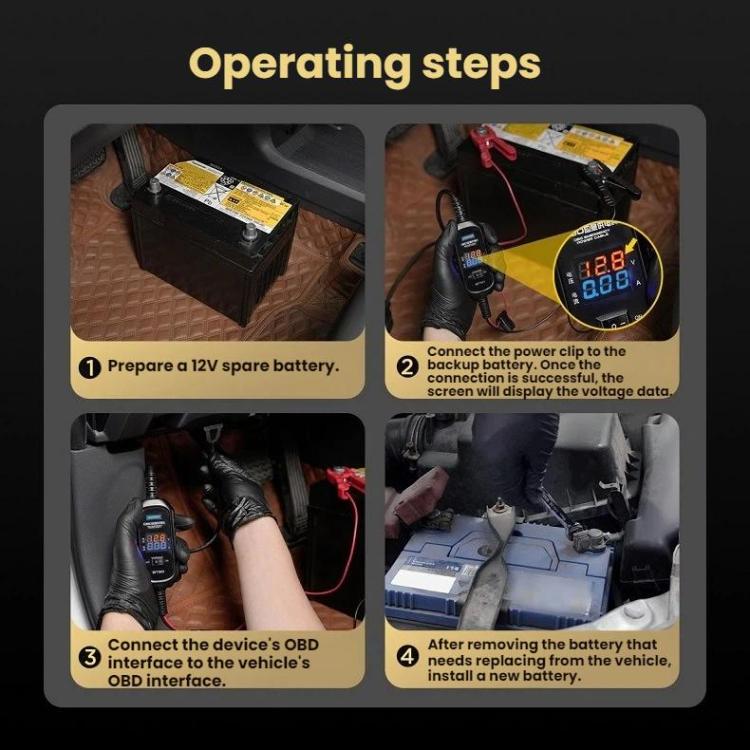

Operating steps:
1. Prepare a 12V spare battery with sufficient capacity.
2. Connect the power clip to the spare battery. The screen will display the voltage data after successful connection.
3. Connect the devices OBD interface to the vehicles OBD interface.
4. Remove the battery that needs replacing from the vehicle and replace it with the new battery.
