1. Compact size.
2. Digital LED display (3 digits)
3. Completely sealed design (IP67).
4. Reversed polarity input protection.
5. Specification:
Product display: LED display
Measure voltage range: DC 0-100V
powering voltage range: DC 4-30v
Current Consumption: <30mA
Sampling Rate: 5 readings/s
Resolution: 0.01V (input <10V) / 0.1V (input >10V)
6. Wiring: Red line to 4-30V power supply. The yellow wire connection requires the positive pole of the measuring device (0-100V) (note that you cannot connect the same device with the red wire). Black wire ground.

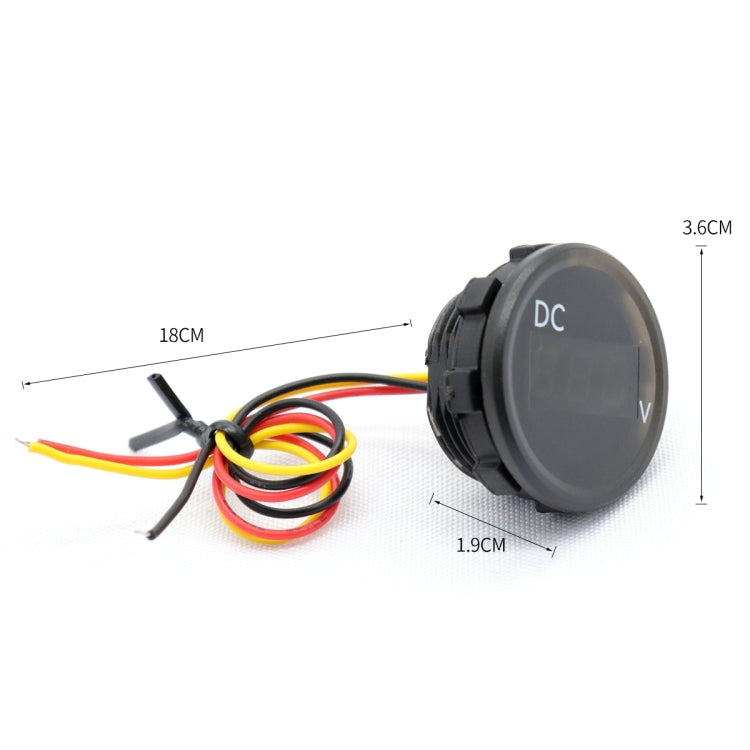

7. Size: Surface diameter 3.6cm, height 1.9cm, cable length 18cm.
