1. Vibration testing is an important means to achieve equipment status and fault diagnosis. The use of handheld vibration meters improves production safety, quality and efficiency.

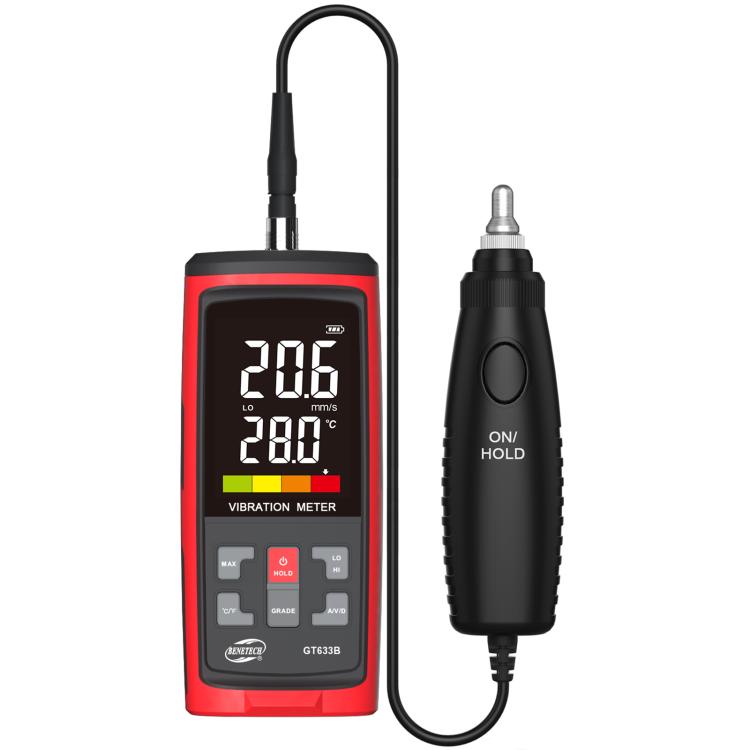

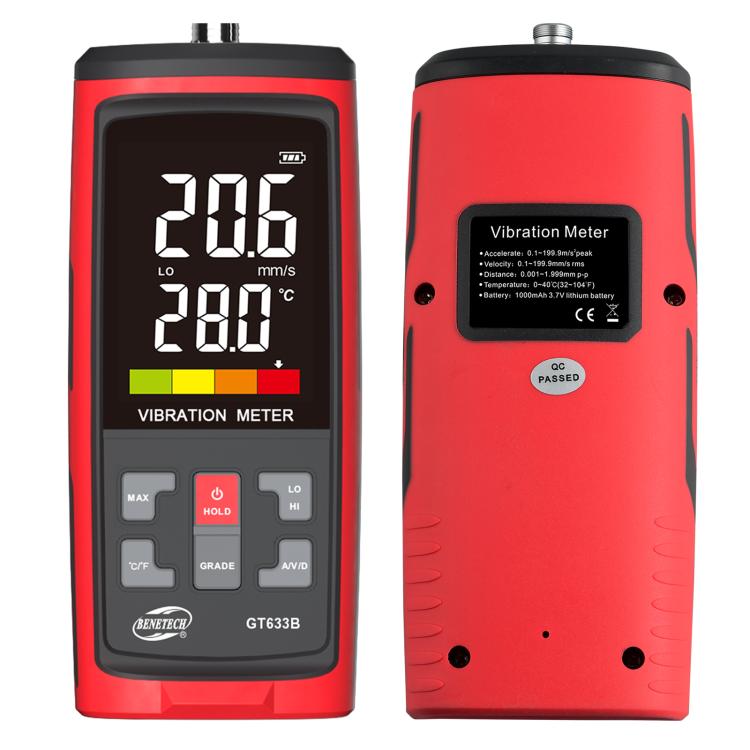

2. This instrument uses a piezoelectric acceleration sensor to convert vibration signals into electrical signals. By processing and analyzing the input signal, it displays the acceleration, velocity and displacement value of the vibration. It is widely used in machinery manufacturing, electricity, metallurgy, automobiles and other fields.
3. Sensor: piezoelectric ceramic accelerometer (shear type)
4. Acceleration measurement range: 0.1 to 199.9m/s2 (peak value)
5. Velocity measurement range: 0.1 to 199.9mm/s (true effective value)
6. Displacement measurement range: 0.001 to 1.999mm (peak-to-peak value)
7. Measurement error: +/-(5%+2digits)
8. Low-frequency acceleration measurement frequency range: 10Hz to 1KHz (LO)
9. High-frequency acceleration measurement frequency range: 1KHz to 3KHz (HI)
10. Velocity measurement frequency range: 10Hz to 1KHz (LO)
11. Displacement measurement frequency range: 10Hz to 1KHz (LO)
12. Data update: about 0.5 seconds
13. Maximum value hold: Yes
14. Temperature measurement: 0 to 40 degrees Celsius
15. Temperature accuracy: +/-1.5 degrees Celsius
16. Automatic shutdown: 1 minute of no operation
17. Power supply: 1000mAh 3.7V lithium battery
18. Dimensions: 150x63x34mm
