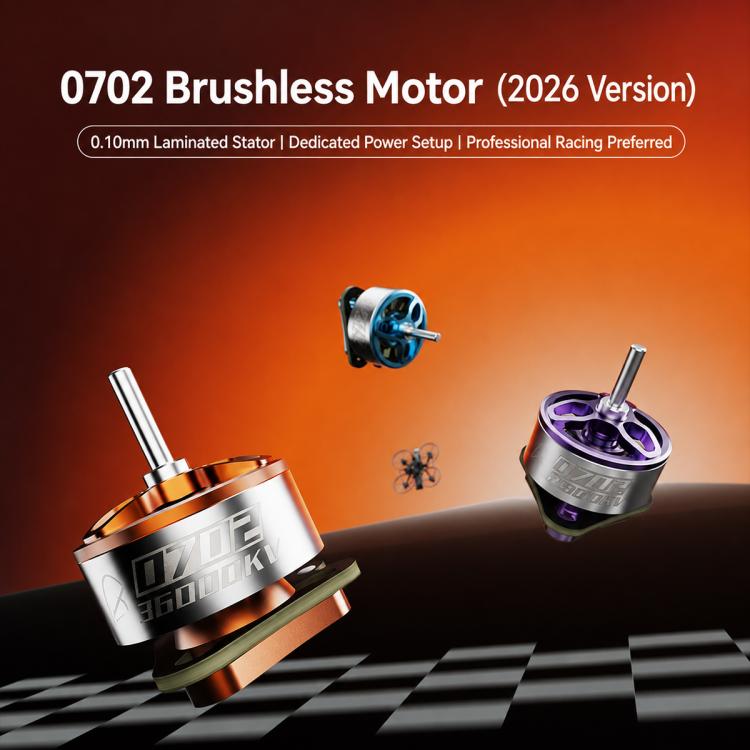

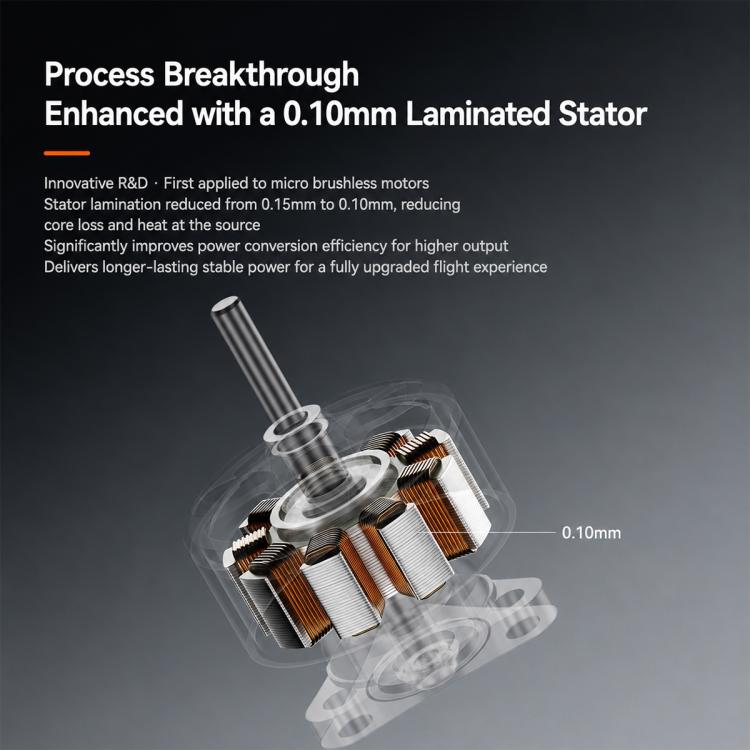

1. Industry-First 0.10mm Stator Core: Maximizes efficiency and reduces heat by minimizing magnetic losses, delivering a proven 0.1-0.2g/W improvement.

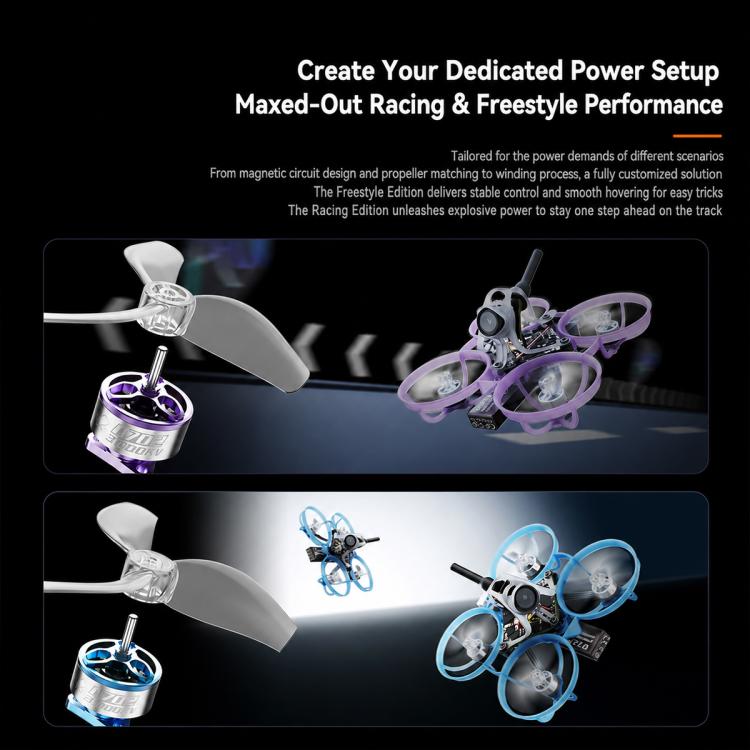

3. Three Precision-Tuned Versions: Tailored for the Air 65 II whoop with unique KV ratings and designs.

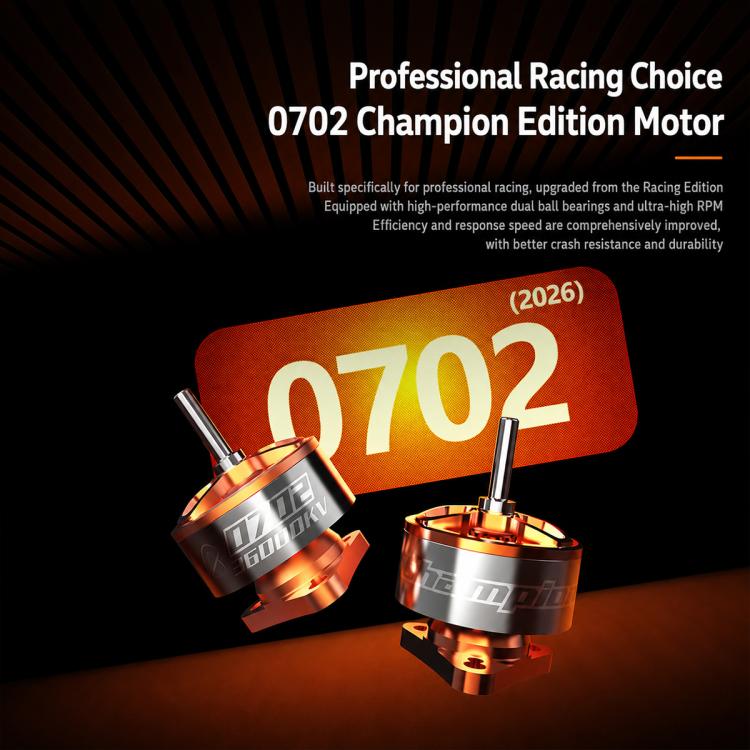

4. Champion (36000KV): Combines maximum power and responsiveness with durable dual-ball bearings for professional racing.
5. Racing (30000KV): Engineered for high RPM and instant response on technical race courses.
6. Freestyle (25000KV): Optimized for smooth, efficient flying with superior low-throttle torque.

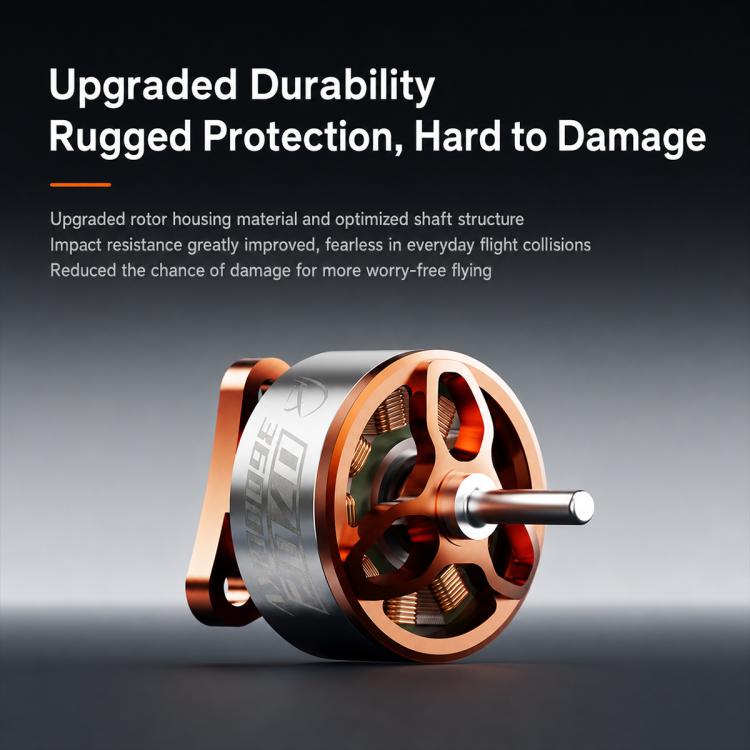

7. Enhanced Crash Durability: Built with an upgraded rotor housing and shaft design to withstand hard impacts and extend motor life.

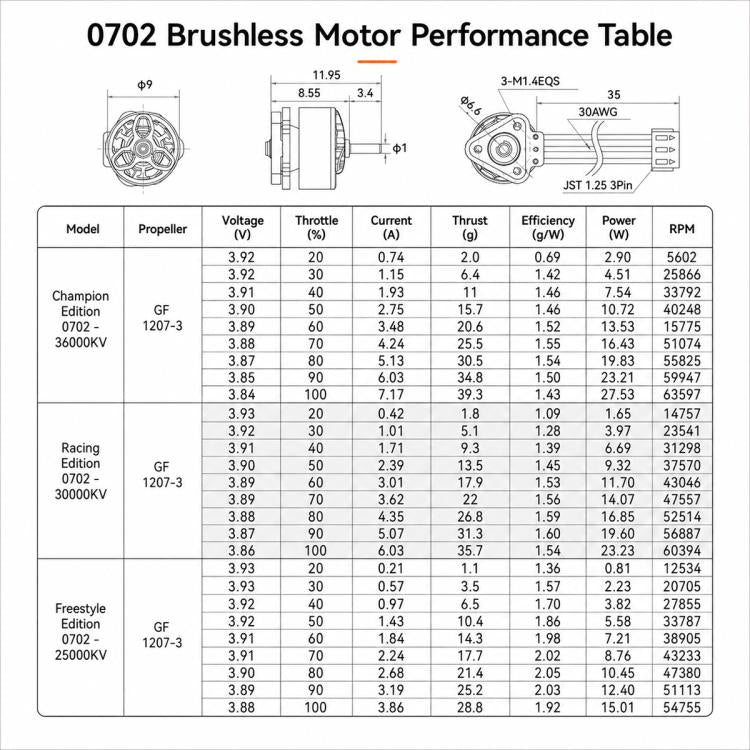

Specifications:
1. Champion: 36000KV, 27.53W, 7.17A, Dual-ball bearings, 1.59g
2. Racing: 30000KV, 23.3W, 6.03A, Brass bushings, 1.50g
3. Freestyle: 25000KV, 15.01W, 3.86A, Brass bushings, 1.50g
4. Rated Voltage: 4.2V (1S)

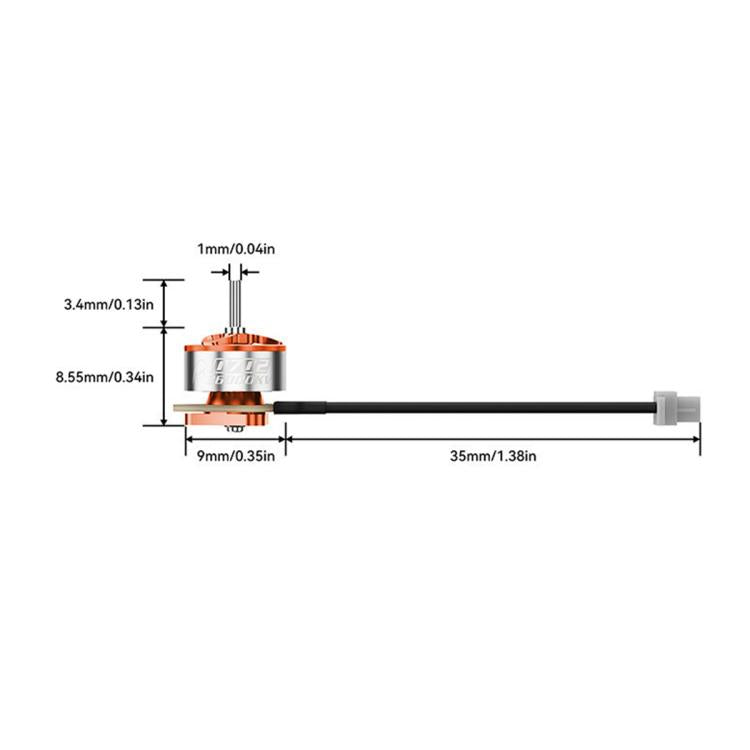

5. Shaft Diameter: 1.0mm
6. Shaft Length: 3.4mm
7. Wire Gauge: 30AWG
8. Wire Length: 35mm
9. Connector: JST1.25 3 Pin
10. Mounting Hole Size: 3*M1.4 EQS .6mm
