Features

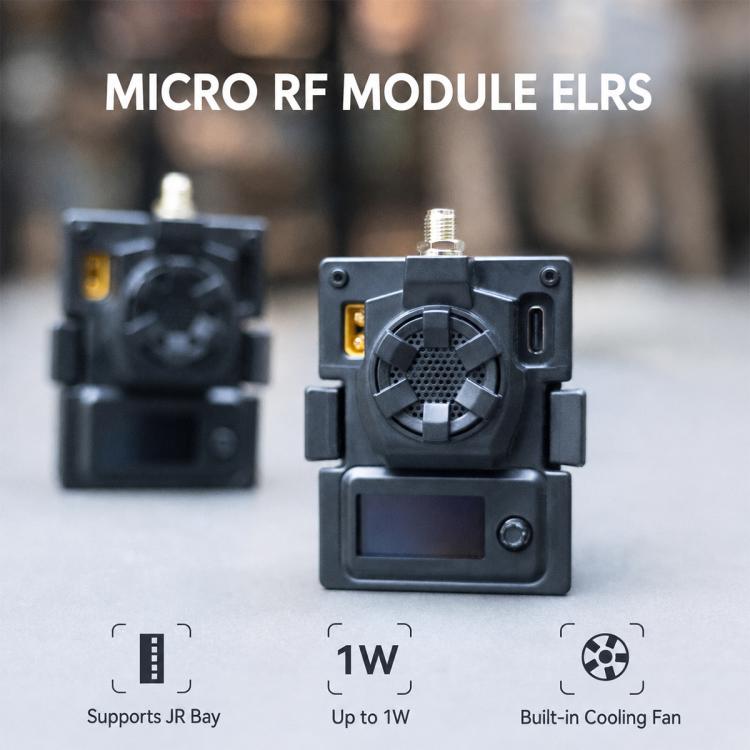

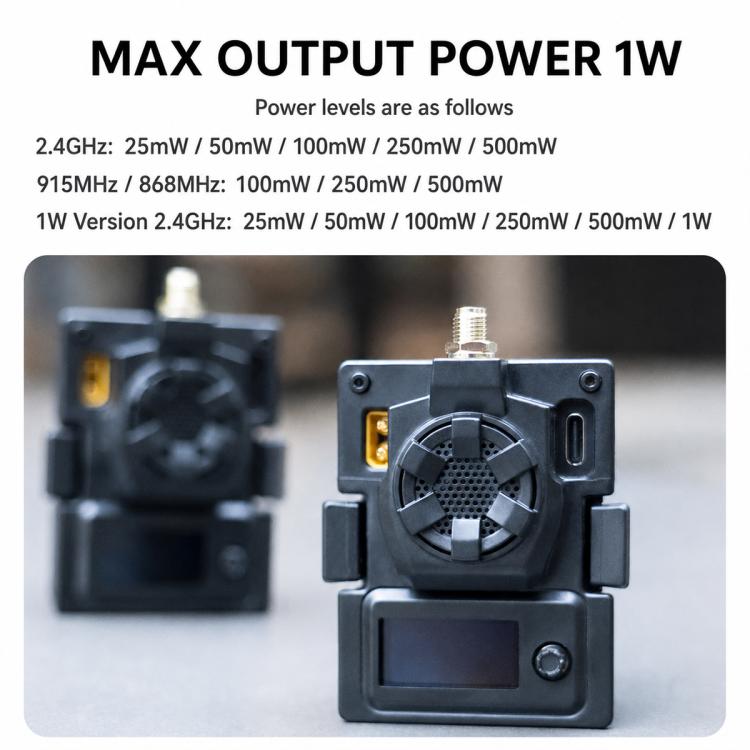

1. High-Power Transmission (Up to 1W): ELRS RF module with a maximum output of 1W (2.4GHz version) and adjustable power levels, ensuring stable, long-range control for FPV drones.

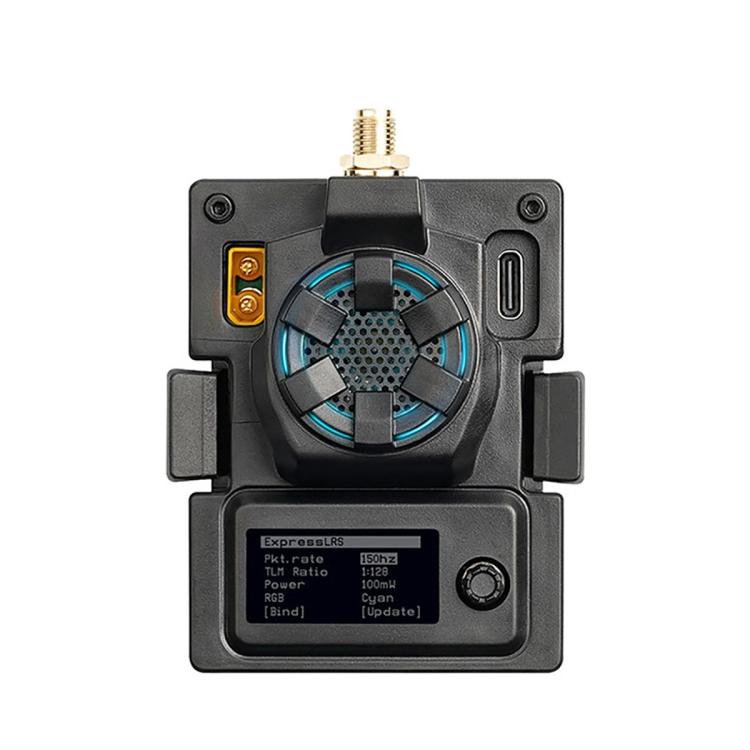

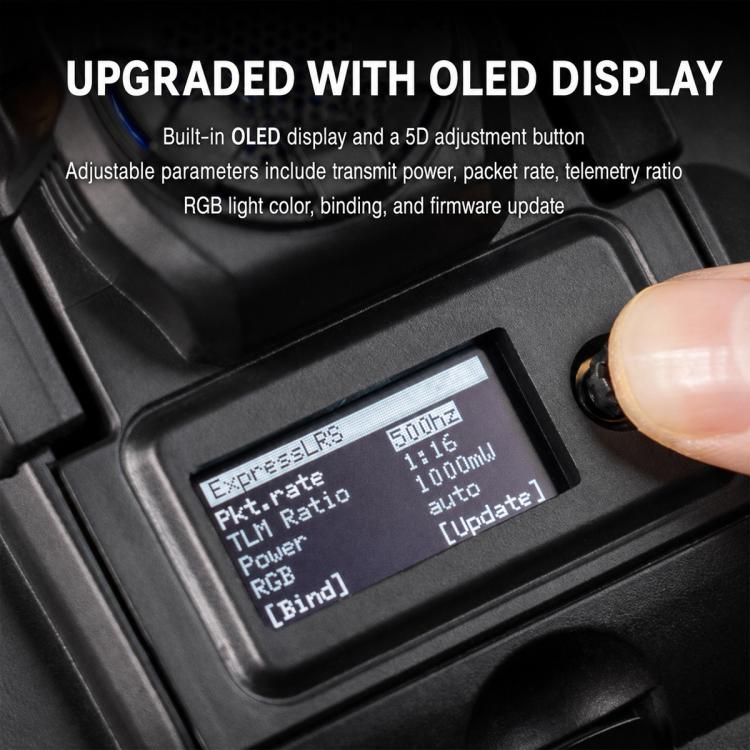

2. OLED Display & 5D Navigation Button: Features an onboard OLED screen and a 5-way navigation button for direct configuration of transmit power, refresh rate, telemetry ratio, RGB lighting, binding, and firmware updates, allowing for intuitive parameter adjustment.

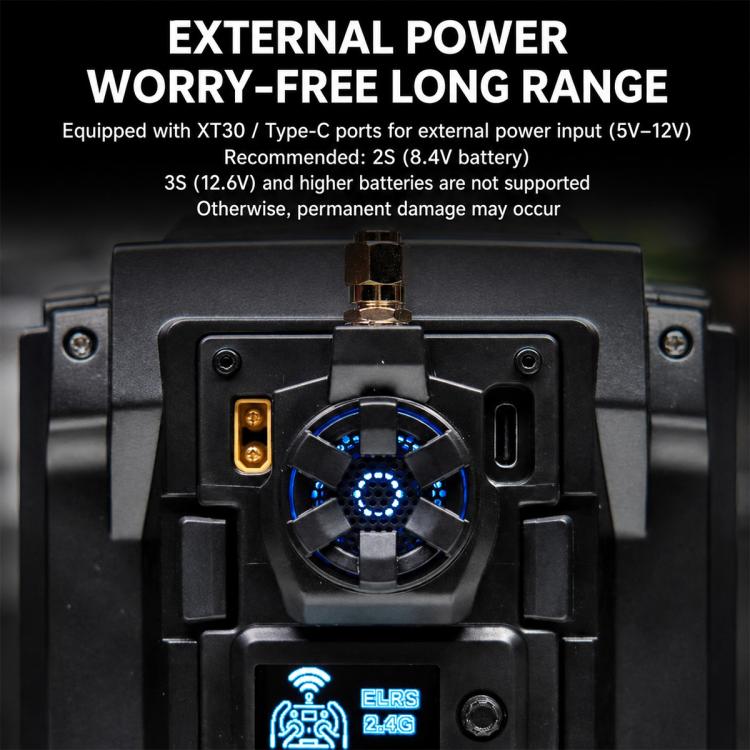

3. Dual External Power Options (XT30 and Type-C): Supports 5–12V external input (2S LiPo recommended); do not use 3S or higher voltage batteries to avoid equipment damage. Designed to meet the demands of extended outdoor operation.

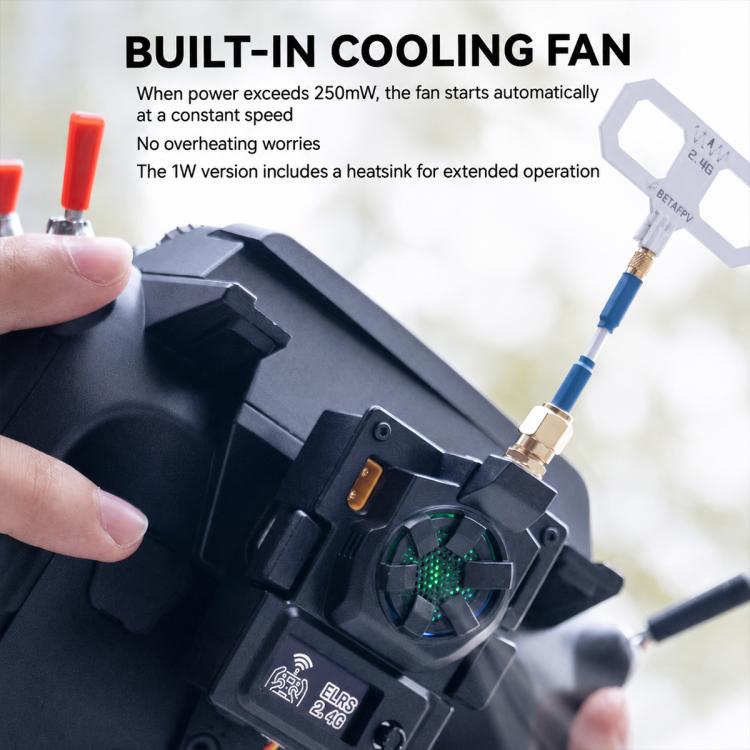

4. Automatic Cooling Fan: The fan activates automatically when output power exceeds 250mW. The 1W version includes a built-in heatsink to dissipate heat rapidly during high-power operation, preventing overheating and ensuring consistent performance.

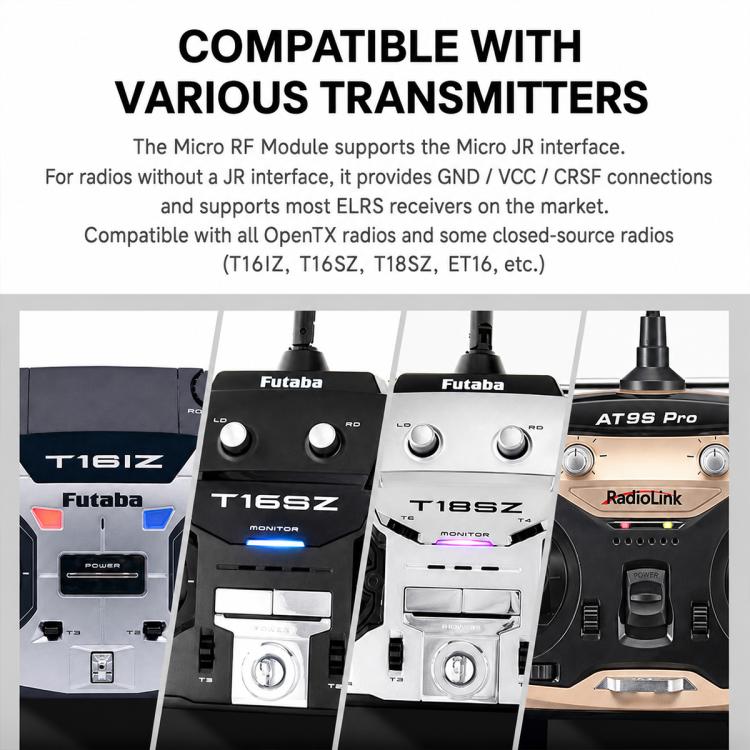

5. Broad Transmitter Compatibility: Uses the standard Micro JR interface and is compatible with OpenTX systems as well as transmitters such as the Futaba T16IZ, T16SZ, T18SZ, and ET16. Transmitters without a JR bay can connect via GND/VCC/CRSF wiring; compatible with the vast majority of ELRS receivers on the market.
