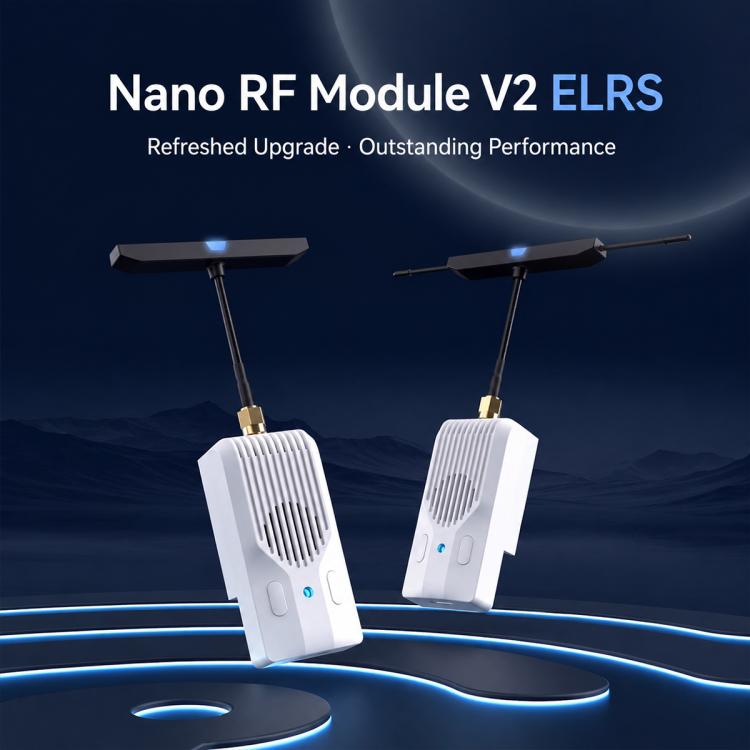

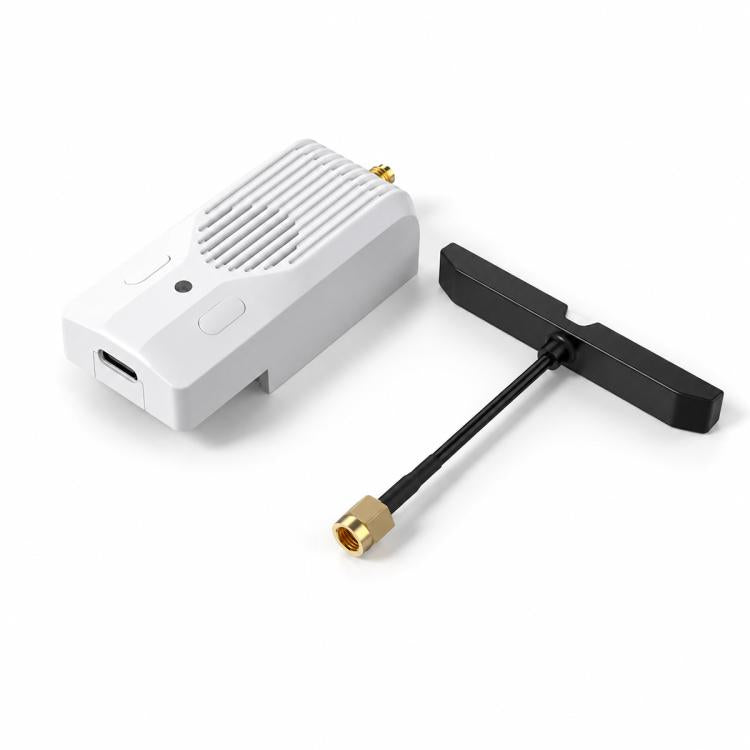

BETAFPV ELRS 2.4GHz Nano TX V2 Module(White)

Product Features:

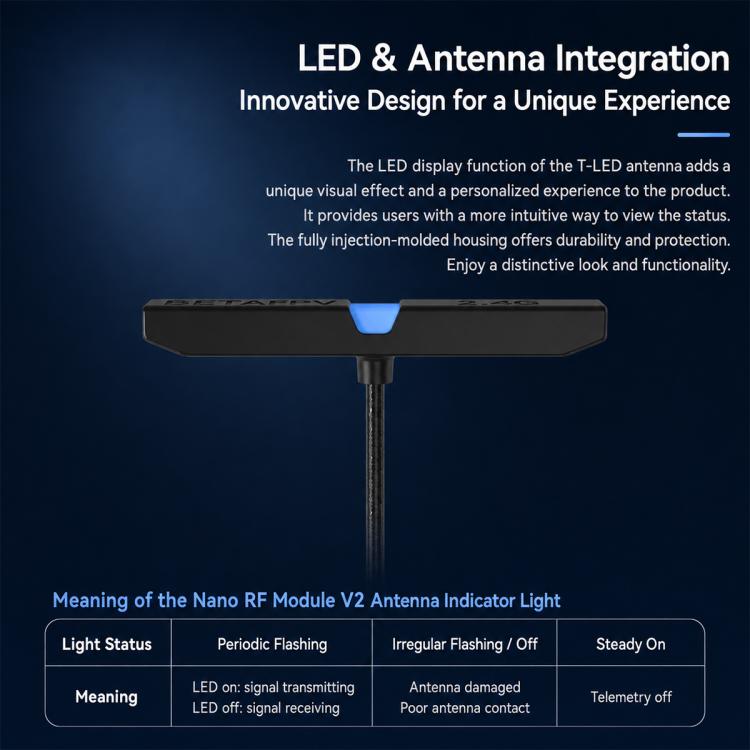

1. The First ever T-LED antenna with built-in LED display functionality, allowing pilots to effortlessly monitor the signal transmitting and receiving while using the radio transmitter.
2. It offers 3 versions: 2.4GHz with a maximum output power of 1W, and 915/868MHz with a maximum output power of 2W. The max packet rate is F1000/200Hz.
3. Featuring an integrated TCXO, it minimizes frequency deviation for stable performance, eliminating signal interference.

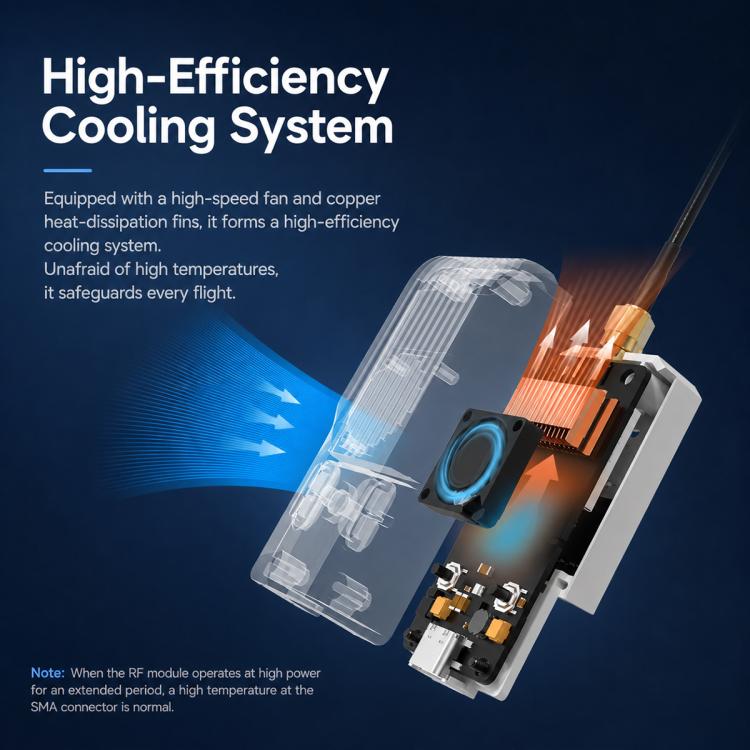

4. With its optimized internal airflow channel and a heat sink, a high-speed 1804 cooling fan, it effectively dissipates heat even during high power output, ensuring stable link performance.

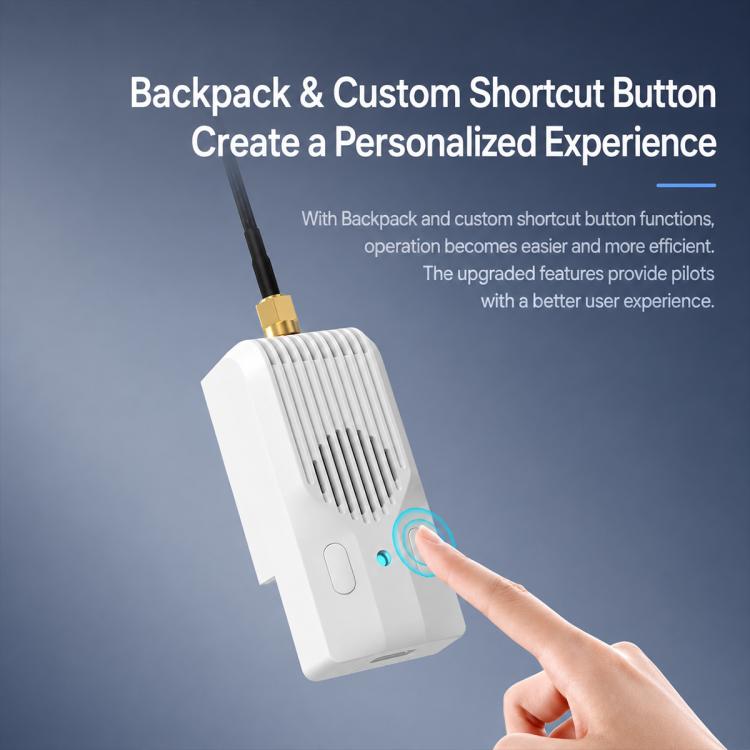

5. Support backpack and custom button functions based on ELRS V3.3, empowering pilots to connect external devices and set buttons according to personal usage habits.

Specification
1. Item: BETAFPV Nano TX V2 Module, ELRS 2.4GHz
2. Weight: 28g
3. Color: White
4. Antenna Connector: RP-SMA(2.4GHz)
5. RF Power(2.4GHz): 25mW / 50mW / 100mW / 250mW / 500mW / 1000mW
6. Packet Rate(2.4GHz): 50Hz / 100Hz / 150Hz / 250Hz / 333Hz / 500Hz / D250 / D500 / F500 / F1000
7. Frequency Band: 2.4GHz ISM, 915MHz FCC, 868MHz EU
8. Backpack: Support
9. Input Voltage: 7V~13V DC
10. Power Consumption(2.4GHz): 8V, 1000mA 1000mW, 150Hz,1:128
11. USB Port: Type-C
12. Fan Voltage: 5V
13. Default Firmware Version: ExpressLRS V3.3.0
