Features:

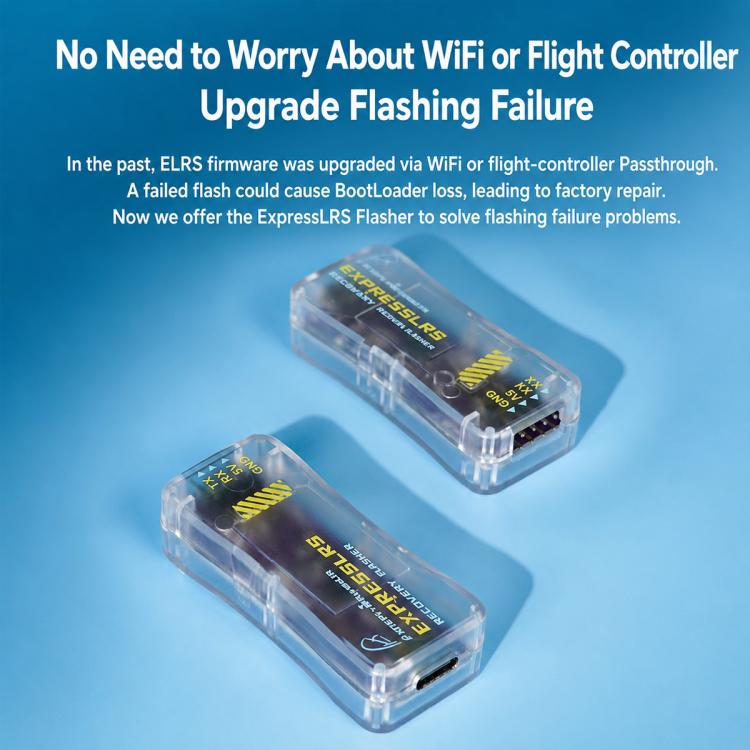

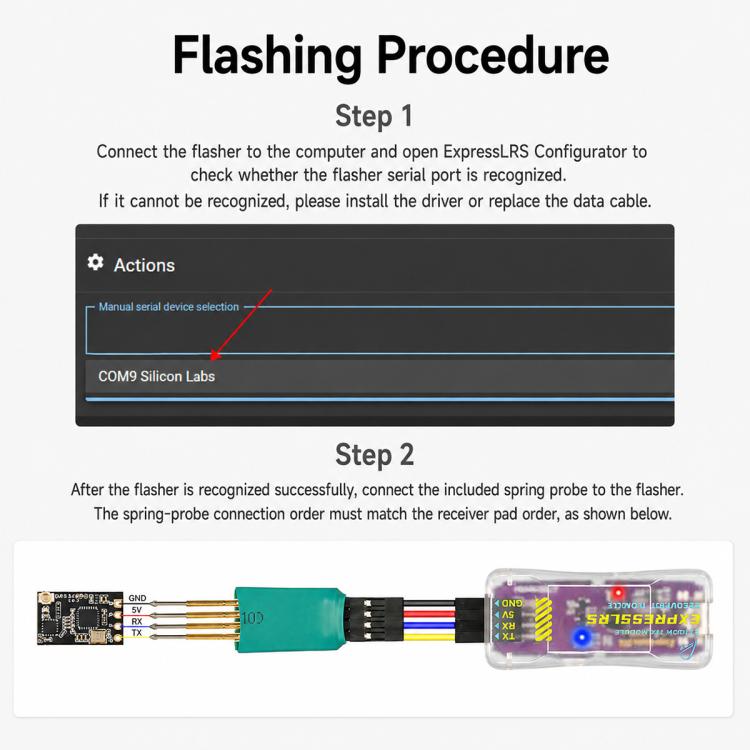

1. ELRS Receiver Recovery: Designed to unbrick and recover ExpressLRS receivers after failed firmware updates, including situations where the bootloader is missing or corrupted.

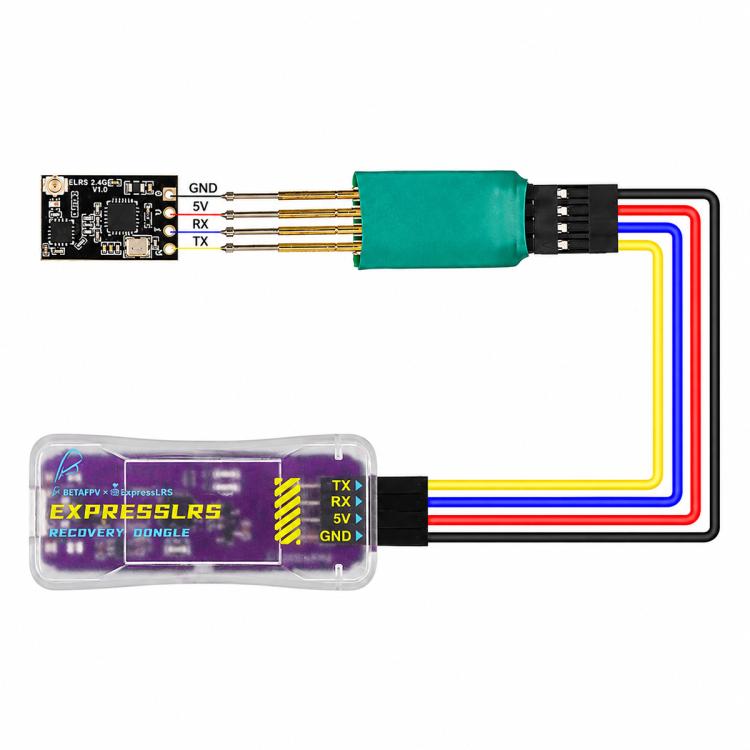

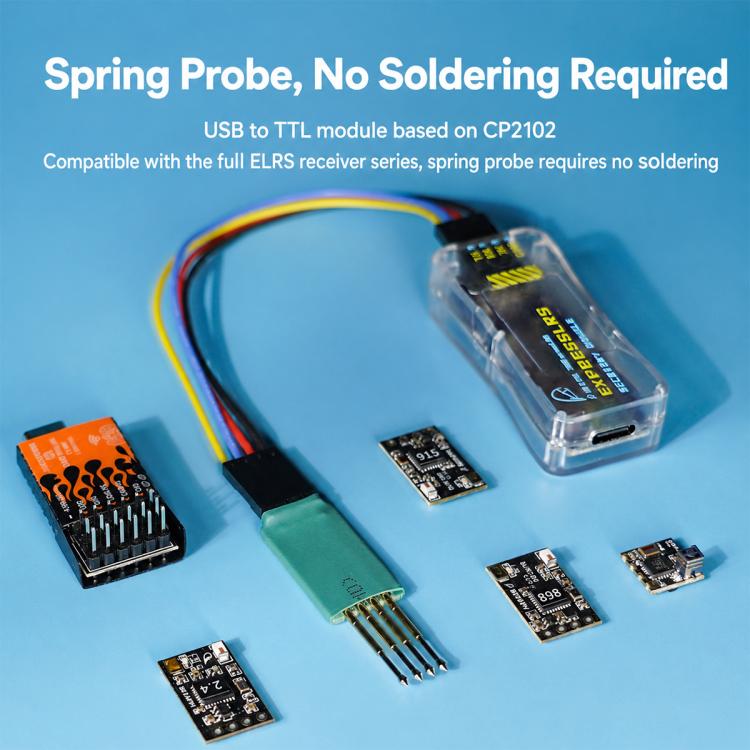

2. Solder-Free Connection: Equipped with spring probe pins for direct contact with compatible ELRS receivers, eliminating the need for soldering during recovery.
3. Durable Protective Case: The FTDI USB to TTL module is enclosed in a protective case, providing better durability and portability compared with exposed board designs.
4. Wide System Compatibility: Supports Windows, macOS and Linux systems, making it suitable for recovery and firmware maintenance across multiple computer platforms.

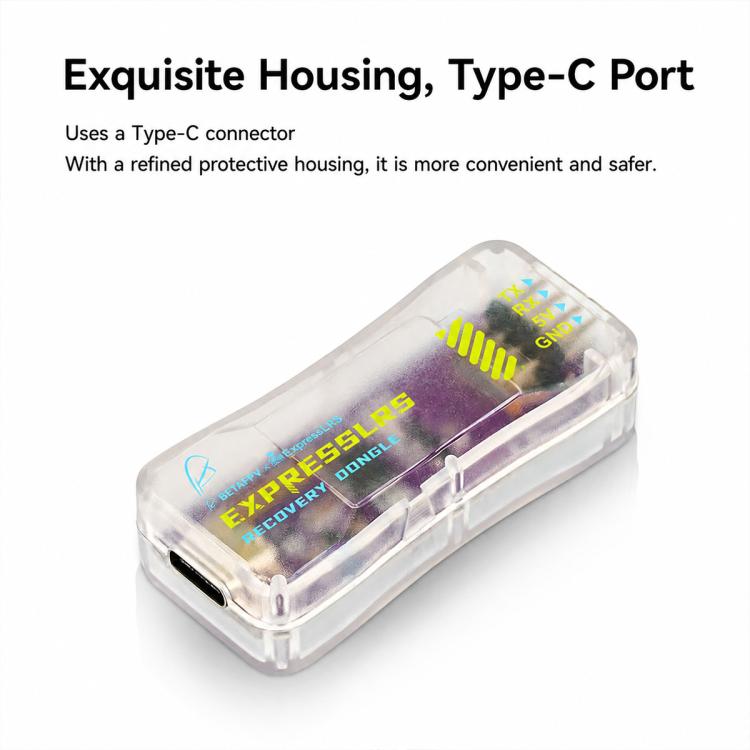

5. Type-C USB Connection: Uses a USB Type-C interface for convenient connection to a computer and reliable data communication during receiver recovery.
6. High-Speed Serial Communication: Supports serial baud rates of up to 921600bps and USB 1.1/2.0 for efficient data transfer and firmware recovery.
Specification:
1. USB Interface: USB Type-C Male Connector
2. Operating Voltage: 5V
3. Logic Voltage: 5V
4. 3.3V Power Output Current: 400mA
5. Pin Output Method: 2 x 4P 2.54mm Pin Header
6. Serial Baud Rate: Up to 921600bps
7. USB Standard: USB 1.1 / USB 2.0
8. USB to Serial Chip: CP2102
9. Supported Systems: Windows XP, Windows 7, Windows 8 32-bit/64-bit, Windows 10/11 32-bit/64-bit, Linux, macOS
1. ELRS Receiver Recovery: Designed to unbrick and recover ExpressLRS receivers after failed firmware updates, including situations where the bootloader is missing or corrupted.
2. Solder-Free Connection: Equipped with spring probe pins for direct contact with compatible ELRS receivers, eliminating the need for soldering during recovery.
3. Durable Protective Case: The FTDI USB to TTL module is enclosed in a protective case, providing better durability and portability compared with exposed board designs.
4. Wide System Compatibility: Supports Windows, macOS and Linux systems, making it suitable for recovery and firmware maintenance across multiple computer platforms.
5. Type-C USB Connection: Uses a USB Type-C interface for convenient connection to a computer and reliable data communication during receiver recovery.
6. High-Speed Serial Communication: Supports serial baud rates of up to 921600bps and USB 1.1/2.0 for efficient data transfer and firmware recovery.
Specification:
1. USB Interface: USB Type-C Male Connector
2. Operating Voltage: 5V
3. Logic Voltage: 5V
4. 3.3V Power Output Current: 400mA
5. Pin Output Method: 2 x 4P 2.54mm Pin Header
6. Serial Baud Rate: Up to 921600bps
7. USB Standard: USB 1.1 / USB 2.0
8. USB to Serial Chip: CP2102
9. Supported Systems: Windows XP, Windows 7, Windows 8 32-bit/64-bit, Windows 10/11 32-bit/64-bit, Linux, macOS
