Features

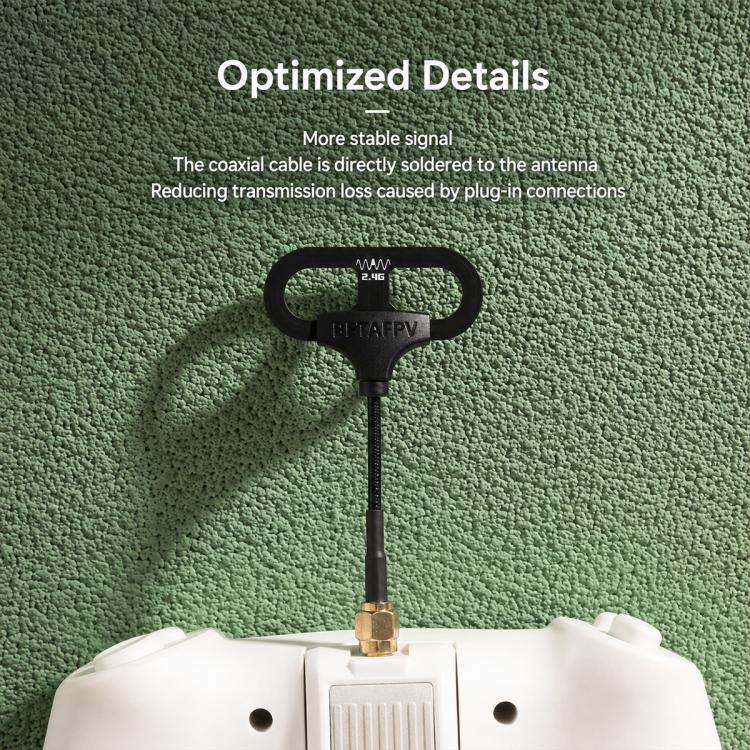

1. Direct-solder coaxial cable process for stable signal: The coaxial feeder is soldered directly to the antenna body, eliminating signal loss caused by connectors; this ensures more stable remote control transmission and reduces contact-related failures during long-term use.

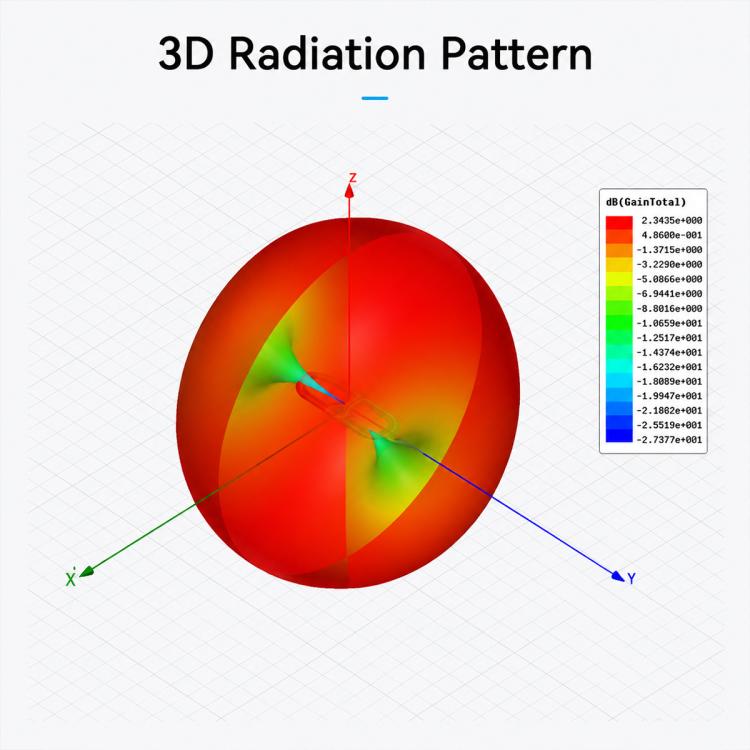

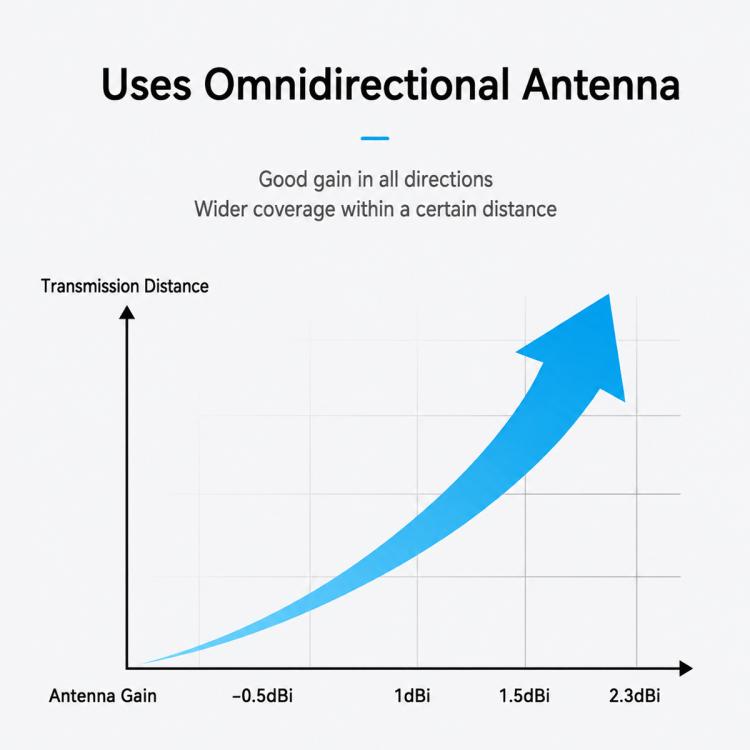

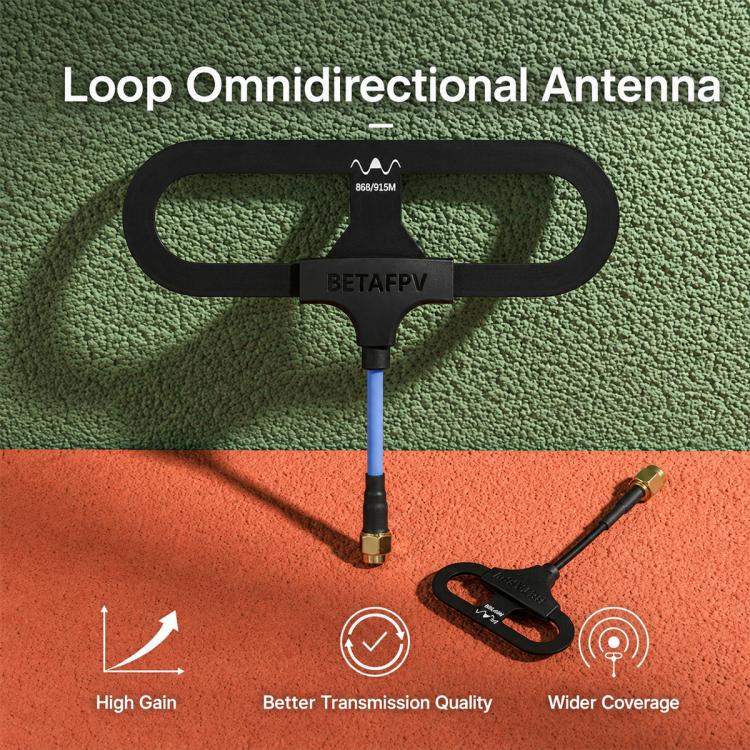

2. High-gain omnidirectional loop design: Features a loop-style omnidirectional antenna with 2.3dBi gain, providing excellent signal gain in all directions, wider coverage, and effectively increased transmission range.

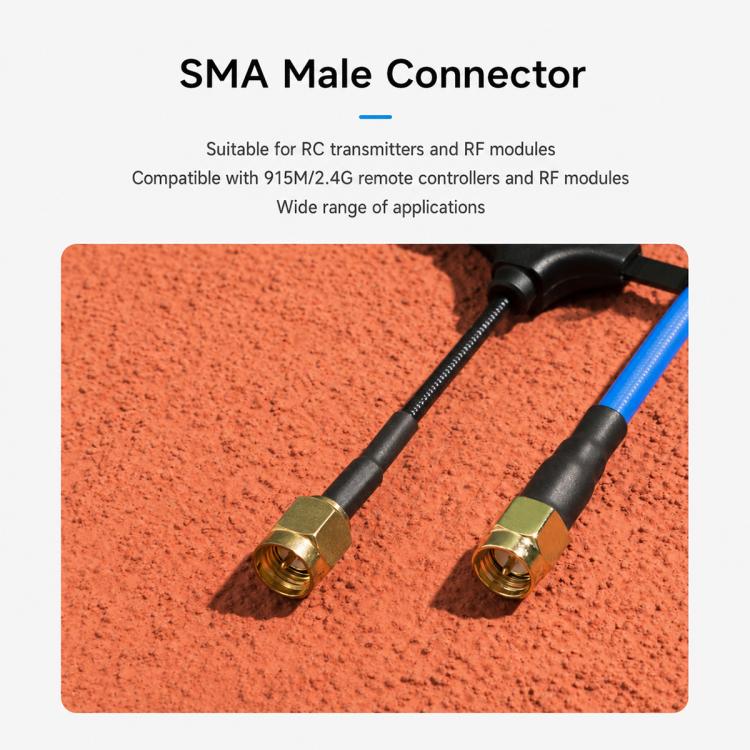

3. Standard SMA male connector: Gold-plated SMA male connector compatible with 2.4G and 868-915M remote control transmitters and RF modules; highly versatile and compatible with the vast majority of ELRS remote control systems.

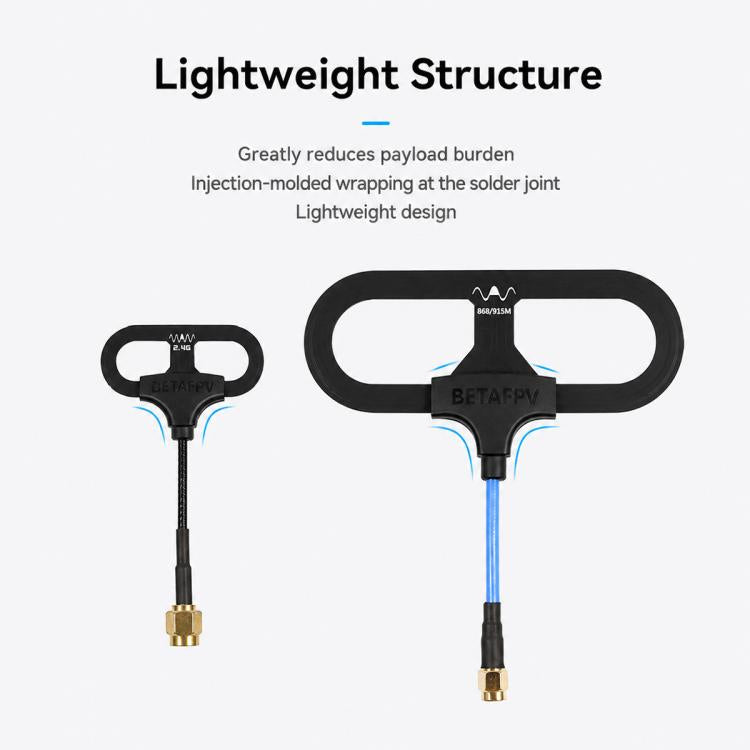

4. Lightweight, reinforced injection-molded structure: Lightweight loop design adds no extra load; the solder joint is reinforced with injection molding for resistance to bending and vibration, ensuring durability and reliability for outdoor flight.
5. Optimized dimensions and dual-frequency options: Dimensions optimized for remote control installation; available in 2.4G and 868-915M frequency specifications, suitable for FPV drones, fixed-wing aircraft, and other RC equipment.
Specifications

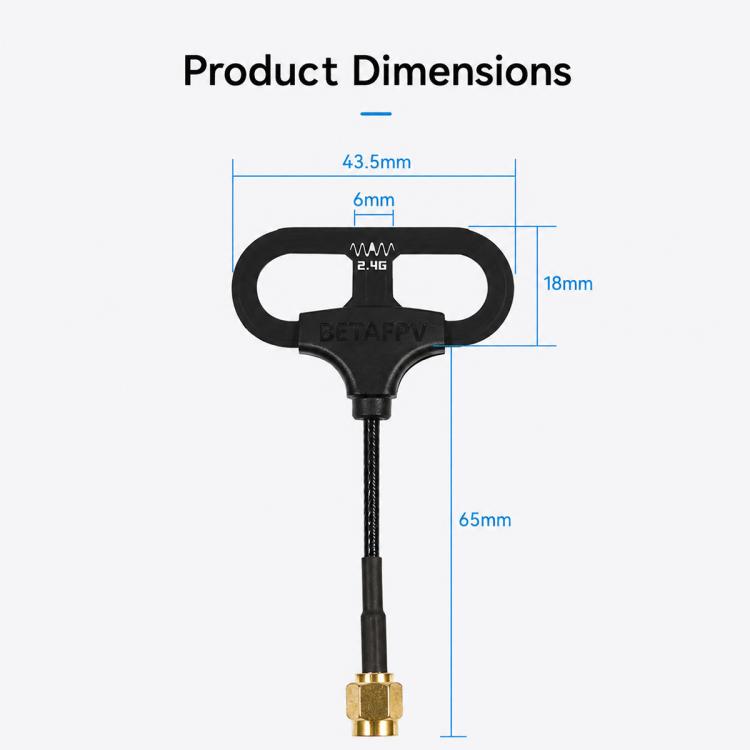

1. Coaxial cable length: 65mm (2.4G) / 90mm (868M / 915M)
2. Connector type: SMA Male (internal thread, internal pin)
3. Gain: 2.3dBi (2.4G) / 2.3dBi (868M / 915M)
4. VSWR: less than1.5 (2.4G) / less than2.0 (868M / 915M)
5. Polarization type: Linear polarization
6. Compatible transmitters: Remote controllers or RF modules with 2.4GHz/915MHz/868MHz transmission frequencies.
