Product Parameters
Panel material: PC+ABS engineering plastics (flame retardant)

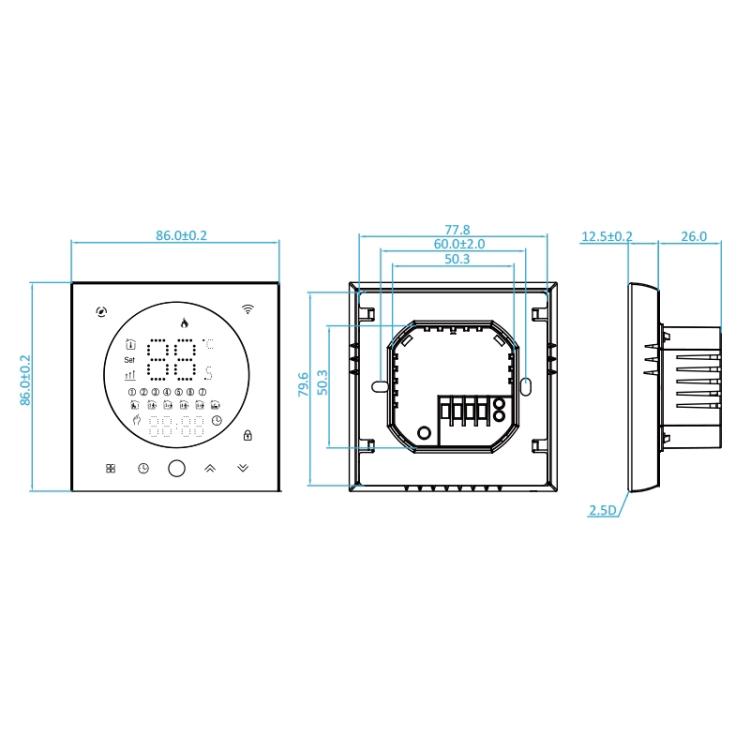

Install embedded box: 86mmx86mm / European style 60mmm round box
Voltage range: 95~240VAC, 50~60HZ or 24V, DC/AC, 50~60Hz
Current: 5A
Sensor: NTC3950, 10K
Temperature error: +/-1 degree Celsius
Time error: less than 1%
Temperature control range: 5 - 35 degrees Celsius
Normal working environment temperature/humidity: -5 - 45 degrees Celsius, 5-95%RH (no condensation)
Power: less than 1.5W
Protection class: IP20
Button type: capacitive touch button

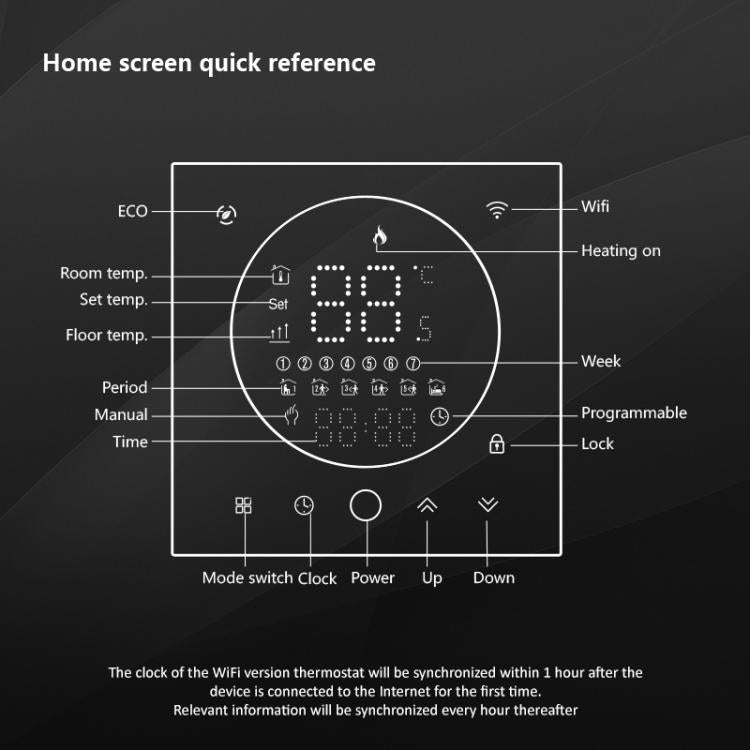

Screen: LED multi-color screen
Product Features
1. Touch buttons, easy to operate.
2. The design of the frameless acrylic panel is simple and elegant.

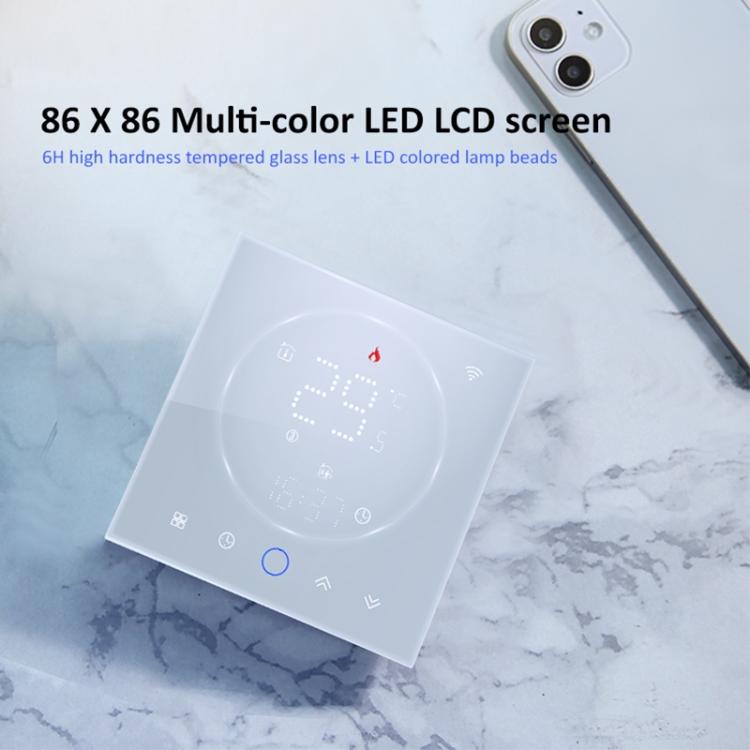

3. LED display, more friendly interface, LED matrix lights, simple display, which saves energy and protects your eyes.

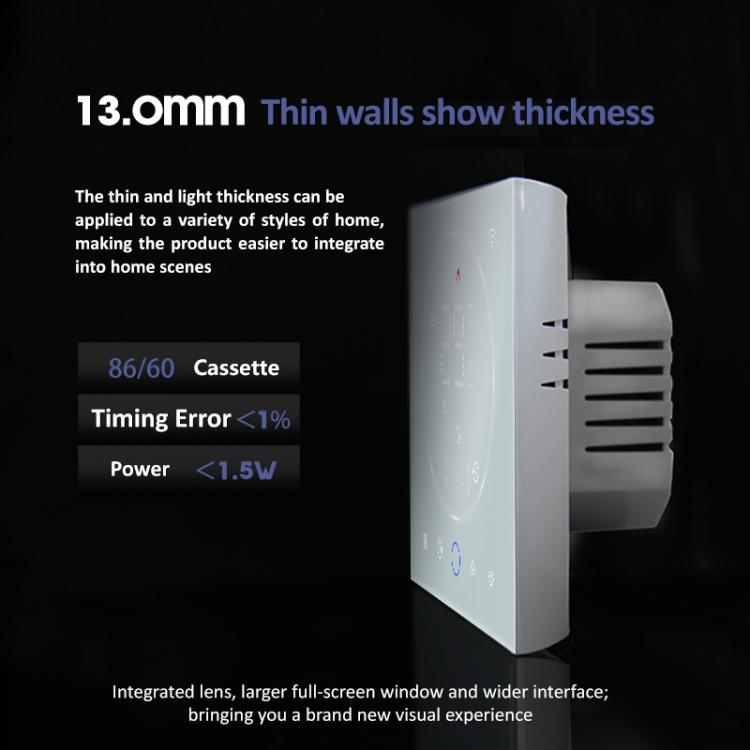

4. The 13mm ultra-thin embedded panel perfectly fits various walls.
5. Compatible with standard 86mm square cassettes and 60mm European cassettes, meeting all installation environments.
Function Features
1. Rich function options, Modbus, room card, etc., to meet all your needs.
2. Strict temperature control accuracy (+/-1 degree Celsius), providing the warmth you want.
3. Comes with a power-off protection device to save all your settings safely.
4. 5+1+1 mode preset adjustment for a week, programmable setting for 6 time periods a day, green energy saving, intelligent and environmental protection.
5. Support the creation of product local groups/shares to realize unlimited centralized control/multi-terminal control of the number of products.
6. Can be perfectly connected to Tmall Genie, Amazon echo, Google Home, experience
A whole new way of voice control.
Product List:
- Thermostat x 1
- Instructions x 1
- Screw x 2
- Sensing line (2.5m, optional) x 1
