1. Material: CNC aluminum alloy
2. A single device integrates 13 high-specification interfaces, including multiple USB 3.2 ports, dual DP 1.4 ports, HDMI 2.0, a Gigabit Ethernet port, dual SD/TF card slots, audio interfaces, and 100W PD fast charging, easily solving the problem of scarce interfaces in ultra-thin laptops.

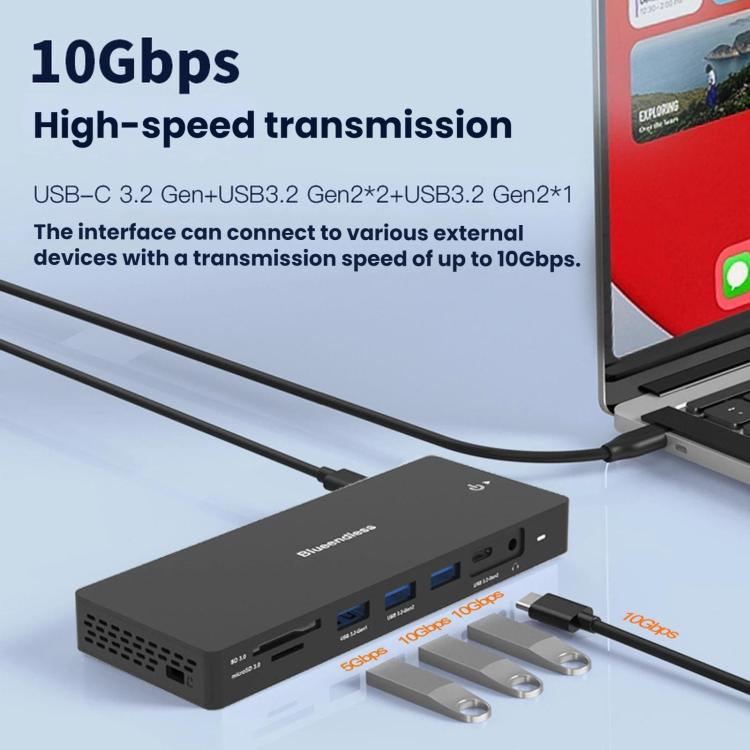

3. Equipped with the USB 3.2 Gen2 standard, it has two USB-A 10Gbps ports and one USB-C 10Gbps port. Whether its large files, 4K footage, or important data, transfers can be completed in seconds, eliminating long wait times.

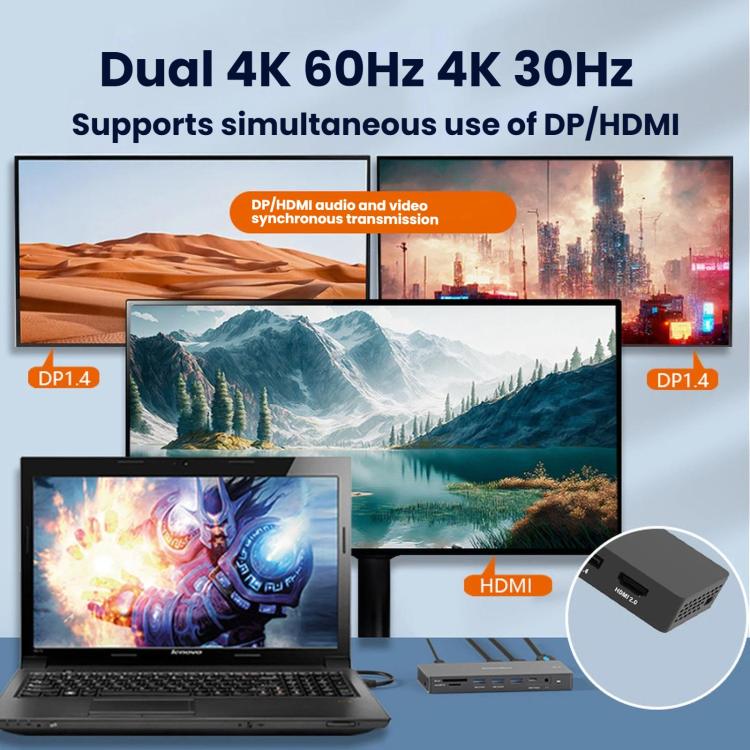

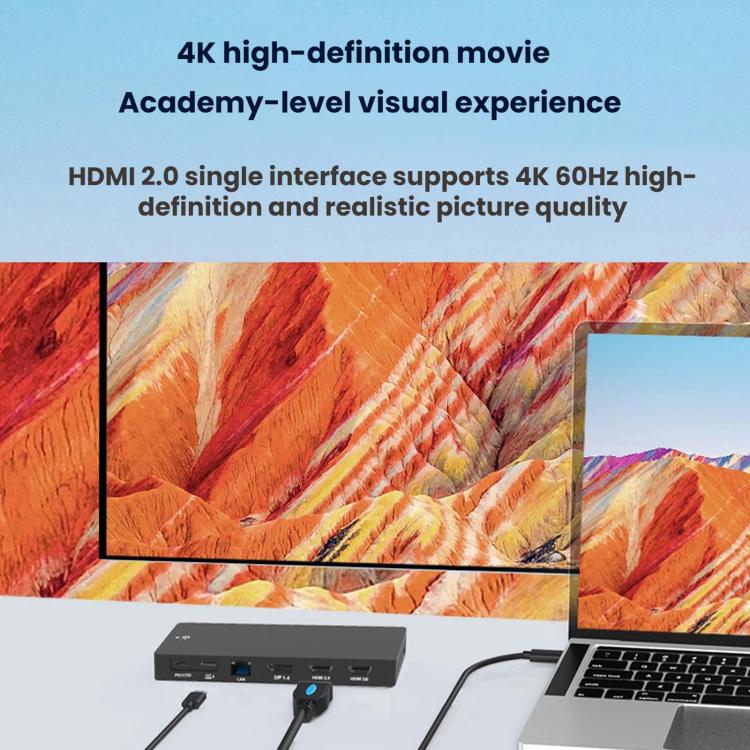

4. Supports simultaneous use of DP and HDMI ports, enabling ultra-high-definition multi-screen display/simultaneous display of dual 4K @ 60Hz + 4K @ 30Hz.

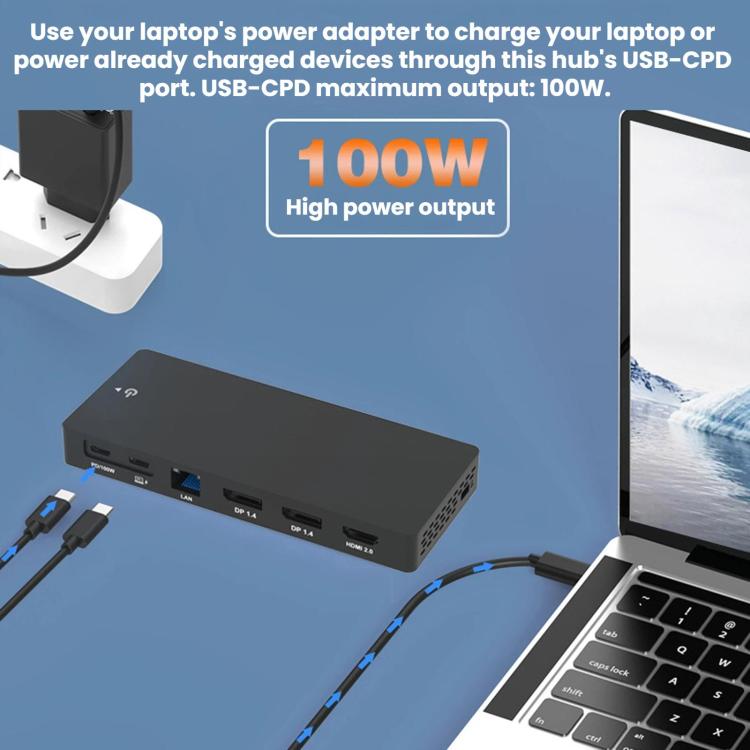

5. Equipped with a powerful USB-C PD power port, supporting 100W power output, allowing your laptop to charge rapidly while under full load.

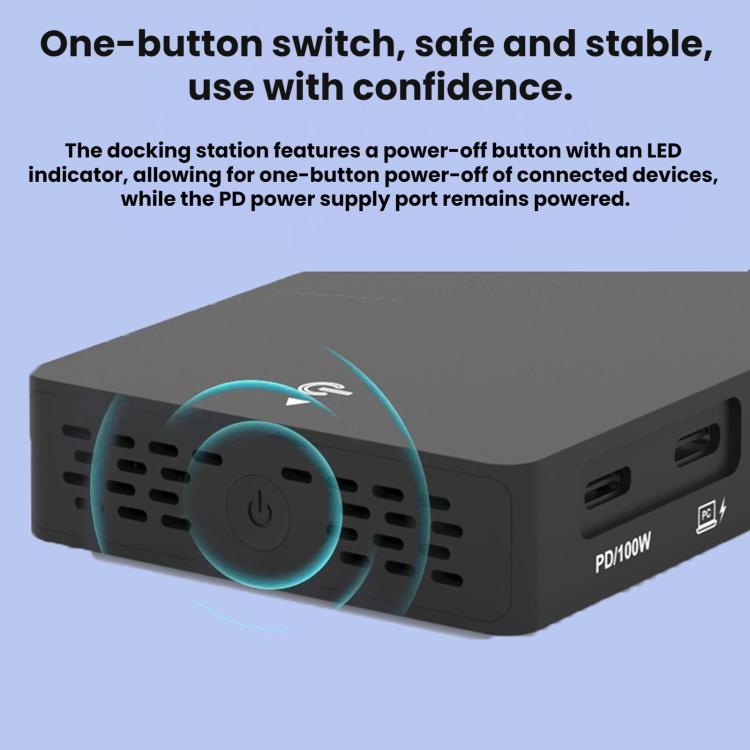

6. Uniquely features an independent physical power-off button and LED indicator, eliminating the need for repeated plugging and unplugging; a single button safely disconnects the connected device (PD power port remains powered), making it both intelligent and worry-free.

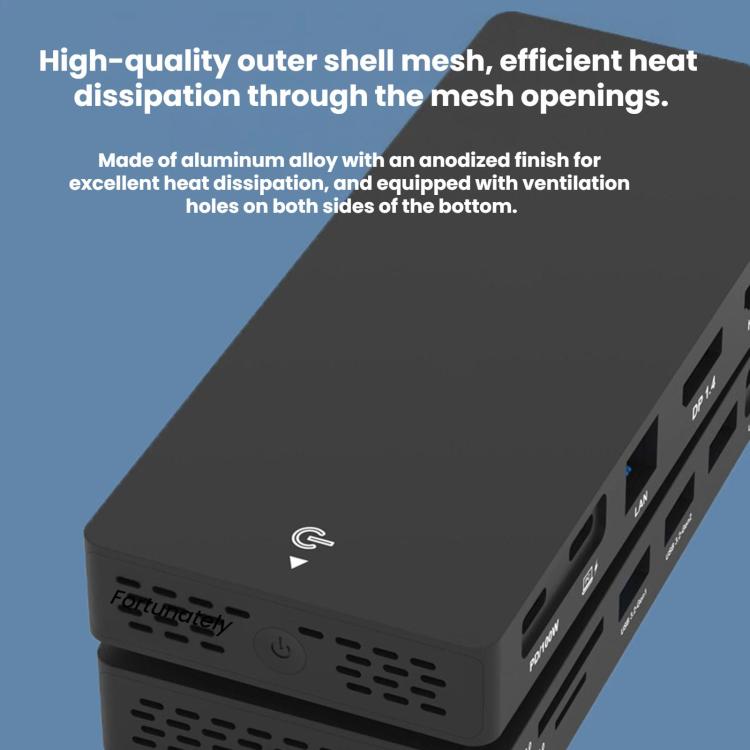

7. The casing is made of high-quality aluminum alloy with advanced anodizing technology, making it wear-resistant and fingerprint-resistant.
The bottom and sides of the body feature a dense mesh ventilation design, significantly improving heat conduction and dissipation efficiency, ensuring the docking station remains cool and stable even under prolonged high-load operation.
8. Product dimensions: 150x62x17.5mm
10. Net weight: 220g
Main Control Chip:
- 3.0 HUB Chip: GL3510
- 3.1 HUB Chip: VL822
- PD Charging Chip: VL103R
- HDMI/DP Chip: VMM5320/5310
- Ethernet Chip: RTL8153B
- Audio Chip: WX8002A
- Card Reader Chip: GL3224

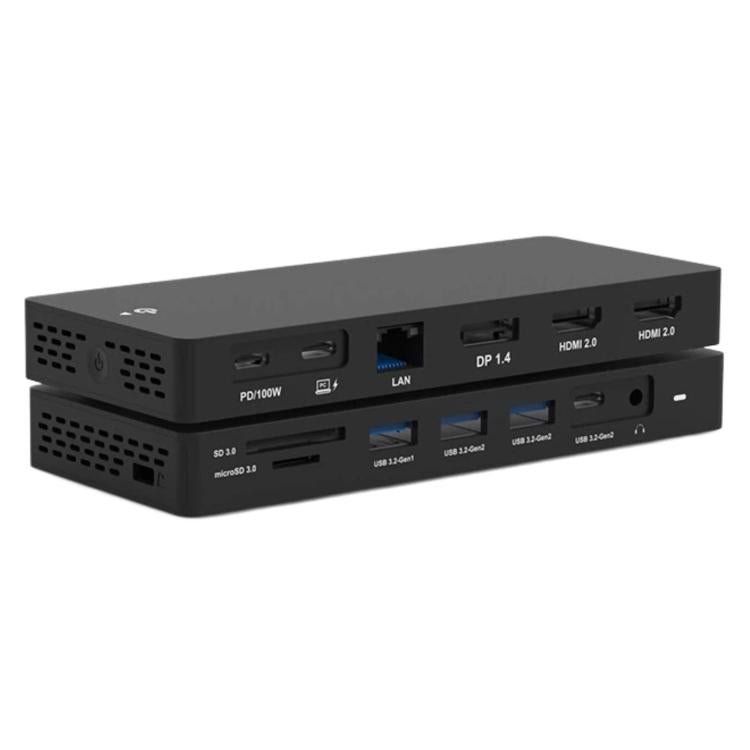

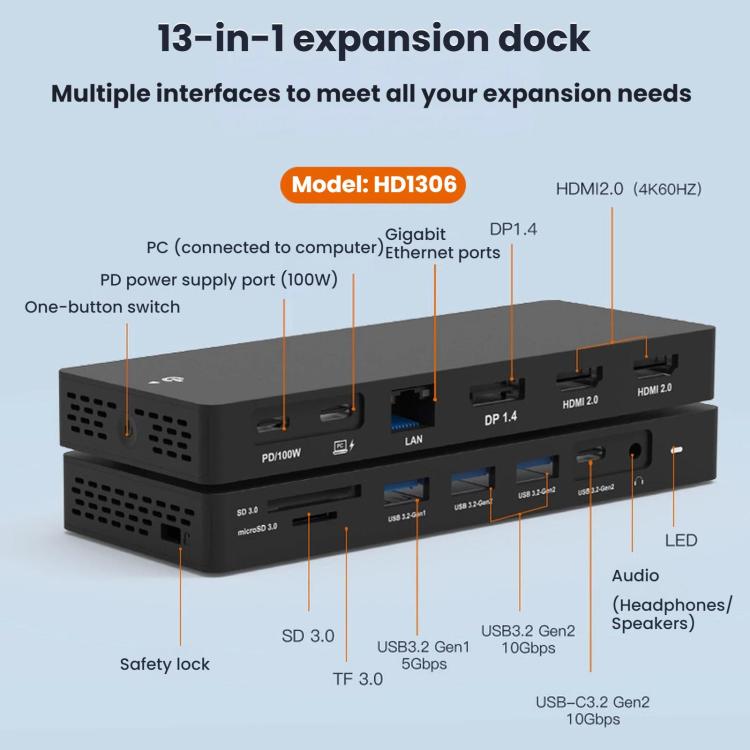

Interface:
- Main Control Type-C Port x 1 (Connects to laptop/phone/tablet)
- HDMI 2.0 x 2 (4K/60Hz)
- DP 1.4 x 1 (4K/60Hz)
- PD 3.0 x 1 (100W)

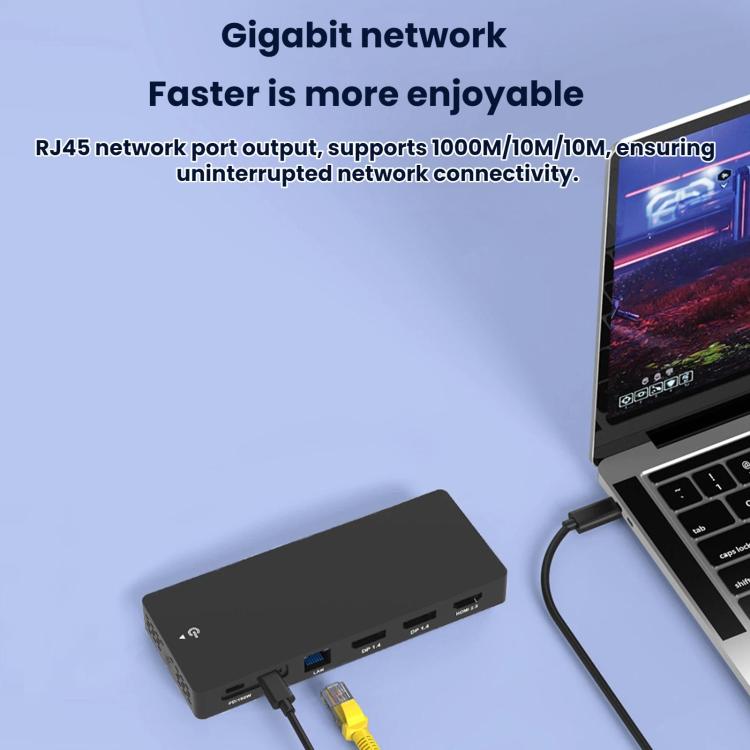

- Gigabit Ethernet x 1 (1000Mbps)
- USB 3.1 x 2 (10Gbps)
- Type-C 3.1 x 1 (10Gbps)
- USB 3.0 x 1 (5Gbps)

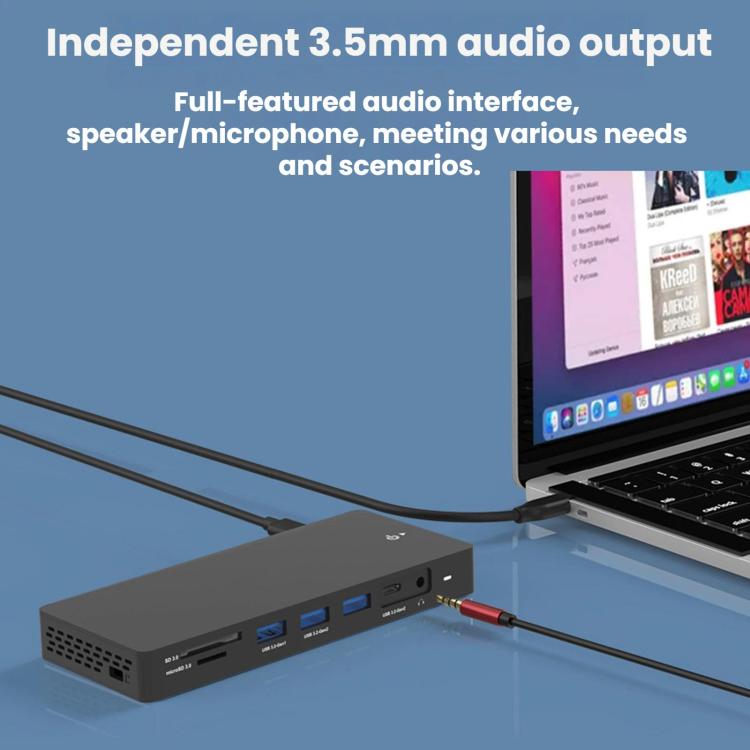

- 3.5mm audio jack x 1 (integrated headset/microphone)

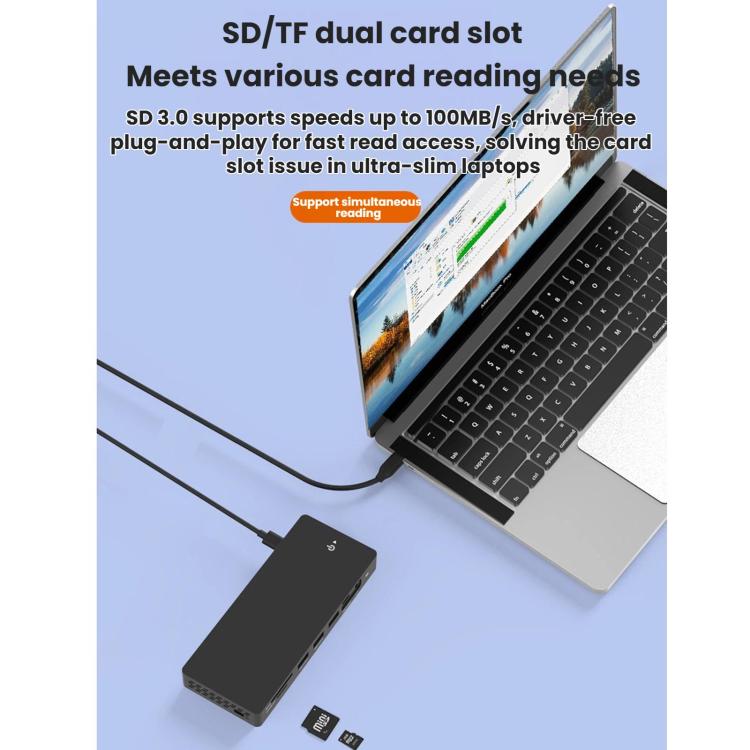

- SD / TF 3.0 (104MB/s simultaneous read)
