1. BNC Connector - This cable allows interconnection between the test clip and BNC-based test instruments. The cable type is RG 58 A/U, 50 ohm. Suitable for oscilloscopes, PC cards, etc.

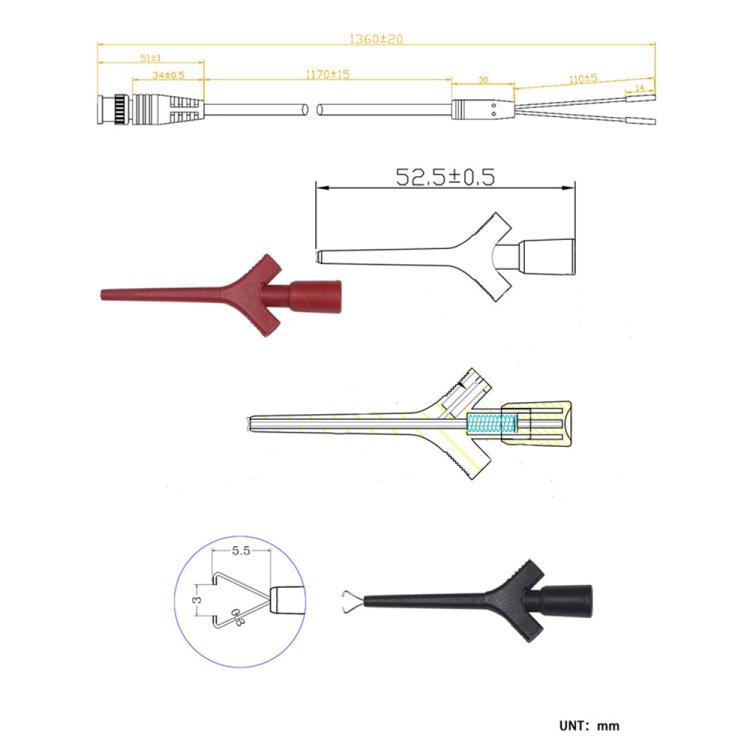

2. BNC Test Lead - The test cable comes with a BNC connector on one end and a 0.64mm pin sleeve on the other end. Suitable for connecting oscilloscopes and other test equipment to the pin socket.
3. High Safety and Temperature Tolerance - The BNC test lead set has a 30VAC/60VDC, 3A rated current and meets safety standards. It can operate safely in a wide temperature range of -15 to 50 degrees Celsius (test hook clip: -15 to 50 degrees Celsius) without any damage or malfunction.
4. High Quality - The BNC to male double stacked banana plug is equipped with nickel-plated brass conductors and has high-quality PVC insulation to ensure excellent performance and reliability in all test scenarios.
5. Note: The shipment only contains the test lead, no other items!
