1. Bandwidth: 50MHz single channel real-time sampling
2. Sampling mode: real-time sampling
3. Real-time sampling rate: 200MSa/s
4. Number of channels: 1 single channel DC, AC
5. Input coupling: DC, AC
6. Input impedance: 1 megohm@16pF
7. Probe attenuation: X1, X10
8. Maximum input voltage: X1 range less than 150V, X10 range +/-300V (DC+AC peak)
9. Sampling rate range: 1.5Sa/s-200MSa/s
10. Waveform interpolation: (sinx)x
11. Sweep speed range: 10ns/Div-20s/Div
12. Time base accuracy: 20ppm
13. Memory depth: up to 128Kbyte
14. Sensitivity: 20mV/Div-10V/Div
15. Displacement range: 4 grids (positive and negative)
16. Low frequency response: greater than 10HZ
17. Rise time: less than 10ns
18. DC gain accuracy: +/-3%
19. Trigger mode: automatic, normal, single
20. Trigger edge: rising edge, falling edge
21. Automatic measurement: period, frequency, peak-to-peak value, maximum value, minimum value, average value, duty cycle, root mean square
22. Afterglow time: minimum, 500ms, 1S, 10S, infinite
23. Standard probe: P6100/60M probe
24. Signal generator: 1KHZ/square wave, sine wave, triangle wave half wave, full wave, sawtooth wave
25. Function: data hold, pause, screen backlight, low battery prompt, automatic shutdown
26. Display: 2.8-inch TFT color screen
27. Resolution: 320 x 240 pixels
28. Battery capacity: 1800mAh
29. Working temperature/humidity: 0 - 40 degrees Celsius/less than 75%RH
30. Storage temperature/humidity: -20 - 60 degrees Celsius/less than 80%RH
31. Supported languages: Chinese, English
32. Size: about 10.8 x 6.95 x 3.3cm
33. Weight: about 166g
Features:

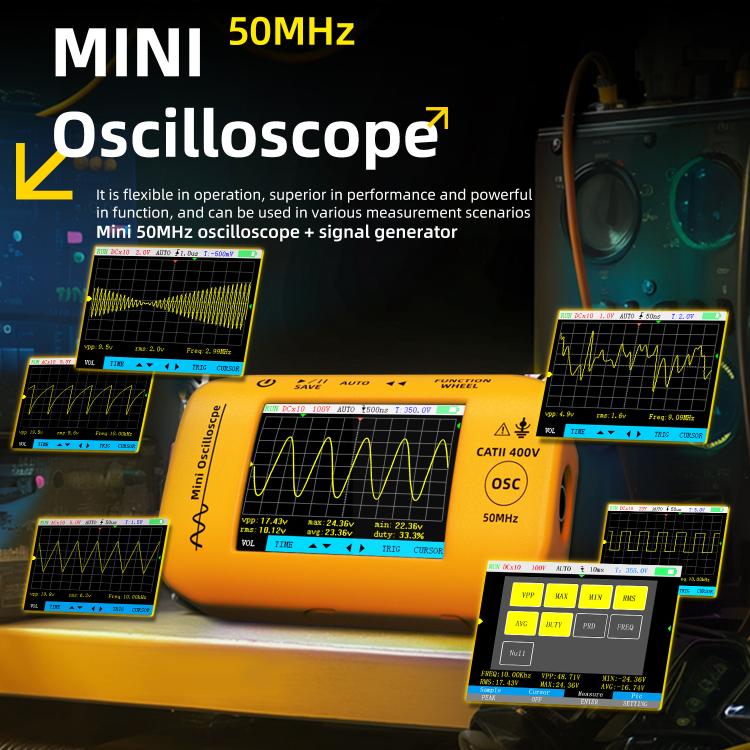

1. Flexible operation, superior performance, powerful functions, can be used in a variety of measurement scenarios

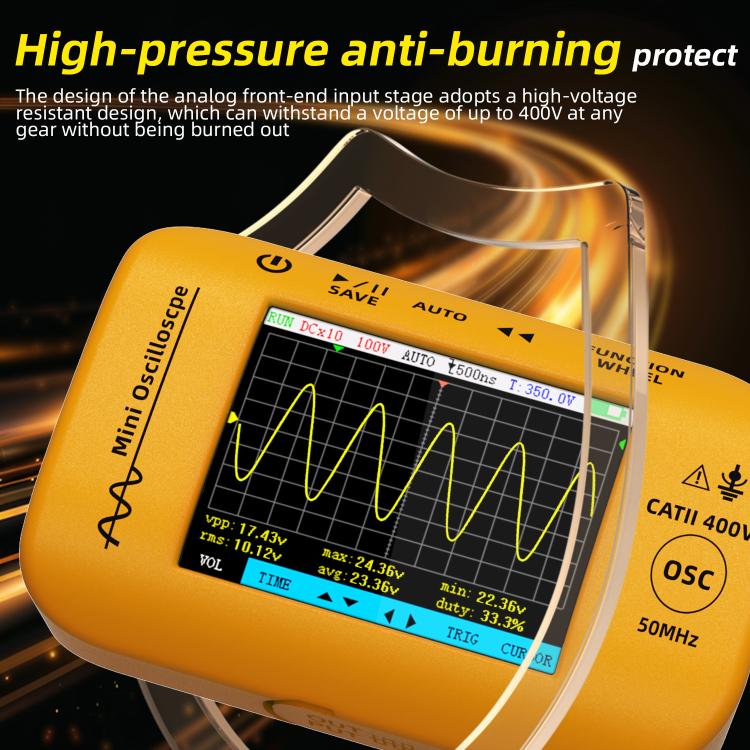

2. The analog front-end input stage design adopts a high-voltage resistant design, which can withstand voltage within 400V without being burned at any gear

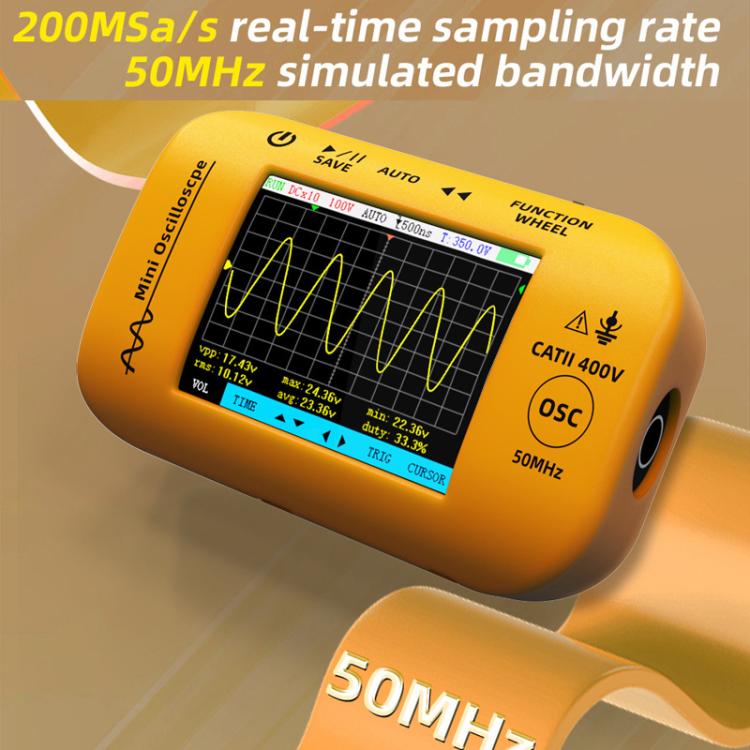

3. 200MSa/s real-time sampling rate, 50MHz analog bandwidth

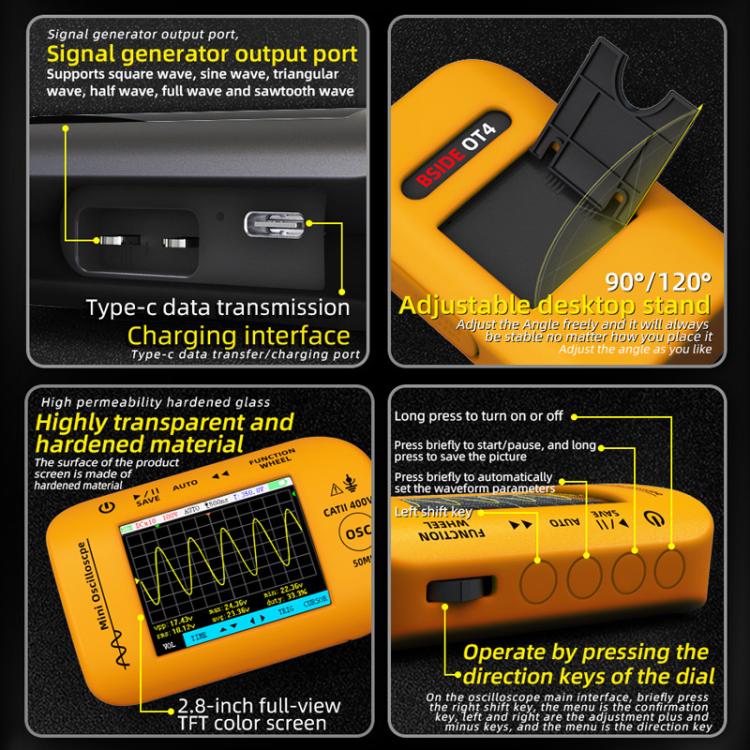

4. 90/120 degree adjustable desktop bracket, adjust the angle at will, and it is very stable no matter how it is placed
5. 2.8-inch full-view TFT color screen, high-transmittance hardened material

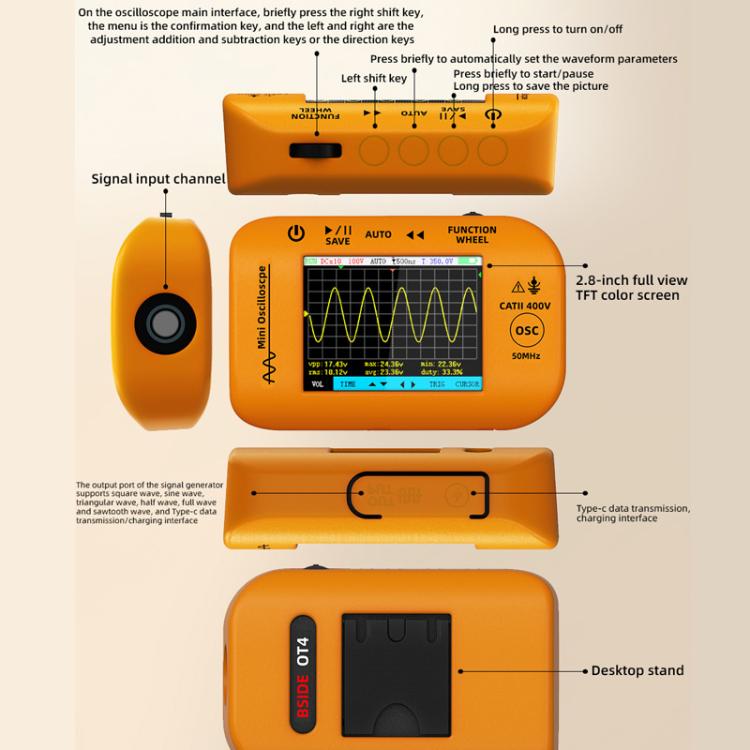

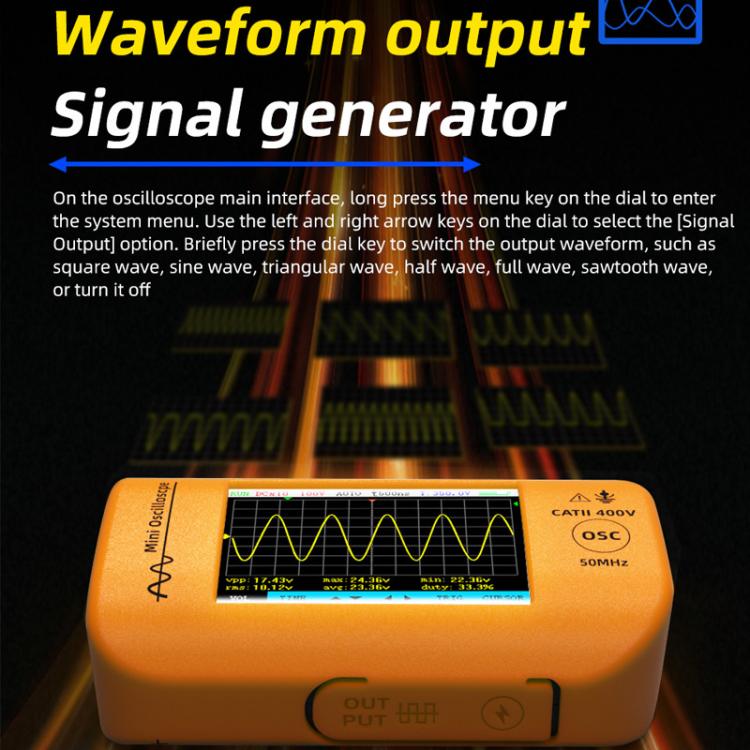

6. In the oscilloscope main interface, long press the dial menu button to enter the system menu, use the left and right arrow keys to select the signal output option, and short press the dial button to switch the output waveform, square wave, sine wave, triangle wave, half wave, full wave, sawtooth wave or off

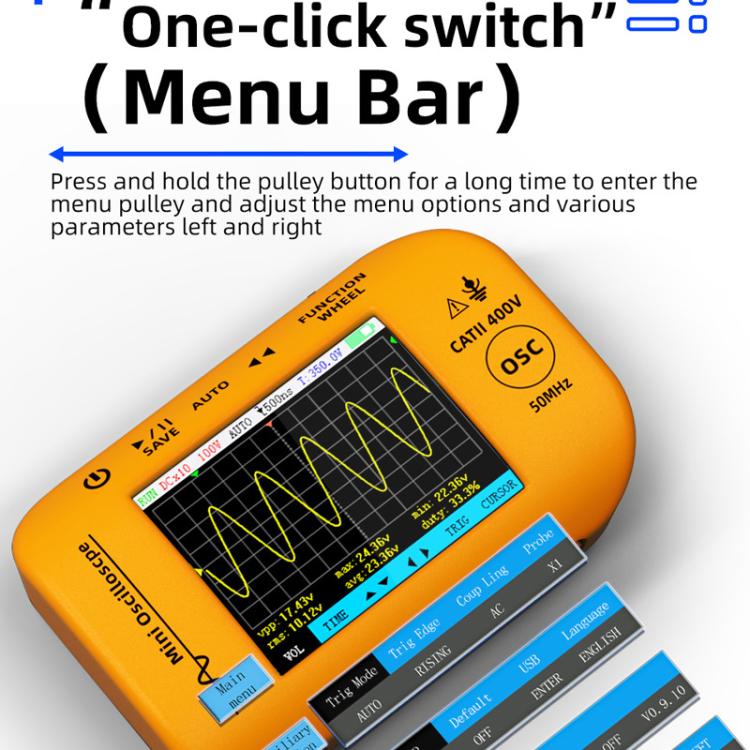

7. Long press the slider button to enter the menu. Use the slider to adjust the menu options and their various parameters

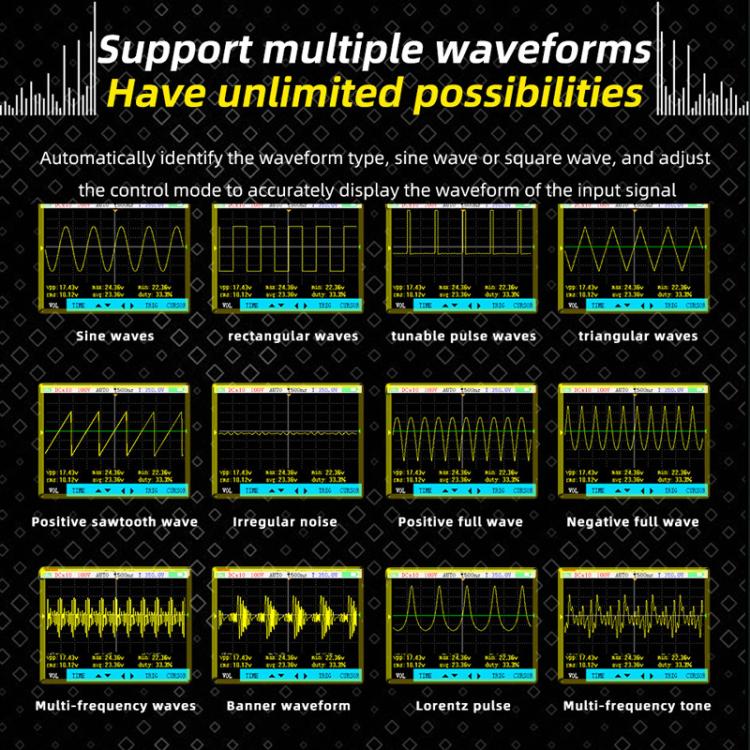

8. Automatically identify the waveform type sine wave or square wave, and adjust the control method to accurately display the waveform of the input signal

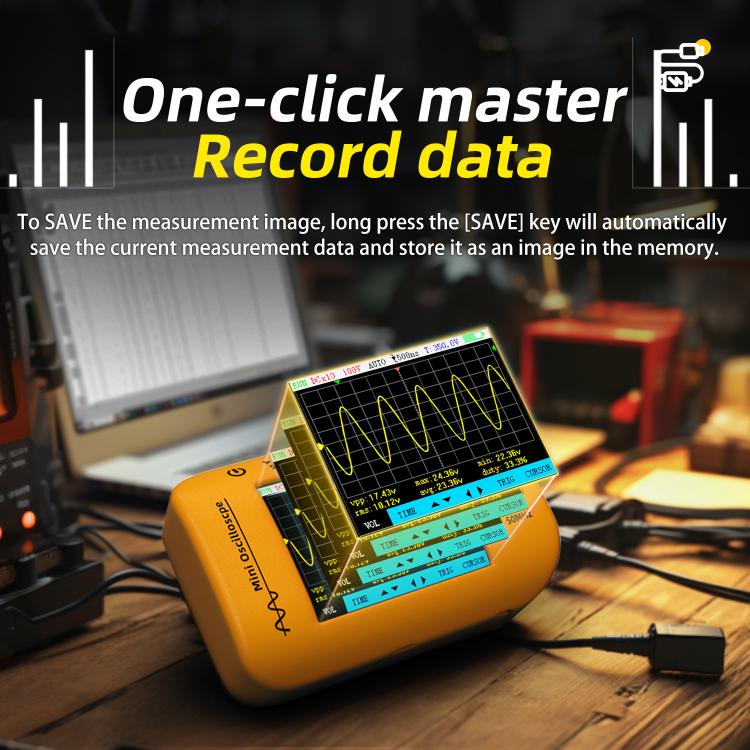

9. To save the measurement picture, long press the SAVE button to automatically save the current measured data and store it as an image in the memory

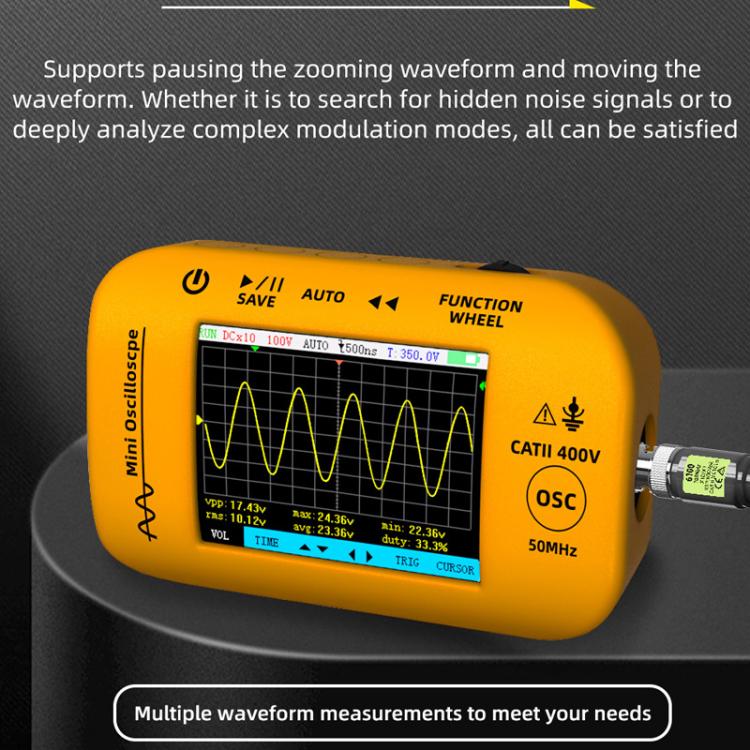

10. Support pause and zoom waveform, move waveform, whether it is looking for hidden noise signals or in-depth analysis of complex modulation modes, it can be satisfied

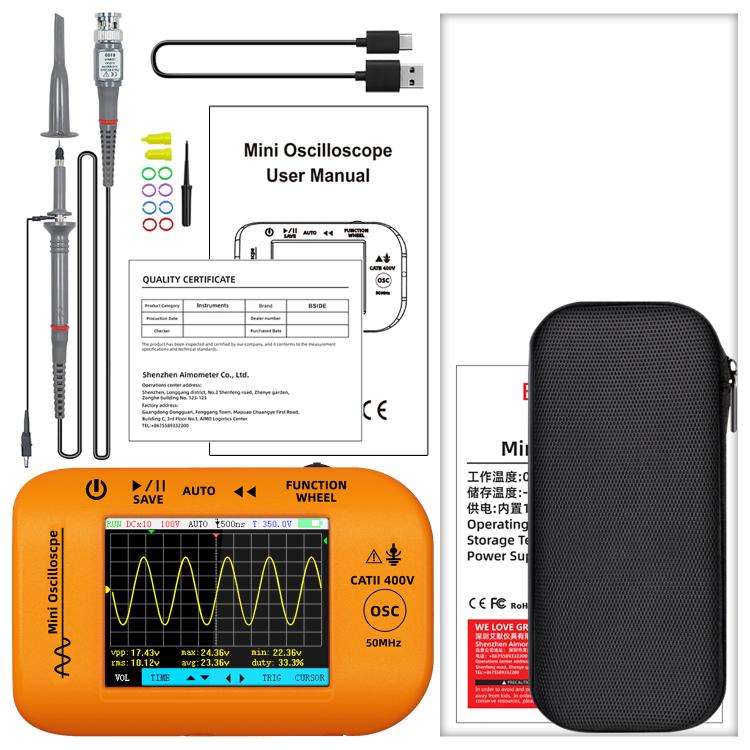

Packing list:
- Oscilloscope x 1
- Data cable x 1
- Manual x 1
- Storage bag x 1
- Probe x 1
