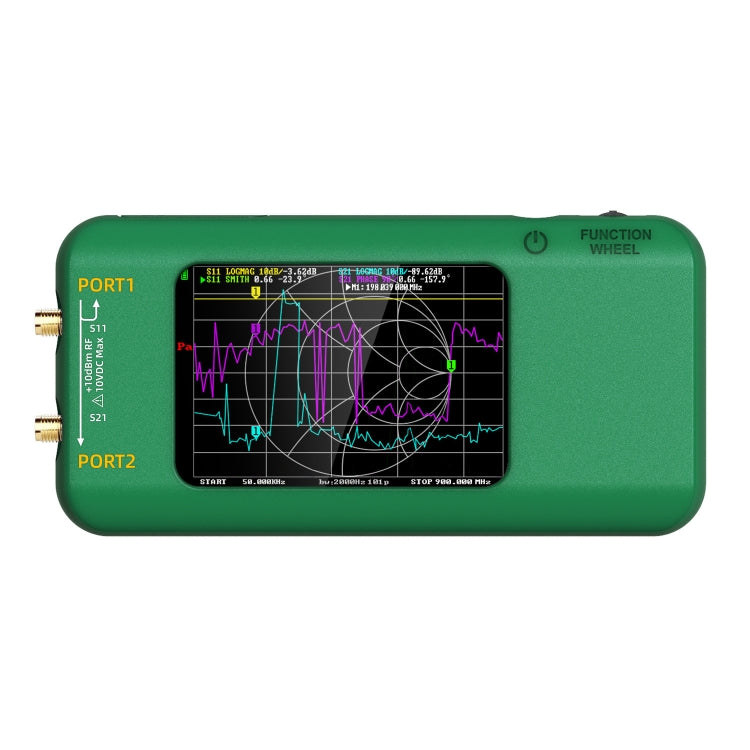

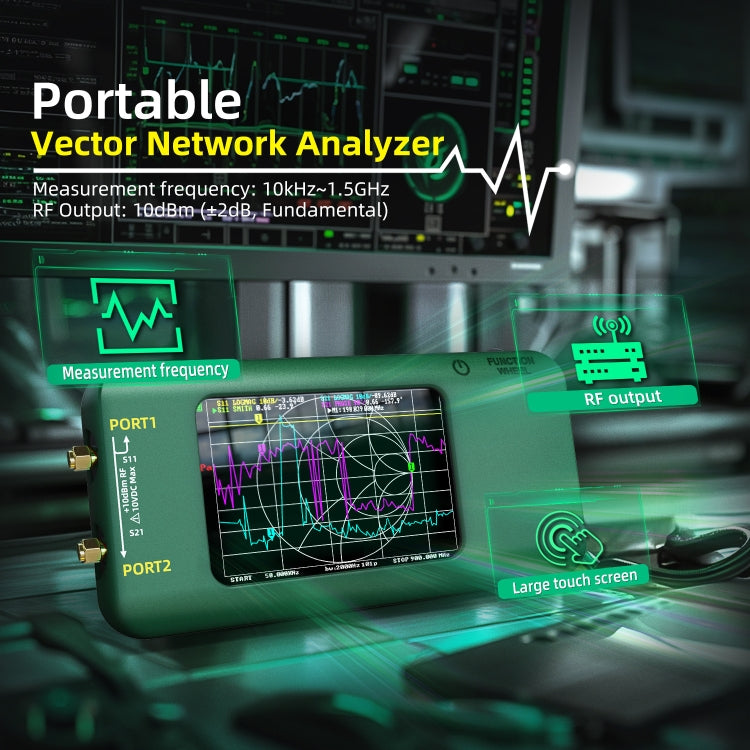

1. Measuring frequency: 10kHz-1.5GHz
2. RF output: 10dBm
3. Frequency accuracy: less than 2ppm
4. Frequency stability: less than 0.5ppm
5. Measurement range: 70dB(50kHz-300MHz)/60dB(300-900MHz) /40dB(0.9G-1.5GHz)
6. Port SWR: less than 1.1
7. Display: 3.98-inch TFT colour screen (320 x 480)
8. Power supply: built-in 3000mAh lithium battery, maximum charging current 2A
9. Number of calibration points: maximum 401 (optional), unlimited when connected to a PC
10. Number of scanning points: maximum 401 (optional), unrestricted when connected to a PC
11. Scanning point speed: greater than 600 p/s (RBW = 4000Hz)
12. Display tracking: 4
13. Marker: 8
14. Setting save: 7

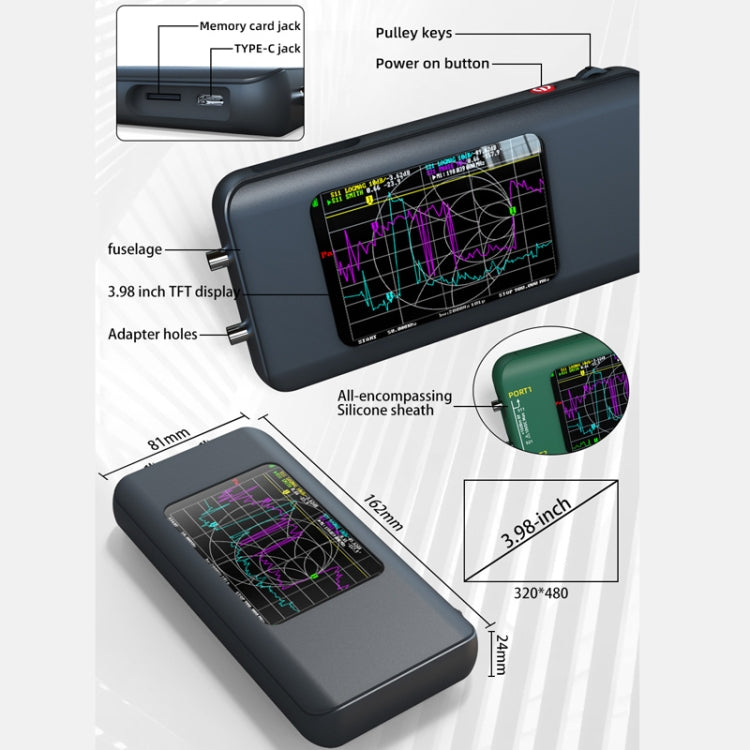

15. Size: about 16.2 x 8.1 x 2.4cm
16. Weight: about 251g
Features:

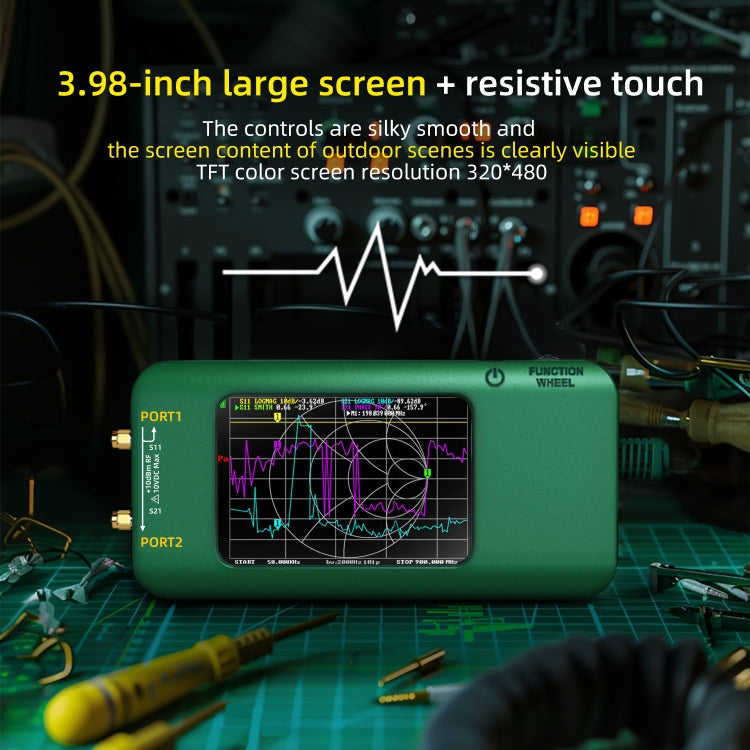

1. 3.98-inch full-view angle TFT LCD, silky smooth control, outdoor scene screen content is clearly visible

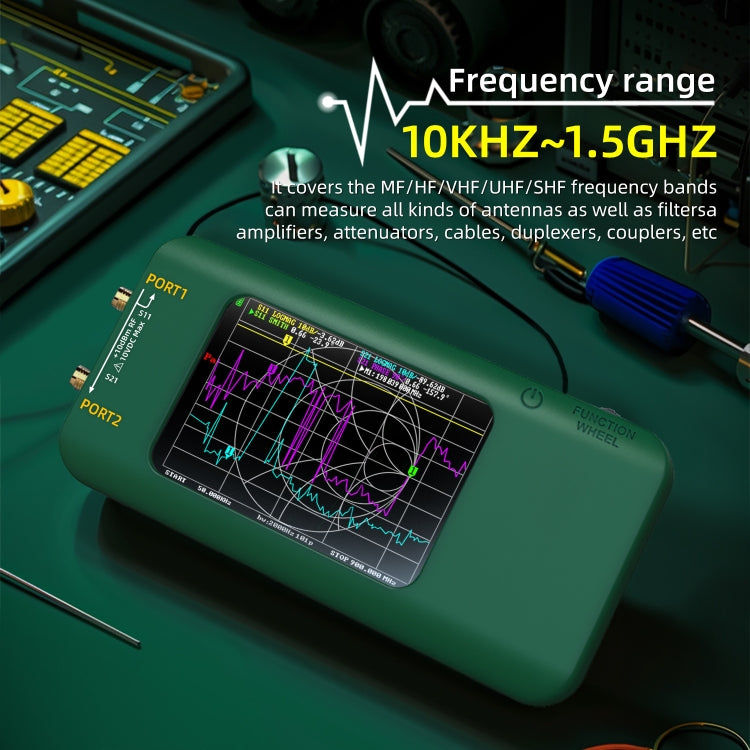

2. Covering MF/HE/VHF/UHF/SHF bands, can measure all kinds of antennas as well as filters, amplifiers, attenuators, cables, duplexers, couplers, etc.

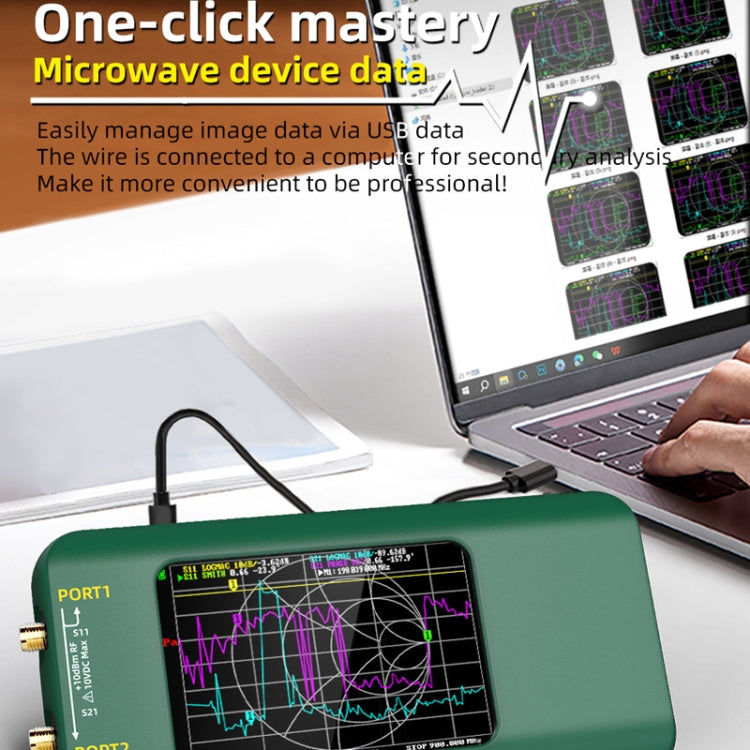

3. Easy to manage the image data, can be connected to the computer via USB cable for secondary analysis

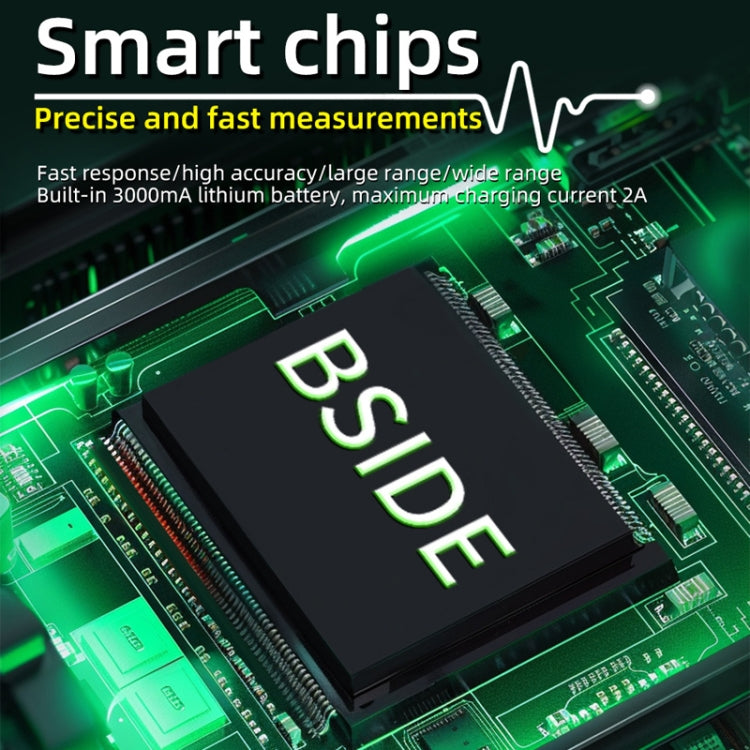

4. Intelligent chip, accurate and fast measurement, fast response/high accuracy/large range/wide range

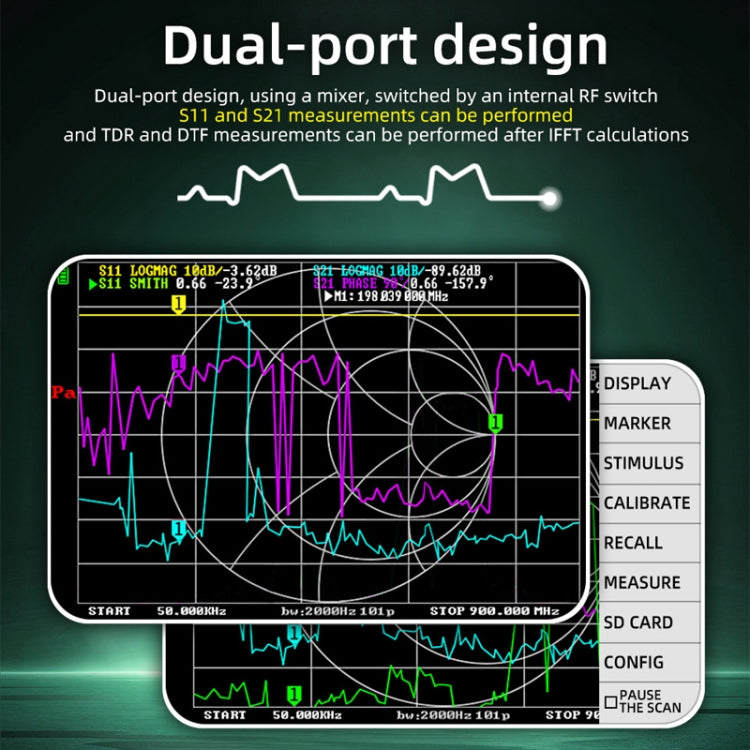

5. Dual-port design, using a mixer, through the internal RF switch switch can be S11, S21 measurements, and through the IFFT calculation can be TDR and DTF measurements

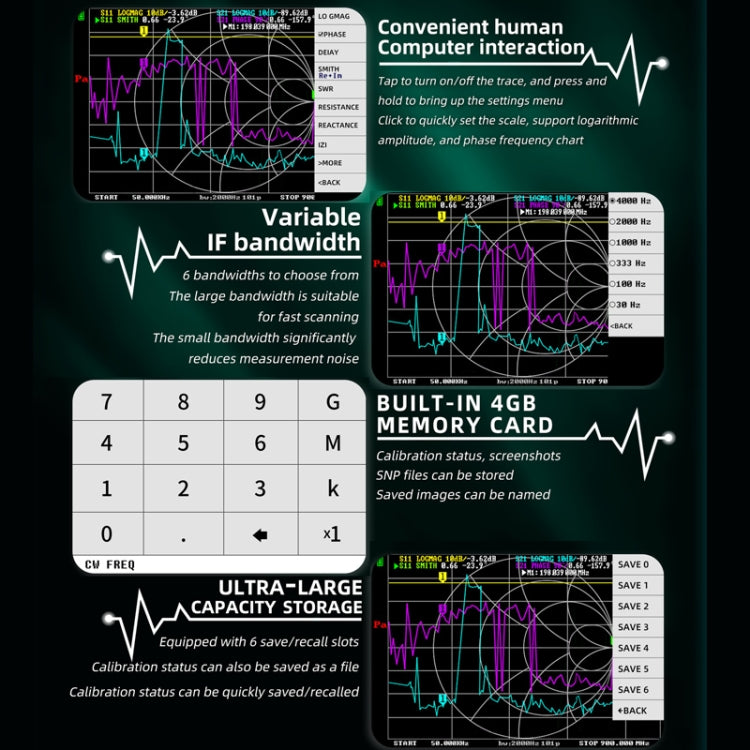

6. 6 bandwidths are available, large bandwidth is suitable for fast scanning, small bandwidth can significantly reduce the measurement noise
7. Built-in 4GB memory card, can store calibration status, screenshot images, snp file storage images can be named
8. Equipped with 6 save/callback slots, can quickly save/callback the calibration state, and support to save the calibration state in the form of a file, the number of storage is limited only by the capacity of the memory card

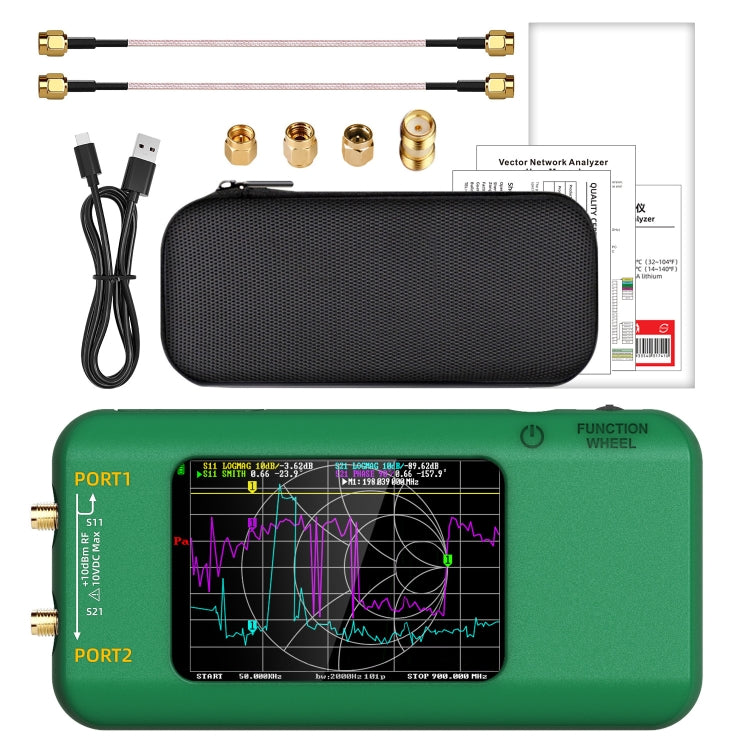

Packing list:
- Network analyser x 1
- Connector x 4
- SMA extension cable x 2
- Type-C cable x 1
- EVA storage bag x 1
