1. Display: 3.98-inch TFT color screen, 320 x 480 pixels
2. Charging port: Type-C
3. Battery type: Rechargeable lithium-ion battery, 3000mAh
4. Auto-shutdown: Supported
5. Data export: Supported
6. Operating Environment: 0 to 40 degrees Celsius, humidity less than 75%
7. Storage Environment: -20 to 60 degrees Celsius, humidity less than 80%
8. Control Method: Touchscreen / Rotary Dial
9. Supported Languages: Chinese, English
10. Other Features: Adjustable backlight brightness, low battery alert, auto-shutdown
11. Dimensions: Approx. 16.9 x 8.1 x 2.68 cm
12. Net Weight: Approx. 260 g
Features:

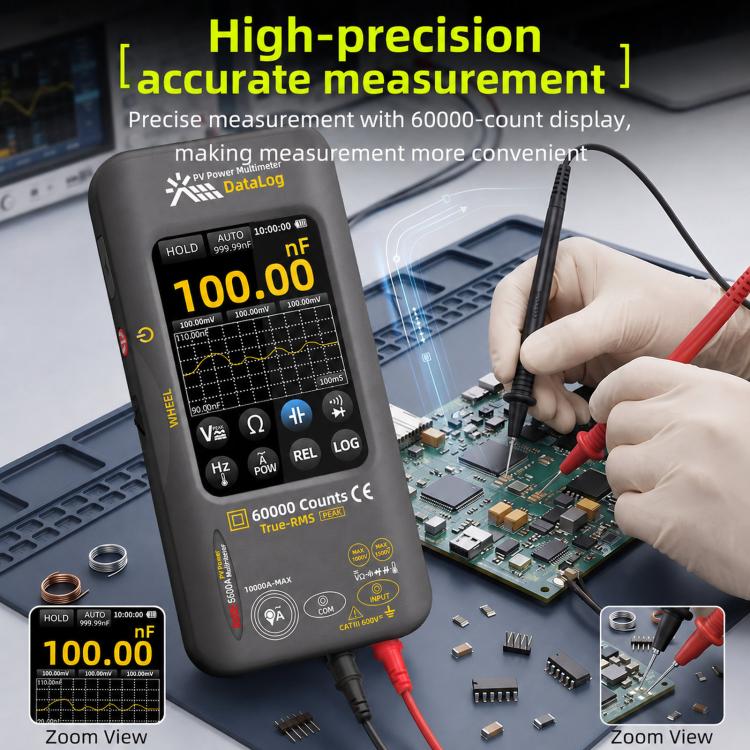

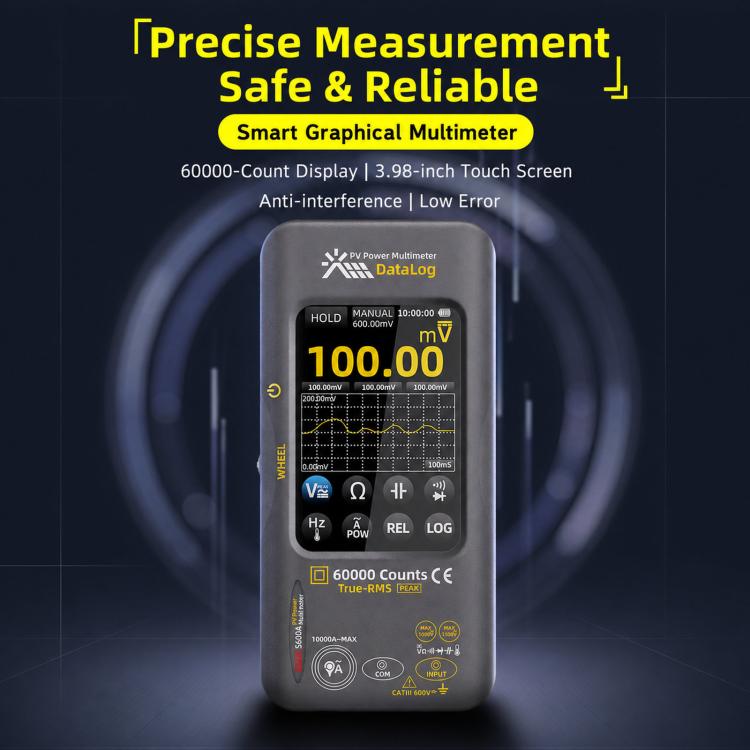

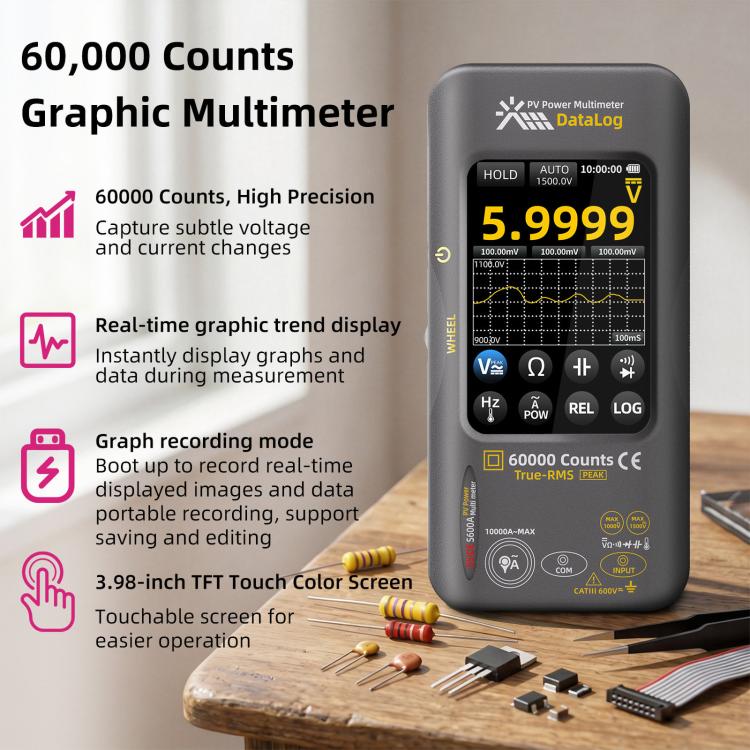

1. Measurement accuracy of 60,000 (counts), supports True-RMS measurement

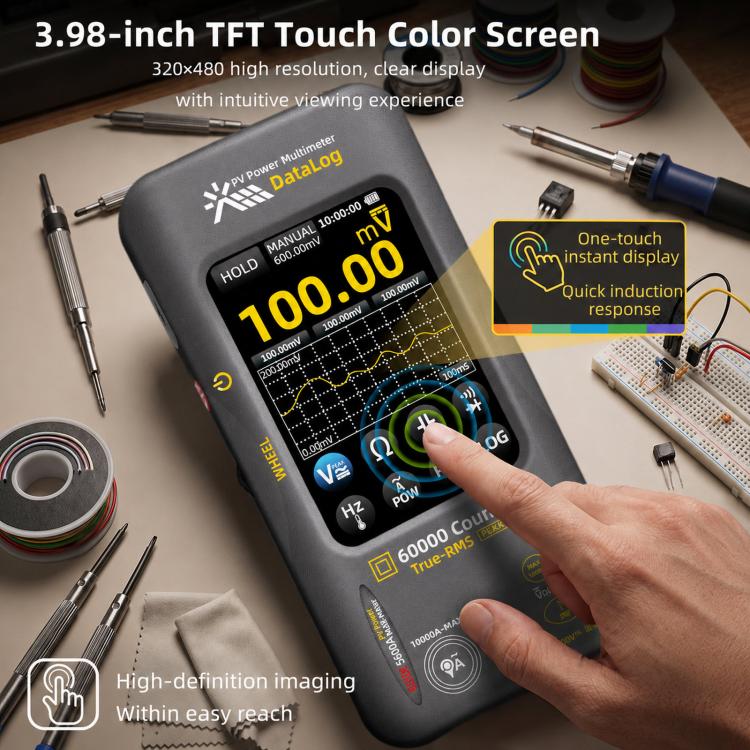

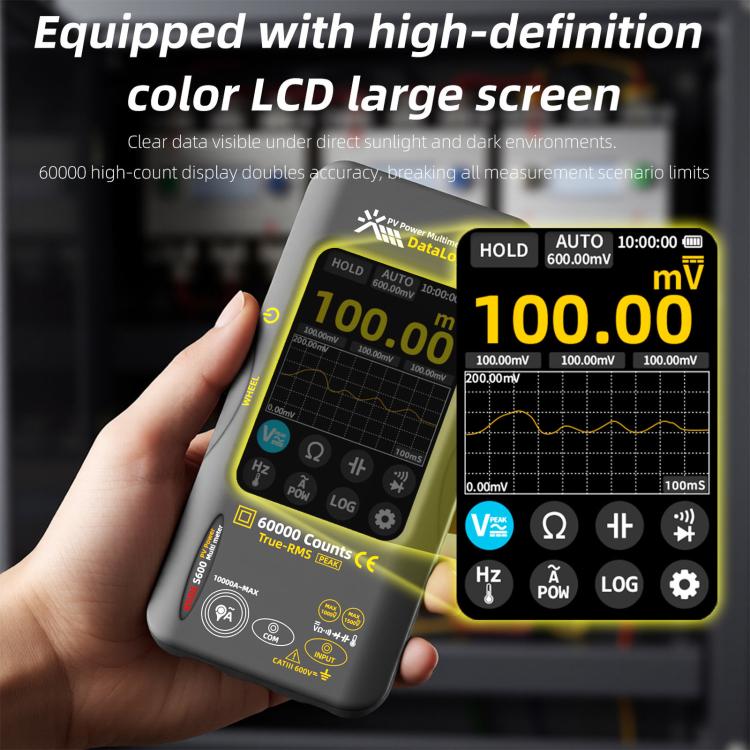

2. 3.98-inch TFT color touchscreen, displays real-time trend waveforms and measurement data

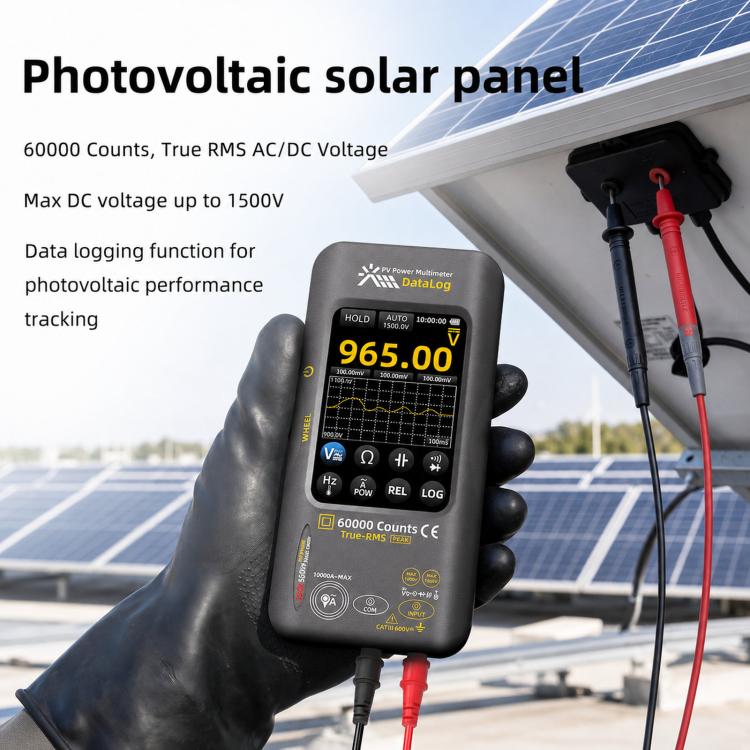

3. Designed for electrical and photovoltaic systems, with DC voltage measurement capability up to 1,500 V DC (AC up to 1,000 V AC), meeting the testing requirements for high-voltage new energy equipment

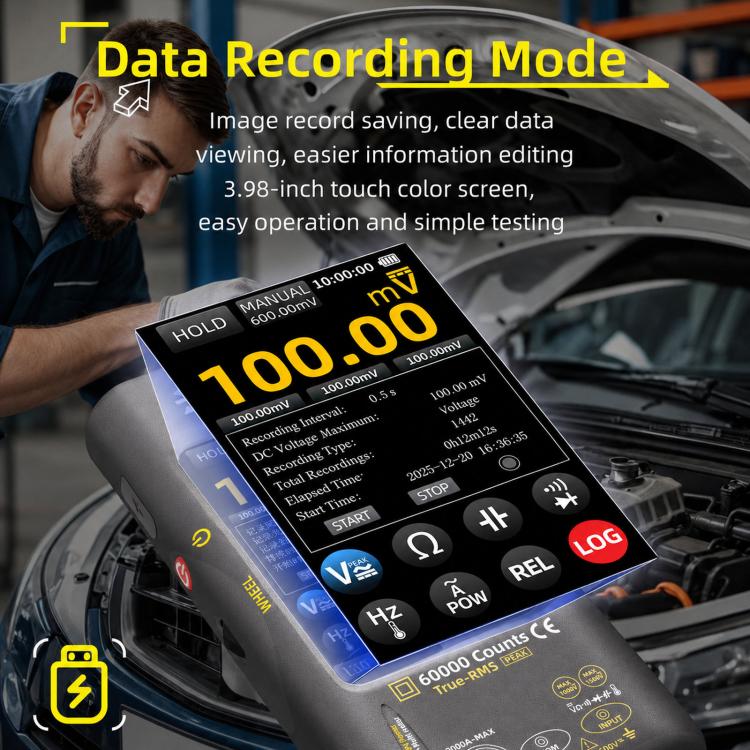

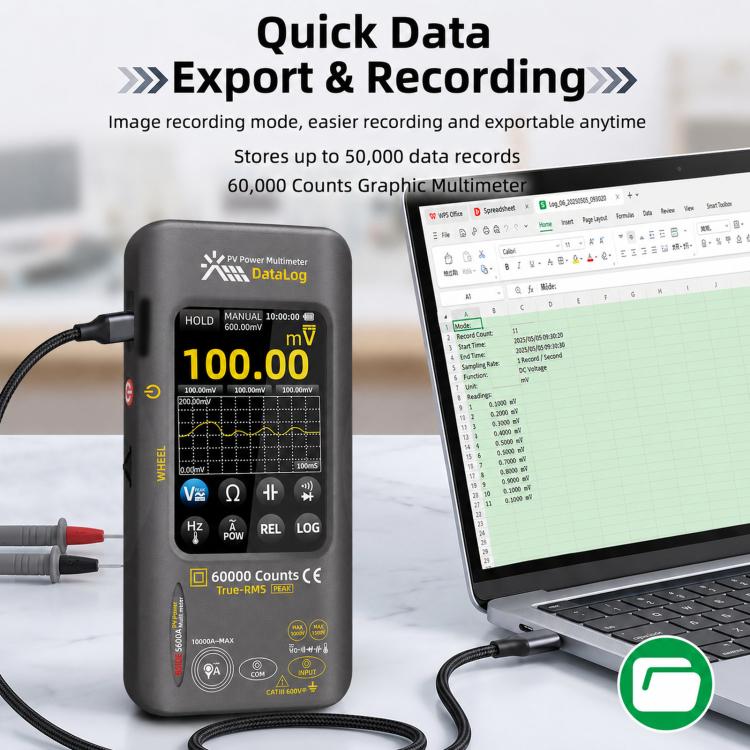

4. Built-in DataLog data logging function, capable of storing up to 50,000 sets of measurement records; data can be exported to Excel spreadsheets via a Type-C interface for convenient analysis and archiving

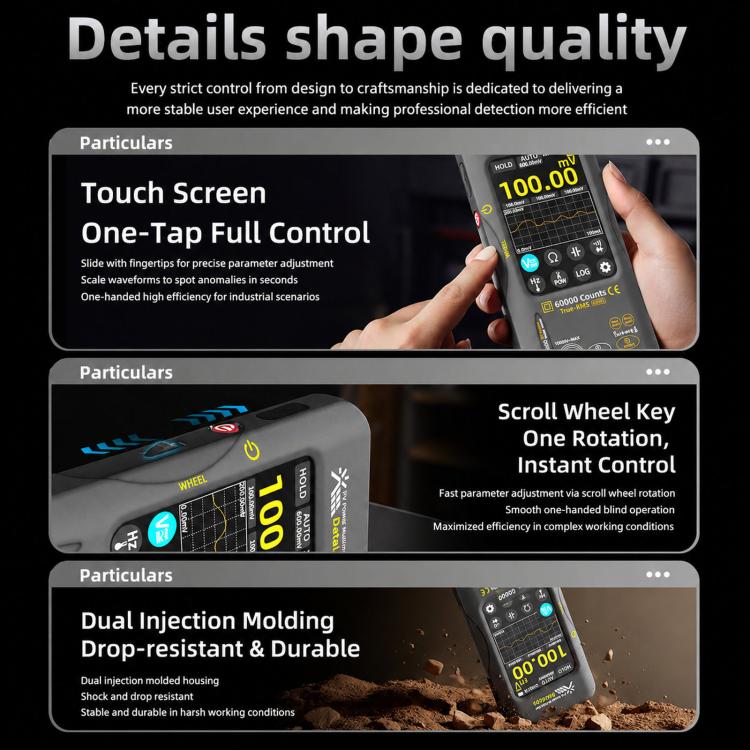

5. Supports one-touch operation via the touchscreen and quick parameter switching via the side scroll wheel; combined with a two-color injection-molded rubber-coated design, it offers shock resistance, drop protection, and wear resistance

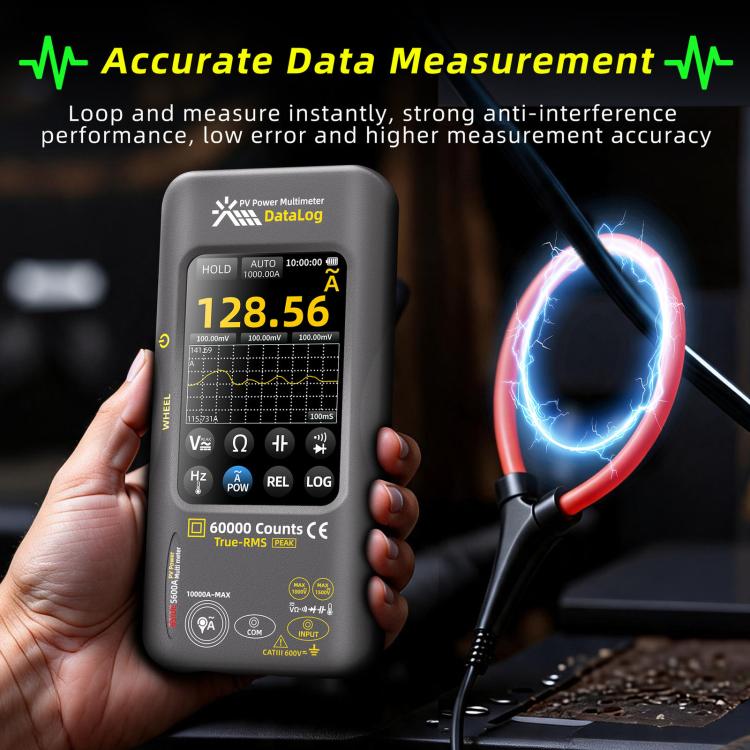

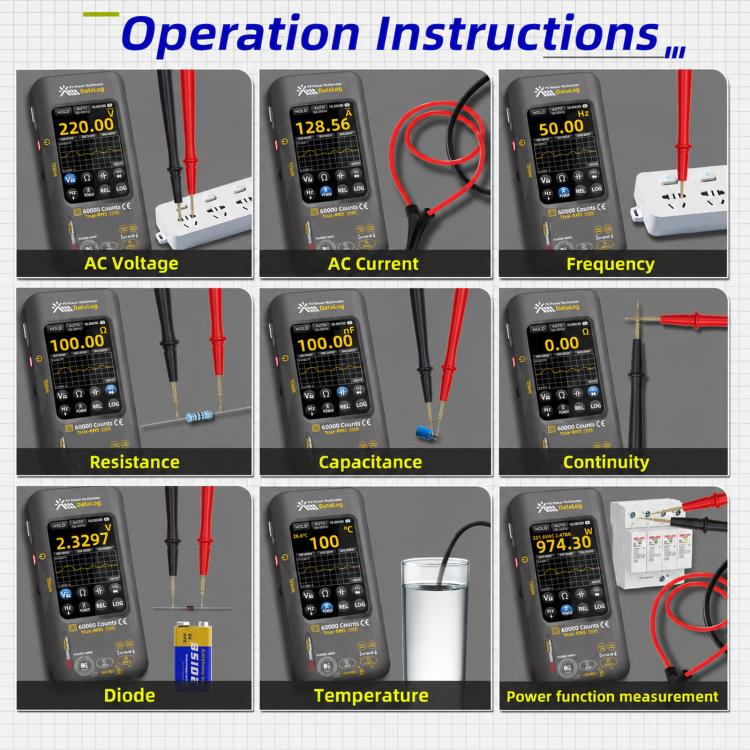

6. Integrates AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode, continuity, and REL relative value measurement modes

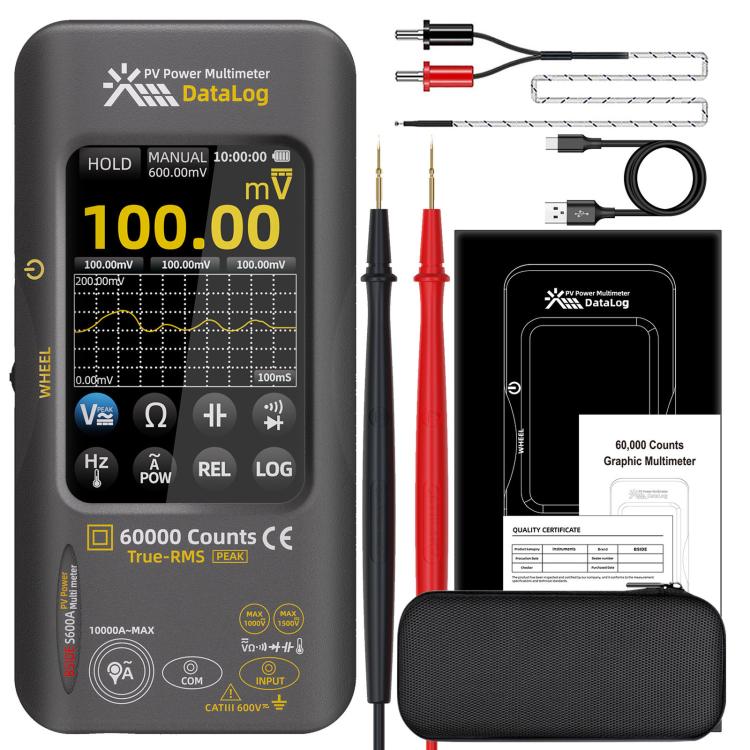

Standard Package Contents:
1. Multimeter x 1
2. Type-C cable x 1
3. User manual
4. Thermocouple x 1
5. Carrying case x 1
6. Extra-sharp test leads x 1
