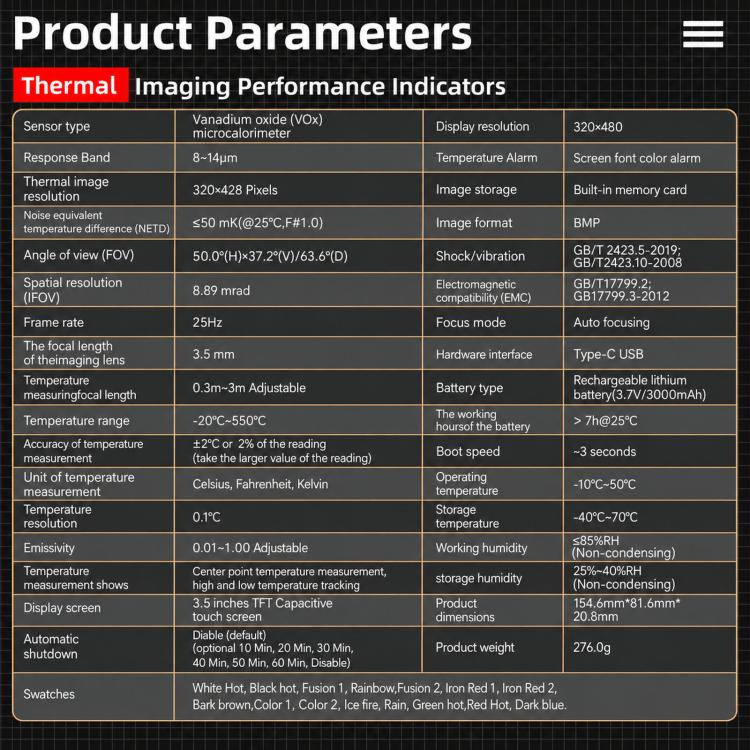

1. Sensor Type: Vanadium Oxide (VOx) Microbolometer
2. Response Band: 8-14 μm
3. Thermal Image Resolution: 320 x 428 pixels
4. Noise Equivalent Temperature Difference (NETD): Within 50 mK (25 °C, F 1.0)
5. Field of View (FOV): 50.0 degrees (H) x 37.2 degrees (V)/63.6 degrees (D)
6. Spatial Resolution (IFOV): 8.89 mrad
7. Frame Rate: 25 Hz
8. Imaging Lens Focal Length: 3.5 mm
9. Temperature Measurement Focus Distance: Adjustable from 0.3 m to 3 m
10. Temperature Measurement Range: -20 to 550 degrees Celsius
11. Temperature Measurement Accuracy: ±2 degrees Celsius or ±2% of the reading (whichever is greater)
12. Temperature Units: Celsius, Fahrenheit, Kelvin
13. Temperature Resolution: 0.1 degrees Celsius
14. Emissivity: Adjustable from 0.01 to 1.00
15. Display Resolution: 320 x 480
16. Image Format: BMP

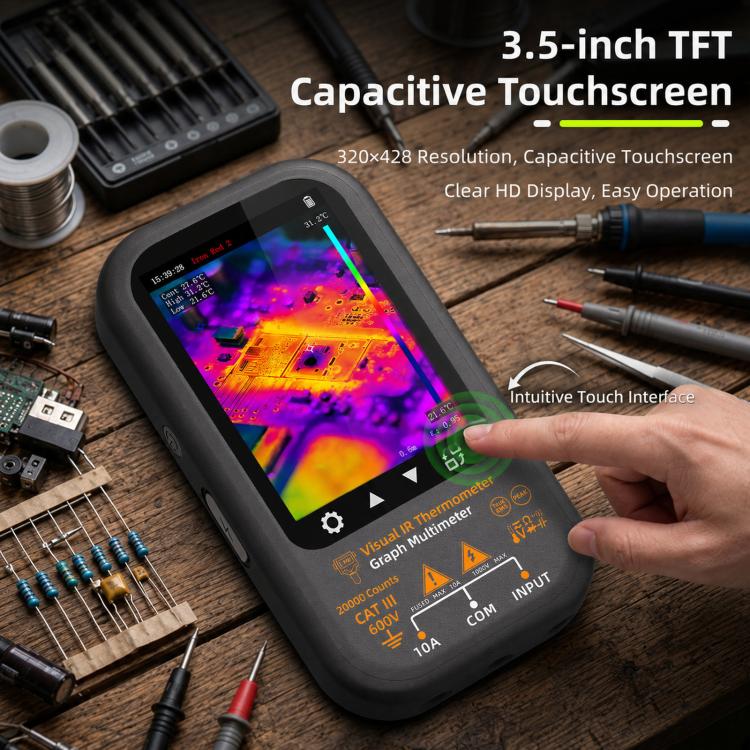

17. Display: 3.5-inch TFT capacitive touchscreen
18. Charging Port: Type-C
19. Battery Type: Rechargeable lithium-ion battery, 3.7V/3000mAh
20. Auto Shutdown: Supported
21. Log Data Export: Supported
22. Operating Environment: -10 to 50 degrees Celsius, humidity ≤ 85% RH (non-condensing)
23. Storage Environment: -40 to 70 degrees Celsius, humidity 25-40% RH (non-condensing)
24. Boot-up Time: Approx. 3 seconds
25. Supported Languages: Chinese, English, French, German, Spanish, Italian, Japanese, Russian

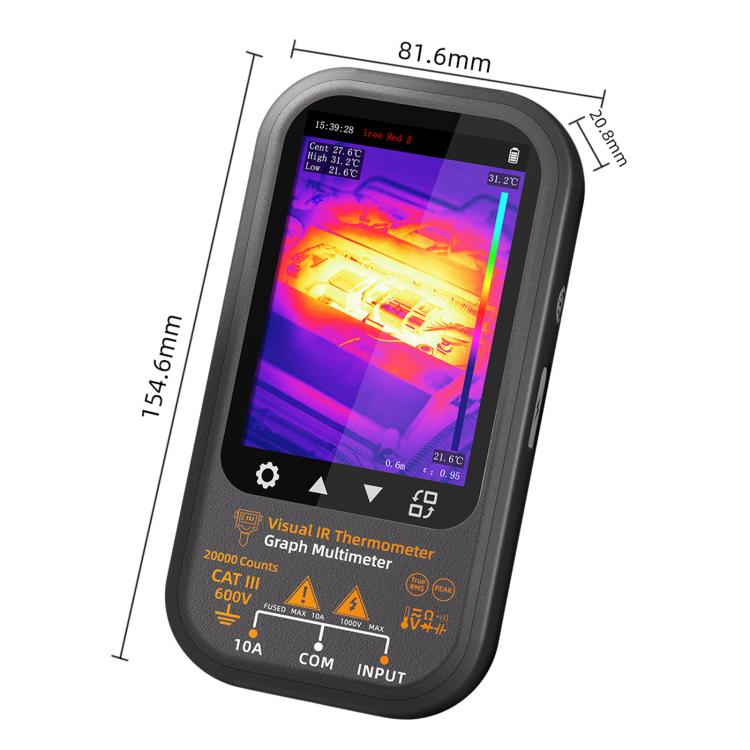

26. Dimensions: Approx. 15.46 x 8.16 x 2.08 cm
27. Net Weight: Approx. 276 g
Features:

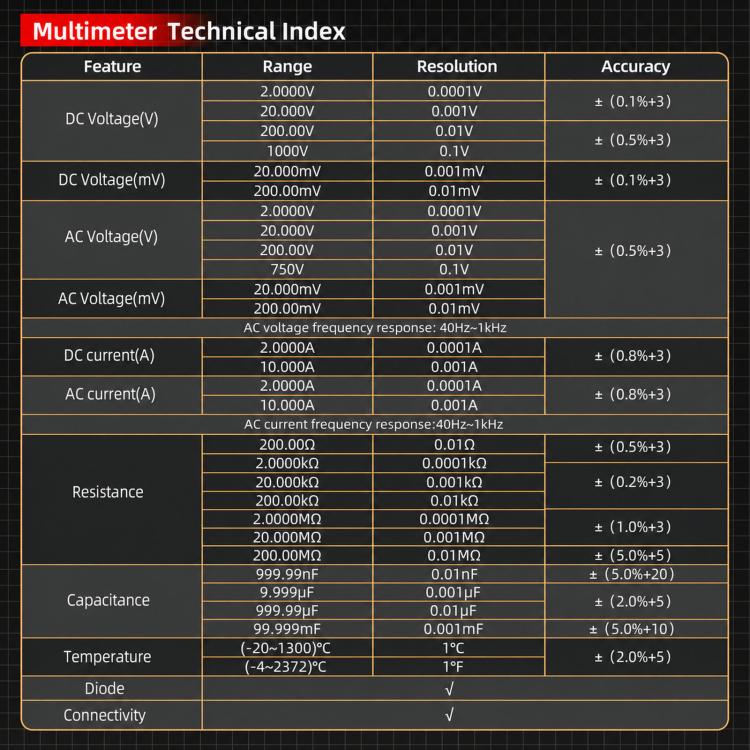

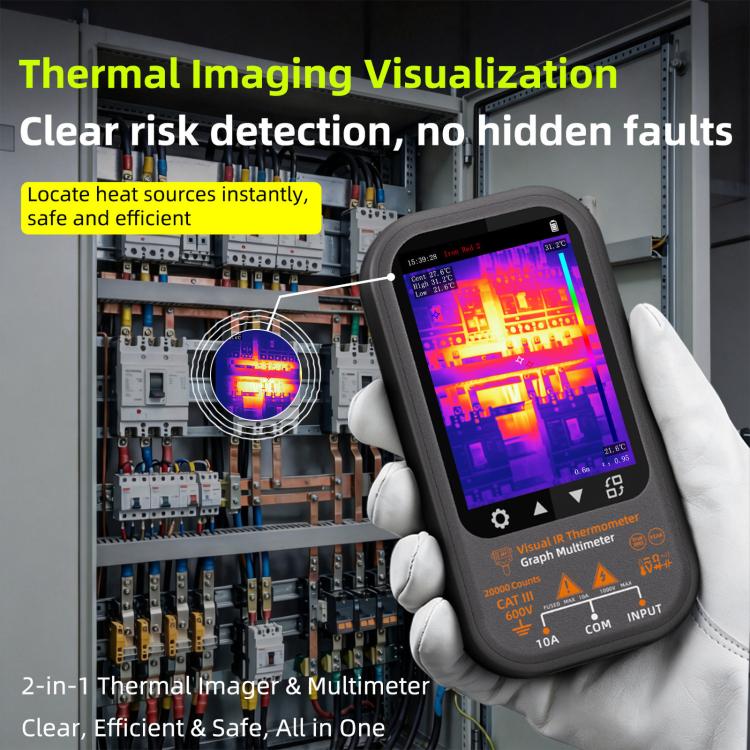

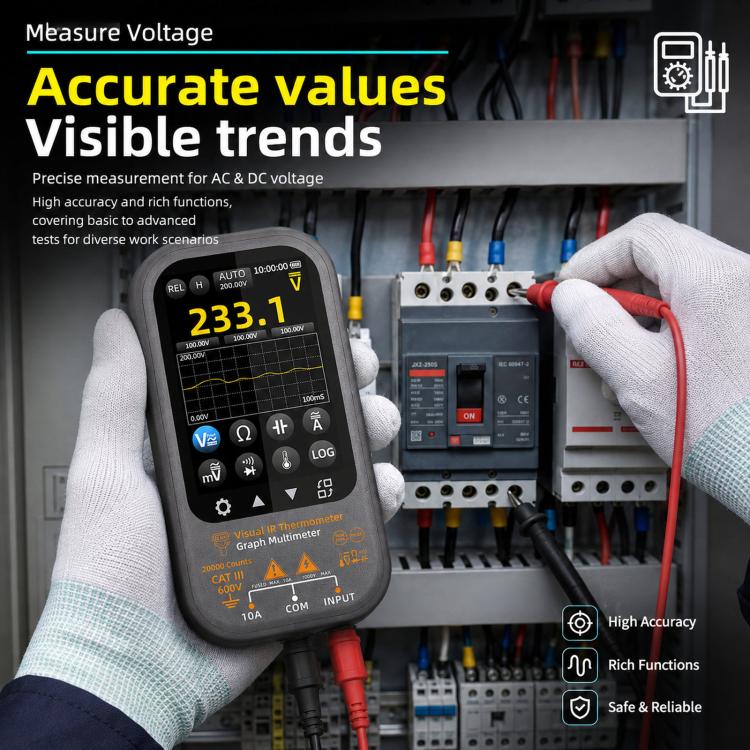

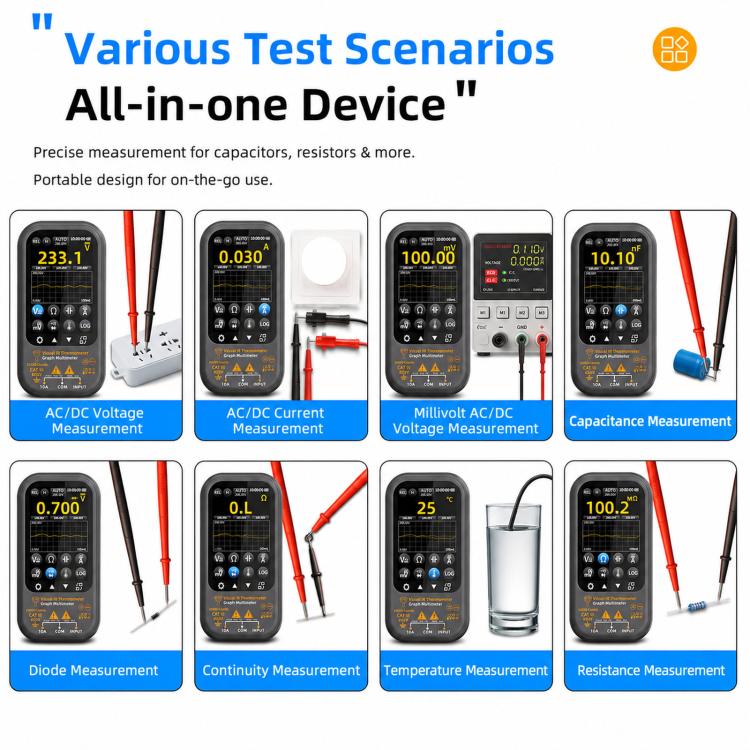

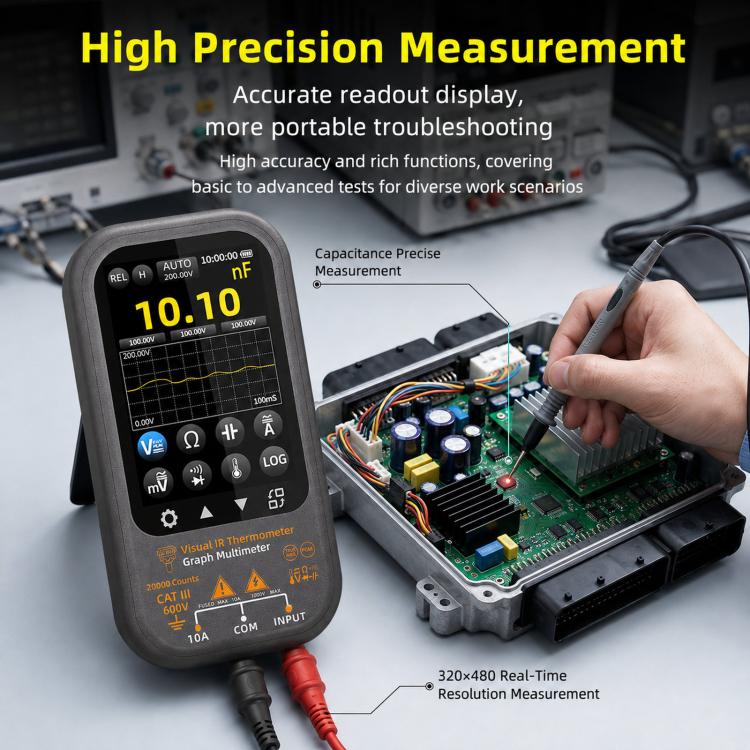

1. Integrates infrared thermal imaging temperature measurement with a 20,000-count digital multimeter, supporting testing of various electrical parameters such as AC/DC voltage, current, resistance, and capacitance

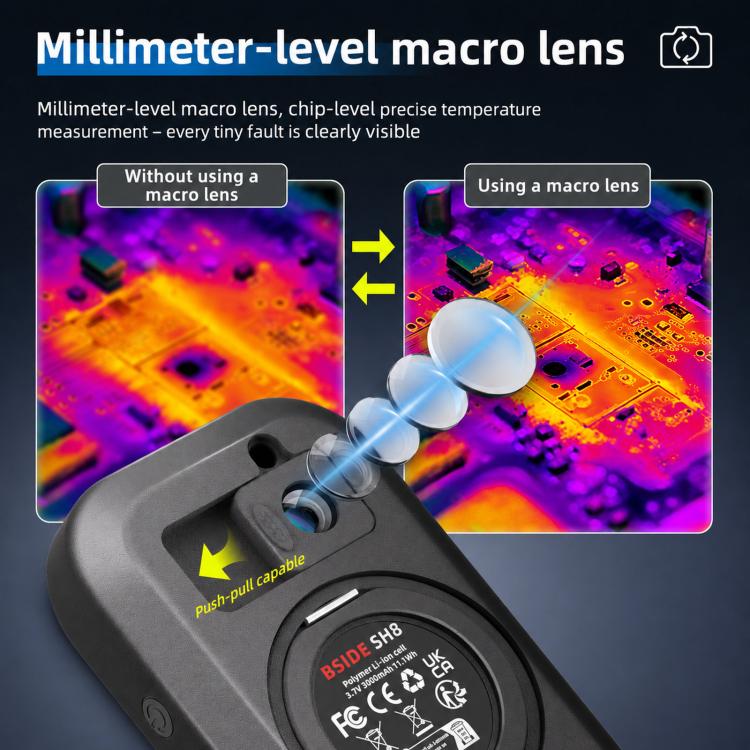

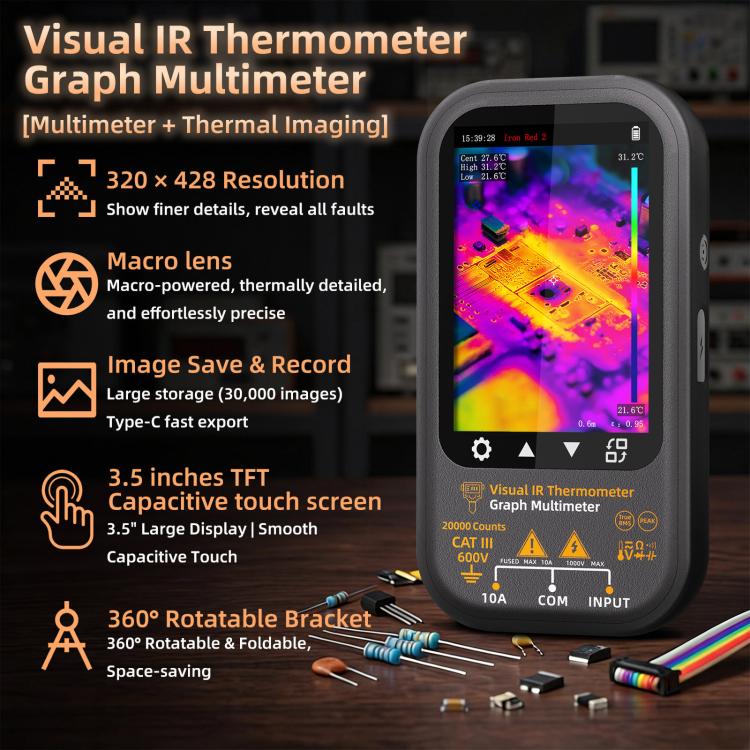

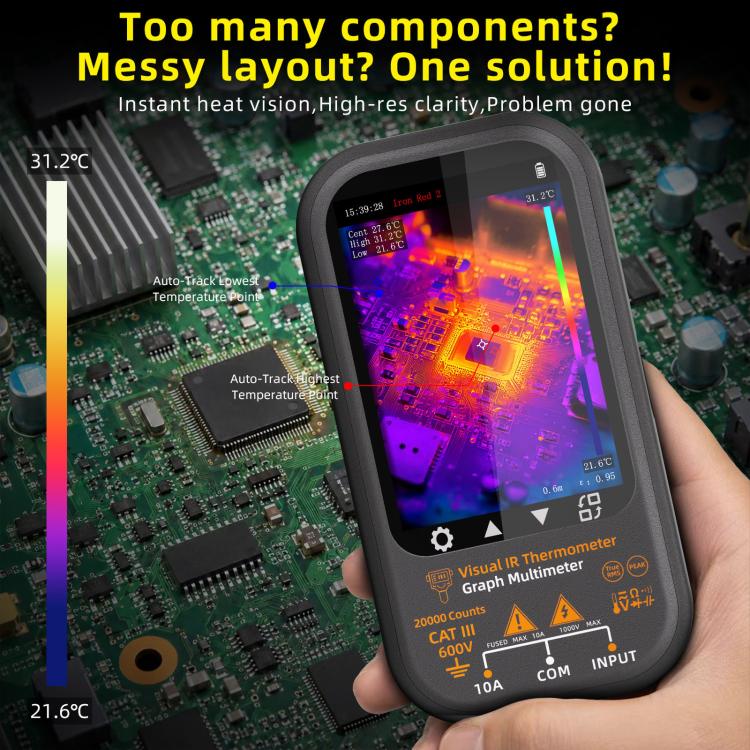

2. Sliding macro lens, suitable for close-up thermal distribution observation and troubleshooting of chip-level and precision electronic components

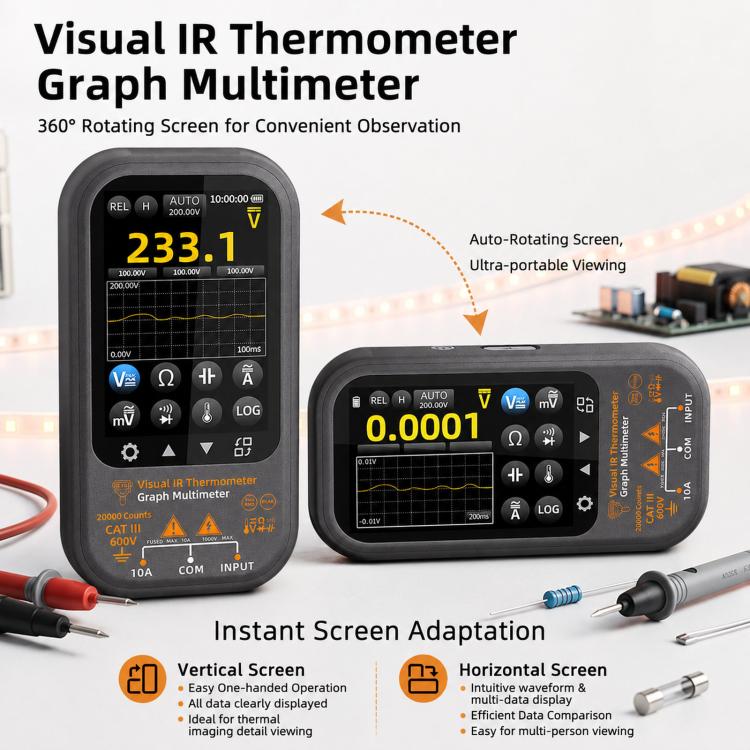

3. Features a 320 x 428-resolution TFT color touchscreen with 360-degree automatic screen rotation (automatic landscape/portrait switching), facilitating data viewing and menu navigation from various angles

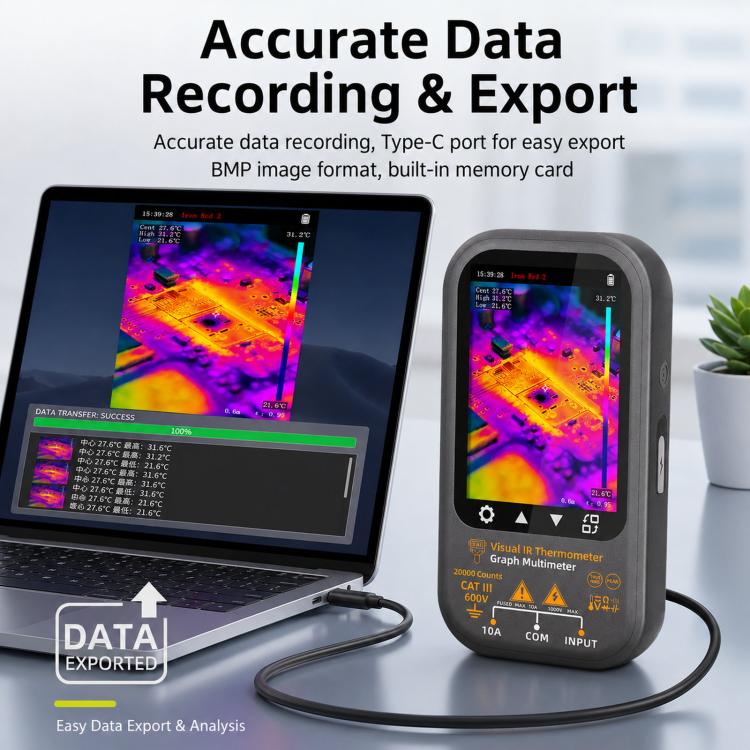

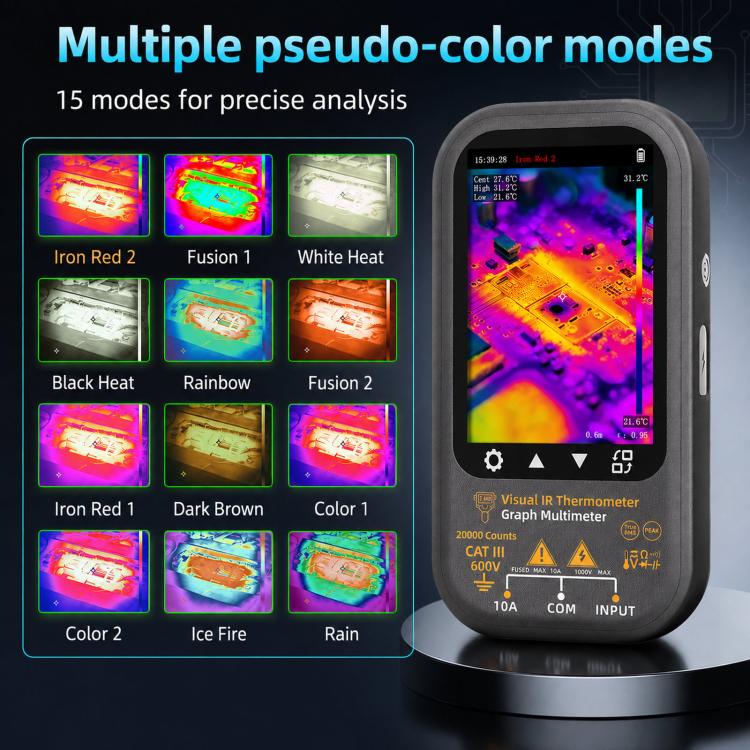

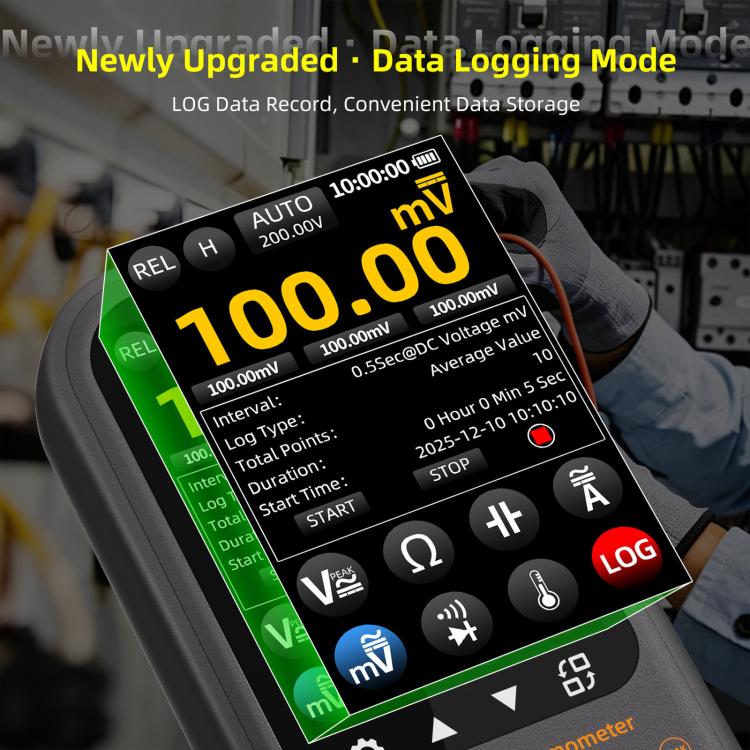

4. Offers 15 false-color palette modes, built-in data logging (LOG) functionality, and supports exporting images in BMP format as well as measurement history logs

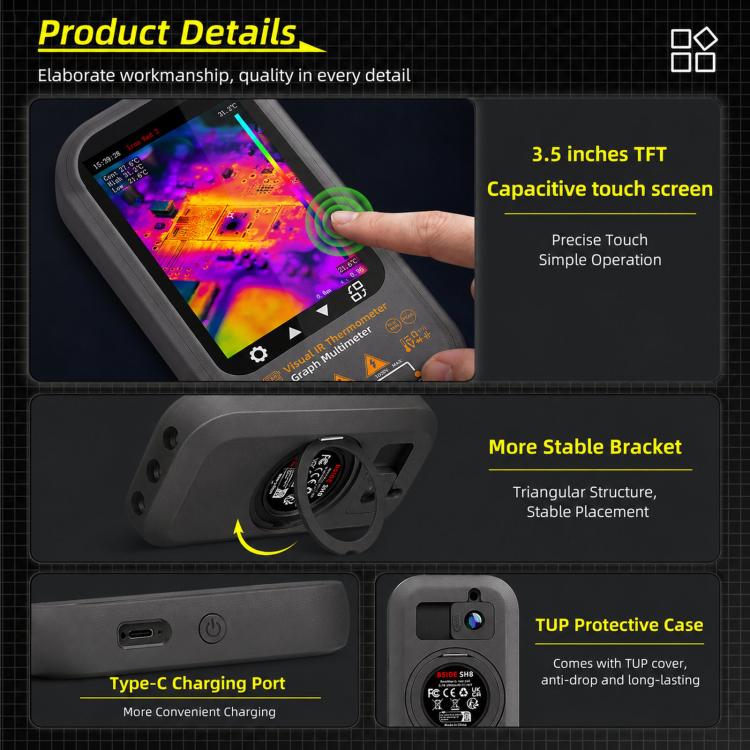

5. The device is equipped with a TPU shock-resistant protective case and a tripod mounting bracket
6. Features a built-in 3.7V 3000mAh rechargeable lithium battery and a Type-C port for charging and data transfer to a computer

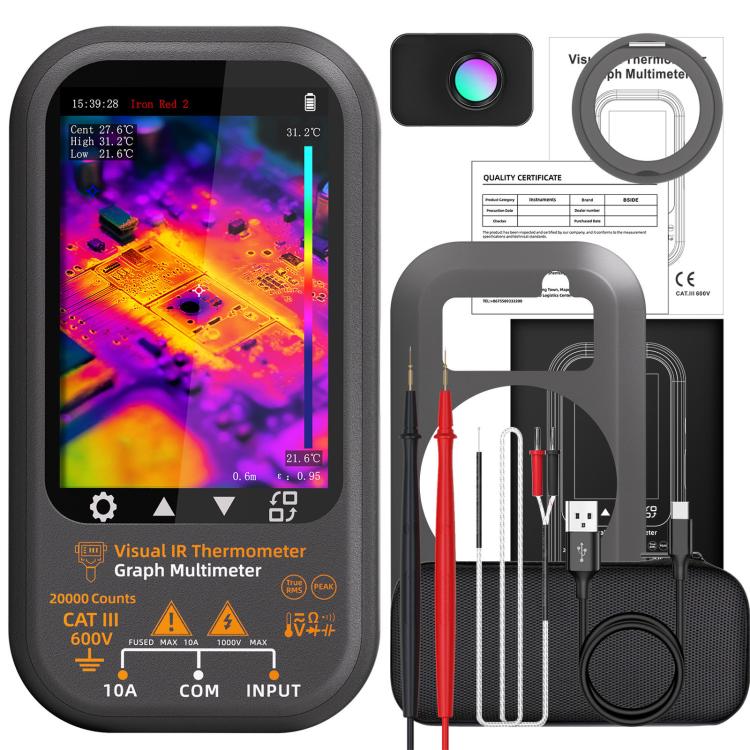

Standard Package Contents:
1. Thermal Imaging Smart Multimeter x 1
2. Type-C Cable x 1
3. User Manual
4. Thermocouple x 1
5. Carrying Case x 1
6. Extra-Fine Test Probes x 1
7. Protective Case x 1
8. Mount x 1
9. Macro Lens x 1
