1. CPU: Onboard Intel Celeron CPU, 1037U@1.80GHz
2. Chip: Intel HM77 chip

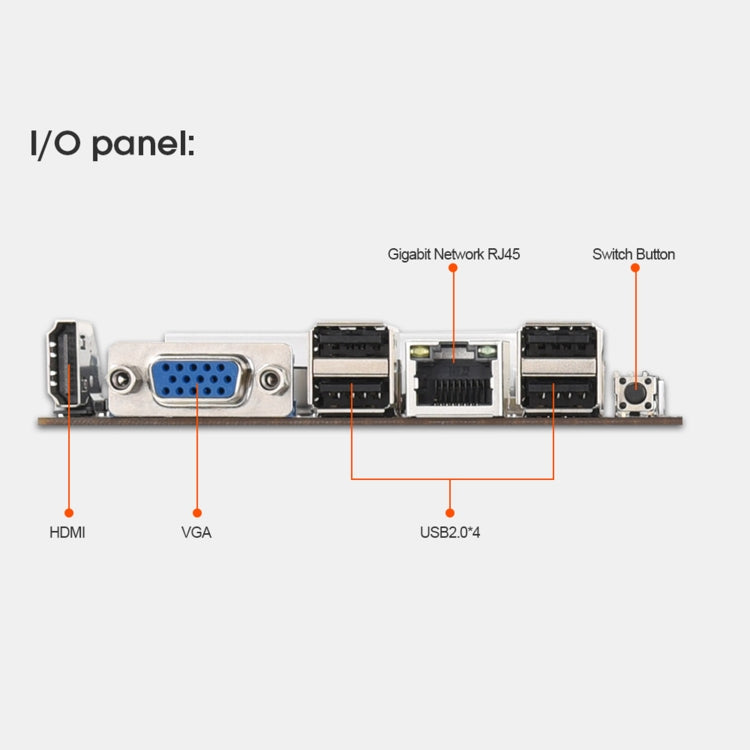

3. Display: onboard VGA+HDMI+PCIE X16 (for discrete graphics)
4. Memory: 1xDDR3 SODIMM slot, support 1066/1333/1600MHz
5. Audio: None
6. Network: Onboard 1xRealtek RTL8111F chipset is used for Gigabit network (support network boot or PXE boot)
7. Storage: 1xSATA3.0+1xSATA2.0+1xmSATA2.0
8. USB: 4xUSB2.0+2x front USB2.0 pin (expandable 4xUSB2.0 port)
9. Multifunction card: ITE IT8772E
10. Expandable port: 8xPCIE 16X (PCIE X1 GEN2 speed), 1xSATA3.0+1xSATA2.0+1xmSATA2.0 hard disk interface
11. PSU power supply: ATX 24Pin

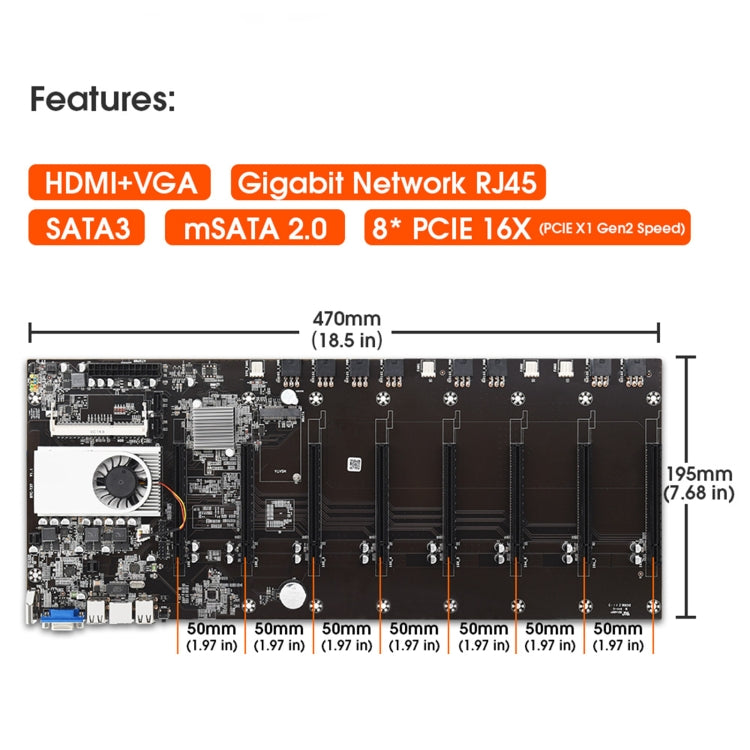

12. Size: 470x195mm
2. Chip: Intel HM77 chip
3. Display: onboard VGA+HDMI+PCIE X16 (for discrete graphics)
4. Memory: 1xDDR3 SODIMM slot, support 1066/1333/1600MHz
5. Audio: None
6. Network: Onboard 1xRealtek RTL8111F chipset is used for Gigabit network (support network boot or PXE boot)
7. Storage: 1xSATA3.0+1xSATA2.0+1xmSATA2.0
8. USB: 4xUSB2.0+2x front USB2.0 pin (expandable 4xUSB2.0 port)
9. Multifunction card: ITE IT8772E
10. Expandable port: 8xPCIE 16X (PCIE X1 GEN2 speed), 1xSATA3.0+1xSATA2.0+1xmSATA2.0 hard disk interface
11. PSU power supply: ATX 24Pin
12. Size: 470x195mm
