1. Upgrade your laptop with the high-performance Qualcomm WCN7851 hardware platform. Supporting the advanced WiFi 7 (802.11be) standard, this M.2 wireless card delivers combined tri-band speeds up to 9334 Mbps (688 Mbps on 2.4GHz, 2882 Mbps on 5.8GHz, and 5764 Mbps on the third 6GHz band) to handle demanding, high-bandwidth online activities easily. (Note: A WiFi 7 compatible router is required to experience full WiFi 7 speeds and features. This card is backward compatible with WiFi 6E, WiFi 6, and WiFi 5 routers.)
2. Access the 320MHz ultra-wide channel bandwidth on the 6GHz band, doubling the data transmission highway compared to previous generations to significantly reduce network congestion. Combined with 4096-QAM high-order modulation, it optimizes data processing to deliver a fast and responsive online experience. (Accessing 320MHz channel bandwidth requires a WiFi 7 router that supports the 320MHz band.)
3. Integrated with the Bluetooth 5.4 standard to expand wireless coverage, improve data synchronization, and boost co-existence capabilities. Connect multiple wireless accessories simultaneously—including Bluetooth headphones, game controllers, keyboards, mice, and speakers—with stable connection and reduced power consumption.

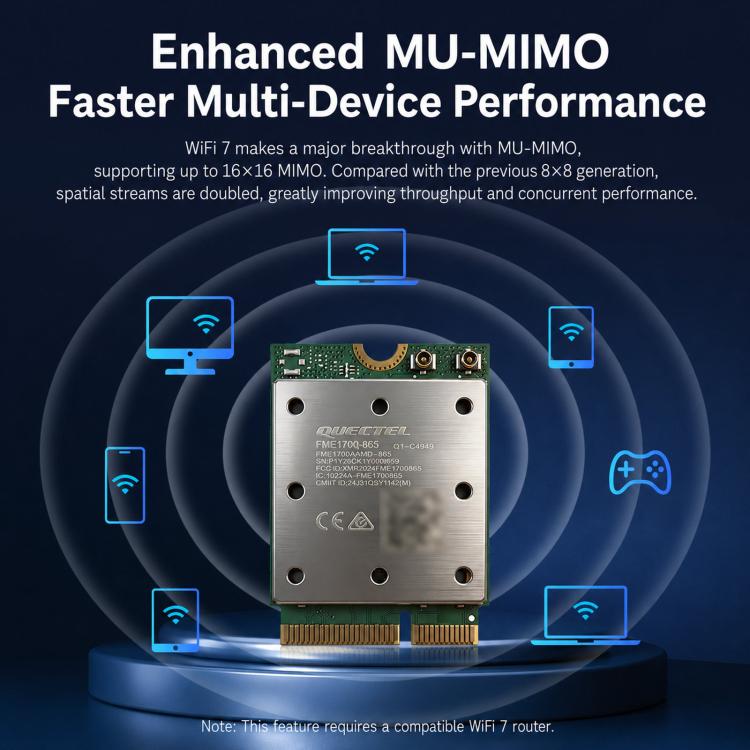

4. Utilizing advanced MU-MIMO technology to support multi-device parallel data processing, this card improves multi-user network capacity. Built-in Target Wake Time (TWT) technology intelligently schedules active and sleep cycles for your laptops wireless module, optimizing system power consumption.

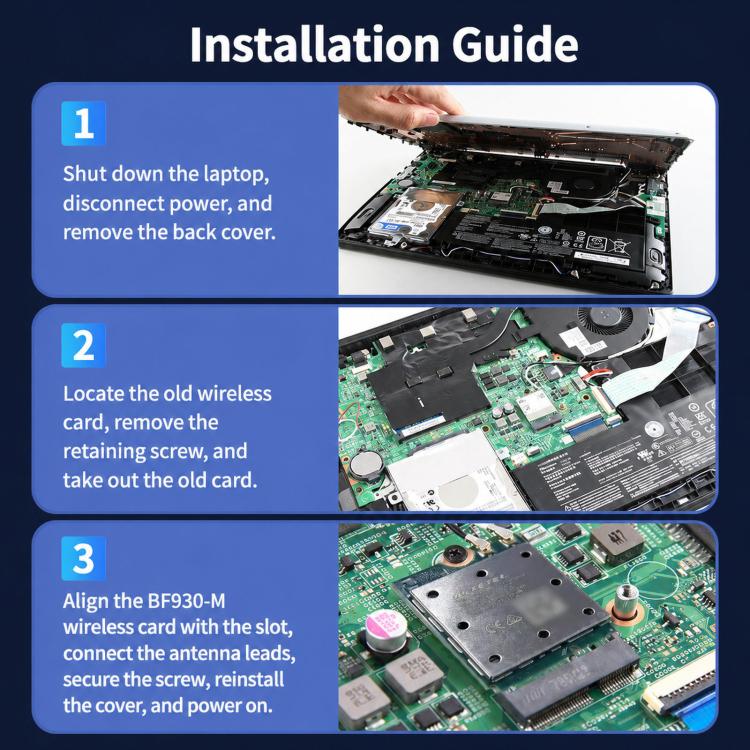

5. Designed with a standard M.2 slot (supporting NGFF Key A or E interface) for straightforward laptop hardware upgrades. Supported by the WPA3 encryption protocol, this card provides reliable network protection, safeguarding your data transfer from unauthorized access.
Specifications:
1. Hardware Specifications: QCA WCN7851 chipset
2. Wireless Standards: Supports IEEE 802.11a/b/g/n/ac/ax/be
3. Bluetooth Version: Bluetooth 5.4
4. Application: Laptops
5. Interface: M.2
6. Wireless Rates:
--2.4GHz: 688Mbps
--5.8GHz: 2882Mbps
--Third Band: 5764Mbps
7. System Support: Windows 11 (64-bit), Linux
8. Encryption: WPA-PSK/WPA2-PSK, WPA/WPA2/WPA3

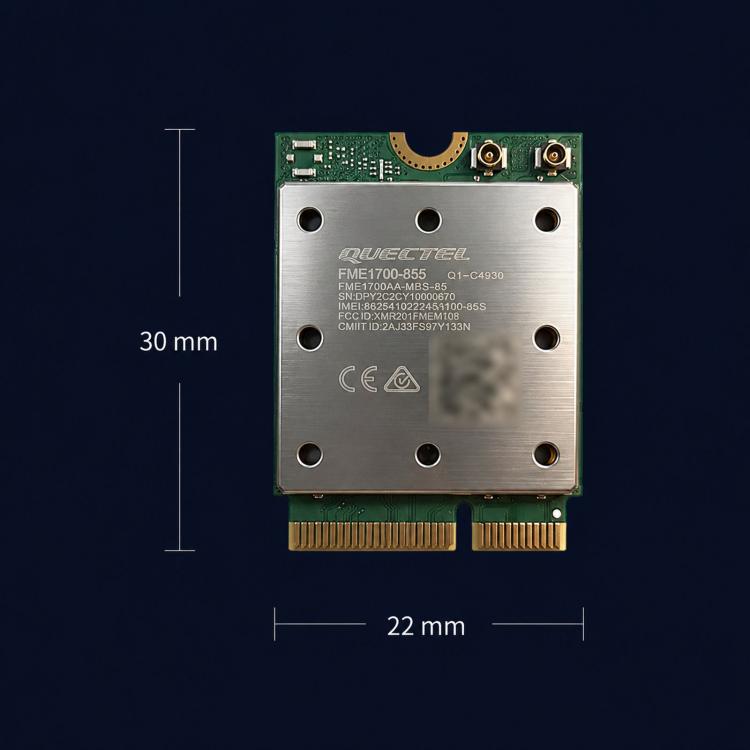

9. Product Dimensions: (L) 30 x (W) 22mm
10. Operating Environment:
--Operating Temperature: 0 - 40 degrees Celsius
--Storage Temperature: -40 - 70 degrees Celsius
--Operating Humidity: 10% - 90% RH (non-condensing)
--Storage Humidity: 5% - 90% RH (non-condensing)
