Feature

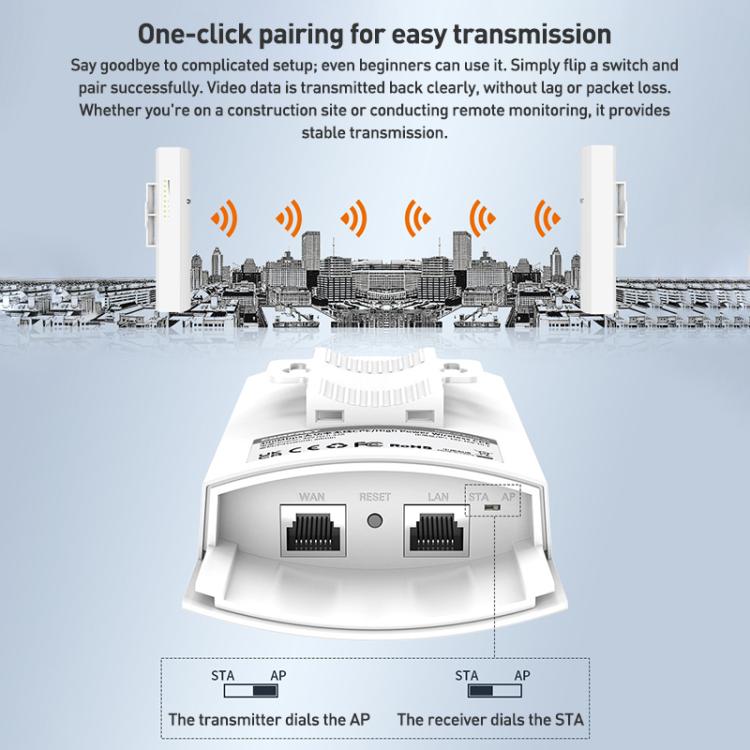

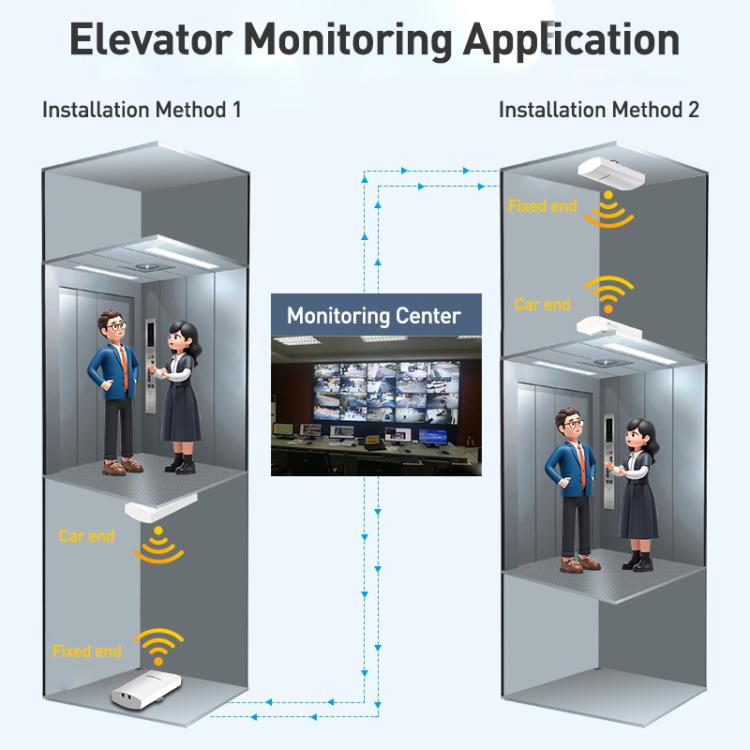

1. One-click pairing for easy transmission: Say goodbye to complex settings; pairing is a snap. Video data is transmitted back clearly, without lag or packet loss, ensuring stable transmission whether on a construction site or for remote monitoring.

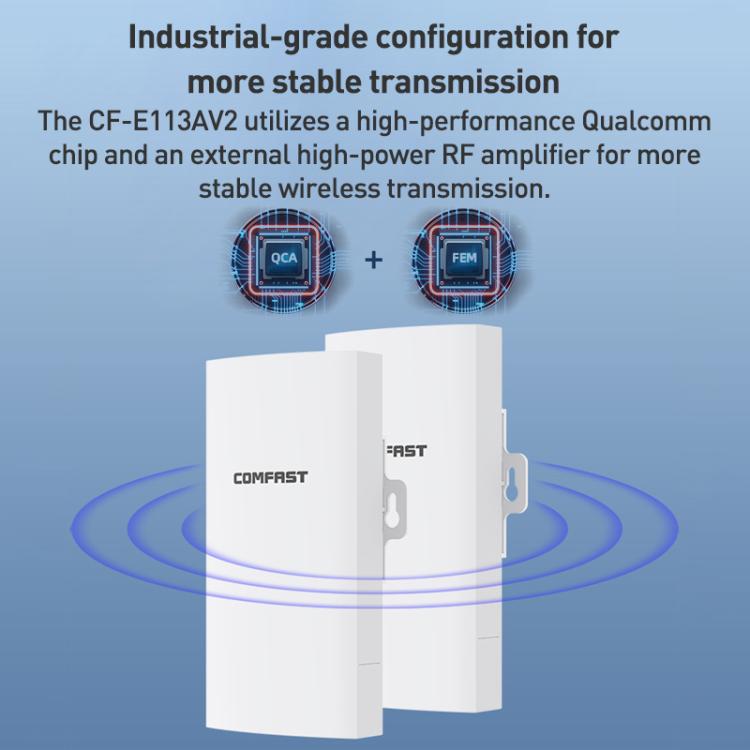

2. Industrial-grade configuration for more stable transmission: Utilizing a high-performance Qualcomm chip and an external high-power RF amplifier, wireless transmission is more stable.

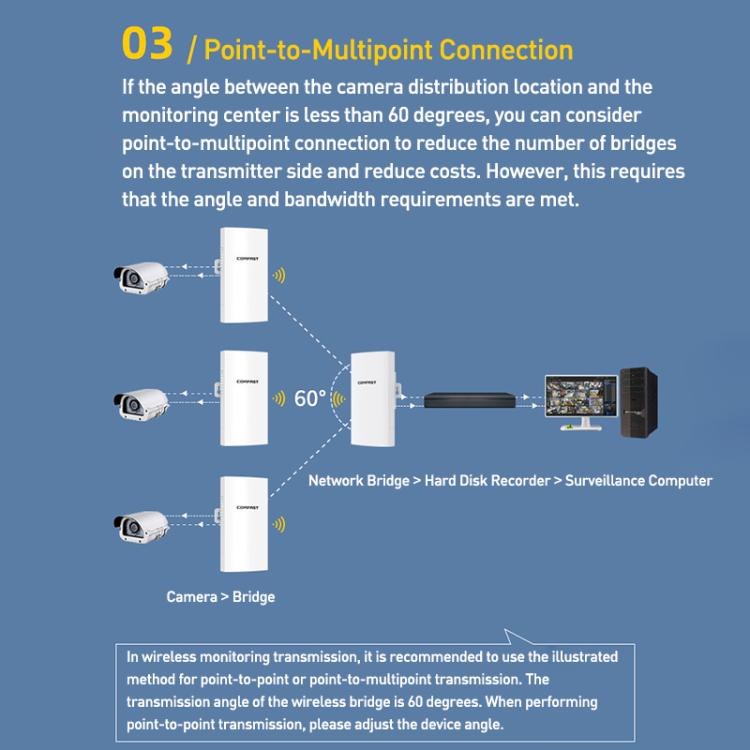

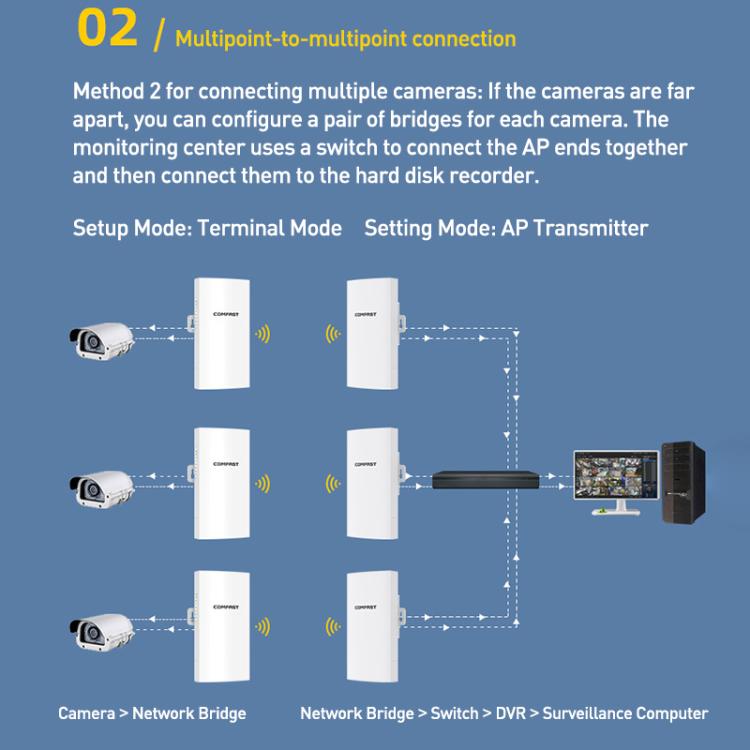

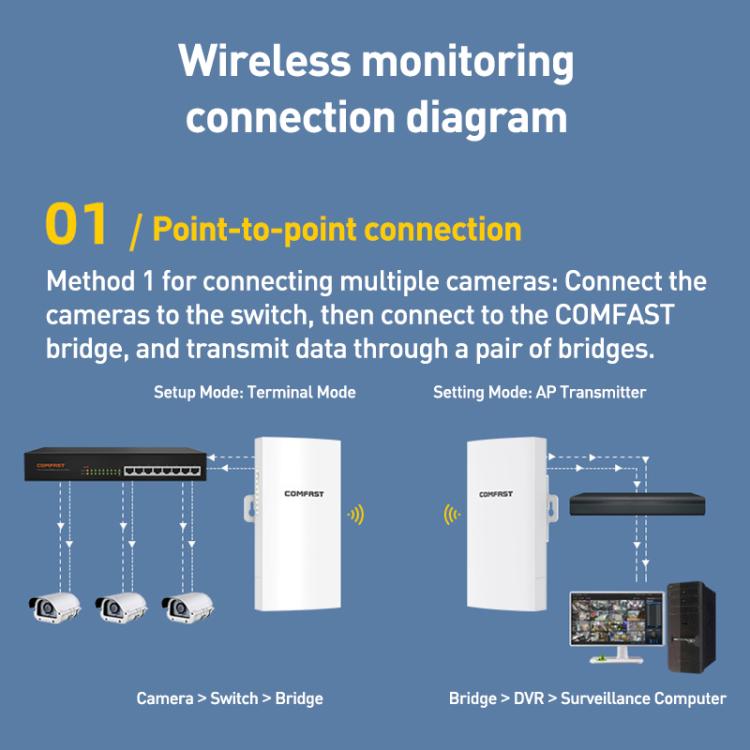

3. Stable transmission up to 3 km: Fully engineering-grade hardware technology, a high-power PA RF amplifier, and an 11dBi high-gain antenna enable point-to-point and point-to-multipoint wireless transmission up to 3 km.

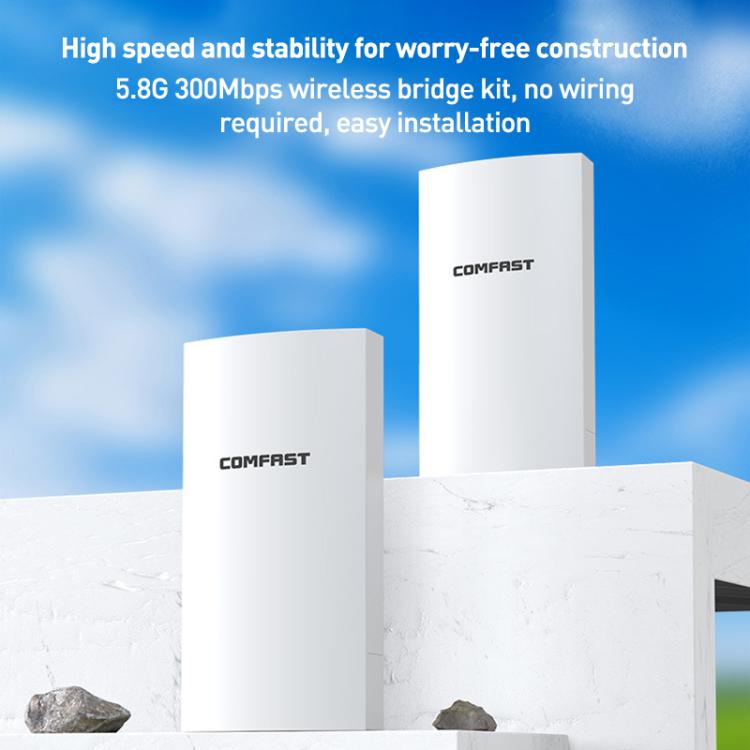

4. Stable 5.8G transmission for higher-definition video quality: Supporting the mainstream 5.8G frequency band, multiple channels offer enhanced anti-interference capabilities, and wireless speeds up to 300Mbps, ensuring stable, clear, and smooth data transmission.
5. Comprehensive protection: Utilizing an integrated molded housing design, it withstands harsh outdoor environments.

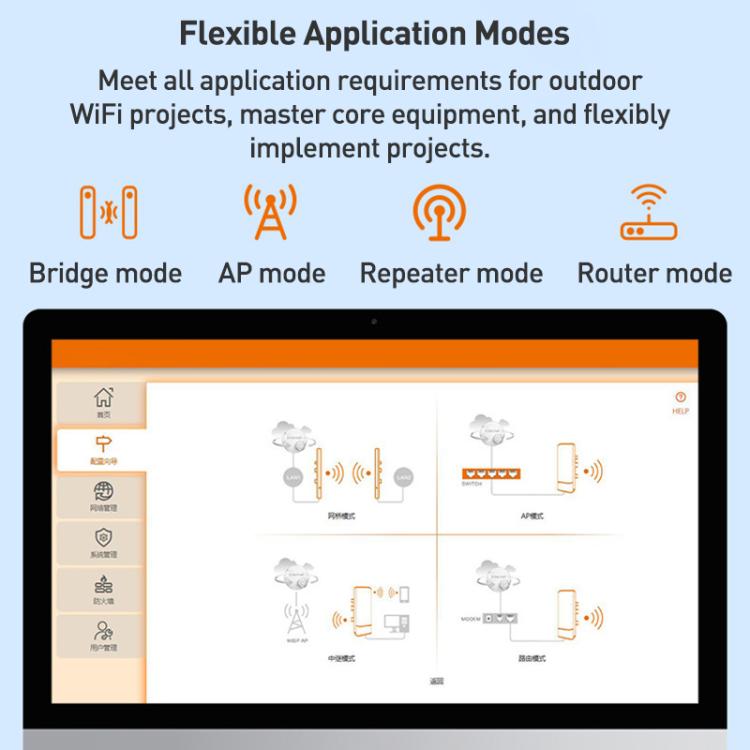

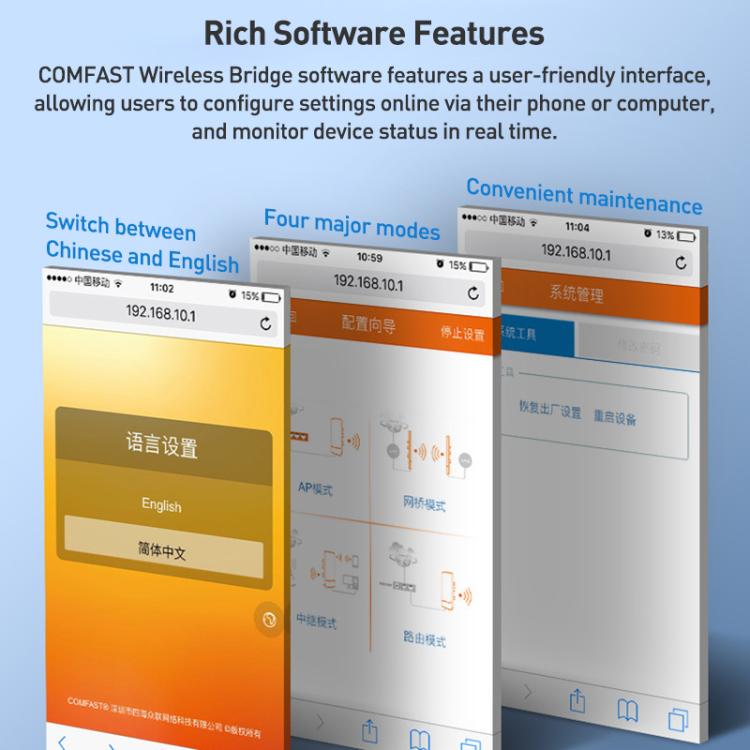

6. Various modes for flexible application: Meet all application requirements of outdoor WiFi projects, allowing you to master core equipment and flexibly implement projects.

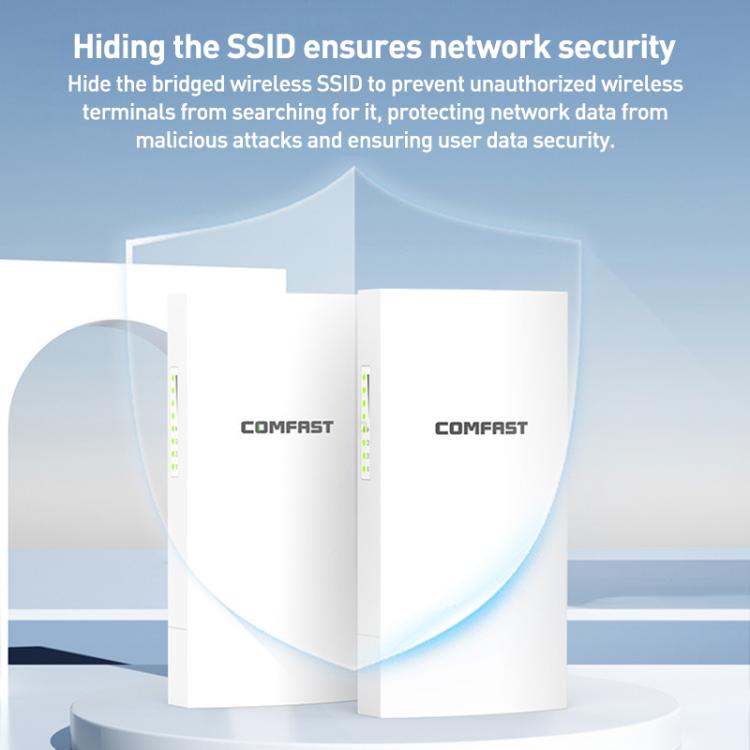

7. Hide SSID to ensure network security: The bridged wireless SSID can be hidden to prevent unauthorized wireless terminals from searching for the wireless SSID, protecting network data from malicious attacks and ensuring user data security.
Specifications
1. Motherboard Chipset: Qualcomm Solution, 5G Memory: SKY85735-11
2. Memory: 64MB, Flash: 8MB
3. Antenna Specifications: 11dBi
4. Wireless Standard: Supports IEEE 802.11a/n
5. RF Parameters: Transmit Power: 200mW (23dBm), Receive Sensitivity: -96dBm, Operating Frequency: 802.11a/n: 5.180GHz-5.825GHz
6. Wireless Data Rate: 300Mbps
7. Physical Interfaces: 10/100Mbps WAN RJ45 Ethernet, 10/100Mbps LAN RJ45 Ethernet, 1 RESET Button, 1 Toggle Switch

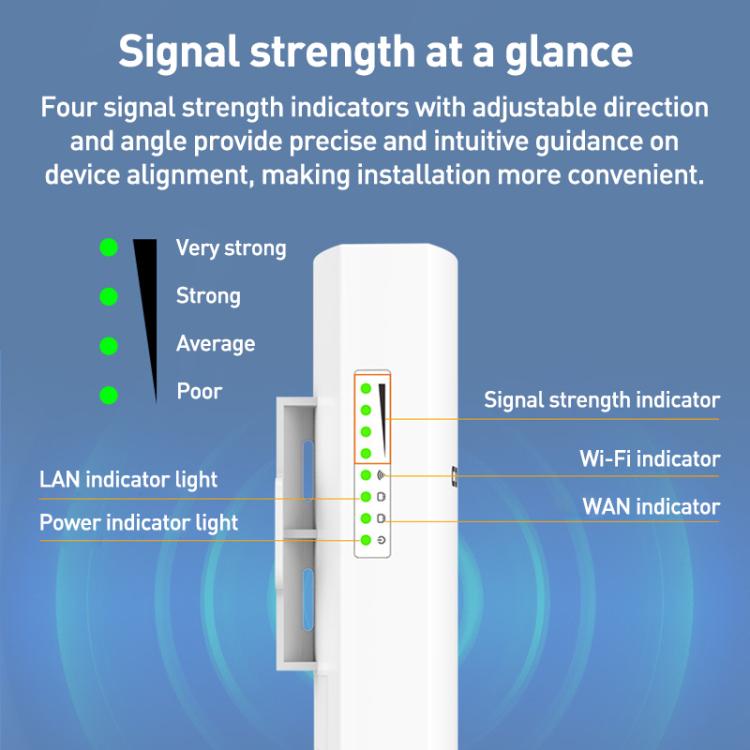

8. Indicators: Power, WAN, LAN, WiFi, Signal Strength

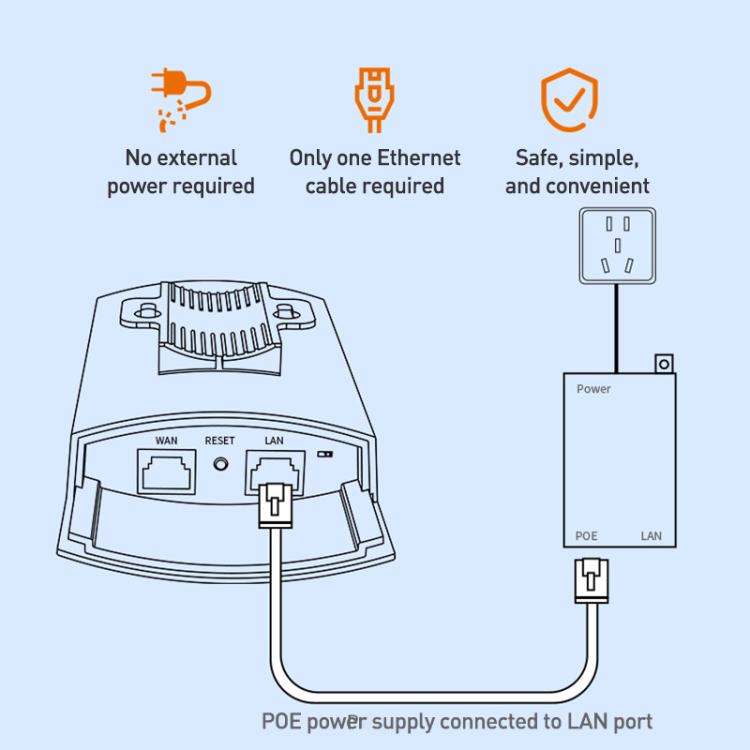

9. Power Supply: 48V POE (0.32A)
10. Power Consumption: Less than 12W

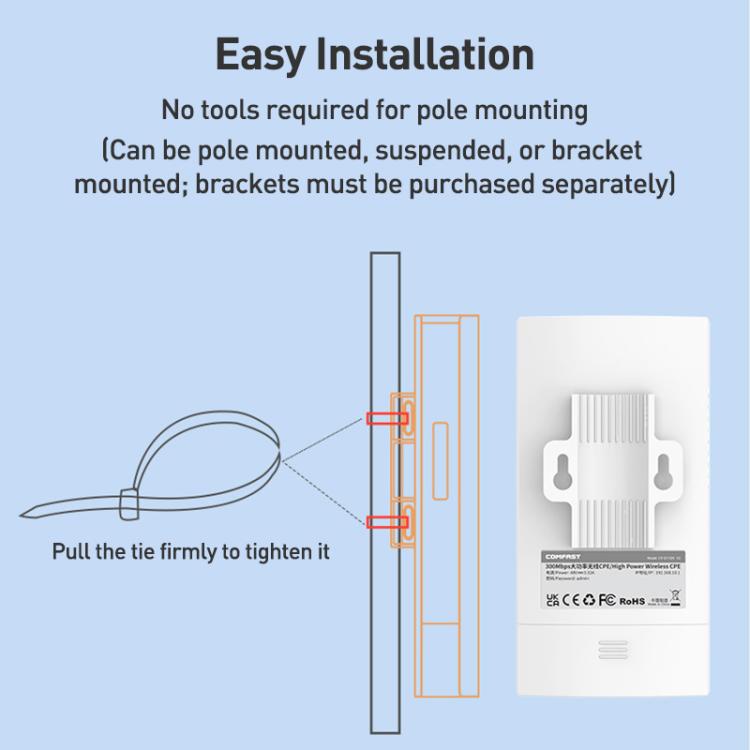

11. Mounting Methods: Pole, Wall, Bracket
12. Dimensions: 165 x 85 x 43.5mm
13. Operating Temperature: -10°C to 55°C
14. Storage Temperature: -50°C to 75°C
15. Operating Humidity: 10% to 90% RH (non-condensing)
16. Storage Humidity: 5% to 90% RH (non-condensing)
