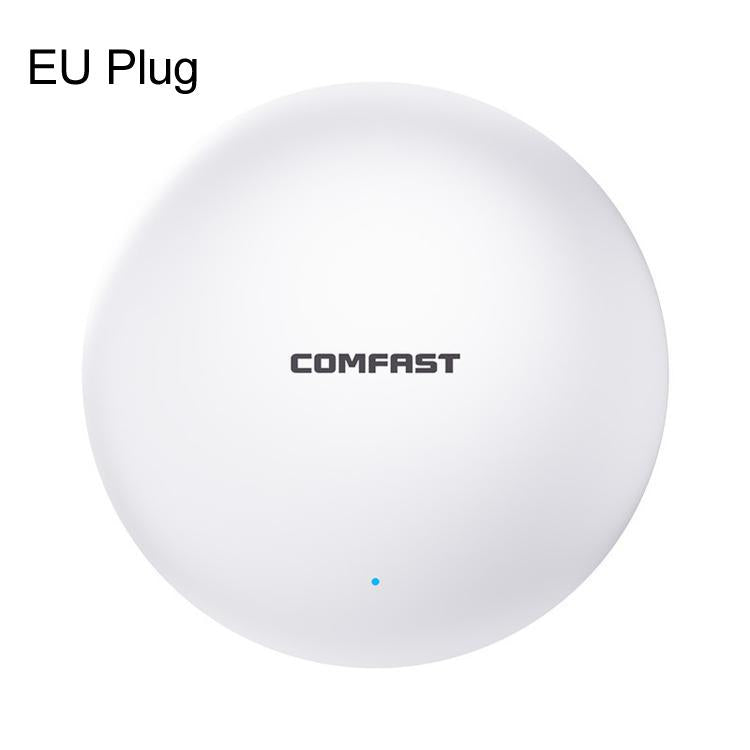

1. Powered by the WiFi 7 (802.11be) protocol, this ceiling access point delivers lightning-fast wireless speeds up to 3570Mbps (2882Mbps on 5.8GHz and 688Mbps on 2.4GHz). Designed with a premium Qualcomm three-chipset engine (IPQ5312 + QCN6412 + QCA8081), it guarantees robust computing power for high-bandwidth activities, ultra-low latency, and elite network throughput.

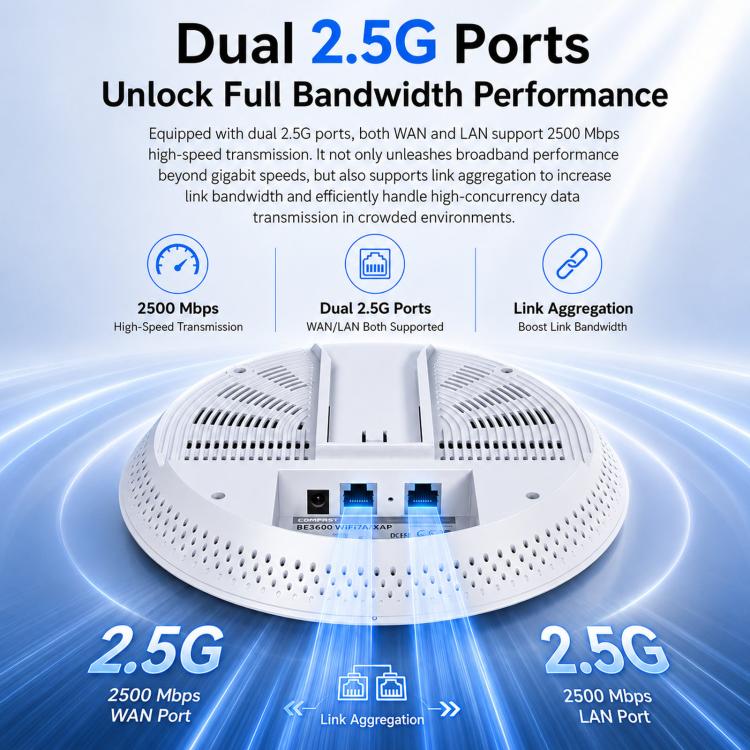

2. Break through the 1G bottleneck with dual 2.5G Ethernet ports (1x WAN and 1x LAN), both supporting up to 2500Mbps high-speed transmission. Fully unlock the potential of multi-gigabit broadband. It supports link aggregation, allowing you to combine bandwidths for enterprise-level data aggregation, making it the perfect network core for high-density traffic venues.
3. Equipped with independent high-power power amplifiers (PA) to significantly boost RF transmit and receive strength, this AP vastly expands wireless coverage and strengthens wall-penetrating performance. Complemented by built-in dual-band high-gain antennas (3dBi), it delivers stable, uniformly distributed signals across multi-room spaces, effectively minimizing dead spots.
4. With a massive 512MB RAM and 128MB Flash, this hardware powerhouse comfortably supports over 120 active concurrent client devices. Integrated with smart dynamic data scheduling to prevent latency spikes under heavy loads. It also supports seamless Mesh roaming, enabling devices to automatically hop to the strongest node without signal dropping while moving.

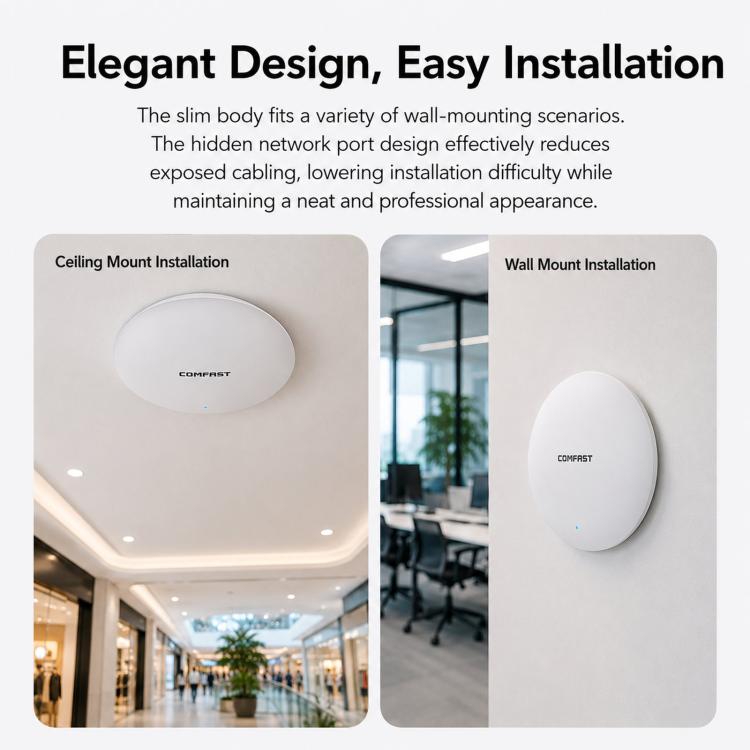

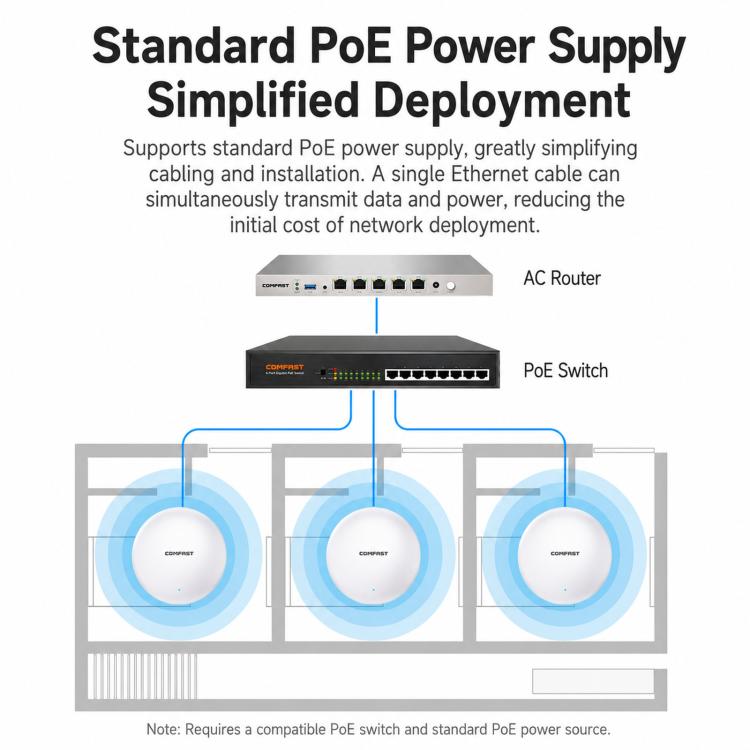

5. Supports standard PoE (48V/0.5A) power-over-ethernet (as well as 12V/1.5A DC powering option), allowing a single network cable to transmit both data and power, simplifying professional ceiling deployment and reducing wiring costs. The ultra-thin aesthetic housing with hidden port design supports both ceiling and wall mounting, seamlessly blending into office, hotel, or smart home decor.
Specifications:
1. Hardware Specifications: Memory: 512MB; Flash: 128MB
2. Antenna Specifications: 2.4GHz: Two 3dBi antennas; 5.8GHz: Two 3dBi antennas
3. Wireless Rates: 2.4GHz: 688Mbps; 5.8GHz: 2882Mbps
4. Wireless Standards: Supports IEEE 802.11a/b/g/n/ac/ax/be standards
5. RF Parameters: Max. transmit power: 25dBm; Min. receive sensitivity: -96dBm
6. Operating Frequency: 2.412GHz–2.484GHz; 5.180GHz–5.825GHz
7. Physical Interfaces:
--1 x 10/100/1000/2500Mbps RJ45 WAN Ethernet port
--1 x 10/100/1000/2500Mbps RJ45 LAN Ethernet port
--1 x DC power port, 1 x Reset button
8. Indicator Light: Tri-color LED
9. Power Supply: PoE (48V/0.5A) / DC (12V/1.5A)
10. Power Consumption: Less or equal to 18W
11. Enclosure: Plastic housing
12. Protection Rating: IP31
