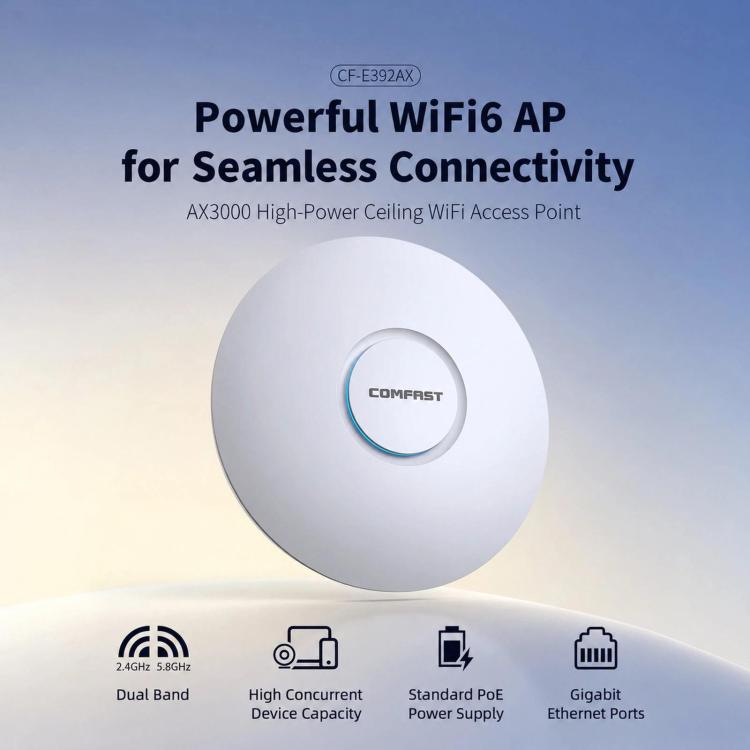

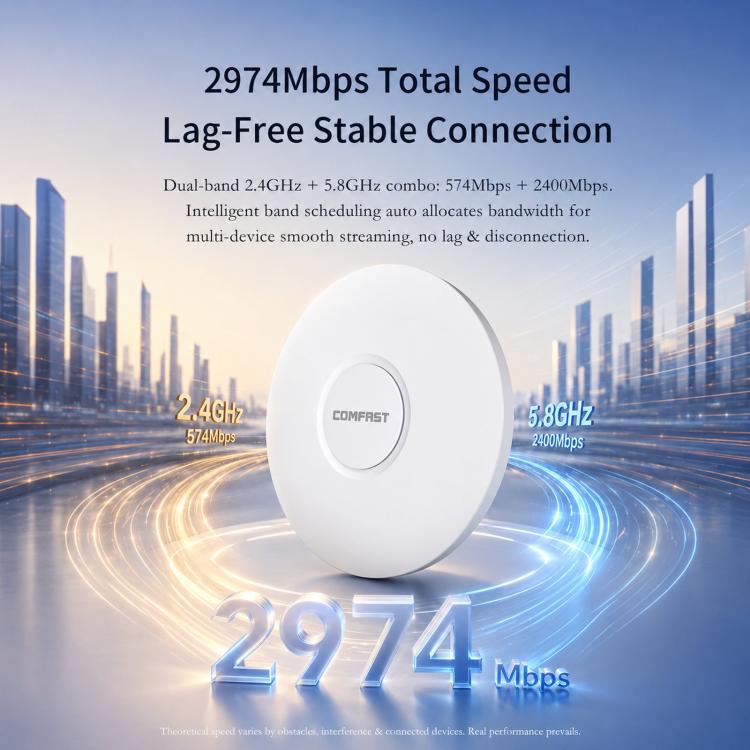

1. Powered by WiFi 6 technology, the CF-E392AX offers dual-band wireless speeds up to 2974 Mbps (574 Mbps on 2.4 GHz + 2400 Mbps on 5.8 GHz). Intelligently auto-allocates bandwidth to ensure lag-free 4K streaming, fast downloads, and seamless connectivity for both modern and legacy devices.

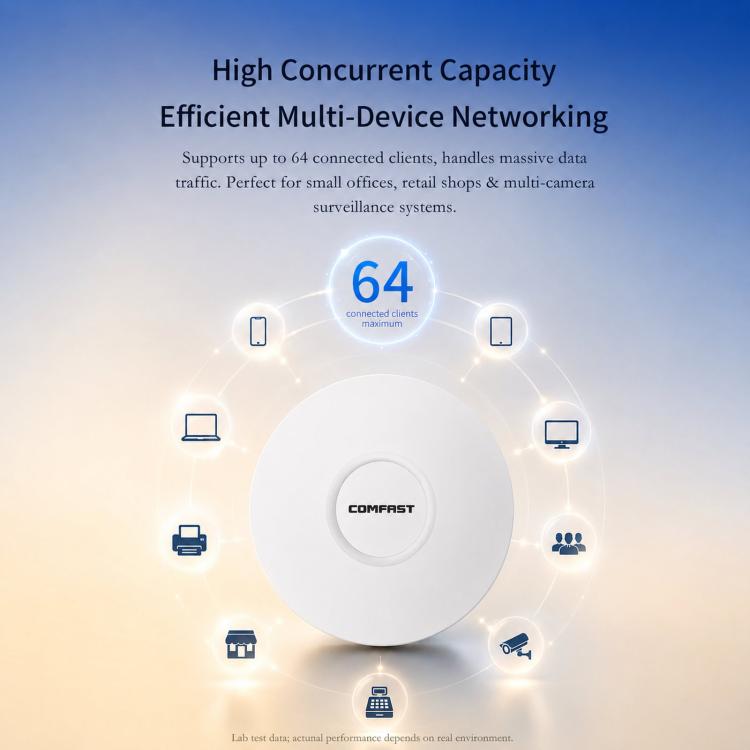

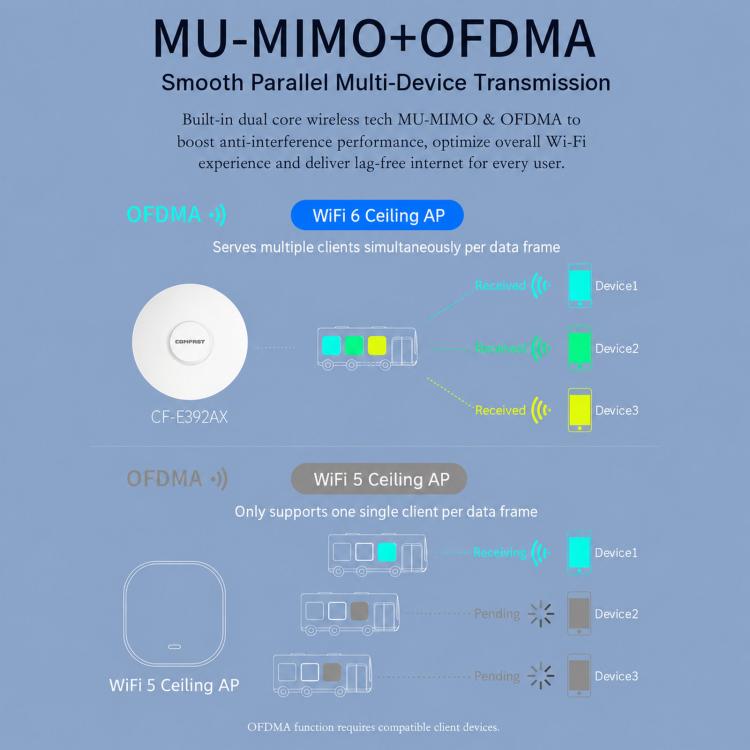

2. Equipped with a high-performance triple-core processor with optimized algorithms to eliminate performance bottlenecks. Integrated MU-MIMO and OFDMA technologies enable simultaneous multi-device transmission with ultra-low latency, supporting up to 64 concurrent client connections—ideal for offices, retail stores, and crowded spaces.

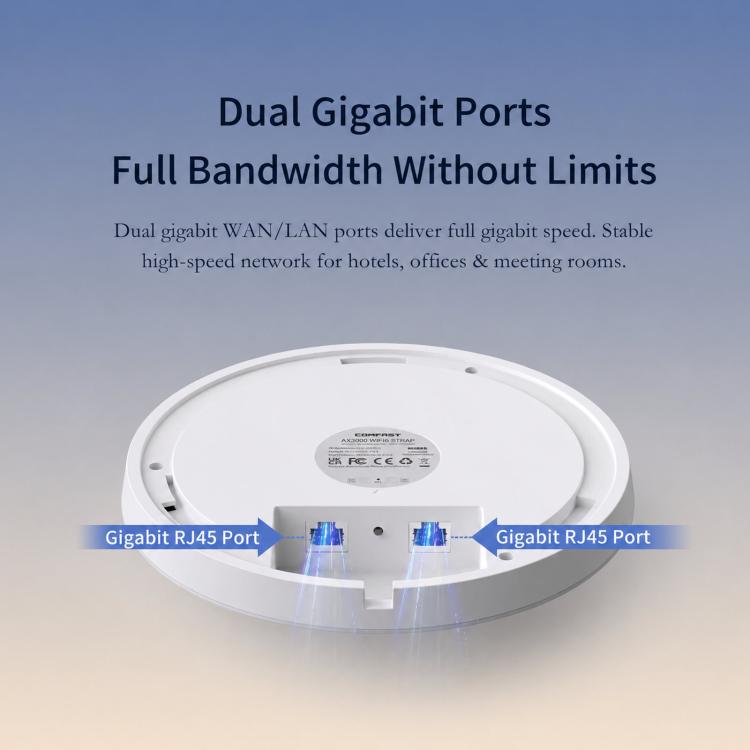

3. Features 2 x 10/100/1000 Mbps RJ45 Ethernet ports (1 x WAN, 1 x LAN) to deliver full gigabit wired throughput. Expands your network options seamlessly without bandwidth bottlenecks, providing reliable connections for IP cameras, switches, or downstream wired network devices.

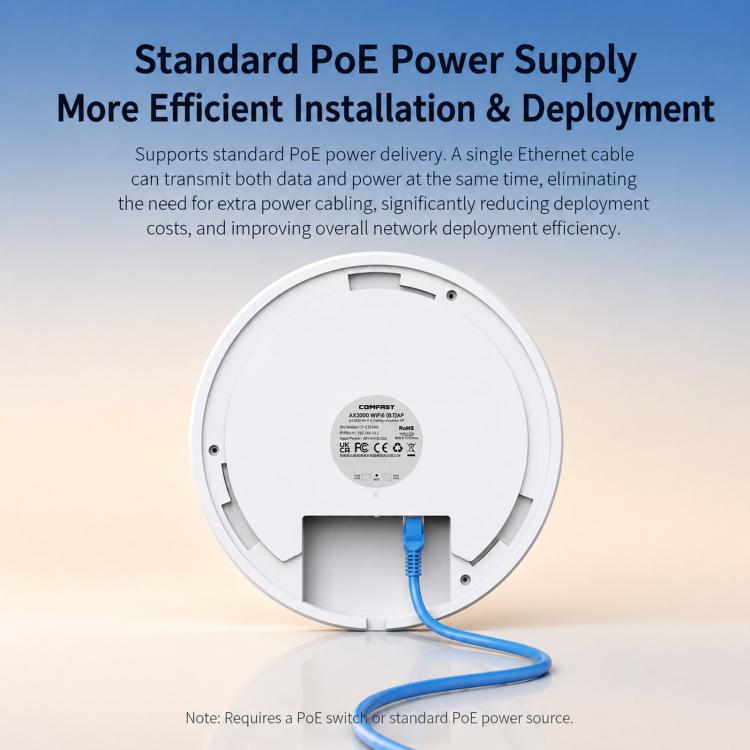

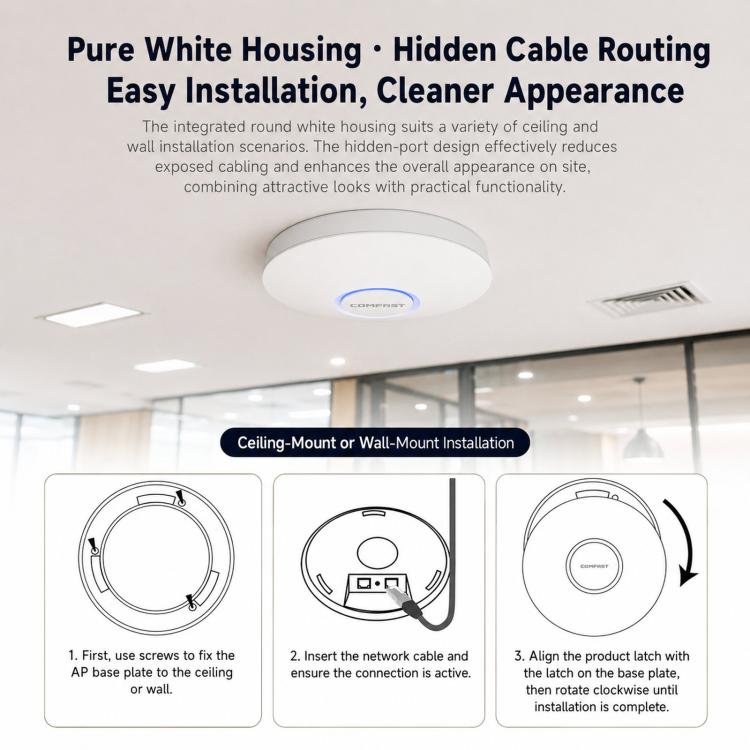

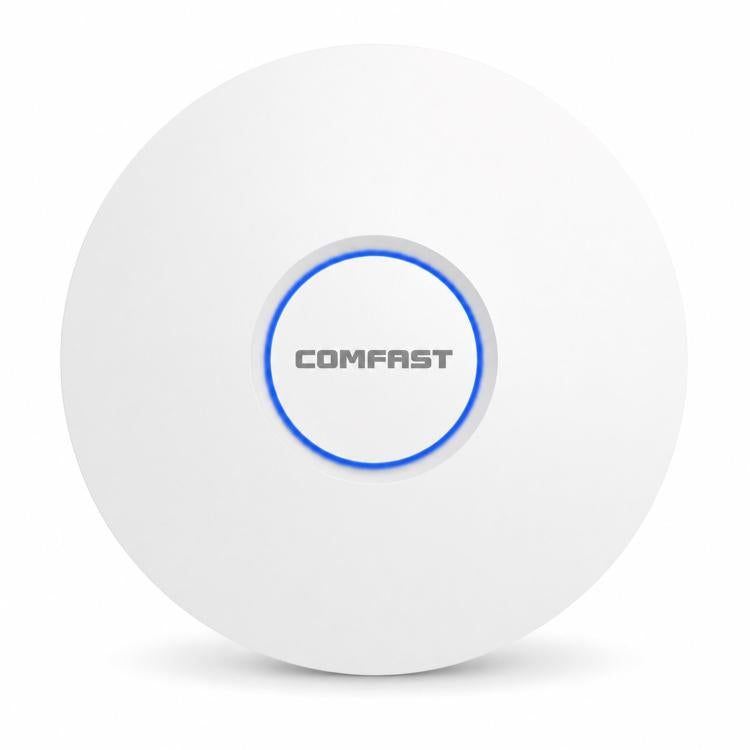

4. Supports standard 48V / 0.32A PoE power supply (IEEE 802.3af/at compatible), allowing power and data to be transmitted over a single network cable for simple, clutter-free installation. Features a ultra-slim 18 mm profile (200 x 200 x 18 mm) with IP41 protective rating and hidden built-in 3 dBi omnidirectional antennas.

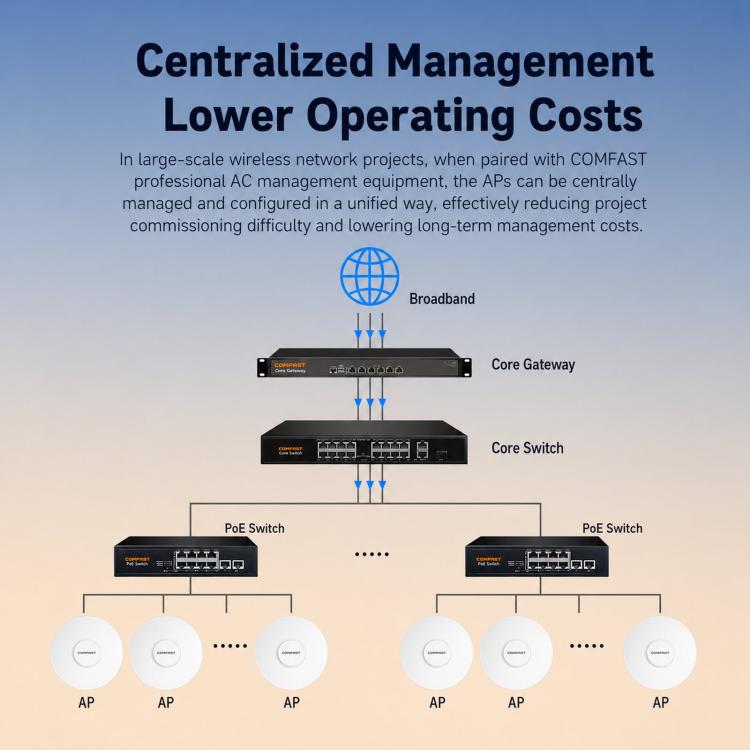

5. Supports centralized AC controller management for unified configuration, batch firmware updates, and real-time monitoring. Built-in tri-color LED indicator provides clear device status at a glance.
Specifications:
1. Chipset: RTL8198D-VG1-CG + RTL8192XBR + RTL8832CR-VD
2. Hardware Specifications: Memory: 128 MB; Flash: 16 MB;
3. Antenna Specifications: 4 x 2400–2500 MHz / 5150–5850 MHz: 3 dBi
4. Wireless Speed: Supports IEEE 802.11b/g/n/ac/ax standards; 2.4 GHz: 574 Mbps; 5.8 GHz: 2400 Mbps
5. Physical Interfaces:
--1 x 10/100/1000 Mbps RJ45 WAN Ethernet port;
--1 x 10/100/1000 Mbps RJ45 LAN Ethernet port;
--1 x Reset button;
6. Indicator Light: Tri-color LED
7. Power Supply: PoE 48V / 0.32A
8. Power Consumption: 11W Max
9. Housing: Plastic
10. Protection Rating: IP41
11. Dimensions: 200 x 200 x 18 mm
