Feature
1. MT7981B+MT7976CN+AN8801SB brand chip solution, stable performance
2. 3000Mbps wireless speed, high-speed transmission, and an enhanced Internet experience
3. Concurrent 2.4GHz & 5.8GHz dual-band, more stable signal, and efficient interference resistance

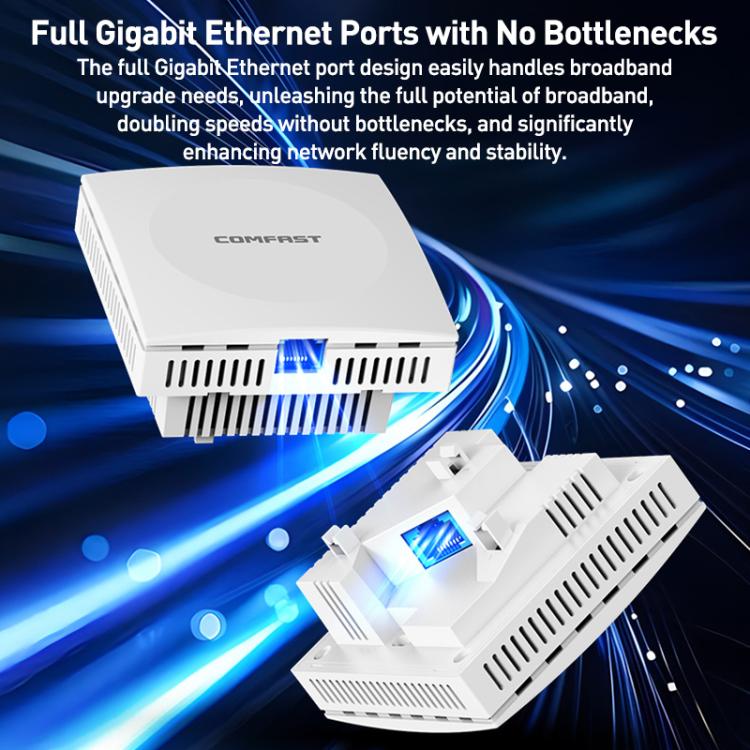

4. Full Gigabit Ethernet ports, unlimited bandwidth, and smoother signal

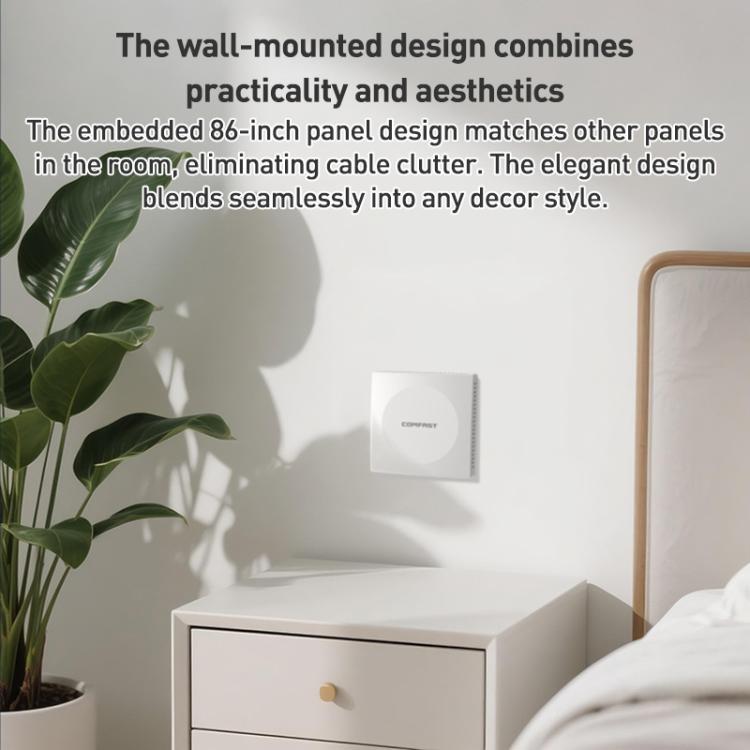

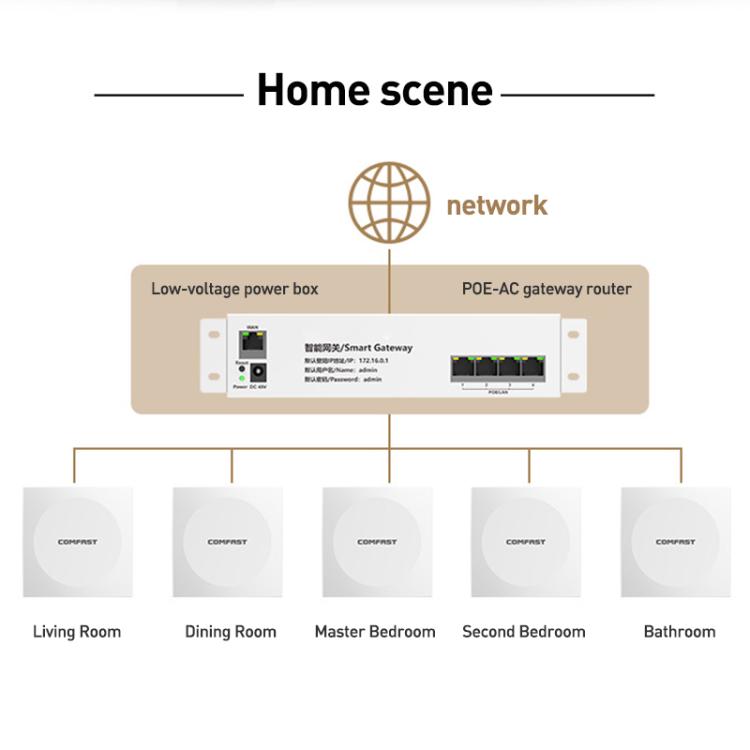

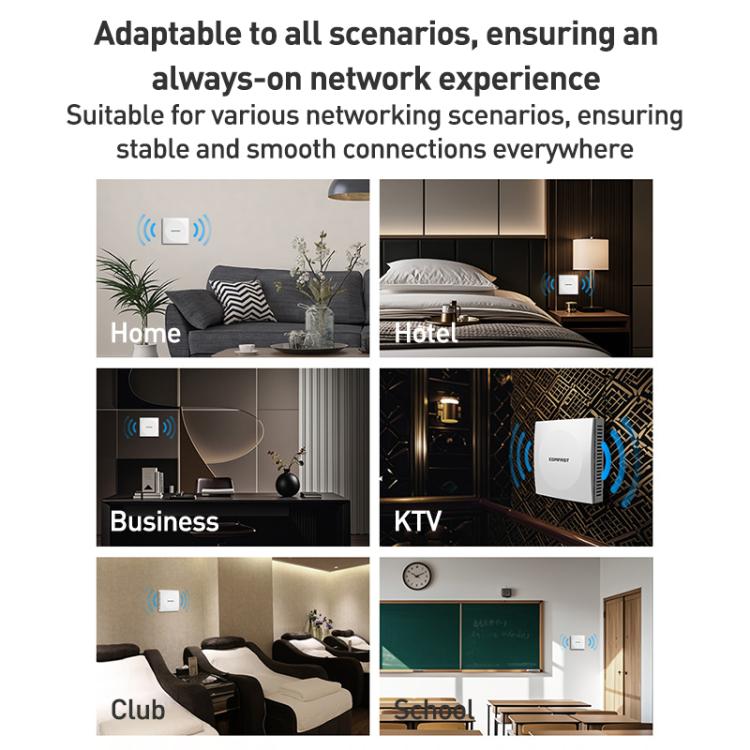

5. Standard 86-inch panel AP, suitable for a wide range of applications

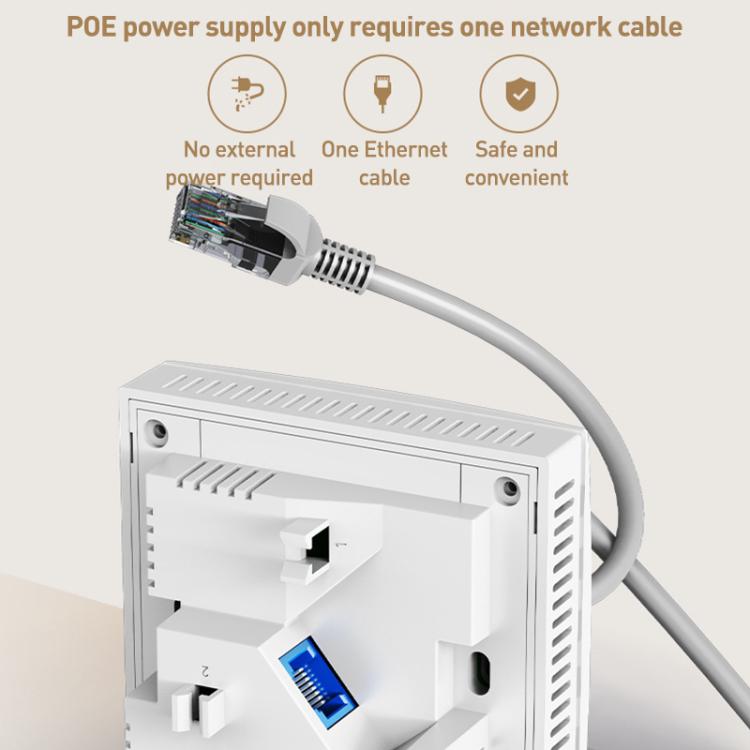

6. 48V standard POE power supply, guaranteed safety, and easier installation
7. Standard wireless protocol, supports IEEE802.11a/b/g/n/ac/ax
8. Built-in smart antenna, strong signal, low latency, and high reliability
Specifications
1. Hardware: Memory: 256MB, Flash: 128MB
2. Wireless Speed: 2.4GHz: 574Mbps, 5GHz: 2402Mbps
3. Physical Ports: 1 10/100/1000Mbps WAN RJ45 port (supports 48V POE), 1 10/100/1000Mbps LAN RJ45 port, 1 RESET button
4. Power Supply: 48V POE (maximum range 100 meters)
5. Power Adapter: 48V/0.32A POE Power Adapter
6. Wireless Standard: IEEE 802.11b/g/n/ac
7. Power Consumption: Less than 12W
8. Indicator: Three-color light
10. Protection Rating: IP41
11. Material: ABS
12. Dimensions: 86x86x49.5mm
13. Operating Temperature: 0-40°C
14. Storage Temperature: -40-70°C
15. Operating Humidity: 10-90% RH (non-condensing)
16. Storage Humidity: 5-90% RH (non-condensing)
RF Parameters:
1. Maximum Transmit Power: 200mW (23dBm)
2. Minimum Receive Sensitivity: -96dBm
3. Operating Frequency: 802.11ac/n/ax: 5.180GHz-5.825GHz, 802.11b/g/n: 2.412GHz-2.484GHz
Modulation Parameters:
1. 11b: DSS: CCK 5.5/11Mbps, DQPSK 2Mbps, DBPSK 1Mbps
2. 11a/g: OFDM: 64QAM 48/54Mbps, 16QAM 24Mbps, QPSK 12/18Mbps, BPSK 6/9Mbps
3. 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
4. 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
5. 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
