1. Built-in power amplifier (PA) chips with dual 5dBi external antennas enhance signal penetration and extend wireless range for outdoor open areas.
2. Engineered for outdoor environments with IP66 rated housing, providing reliable resistance against rain, dust, and temperature variations from -10 to 55 degrees Celsius.

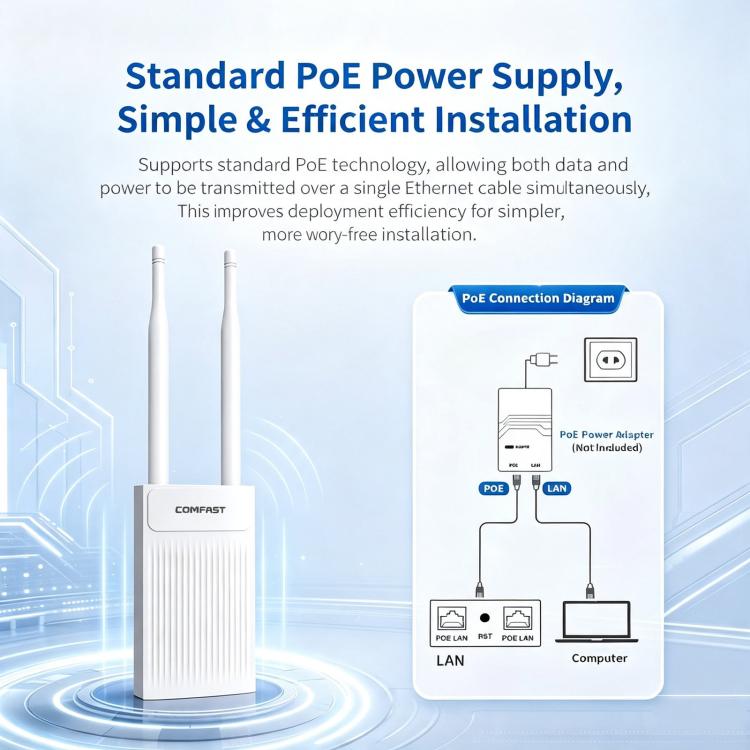

3. Supports standard Power over Ethernet technology, allowing data and electricity transmission through a single network cable for simplified deployment and flexible installation.
4. Features intelligent wireless channel selection that continuously scans and switches to cleaner channels, minimizing co-channel interference for multi-device connections.

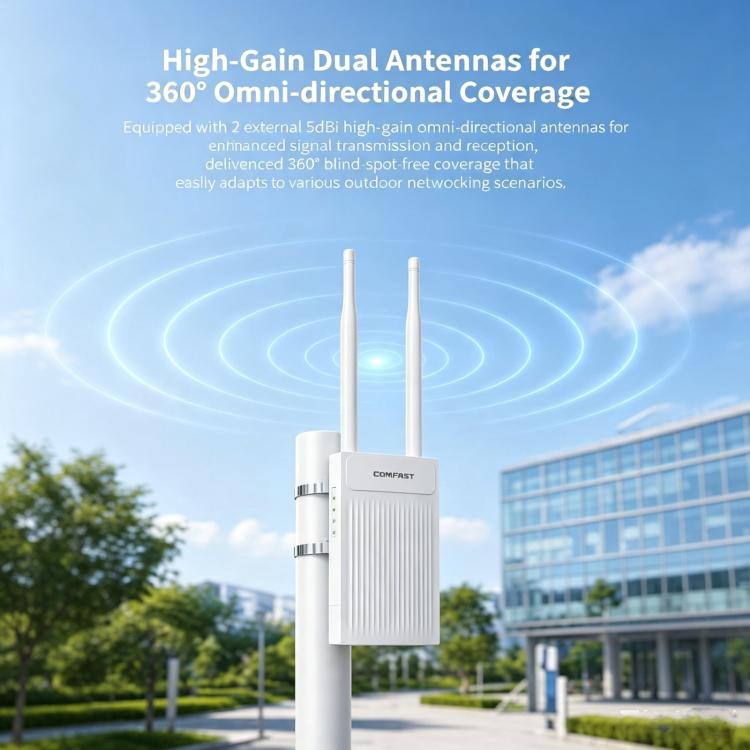

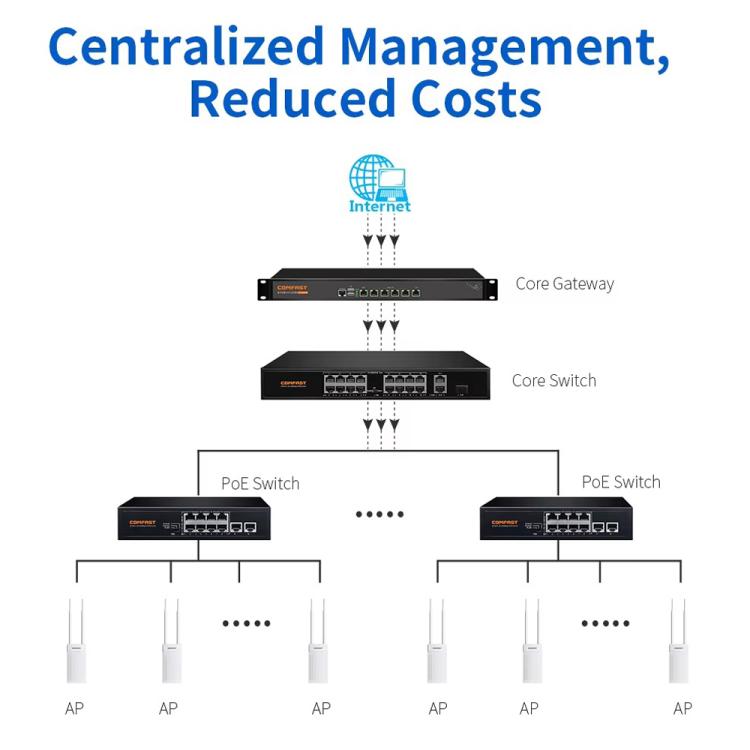

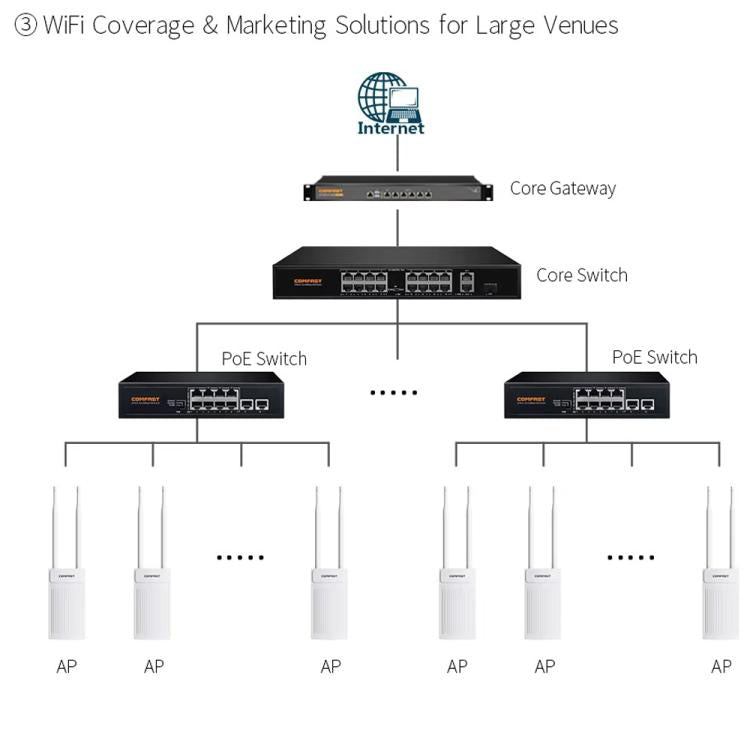

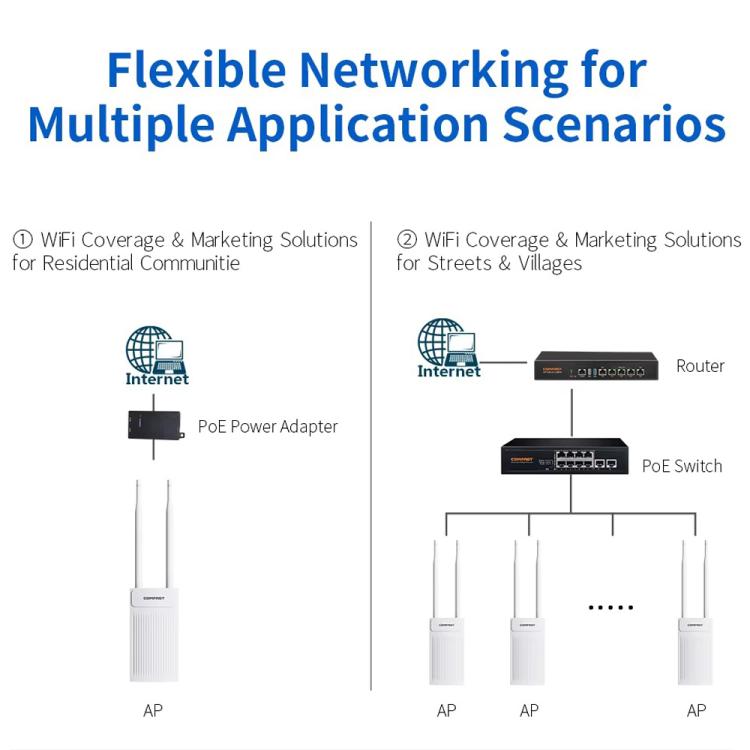

5. Includes mounting hardware for flexible pole or wall installation, while supporting AC controller centralized management for convenient multi-AP network maintenance.
Specifications:
1. Hardware Specifications: Qualcomm QCA9531 industrial-grade CPU (650MHz); Memory: 64MB; Flash: 16MB; Power Amplifier Chip: SE2576L x 2
2. Antenna Specifications: 2 x 5dBi external antennas

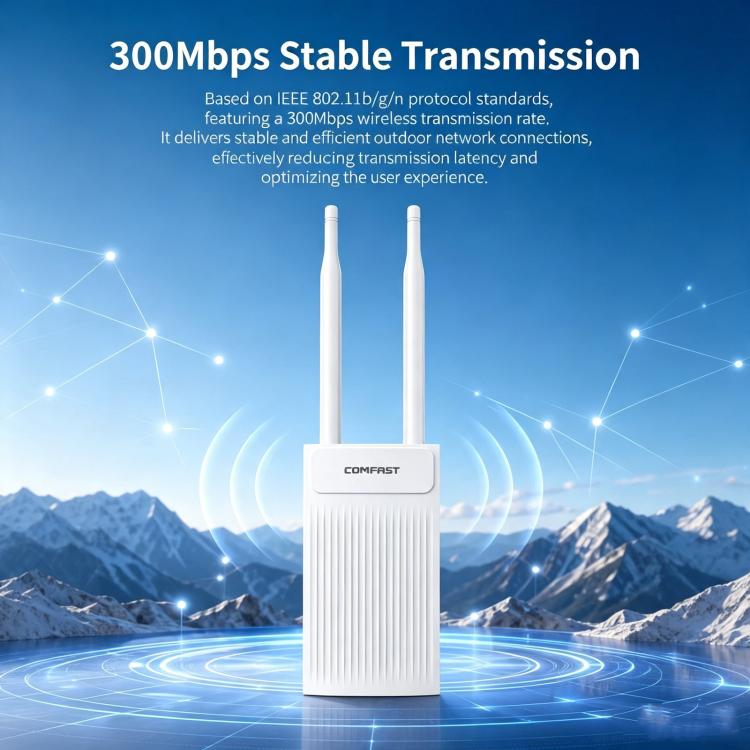

3. Wireless Rate: 2.4GHz: 300Mbps
4. RF Parameters:
--Max Transmit Power: 500mW (27dBm)
--Minimum Receive Sensitivity: -96dBm
--Operating Frequency: 802.11b/g/n: 2.412GHz–2.484GHz

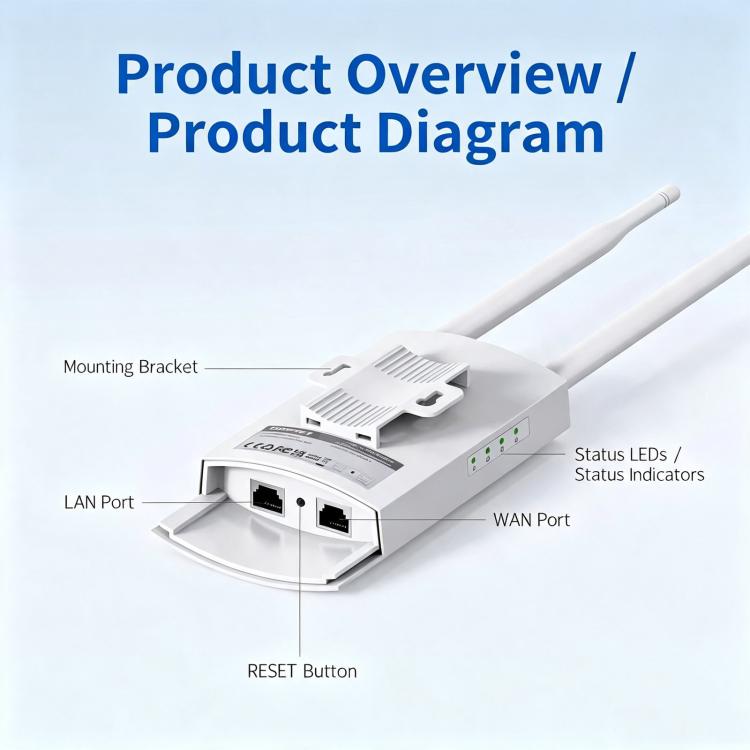

5. Physical Interfaces:
--1 x 10/100Mbps WAN RJ45 Ethernet port (supports PoE);
--1 x 10/100Mbps LAN RJ45 Ethernet port (supports PoE);
--1 x Reset button;
6. Power Supply: PoE (48V/0.32A)
7. Power Consumption: Less than 8W
8. Protection Rating: IP66
9. MTBF: Greater than 250,000 hours
