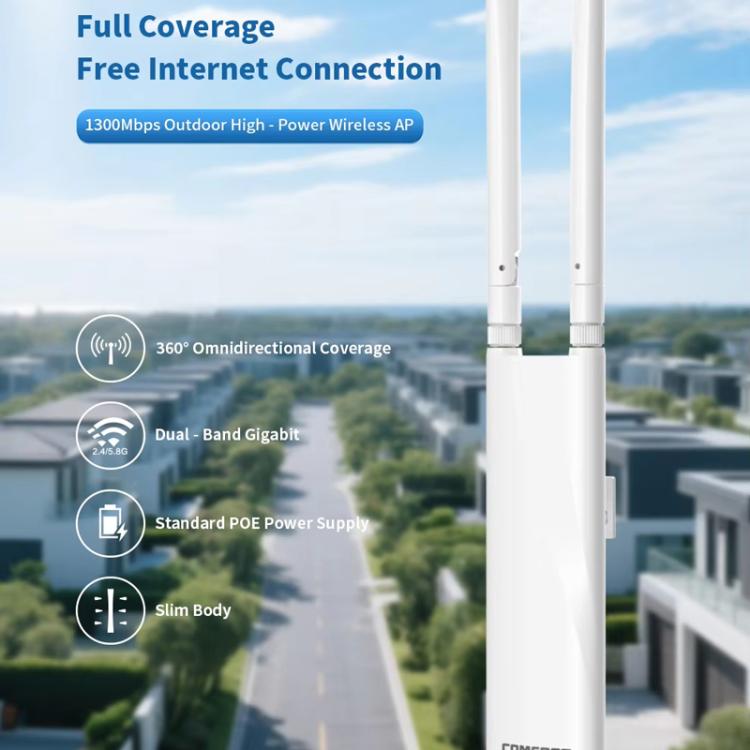

1. 1300Mbps High-Power Wireless AP, 360-degree omni-directional coverage, providing all-weather, professional and reliable network support for various outdoor scenarios.

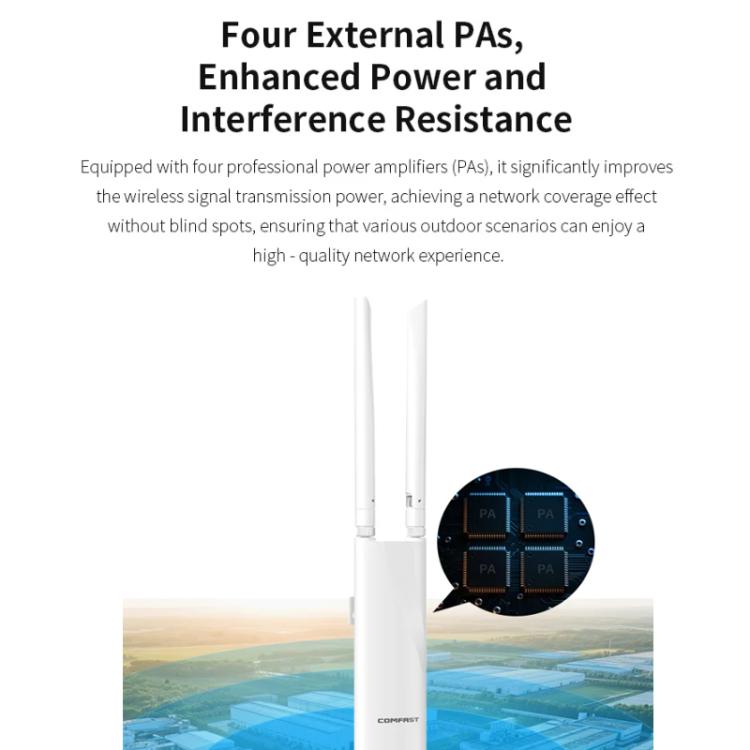

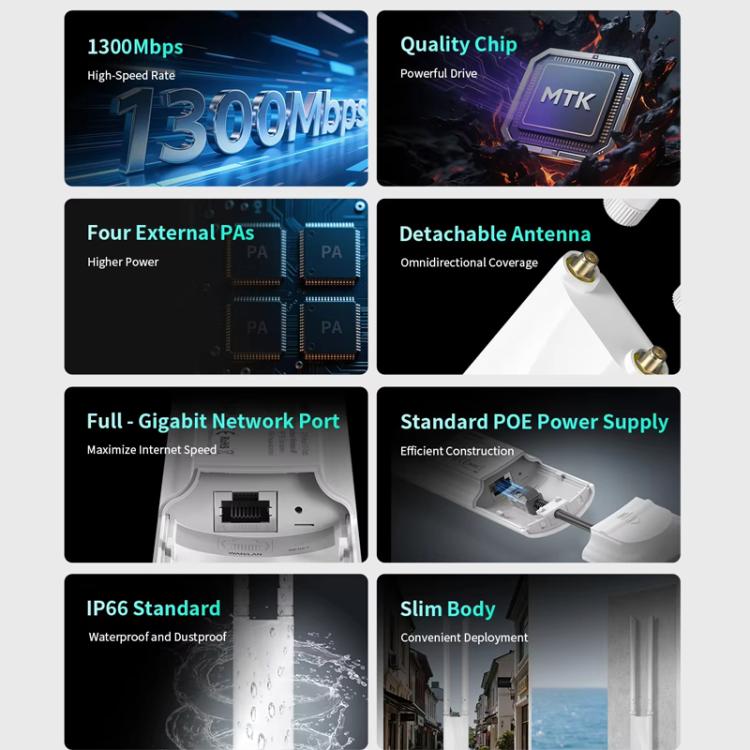

2. Equipped with four professional Power Amplifiers (PA), significantly enhancing wireless signal transmission power to achieve blind-spot-free coverage.

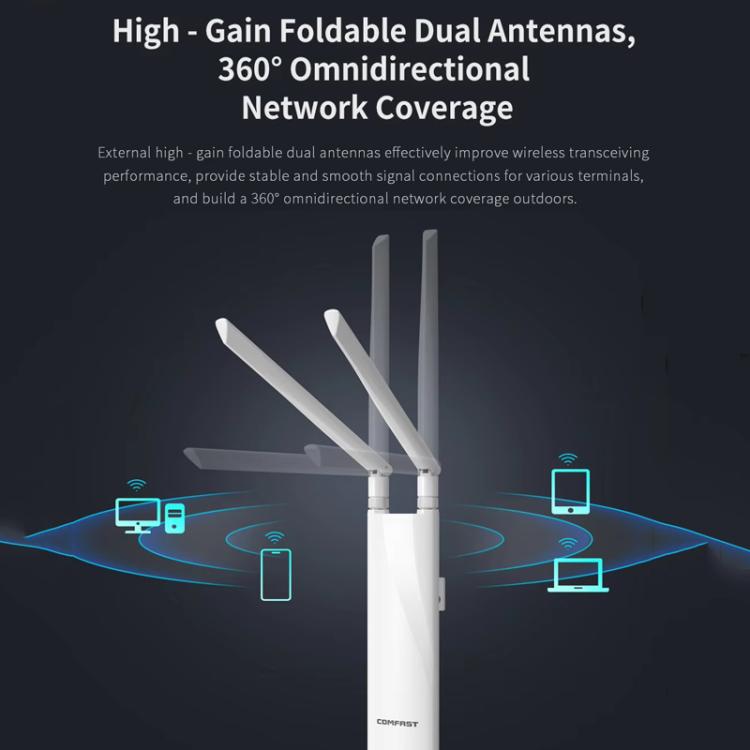

3. External high-gain foldable dual antennas, effectively improving wireless transmission and reception performance, delivering stable and smooth signal connections for various terminals.

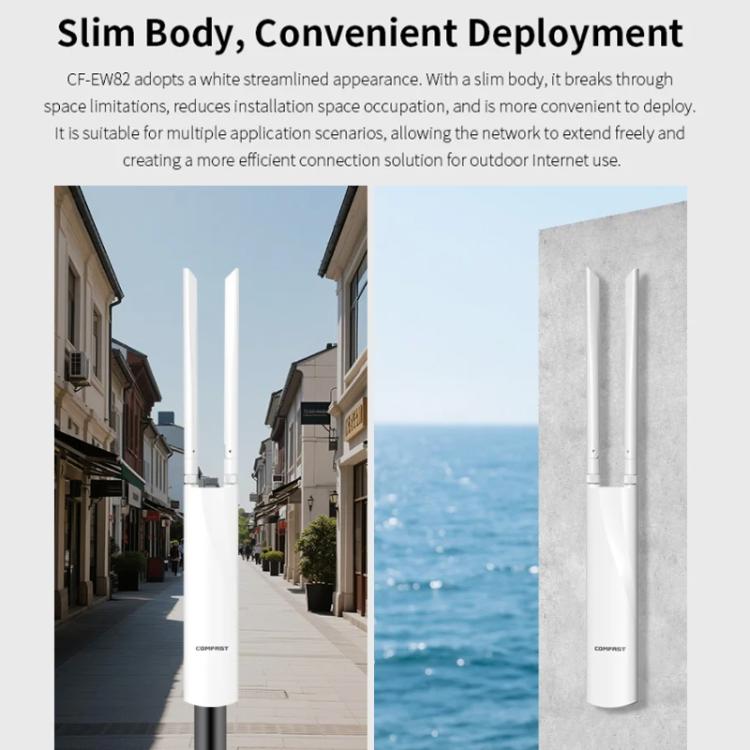

4. Features a white streamlined design, with a slender body to minimize spatial footprint and simplify installation, offering versatile deployment adaptability across diverse application scenarios.

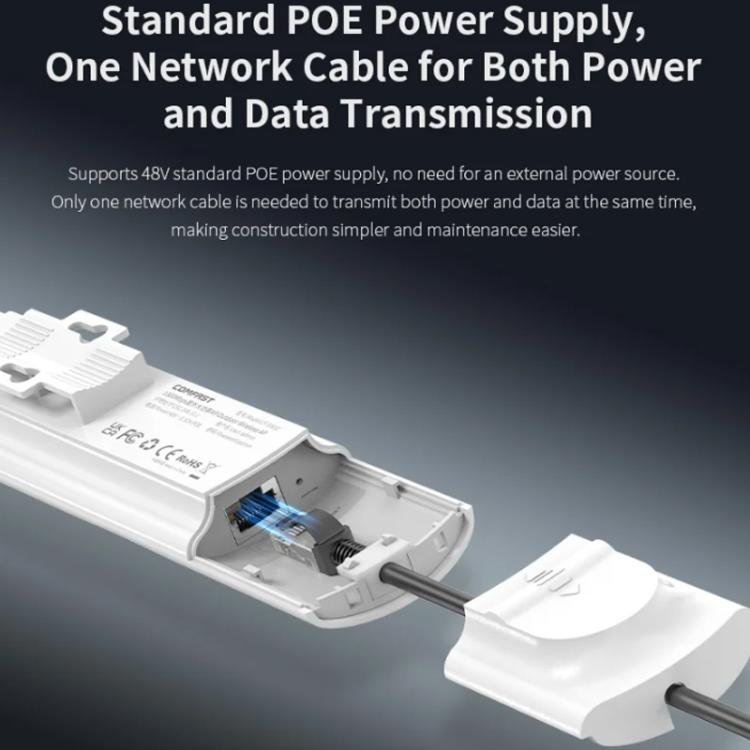

5. Supports standard 48V Power over Ethernet (PoE), eliminating the need for an external power supply; a single network cable transmits both power and data.

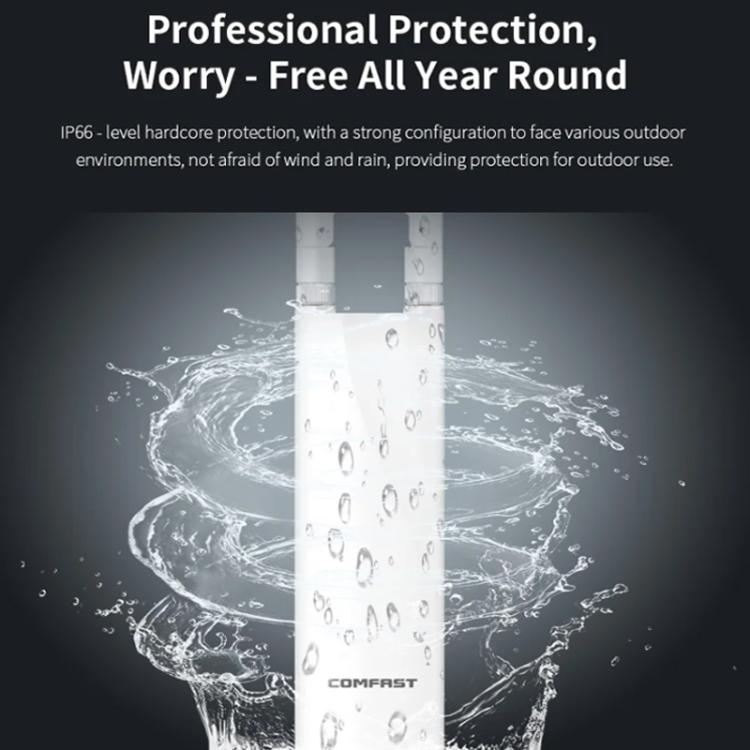

6. IP66-rated rugged protection, resilient against wind and rain, safeguarding outdoor operation.
Specifications:
1. Hardware Specification: MT7621AT + MT7615DN chipset; Memory: 256MB; Flash: 16MB;
2. Antenna Specification: 2 x 5dBi external omni-directional antennas

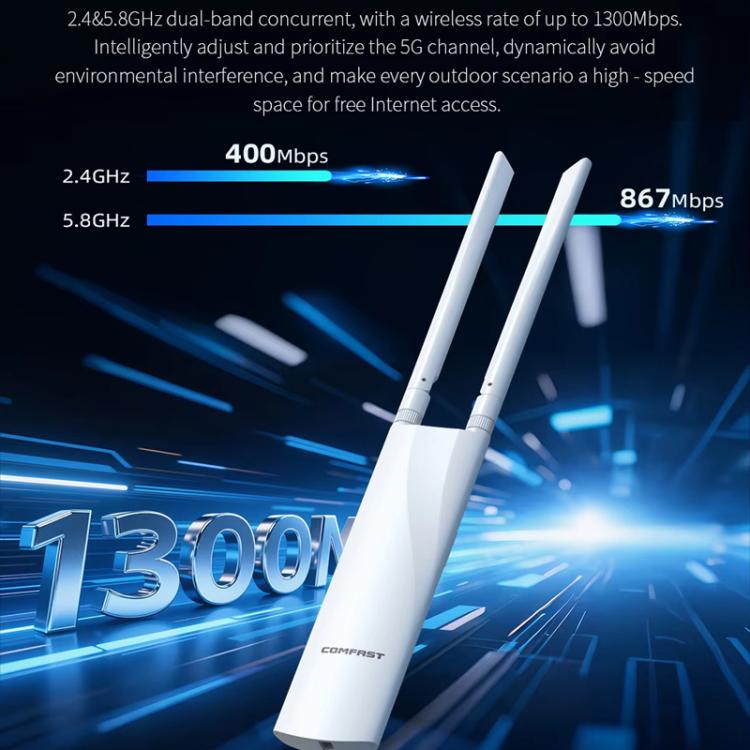

3. Wireless Speed: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps

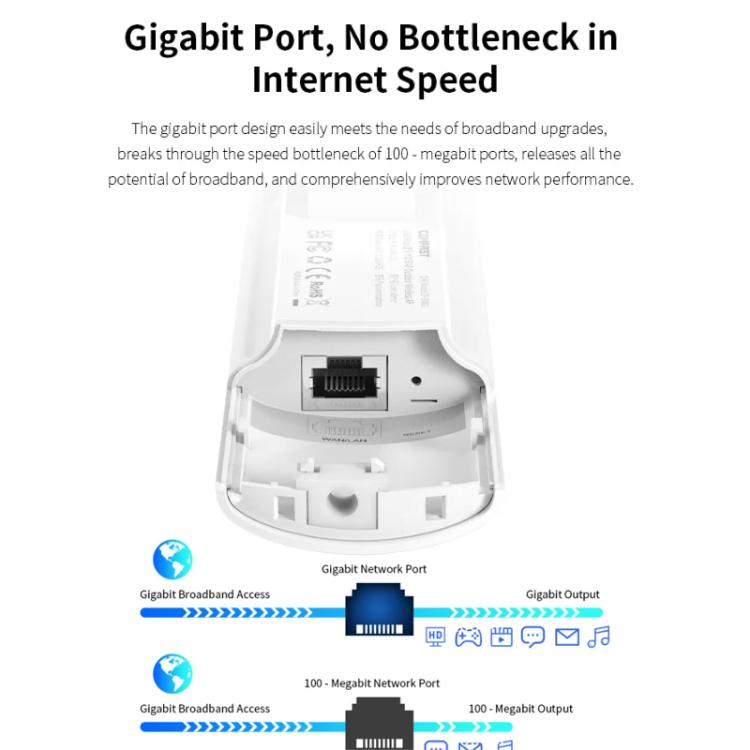

4. Physical Interfaces: 1 x 10/100/1000Mbps RJ45 WAN/LAN Ethernet port; 1 x RESET button
5. Power Supply: Gigabit PoE (48V/0.32A)
6. Power Consumption: Less than 15W
7. Protection Rating: IP66
8. MTBF: >250,000 hours

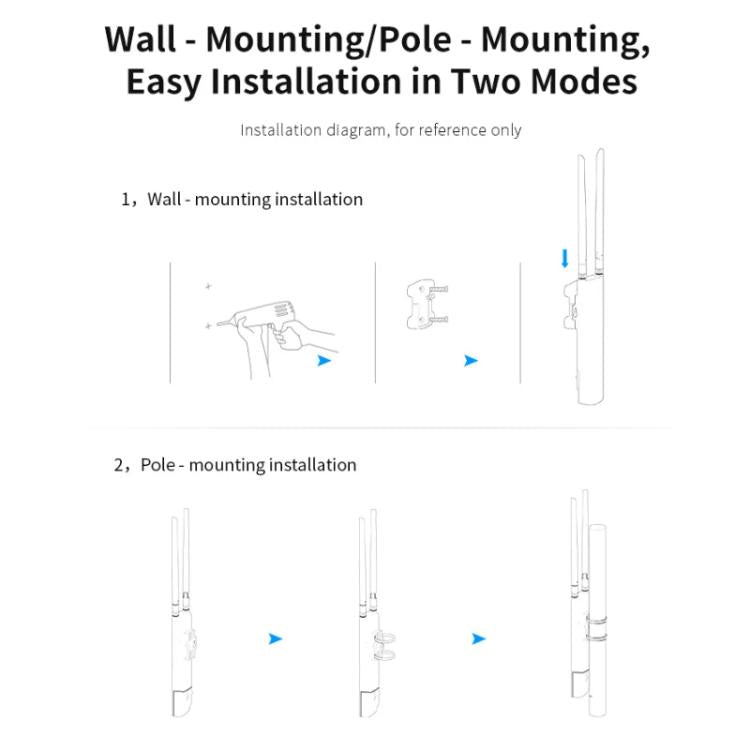

9. Installation Methods: Wall-mount, Pole-mount
10. Dimensions: 56.9 x 39.7 x 409.6mm (including antennas); Single antenna length: 200.3mm
RF Parameters:
1. Max. Transmit Power: 27dBm (500mW)
2. Min. Receive Sensitivity: -96dBm
3. Operating Frequency: 802.11b/g/n: 2.412GHz - 2.472GHz; 802.11ac/an/a: 5.180GHz - 5.825GHz
