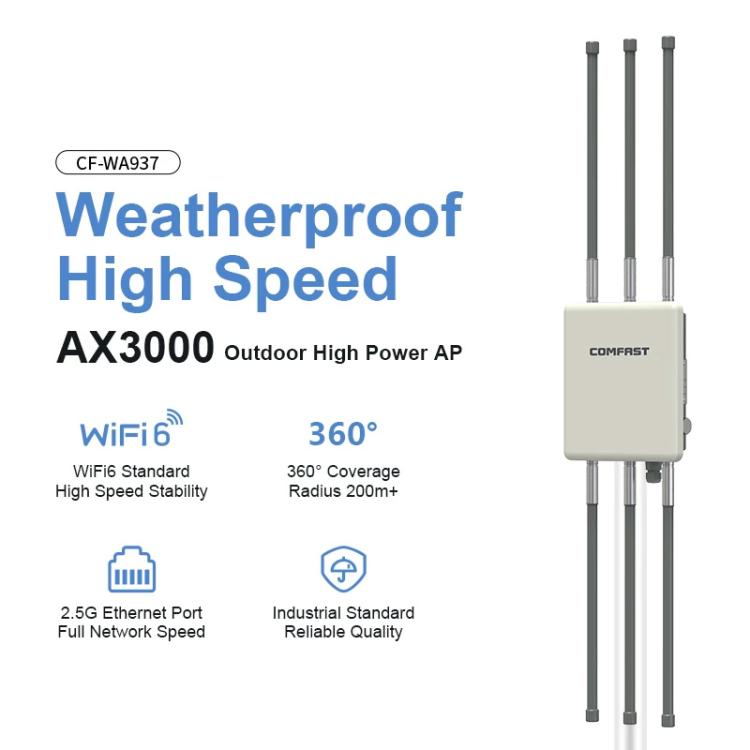

1. This is a high-performance outdoor WiFi 6 access point designed to deliver fast and reliable wireless connectivity for various large-scale environments. It combines advanced technologies with durable construction to meet demanding outdoor use.
2. The device supports the WiFi 6 standard with a total speed of up to 3000Mbps, operating on dual-band frequencies (2.4GHz and 5.8GHz) for efficient and stable data transmission.

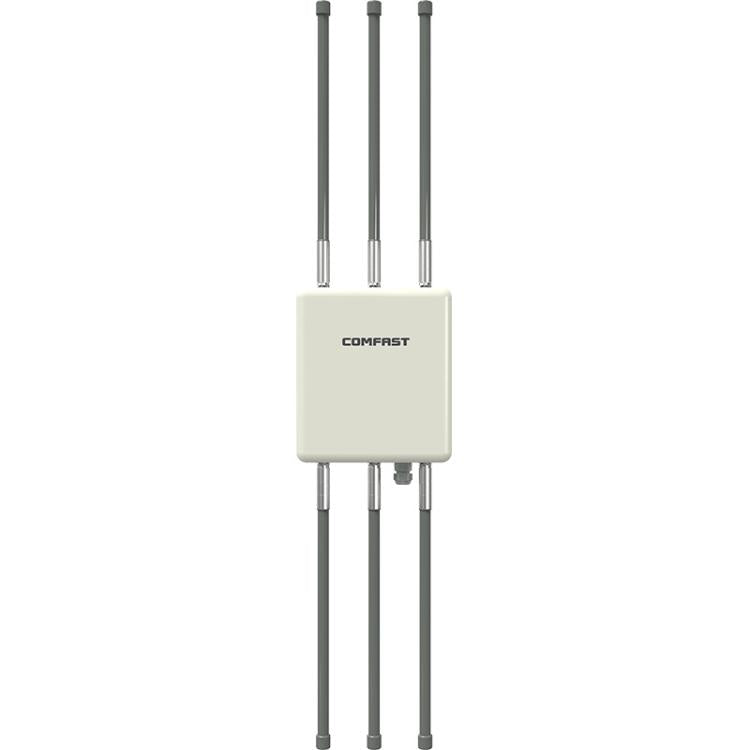

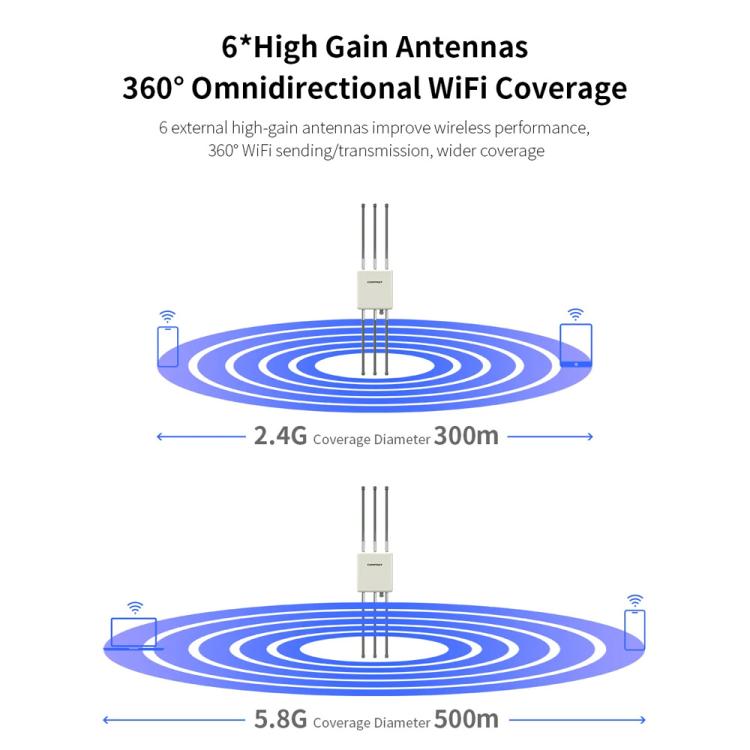

3. Featuring six external high-gain antennas, this AP provides 360° omnidirectional coverage with a range of up to 200 meters, making it suitable for open areas with minimal obstacles.

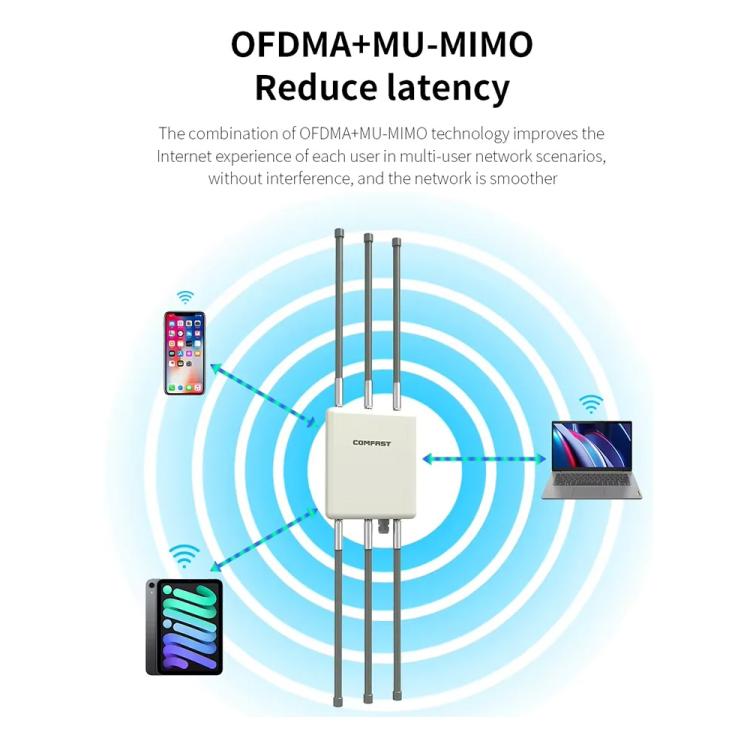

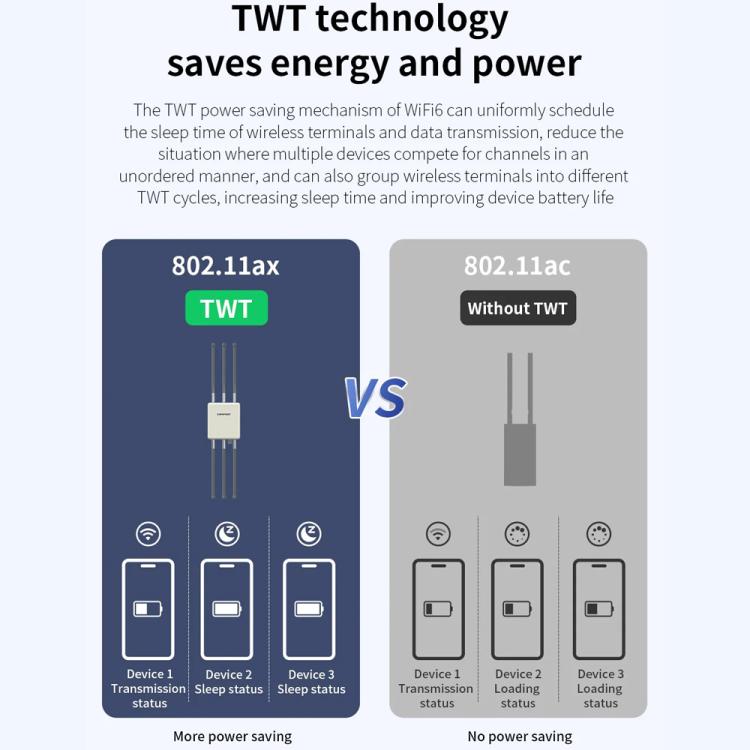

4. It utilizes OFDMA and MU-MIMO technologies to improve network efficiency in multi-user scenarios, reducing interference and enhancing the online experience for each connected device. Additionally, TWT technology helps save energy.

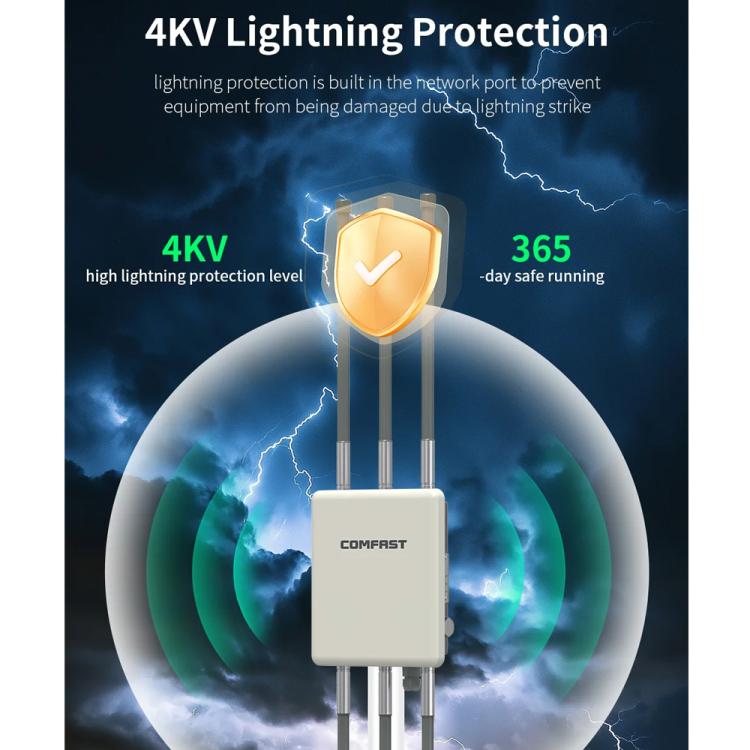

5. With an IP67 rating for waterproof and dustproof performance, along with 4KV lightning protection on the Ethernet port, this AP is built to resist harsh outdoor conditions and prevent damage from electrical surges.

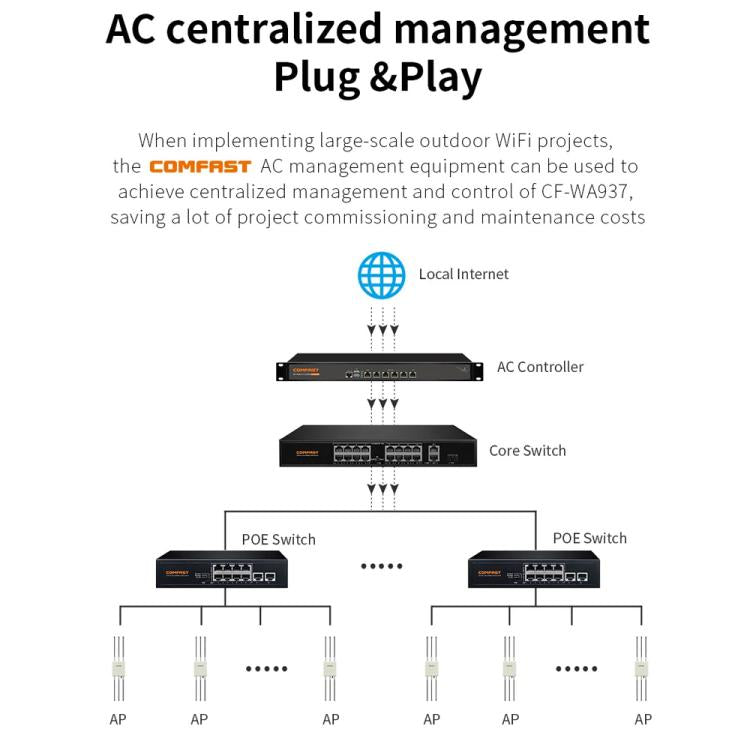

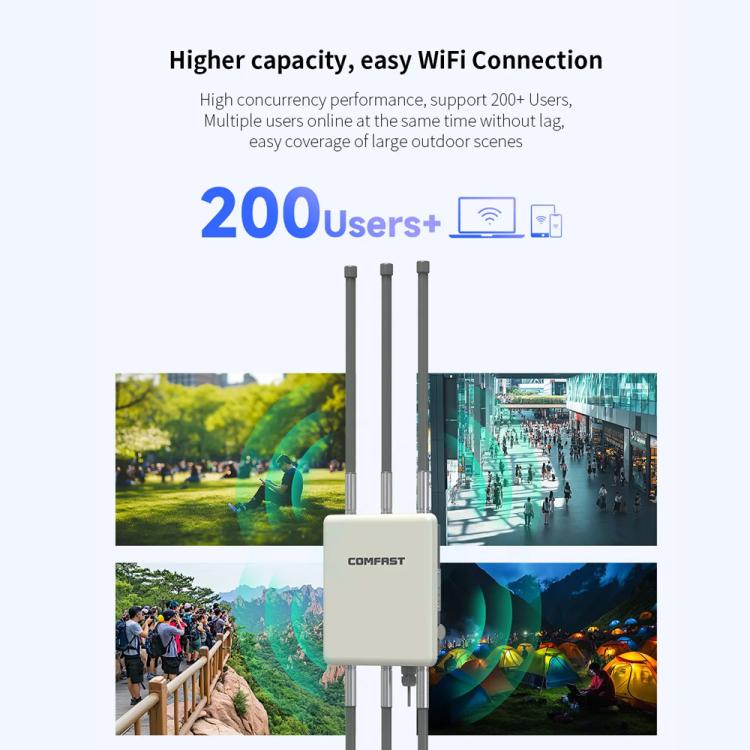

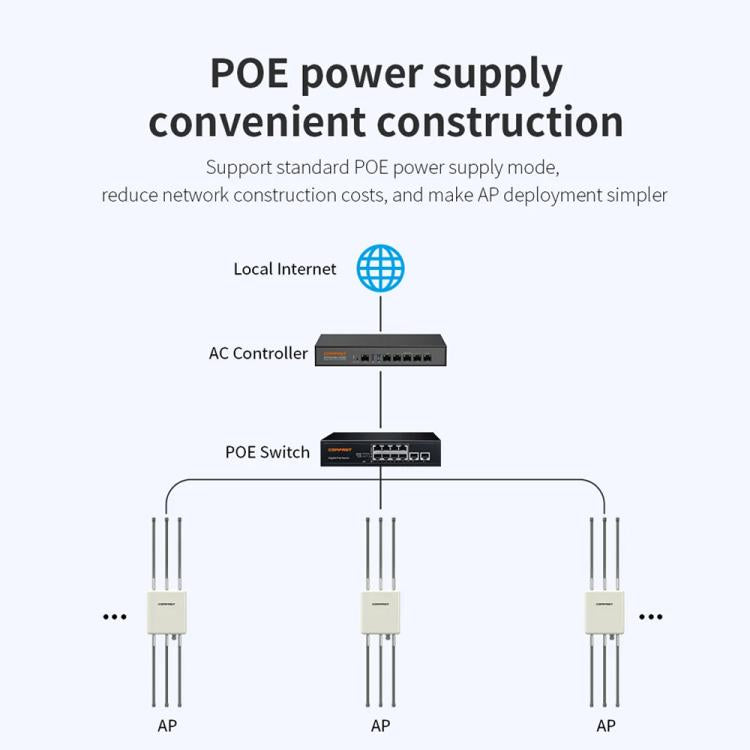

6. The AP supports standard PoE power supply and offers AC centralized management for plug-and-play setup, allowing for easy deployment in locations such as parks, schools, squares, and other high-density areas.
Parameters:
1. Hardware Specifications:
-- Chipset: MT7981A + MT7976DA + GPY211
-- Memory: DDR3 256MB; Flash: 128MB;

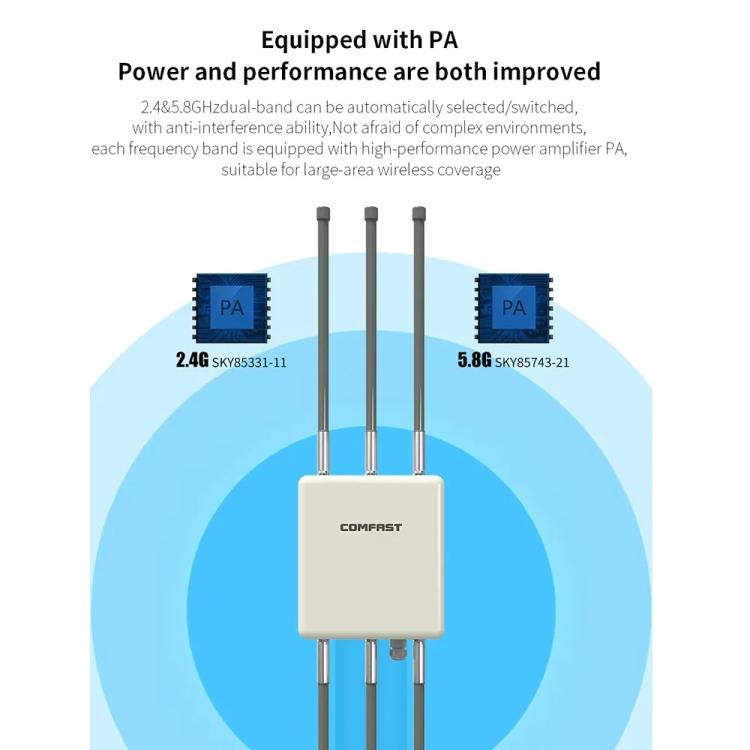

-- Power Amplifier (PA) Chips: 2.4G: SKY85331-11; 5.8G: SKY85743-21;
2. Antennas:
-- Standard: 3 x 8dBi 2.4G Omnidirectional Antennas (Antennas optional);
-- Standard: 3 x 8dBi 2.4G/5.8G Omnidirectional Dual-band Antennas (Antennas optional);
-- Standard Connector: N-Type Female;

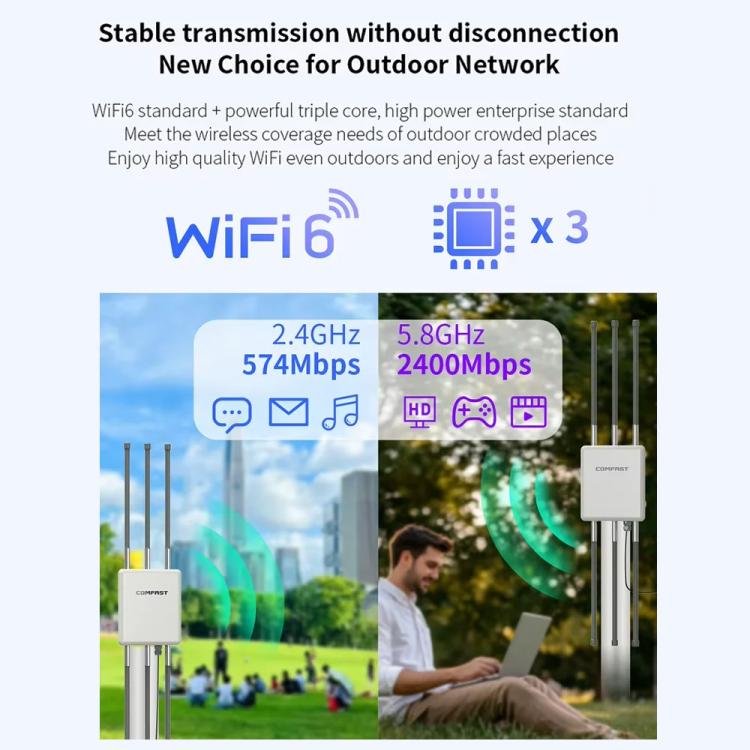

3. Wireless Speed: 2.4GHz: 574Mbps; 5.8GHz: 2400Mbps
4. RF Parameters:
-- Max Transmit Power: 500mW (27dBm)
-- Max Receive Sensitivity: -96dBm
-- Operating Frequency: 5.8GHz: 5.18-5.825GHz; 2.4GHz: 2.412GHz-2.472GHz

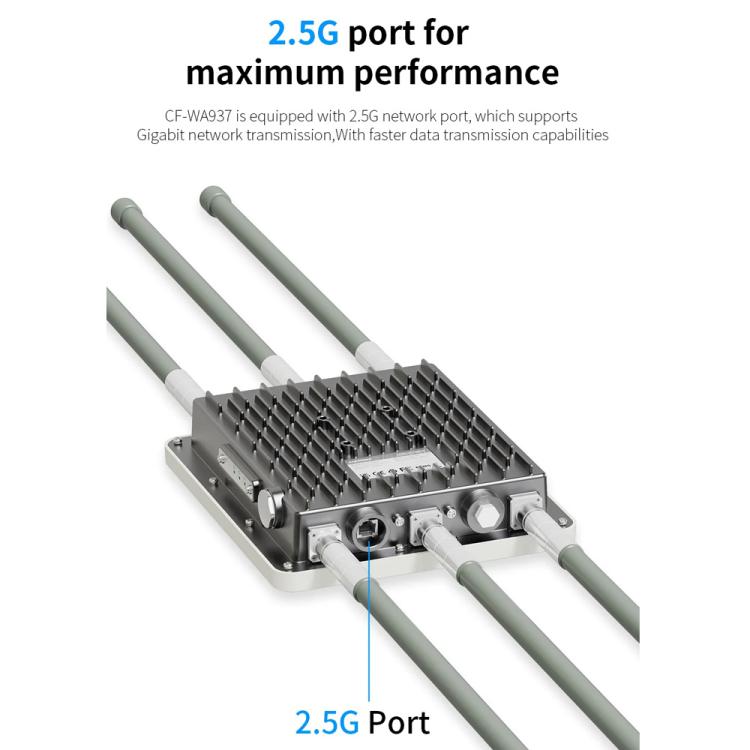

5. Physical Interfaces: 1 x 10/100/1000/2500Mbps WAN RJ45 Ethernet Port, Supports PoE Power Supply, Waterproof Connector;
6. Power Supply:
-- Power Method: PoE, Supports 802.3af/802.3at Standards (Up to 100m)

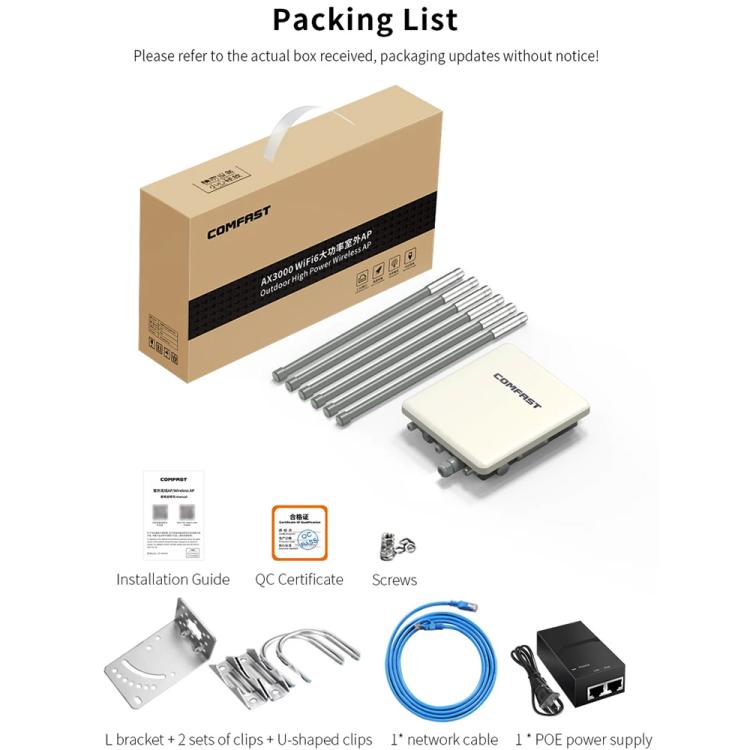

-- Power Adapter: 48V 0.5A PoE Power Adapter (Included)
7. Power Consumption: Less than 24W
8. Protection Rating: 4KV Lightning Surge Protection (External arrester connectable) IP67 Rating
9. MTBF: Greater than 250,000 Hours
10. Installation Method: Pole-mount Installation
11. Housing: Die-cast Aluminum Casing
12. Dimensions: 275 x 245 x 68mm; Antenna Length: 660mm
13. Weight: 2.23Kg (Without Antennas)
14. LED Indicators: POWER, WAN, WiFi
15. Operating Environment:
-- Operating Temperature: -10 to 55 degrees Celsius
-- Storage Temperature: -40 to 70 degrees Celsius
-- Operating Humidity: 10% to 90% RH Non-Condensing
-- Storage Humidity: 5% to 90% RH Non-Condensing
