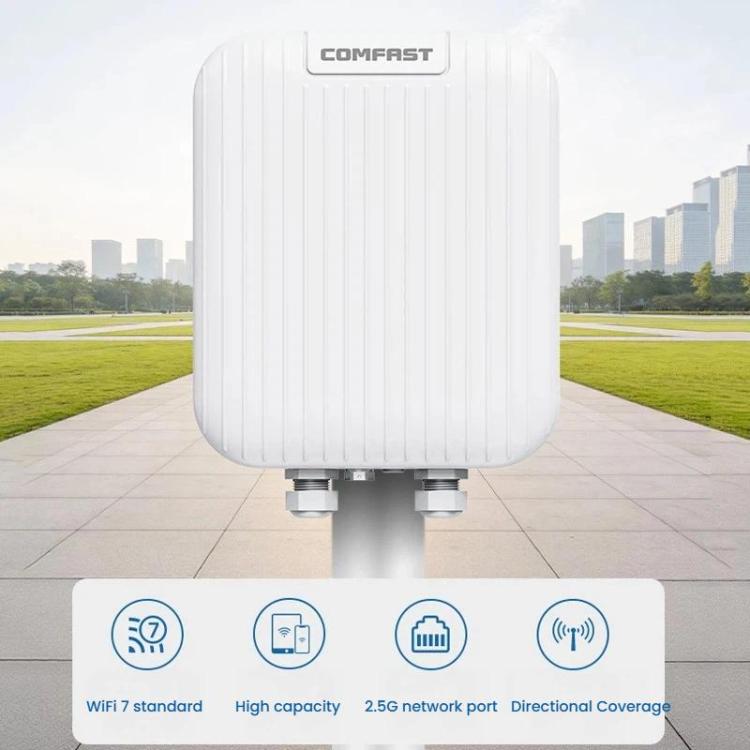

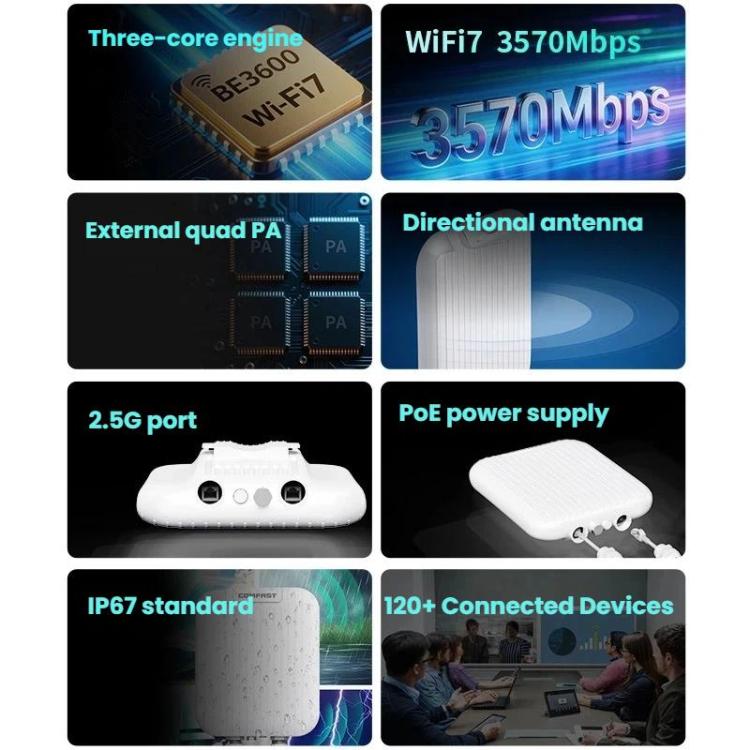

1. The CF-WA971 employs next-generation Wi-Fi 7 technology to achieve progressive improvements in wireless transmission performance. Designed for diverse complex outdoor scenarios, it establishes stable and smooth network environments, transforming every outdoor connection into a premium experience with cutting-edge technology.

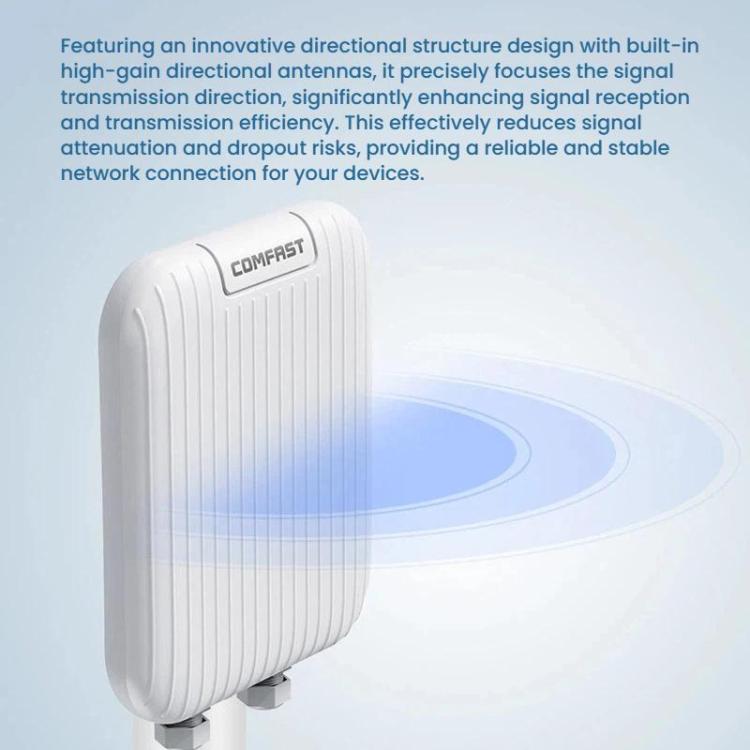

2. Featuring an innovative directional structural design, it integrates built-in high-gain directional antennas that precisely focus signal transmission. This significantly enhances signal reception/transmission efficiency, reduces signal attenuation and disconnection risks, and delivers persistent, reliable network assurance.

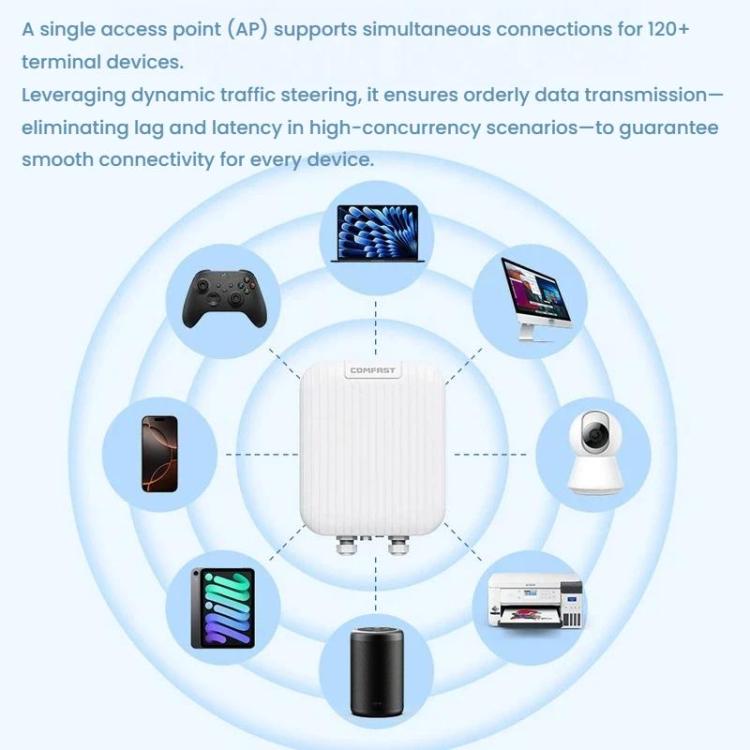

3. Dual-band concurrent operation (2.4GHz and 5.8GHz) offers wireless speeds up to 3570Mbps. Equipped with intelligent band-scheduling technology, it provides blazing-fast connectivity for all terminals, efficiently supporting high-density scenarios like campuses, tourist attractions, and commercial districts.
4. High-performance tri-chip collaboration delivers robust computational power for high-speed networks. Built to rigorous standards for reliable performance, it ensures stable operation in diverse outdoor environments.

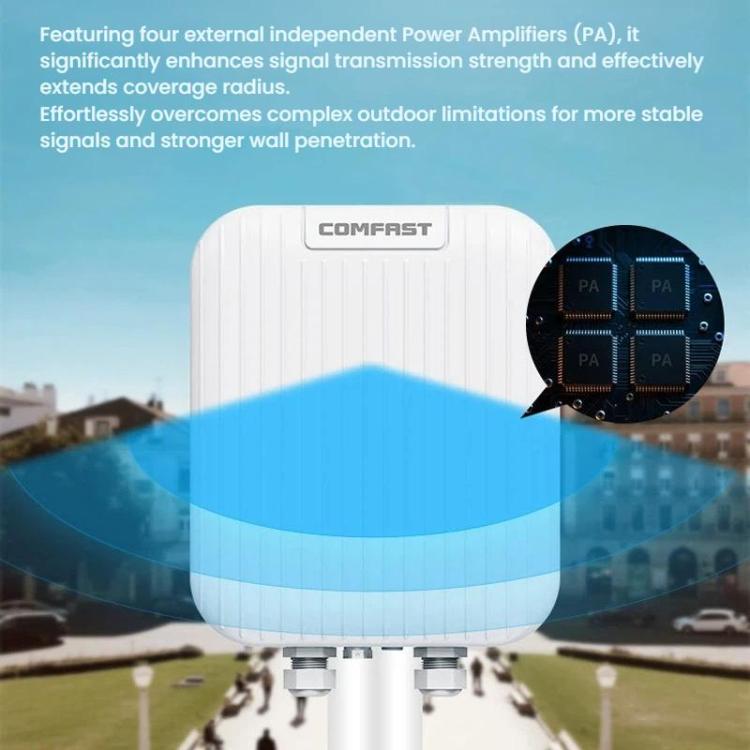

5. Four external independent Power Amplifiers (PA) substantially boost signal transmission strength, extend coverage radius, overcome complex outdoor limitations effortlessly, and enhance wall-penetration capability for more stable signals.

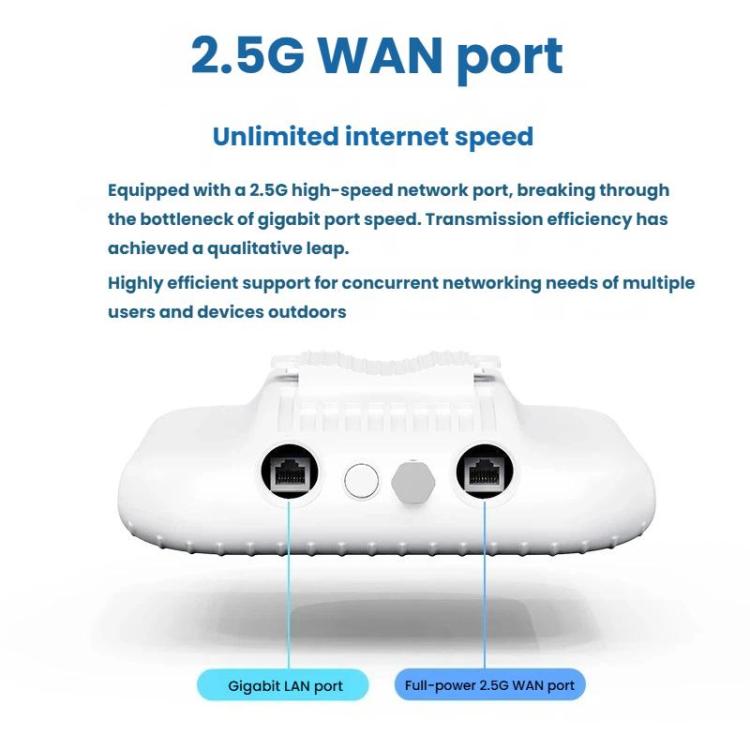

6. Features a Gigabit LAN port and a 2.5G WAN port for unrestricted network speeds.

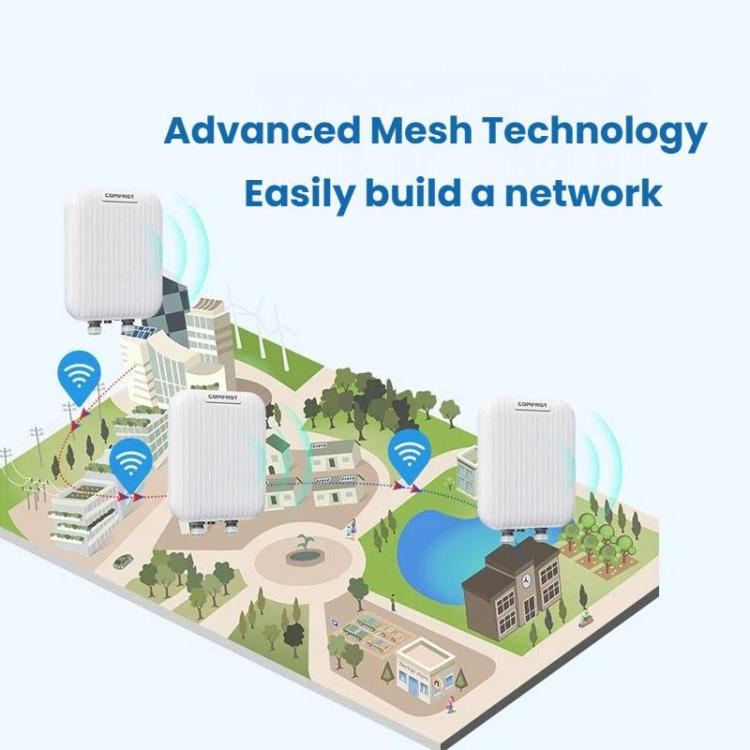

7. Advanced Mesh networking technology enables simple, efficient deployment without complex configurations. Multiple devices automatically recognize and form networks to rapidly create a unified, seamless coverage.
8. IP67 rating provides all-weather, all-scenario robust protection for outdoor use.
Specifications:
1. Hardware: IPQ5312 + QCN6412 + QCA8337 chipset solution; Memory: 512MB; Flash: 128MB
2. Antenna: 2.4G: 11dBi, 5G: 14dBi directional antennas
3. Wireless Speed: 2.4GHz: 688Mbps; 5.8GHz: 2882Mbps
4. RF Parameters: Max. Transmit Power: 25dBm (400mW); Min. Receive Sensitivity: -98dBm; Frequency: 2.412GHz–2.484GHz, 5.180GHz–5.825GHz
5. Interfaces: 1 × 10/100/1000/2500Mbps RJ45 WAN port; 1 × 10/100/1000Mbps RJ45 LAN port; 1 × RESET button

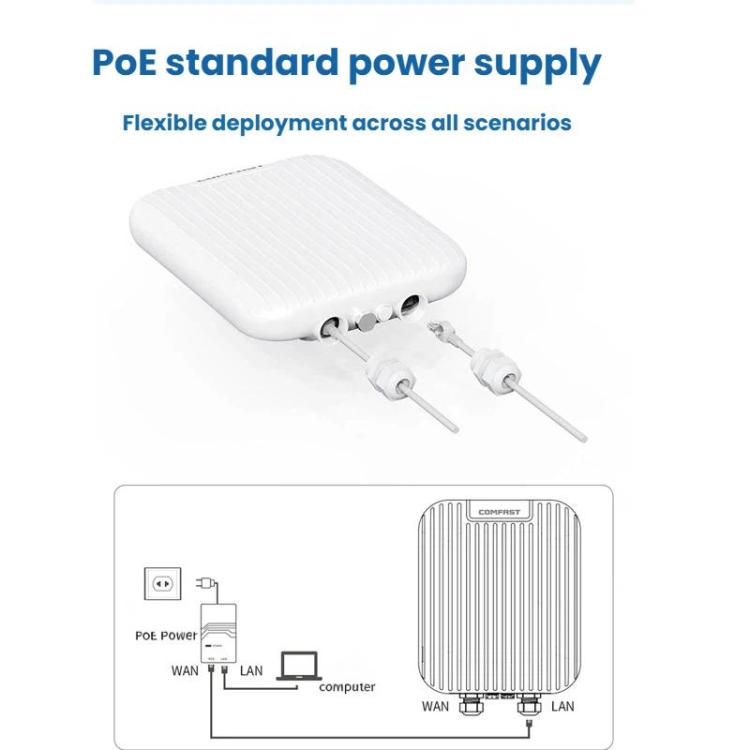

6. Power: PoE (48V/0.5A)
7. Power Consumption: less than 24W
8. Protection Rating: IP67
9. MTBF: Greater than 250,000 hours

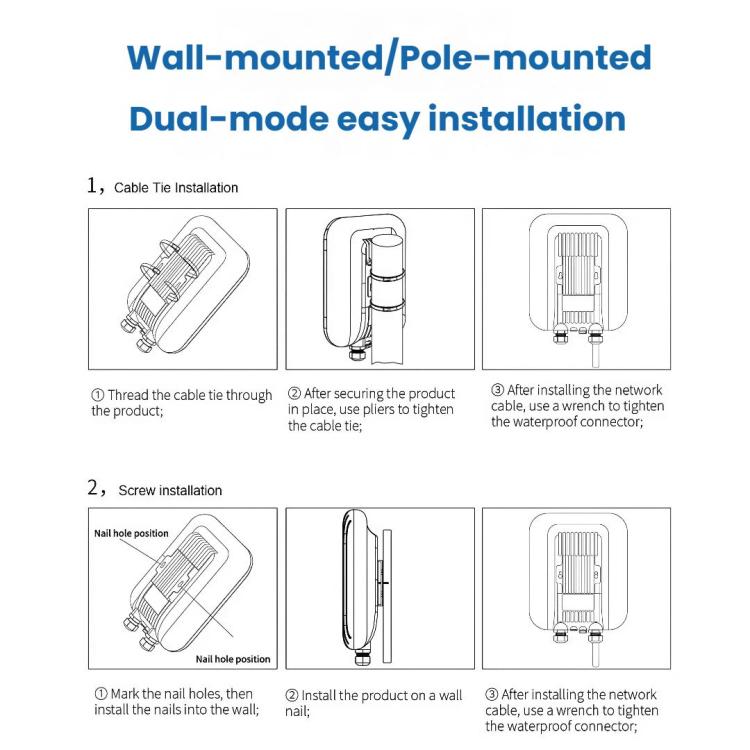

10. Installation: Wall-mount, pole-mount
