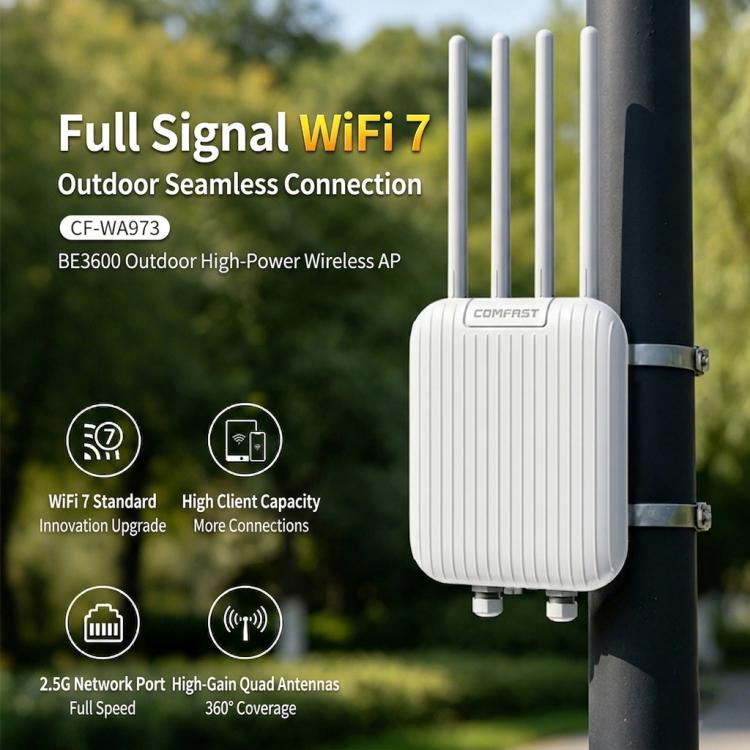

1. WiFi 7 Technology (BE3600 Speed): Experience ultra-fast speeds up to 3570Mbps (2.4GHz 688Mbps + 5.8GHz 2882Mbps). WiFi 7 protocol optimizes signal efficiency, perfect for high-density outdoor environments such as parks, scenic spots, and commercial streets.

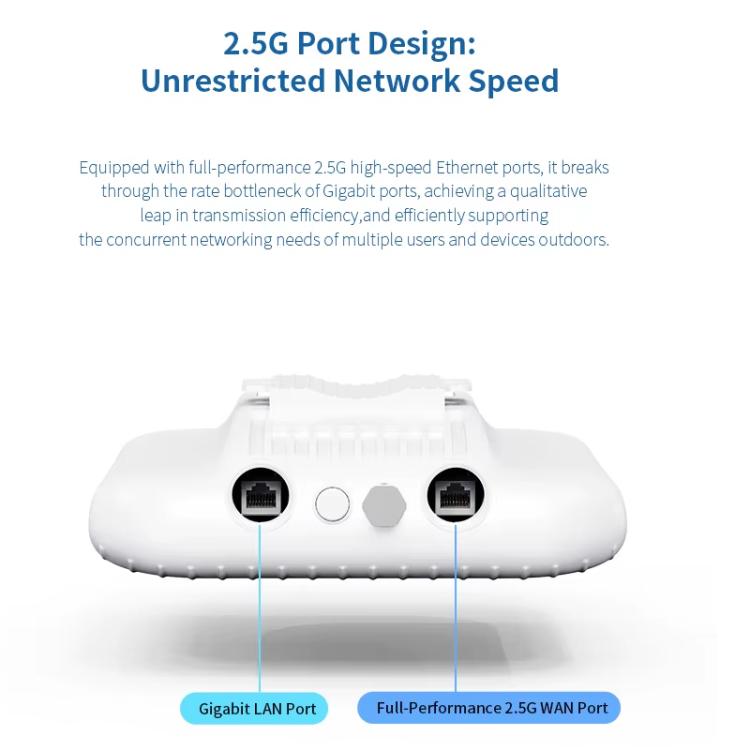

2. Equipped with a high-performance 2.5G network port, this AP breaks the traditional Gigabit bottleneck, fully releasing your broadband potential for high-concurrency and multi-device networking scenarios.
3. IP67 Weatherproof & Durable Build: Designed for the toughest environments, the IP67-rated casing is dustproof and waterproof. It operates reliably in temperatures ranging from -10-55 degrees Celsius, ensuring stable connectivity in rain, snow, or heat.

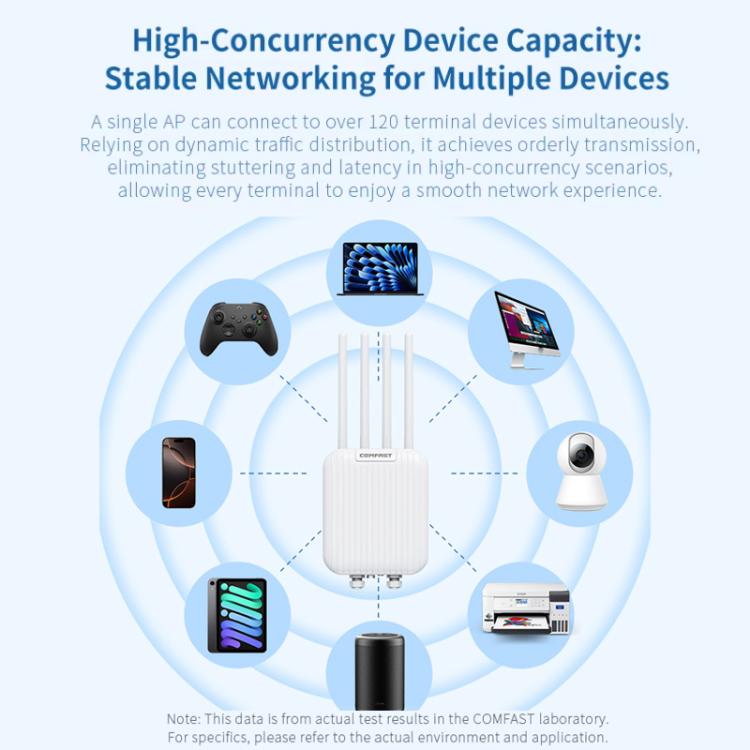

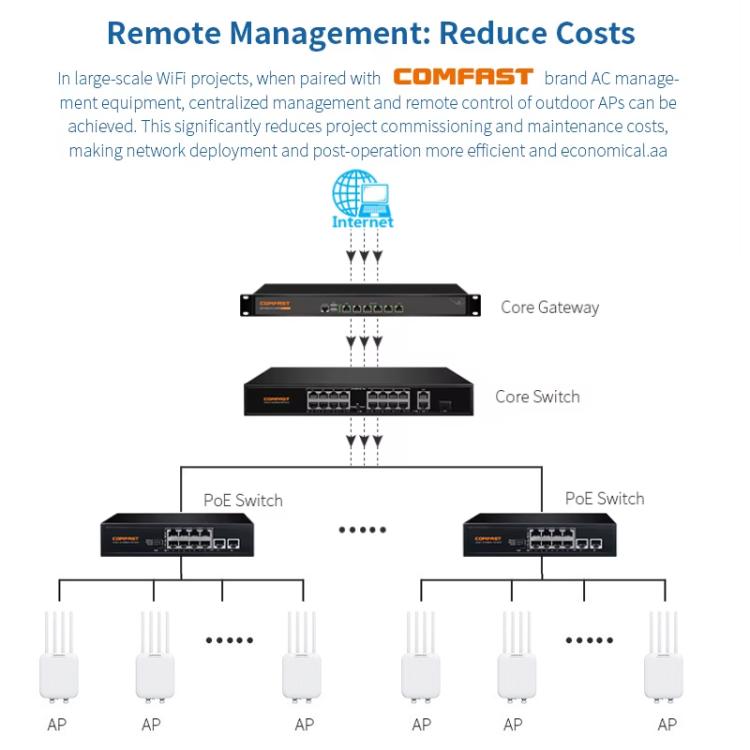

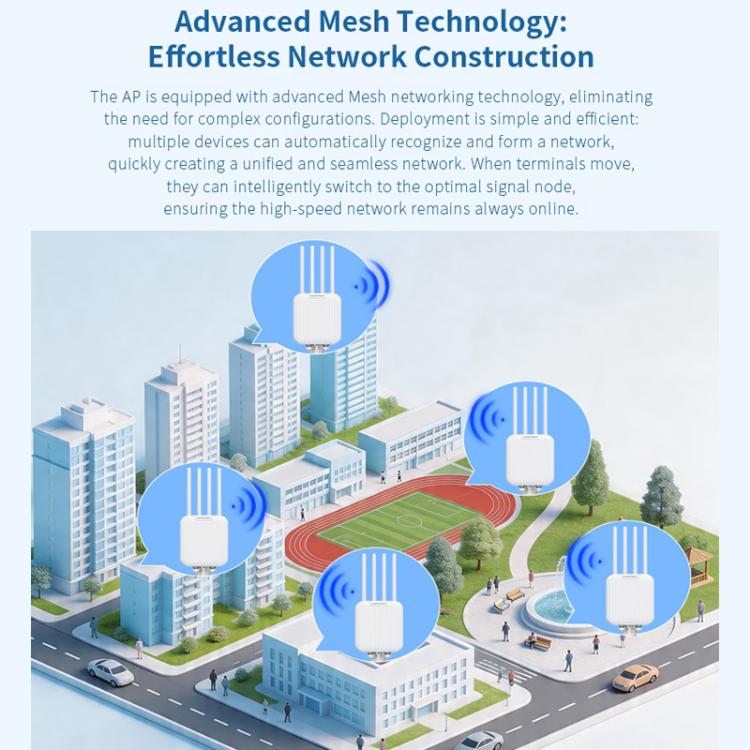

4. Intelligent Mesh Networking & 120+ Capacity: Supports advanced Mesh technology for seamless roaming and easy expansion. Multiple APs automatically sync to form a unified network. With a large 512MB RAM, it supports over 120 concurrent users with zero lag.

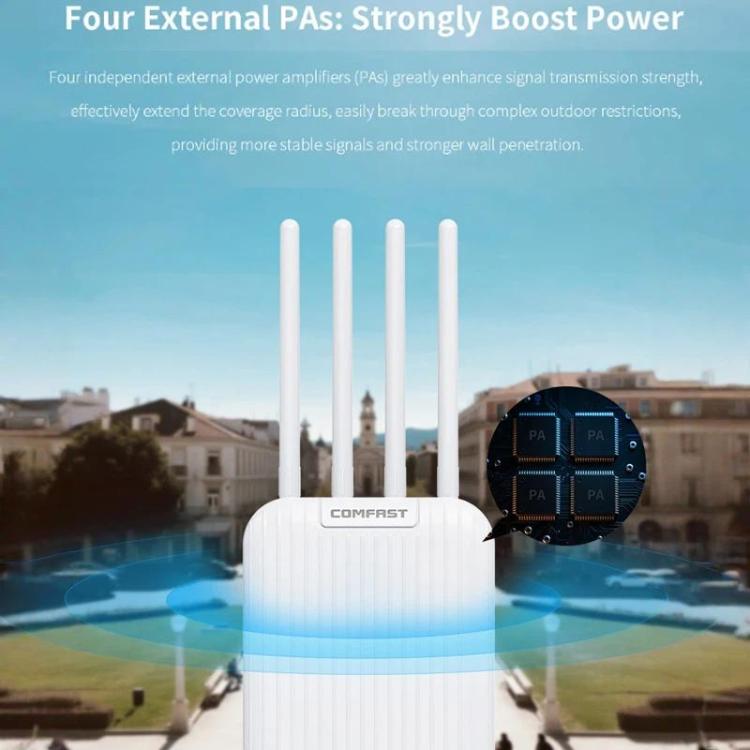

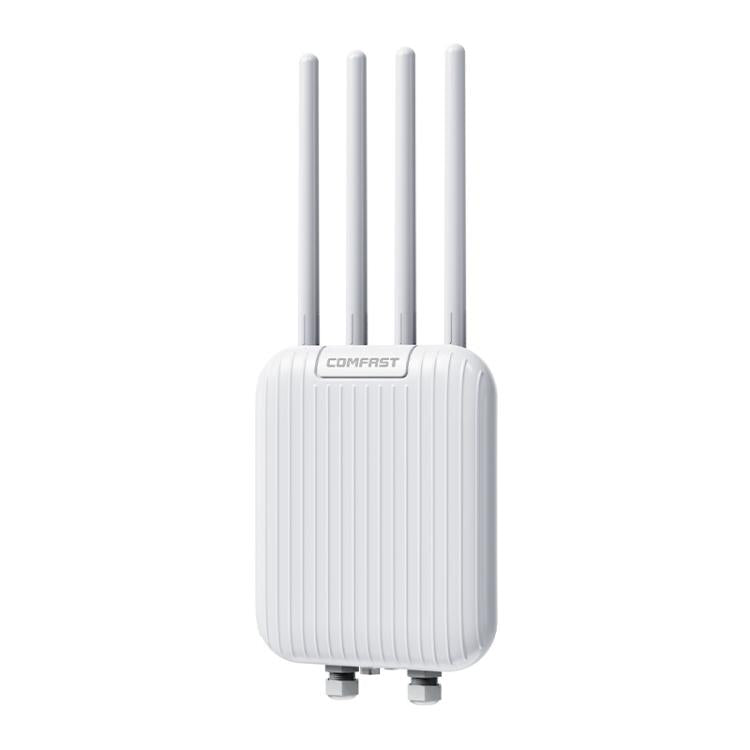

5. High Power & 360-degree Coverage: Features 4 external 6dBi omnidirectional high-gain antennas and 4 independent Power Amplifiers (PAs). This high-power design ensures 360-degree wide-area coverage and strong wall-penetrating signals.
Hardware Specifications:
Chipset Solution: IPQ5312 + QCN6412 + QCA8081 + QCA8337
PA (Power Amplifier): 2.4G: SKY85372-11; 5.8G: SKY85514-11
Memory: 512MB; Flash: 128MB
Antenna Specifications: 4 x 6dBi Omni-directional Antennas
Wireless Data Rate: 2.4GHz: 688Mbps; 5.8GHz: 2882Mbps
RF Parameters:
Maximum Transmit Power: 25dBm (400mW)
Minimum Receive Sensitivity: -98dBm
Operating Frequency: 2.412GHz–2.484GHz; 5.180GHz–5.825GHz
Physical Interfaces:
1 x 10/100/1000/2500Mbps RJ45 WAN Ethernet Port
1 x 10/100/1000Mbps RJ45 LAN Ethernet Port
1 x RESET Button

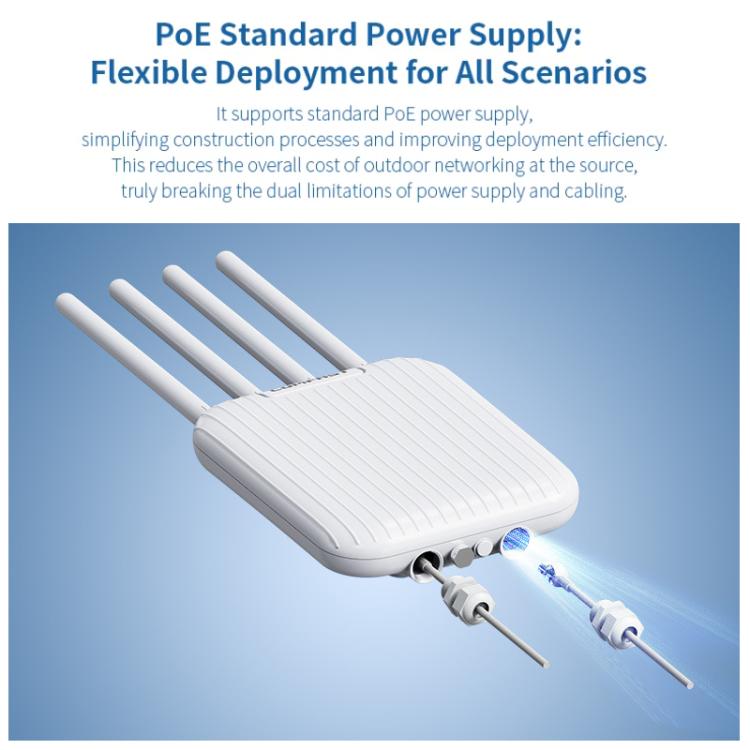

Power Supply: PoE (48V/0.5A)
Power Consumption: Less than 24W
Protection Rating: IP67
MTBF: Greater than 250,000 Hours

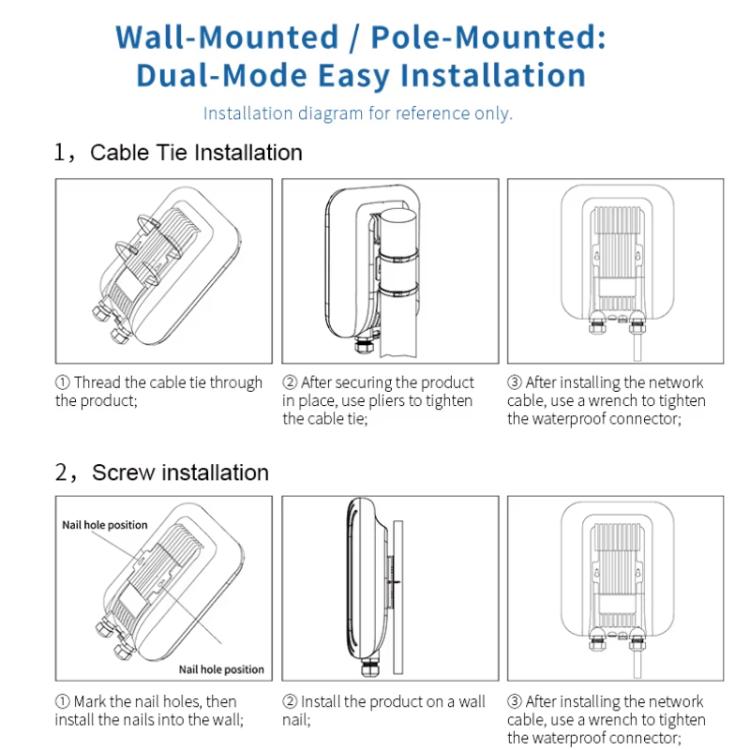

Mounting Method: Wall Mount, Pole Mount
