Feature
1. It is a 1200Mbps dual-band WiFi signal amplifier with two high-gain antennas for signal enhancement.

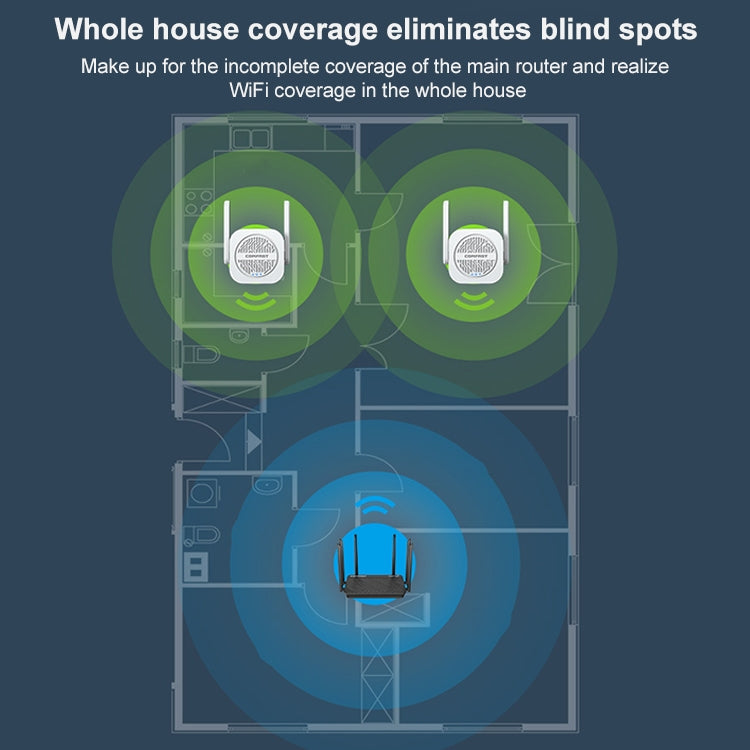

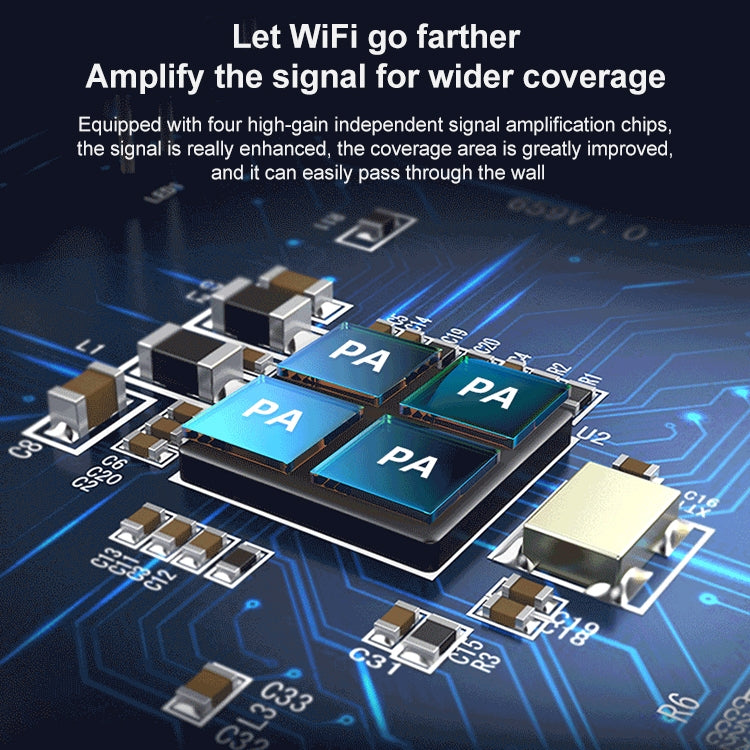

2. Built-in 4xpower amplifier chips, with the use of routers to eliminate home WiFi signal blind spots, to solve the problem of large multi-bedroom area, the house is too large routing coverage, effectively expand the WiFi coverage, achieve real WiFi coverage of the whole house.
3. No need to connect a power adapter, it can be used with a socket, and has a powerful memory function. After the setting is completed, the shell can be plugged and used.

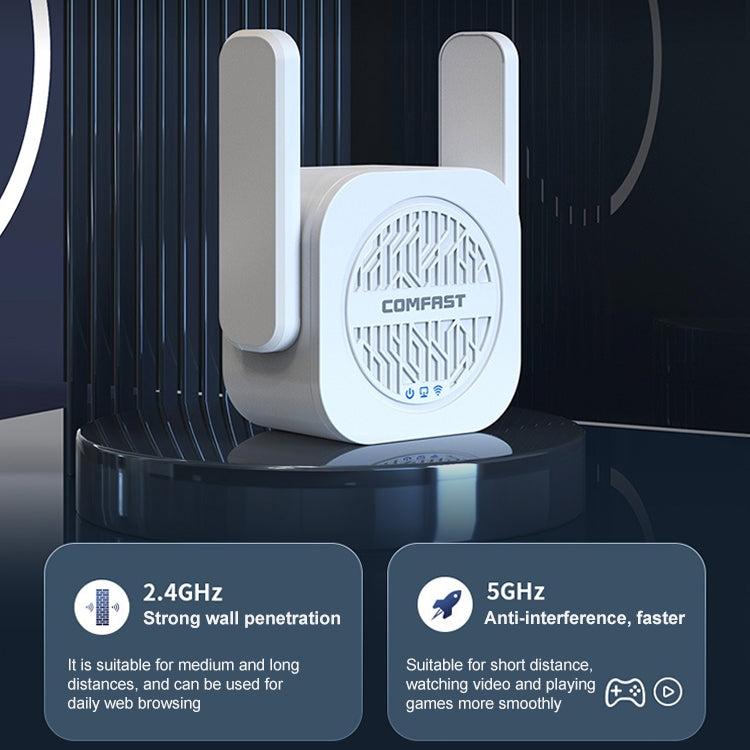

4. Adopt 802.11AC dual-frequency in time, and send out two independent frequency bands at the same time, and the signals do not interfere with each other.

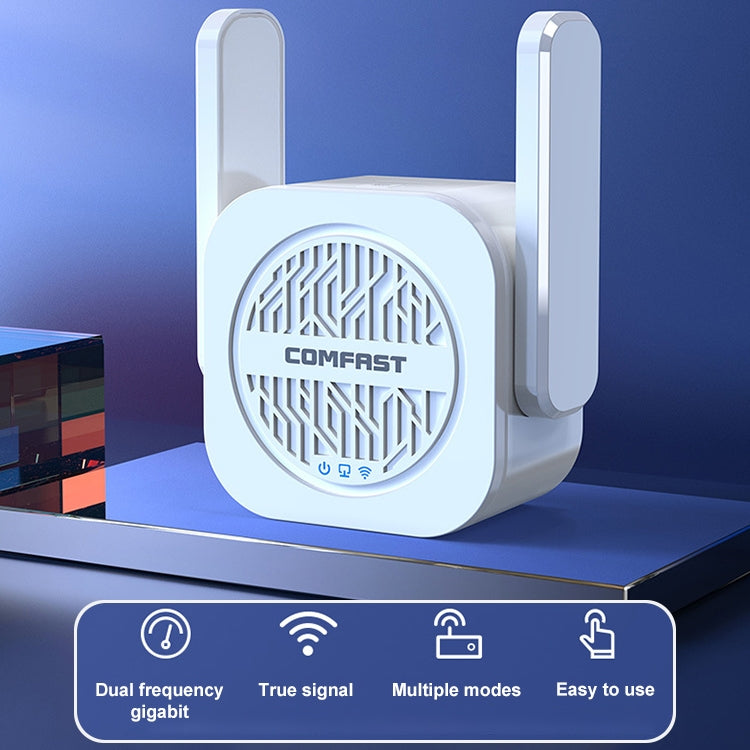

5. Multiple modes, flexible settings:

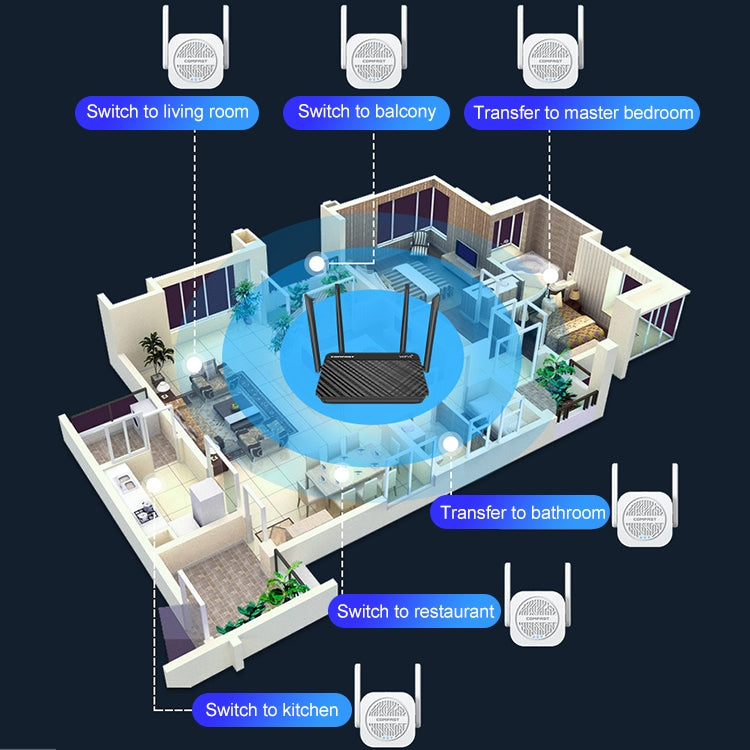

- Repeater mode (wireless to wireless): expand the WiFi signal of the main router, and clear the dead spots of WiFi.
- AP/routing mode (wired to wireless): Connect the network cable to the amplifier to transmit WiFi signals.
- Do not worry about not having a network cable (wireless to wired): It has a built-in network port, which can receive wireless to wired, for desktop computers/laptops to connect to the Internet.
Specifications
1. RF parameters:
- Transmitting power: 400mW max
- Receive sensitivity: -98dBm max
2. Wireless standard: IEEE802.11a/b/g/n/ac
3. Transmission rate: 2.4GHz: 300Mbps, 5.8GHz: 867Mbps
4. Chip: MT7628DA+MT7613B
5. Memory: 64M, flash memory: 8M
6. Button: 1 RESET button
7. Indicator light: power light, network port light, signal light

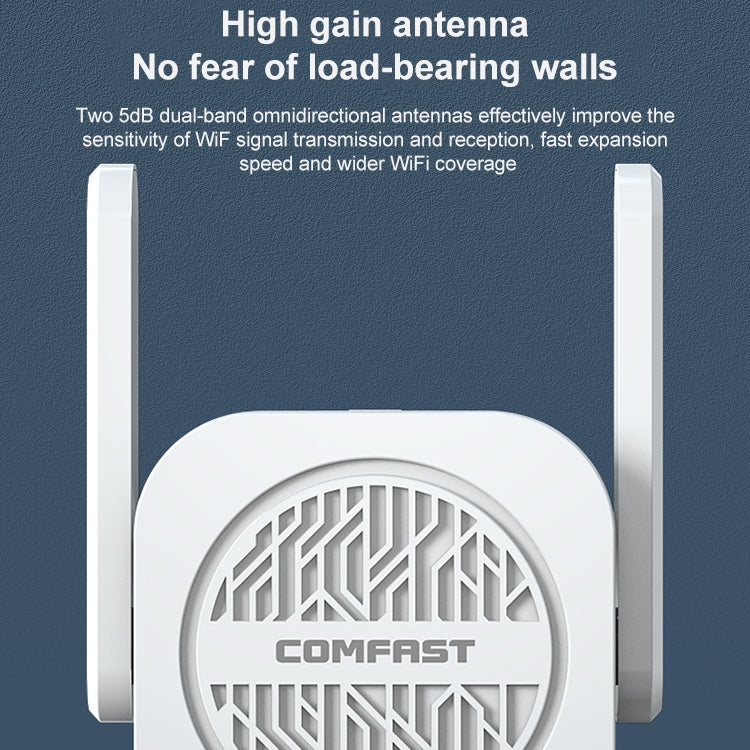

8. Antenna gain: 2x5dBi dual-band antenna
9. Power parameters: 100-240V AC
10. Power consumption: 16W max
11. Physical interface: 1x10/100Mbps, RJ45 WAN/LAN Ethernet port
12. Working mode: AP/relay/routing mode
13. Use environment:
- Working temperature: -10~55 degrees Celsius
- Storage temperature: -40~70 degrees Celsius
- Working humidity: 10~90%RH non-condensing
- Storage humidity: 5~90%RH non-condensing
14. Size: 129x85x50mm
