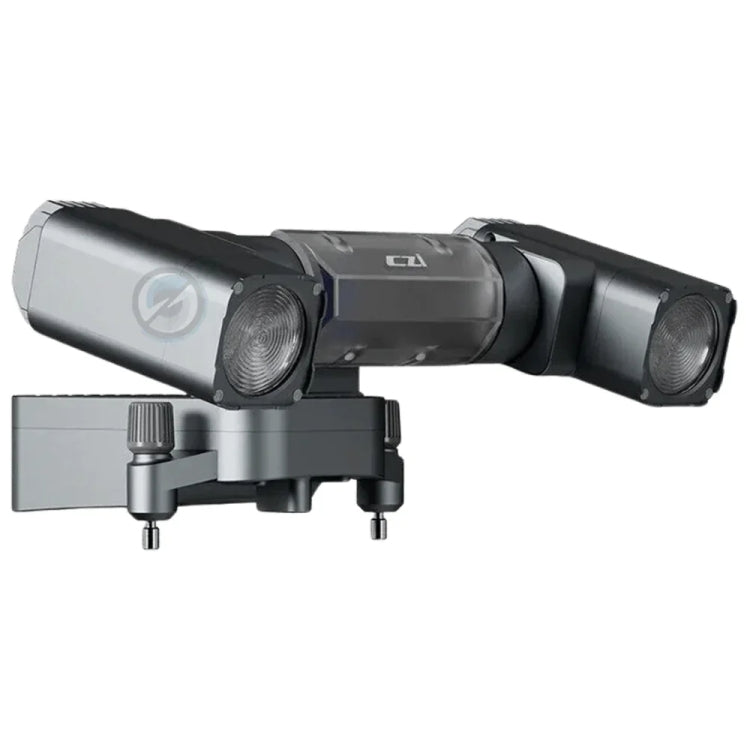

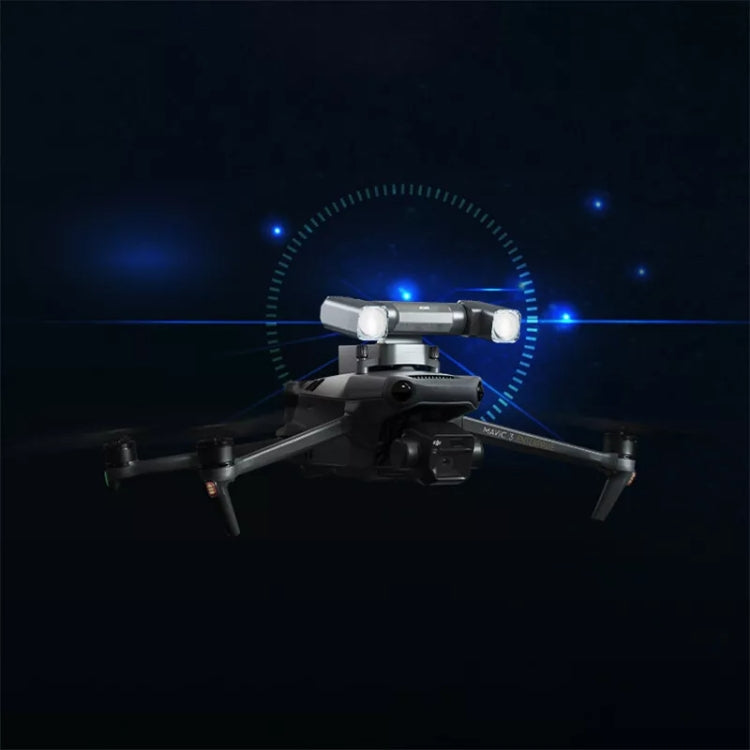

1. GL10 is equipped with dual spotlights, suitable for DJI Mavic 3E / 3T drones, with integrated red/blue warning LEDs for public safety operations.

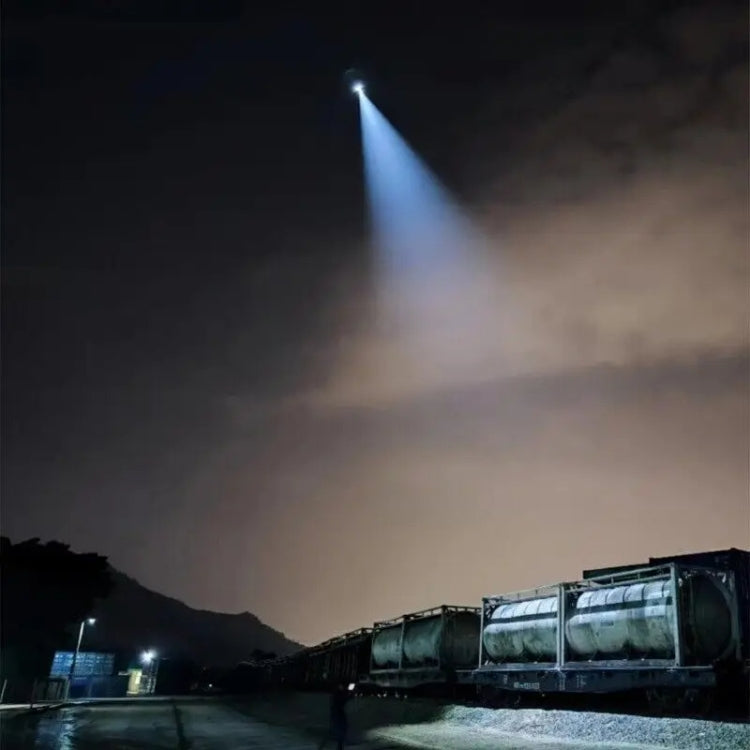

2. Rated power is 30W, it can emit a sharp beam at a 12.5-degree angle, with an effective search distance of 100 meters, uniform brightness, high color consistency, and effectively meet the needs of small drones for night patrols, direction indication, search and rescue and other application scenarios.
3. GL10 is equipped with dual-axis gimbal stabilization technology, which can achieve precise rotation and pitch movement, further enhancing the stabilization and anti-shake strength; by integrating AI algorithm intelligent technology, the light spot can be automatically centered, and the light column changes with the angle.

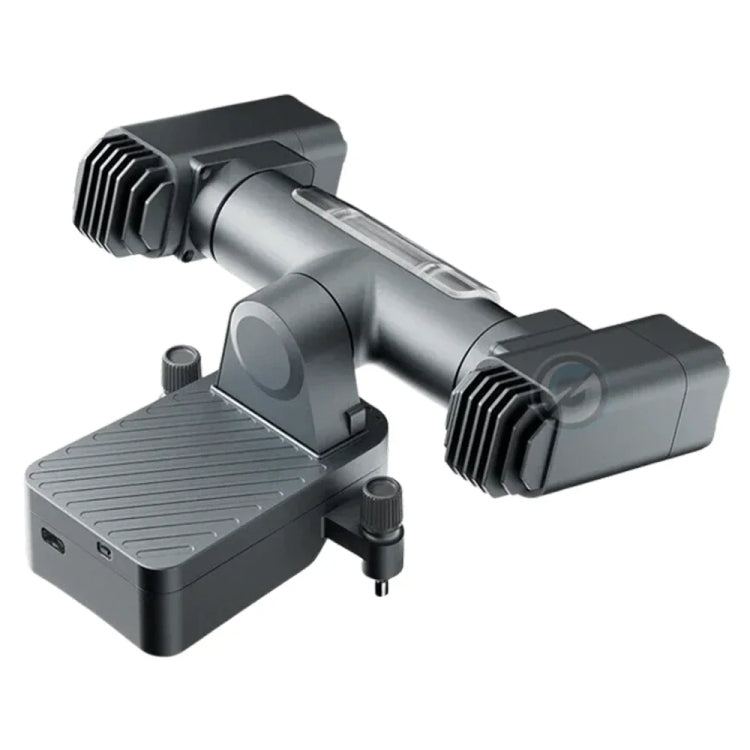

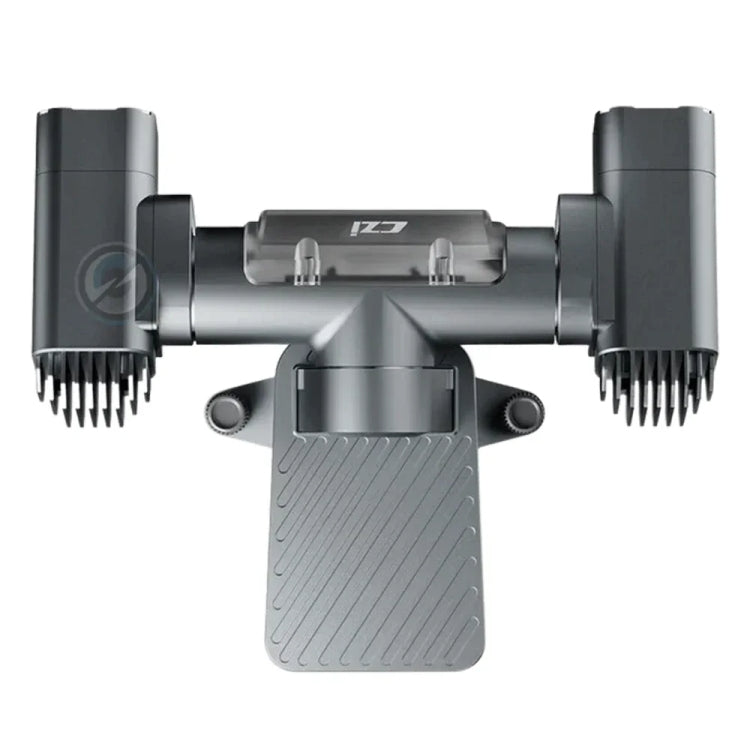

4. Lightweight and integrated, unique quick-release design
Specifications:
1. Electrical interface: for DJI PSDK
2. Weight: 130g +/- 4%
3. Dimensions: 107×128×51.5mm
4. Total power: 30W
5. White LED power: 20W
6. Red and blue LED power: 2W
7. Supply voltage: 15V
8. Luminous flux: 1830lm +/-3%
9. FOV: 12.5 degrees
10. Search distance:
--- 100m: spot diameter 22.8m, search area 407 square meters, center illumination 5.8Lux
-- 75m: spot diameter 17.1m, search area 229 square meters, center illumination 13.3Lux
-- 50m: spot diameter 11.4m, search area 102 square meters, center illumination 22.8Lux
11. Basic functions: white light night fill light, red and blue flash, dual-axis gimbal stabilization, gimbal AI algorithm light class automatic centering
12. Gimbal controllable rotation range: pitch -90 degrees to +70 degrees
13. Working temperature: -20 degrees Celsius to 50 degrees Celsius
