Features:

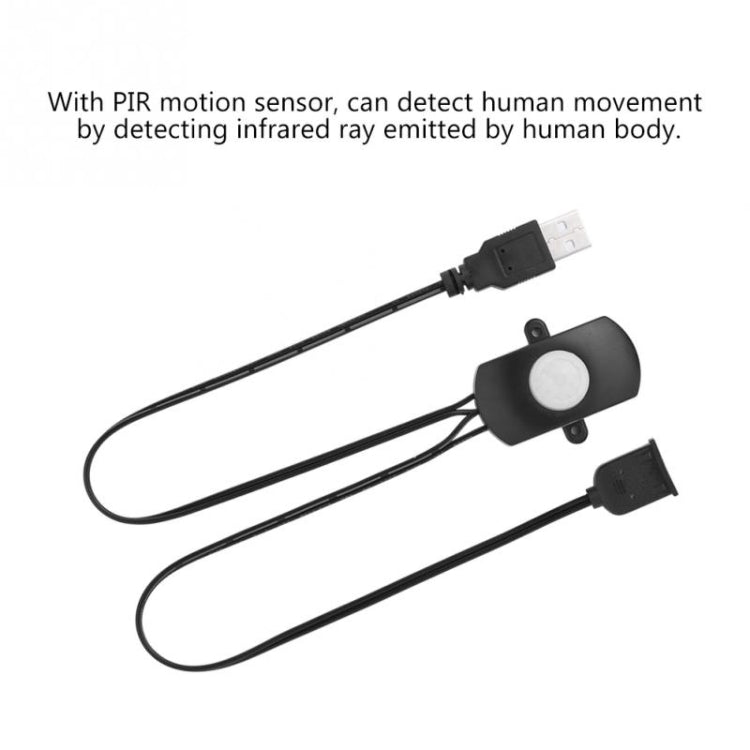

1.With PIR motion sensor, it can detect human movement by detecting infrared ray emitted by human body.

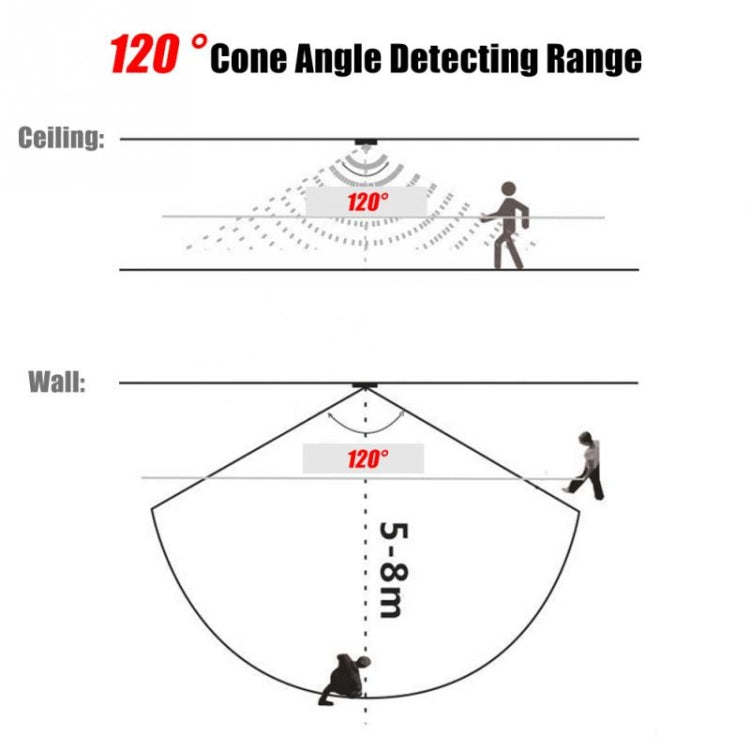

2.120 degrees cone angle detecting range. High and stable sensitivity, effectively save energy and improve efficiency.
3.Intelligent sensing, it will automatically delay to shut down after the person leaves.

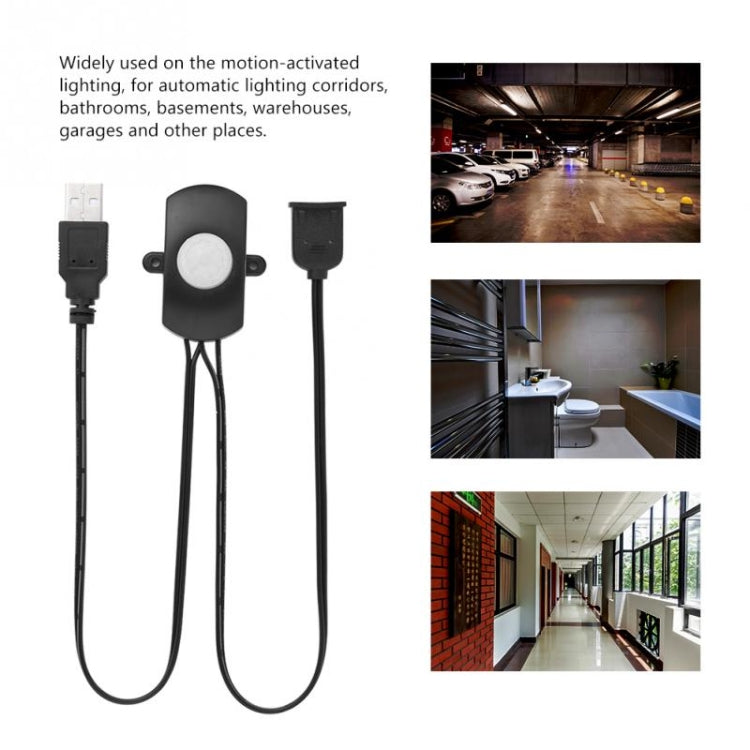

4.Widely used on the motion-activated lighting, for automatic lighting corridors, bathrooms, basements, warehouses,garages and other places.

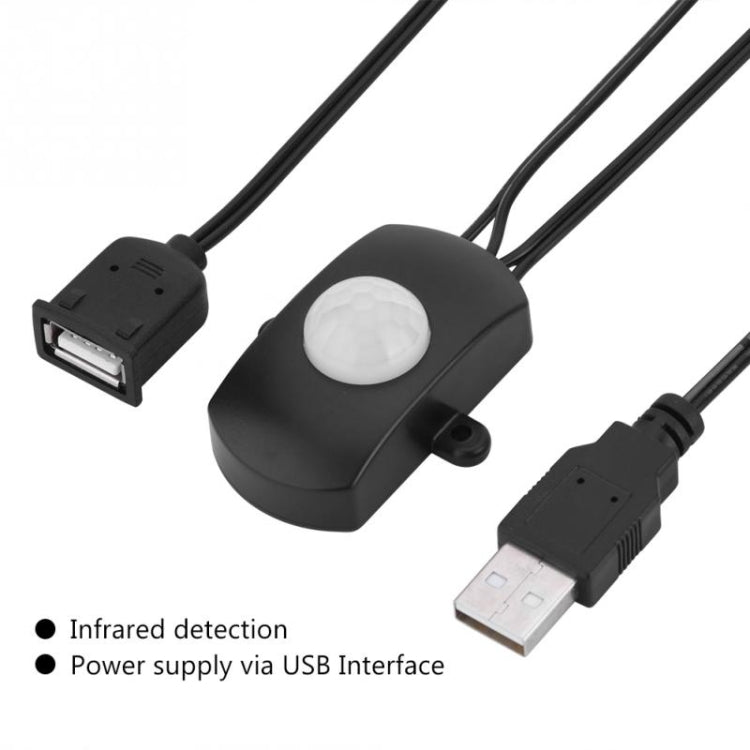

5.USB port make it convenient and simple to standby. Power supply via mobile phone, charging bank or other devices with USB port, Output voltage is equal to input voltage, low power consumption.
6.Built-in temperature compensation chip, reducing the impact sensing distance by the temperature.
Specifications:
1.Operating voltage: 5V-24 DC
2.Output current: 5A
3.Working temperature: -15~38 Celsius
4.Function: Infrared human body sensor switch
5.Quiescent current: <50uA
6.Trigger mode: Continuous trigger
7.Output Mode: Inductive Output
8.Sensing distance: 5-7m
9.Sensing angle: 120 degrees
10.Induction mode: Passive
11.Time Range: Default setting 15s, Adjustable
1.With PIR motion sensor, it can detect human movement by detecting infrared ray emitted by human body.
2.120 degrees cone angle detecting range. High and stable sensitivity, effectively save energy and improve efficiency.
3.Intelligent sensing, it will automatically delay to shut down after the person leaves.
4.Widely used on the motion-activated lighting, for automatic lighting corridors, bathrooms, basements, warehouses,garages and other places.
5.USB port make it convenient and simple to standby. Power supply via mobile phone, charging bank or other devices with USB port, Output voltage is equal to input voltage, low power consumption.
6.Built-in temperature compensation chip, reducing the impact sensing distance by the temperature.
Specifications:
1.Operating voltage: 5V-24 DC
2.Output current: 5A
3.Working temperature: -15~38 Celsius
4.Function: Infrared human body sensor switch
5.Quiescent current: <50uA
6.Trigger mode: Continuous trigger
7.Output Mode: Inductive Output
8.Sensing distance: 5-7m
9.Sensing angle: 120 degrees
10.Induction mode: Passive
11.Time Range: Default setting 15s, Adjustable
