Specifications

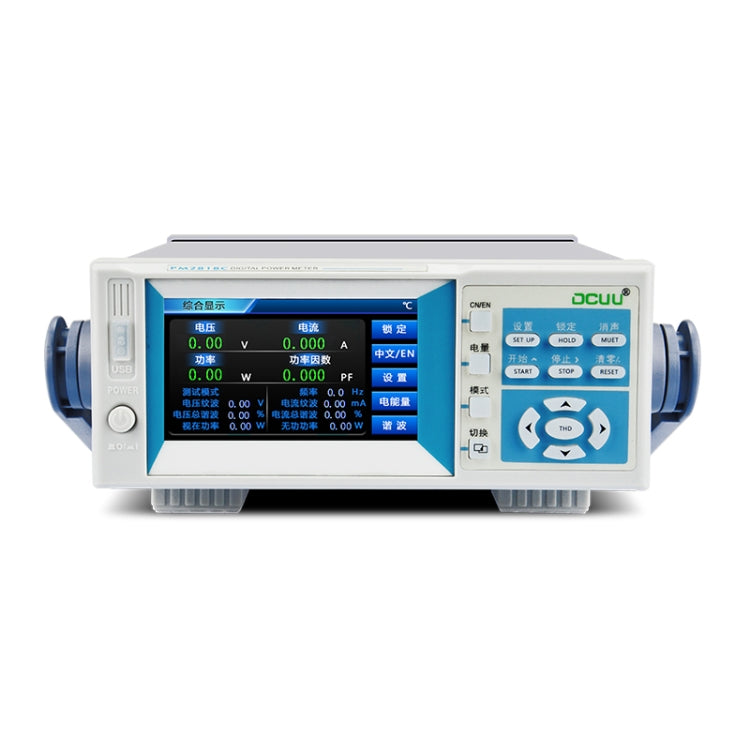

1. Display mode: 4.3-inch color liquid crystal display
2. Measurement data: Voltage, current, power, power factor, frequency, harmonics, electric energy, voltage ripple, current ripple, apparent power, reactive power, peak voltage, peak current, apparent power, reactive power, average power
3. Input voltage: 3.0V~600V
4. Current range: 5mA~40A
5. Range switching: Automatic
6. Measurement mode: AC
7. Power factor: -1.000~1.000
8. Frequency range: AC: 45Hz~65Hz, bandwidth 5Khz

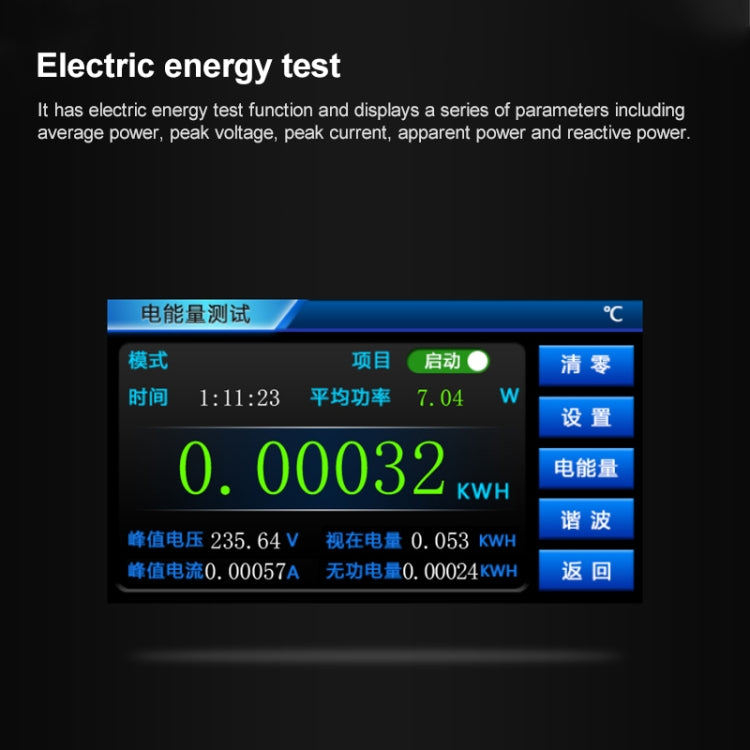

9. Electric energy: +/-0-999.999kWh
10. Harmonic analysis function: Can display total harmonics and 2~50th harmonic components
11. Measurement accuracy: +/- (0.4% reading + 0.1% range + 1 word)

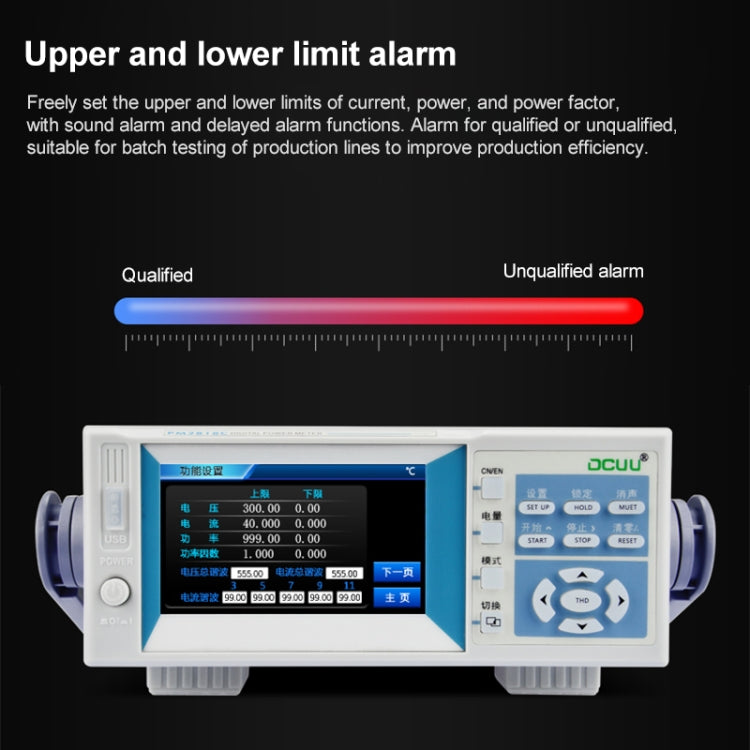

12. Upper and lower limit judgment function: With current and power upper and lower limit setting, judgment and alarm functions
13. Latch function: Use data fluctuations for easy reading
14. Measurement speed: 5 times/second
15. Volume/weight: Width x height x depth: 213 x 104 x 470mm; 3KG
Package List
1. Host x 1
2. Power cord x 1
3. Product manual x 1
4. Product certificate x 1
